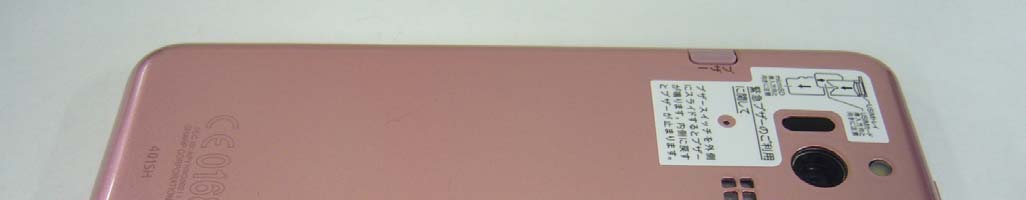

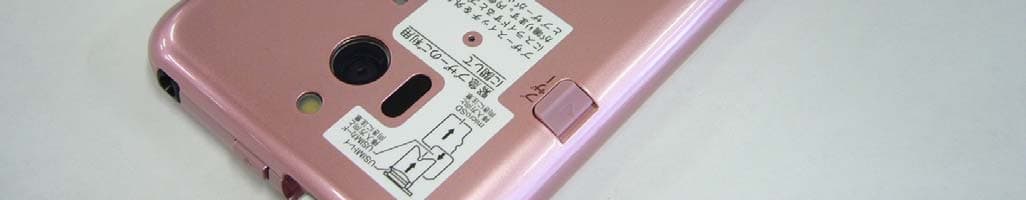

Model Name: 401SH Photo (External) FCC ID: APYHRO00211 1 / 2 Model Name: 401SH Photo (External) FCC ID: APYHRO00211 2 / 2

Model Name: 401SH Spec Label and Location FCC ID:APYHRO00211 ○Spec Label IMEI Label on IMEI Tray ① Barcode of IMEI ② IMEI (Production Serial Number) ③ Country of Manufacture ④ Products Code ⑤ Production Month & Year ⑤ FCC ID: APYHRO00211 ○Location Can be seen on back cover (appearance)Can be seen on IMEI tray IMEI Tray Back Back

Model Name: 401SH Photo (Internal) FCC ID: APYHRO00211 1 / 4 Model Name: 401SH Photo (Internal) FCC ID: APYHRO00211 2 / 4 Model Name: 401SH Photo (Internal) FCC ID: APYHRO00211 3 / 4 Model Name: 401SH Photo (Internal) FCC ID: APYHRO00211 4 / 4

Page 1 of 36 Technical document No. 23163-1301 JQA File No. :KL80140367R Issue Date :October 7, 2014 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Smart Phone Model No.:401SH Serial No.:004401/11/526943/9 FCC ID:APYHRO00211 Test Standard:CFR 47 FCC Rules and Regulations Part 2 Test Results:Passed Date of Test:September 9 ~ 13, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 2 of 36 Technical document No. 23163-1301 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Measurement System Diagram....................................................................................................... 6 7System Components........................................................................................................................ 7 8Measurement Process.....................................................................................................................10 9Measurement Uncertainties...........................................................................................................11 10Test Arrangement..........................................................................................................................13 11Tissue Verification..........................................................................................................................16 12System Performance Check............................................................................................................19 13RF Output Power Measurements...................................................................................................21 14SAR Measurements........................................................................................................................24 15Test Setup Photographs.................................................................................................................30 16Test Instruments............................................................................................................................35 17Appendix.........................................................................................................................................36 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 3 of 36 Technical document No. 23163-1301 1Description of the Device Under Test (DUT) 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Smart Phone 3.Model No.:401SH 4.Serial No.:004401/11/526943/9 5.Product Type:Pre-production 6.Date of Manufacture:July, 2014 7.Transmitting Frequency:PCS 1900 (1850 MHz – 1910 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack UBATIA251AFN1 (2400mAh) 9.Power Rating:4.0VDC 10.EUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):24(E), 15.247 14.EUT Authorization:Certification 15.Received Date of DUT:September 9, 2014 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 4 of 36 Technical document No. 23163-1301 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 2 – Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Test Configuration Reported 1 g SAR (W/kg) Limit (W/kg) LicensedDTSU-NII Head0.430.25N/A 1.6 Body-worn Accessory0.450.41N/A Wireless Router (Hotspot)0.450.41N/A Simultaneous Transmission0.860.86N/A The test results arepassedfor exposure limits specified in ANSI/IEEE Std. C95.1–1991. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement inst…

Text truncated - open the document above for the full version.

Appendix 1 – System Performance Check Plots Date: 9/9/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.422 S/m; ε r = 39.375; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.5 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.71 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.82 W/kg; SAR(10 g) = 5.17 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.1 W/kg = 10.45 dBW/kg Date: 9/10/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.551 S/m; ε r = 52.939; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.7 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.91 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 15.0 W/kg SAR(1 g) = 9.49 W/kg; SAR(10 g) = 5.17 W/kg Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 10.25 dBW/kg Date: 9/12/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.842 S/m; ε r = 38.782; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.4, 7.4, 7.4); Calibrated: 5/9/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.8 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.4 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 27.5 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.15 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg = 13.12 dBW/kg Date: 9/13/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.94 S/m; ε r = 52.379; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.73, 7.73, 7.73); Calibrated: 5/9/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 17.7 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.06 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 24.6 W/kg SAR(1 g) = 12.2 W/kg; SAR(10 g) = 5.79 W/kg Maximum value of SAR (measured) = 18.6 W/kg 0 dB = 18.6 W/kg = 12.70 dBW/kg

Appendix 2 – Highest SAR Test Plots Date: 9/9/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Smart Phone; Type: 401SH; Serial: 004401115269439 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.403 S/m; ε r = 39.446; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Right Touched/Area Scan (13x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.371 W/kg Head/Right Touched/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.30 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.553 W/kg SAR(1 g) = 0.355 W/kg; SAR(10 g) = 0.219 W/kg Maximum value of SAR (measured) = 0.384 W/kg 0 dB = 0.384 W/kg = -4.16 dBW/kg Plot No.1 Date: 9/10/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Smart Phone; Type: 401SH; Serial: 004401115269439 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.533 S/m; ε r = 52.992; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.390 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.39 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.508 W/kg SAR(1 g) = 0.370 W/kg; SAR(10 g) = 0.240 W/kg Maximum value of SAR (measured) = 0.399 W/kg 0 dB = 0.399 W/kg = -3.99 dBW/kg Plot No.2 Date: 9/12/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 1ch / 802.11b 1Mbps DUT: Smart Phone; Type: 401SH; Serial: 004401115269439 Frequency: 2412 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2412 MHz; σ = 1.798 S/m; ε r = 38.922; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.4, 7.4, 7.4); Calibrated: 5/9/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Right Touched/Area Scan (14x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.306 W/kg Head/Right Touched/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.464 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.420 W/kg SAR(1 g) = 0.206 W/kg; SAR(10 g) = 0.097 W/kg Maximum value of SAR (measured) = 0.303 W/kg 0 dB = 0.303 W/kg = -5.19 dBW/kg Plot No.3 Date: 9/13/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 1ch / 802.11b 1Mbps DUT: Smart Phone; Type: 401SH; Serial: 004401115269439 Frequency: 2412 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2412 MHz; σ = 1.893 S/m; ε r = 52.446; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.73, 7.73, 7.73); Calibrated: 5/9/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (9x14x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.498 W/kg Body/Rear/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.43 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.667 W/kg SAR(1 g) = 0.342 W/kg; SAR(10 g) = 0.157 W/kg Maximum value of SAR (measured) = 0.513 W/kg 0 dB = 0.513 W/kg = -2.90 dBW/kg Plot No.4

Appendix 3 – Dosimetric E-Field Probe Calibration Data

Appendix 4 – System Validation Dipole Calibration Data

Page 1 of 86 Technical document No. 23199-1201 JQA File No. :KL80140370 Issue Date :September 26, 2014 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Smart Phone Model No.:401SH SERIAL NO.:004401/11/526931/4 004401/11/526935/5 FCC ID:APYHRO00211 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results:Passed Date of Test:September 10 ~ 18, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 2 of 86 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Details of the Equipment Under Test............................................................................................. 6 7Details of the Test Item................................................................................................................... 9 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 3 of 86 Technical document No. 23199-1201 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Smart Phone 3.Model No.:401SH 4.Serial No.:004401/11/526931/4 :004401/11/526935/5 5.Product Type:Pre-production 6.Date of Manufacture:July, 2014 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA251AFN1 2400mAh) 8.EUT Grounding:None 9.Transmitting Frequency:WLAN: 2412.0 MHz(01CH) –2462.0MHz(11CH) :Bluetooth LE: 2402.0 MHz(00CH) – 2480.0MHz(39CH) 10.Receiving Frequency:WLAN: 2412.0 MHz(01CH) –2462.0MHz(11CH) :Bluetooth LE: 2402.0 MHz(00CH) – 2480.0MHz(39CH) 11.Max. RF Output Power:17.48dBm(Measure Value of IEEE802.11b) :20.87dBm(Measure Value of IEEE802.11g) :21.03dBm(Measure Value of IEEE802.11n) :5.00dBm(Measure Value of Bluetooth LE) 12.Antenna Type:Inverted-L Type Antenna (Integral) 13.Antenna Gain:0 dBi 14.Category:DTS 15.EUT Authorization:Certification 16.Received Date of EUT:September 9, 2014 17.Channel Plan WLAN: The carrier spacing is 5 MHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz)= 2407.0 + 5*n Receiving Frequency (in MHz) = 2407.0 + 5*n where, n : channel number (1 ≤ n ≤ 11) Bluetooth Low Energy Mode: The carrier spacing is 2 MHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz)= 2402.0 + 2*n Receiving Frequency (in MHz) = 2402.0 + 2*n where, n : channel number (0 ≤ n ≤ 39) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 4 of 86 Technical document No. 23199-1201 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement inst…

Text truncated - open the document above for the full version.

JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 83 of 86 Technical document No. 23199-1201 7.10Test Setup (Photographs) 7.10.1AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 84 of 86 Technical document No. 23199-1201 7.10.2Radiated Emission – Front View– – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 85 of 86 Technical document No. 23199-1201 – X axis – – Y axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140370Issue Date : September 26, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 86 of 86 Technical document No. 23199-1201 – Z axis – JAPAN QUALITY ASSURANCE ORGANIZATION

JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 30 of 36 Technical document No. 23163-1301 15Test Setup Photographs 15.1Left Head – Cheek-Touch Position – – Ear-Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 31 of 36 Technical document No. 23163-1301 15.2Right Head – Cheek-Touch Position – – Ear-Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 32 of 36 Technical document No. 23163-1301 15.3Body-worn Accessory and Hotspot mode – Rear – – Front – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 33 of 36 Technical document No. 23163-1301 – Top Edge – – Bottom Edge – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140367RIssue Date : October 7, 2014 Model No.: 401SHFCC ID: APYHRO00211 Standard: CFR 47 FCC Rules and Regulations Part 2 P…
