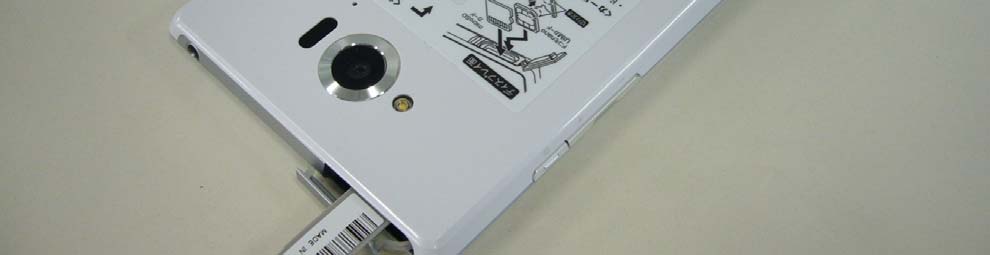

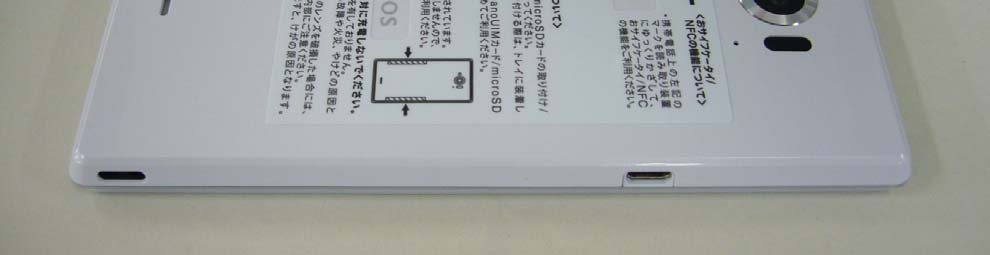

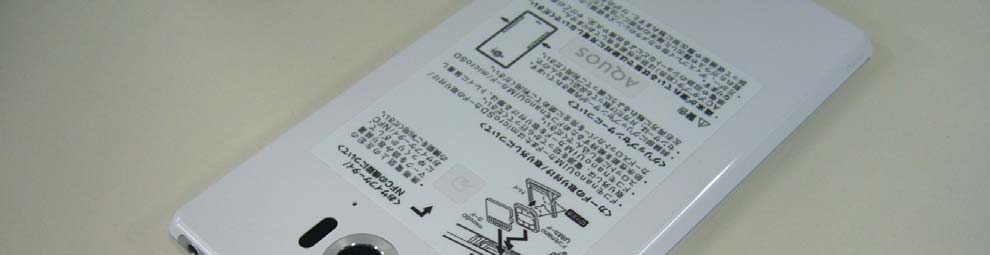

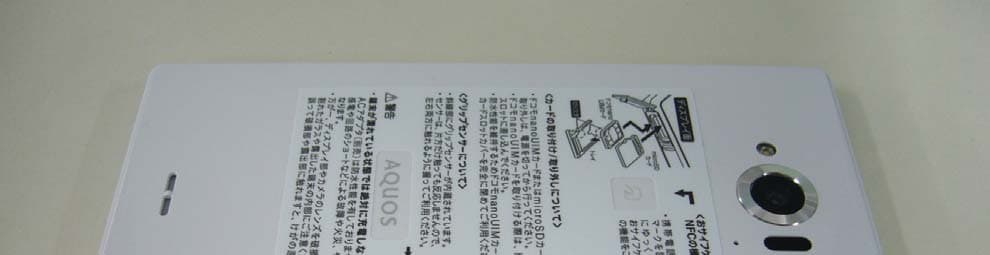

Photo (External) FCC ID: APYHRO00212 1 / 31 / 3 Photo (External) FCC ID: APYHRO00212 2 / 32 / 3 Photo (External) FCC ID: APYHRO00212 3 / 33 / 3

Spec Label and Location FCC ID:APYHRO00212 ○Spec Label IMEI Label on IMEI Tray (Back) ① Barcode of IMEI ② IMEI (Production Serial Number) ③ Production Year & Month ④ CtfMft ④ Country of Manufacture FCC ID on IMEI Tray (Fromt) FCC ID: APYHRO00212 ○L i○Location Can be seen on IMEI Tray. Also described on the user manual (see next page) Fromt IMEI Tray 94 Appendix/Index SH-01G_E_12.fm [94/96] 4. Consult the dealer or an experienced radio/TV technician for help. 5 GHz WLAN Operation in USA Within the 5.15-5.25 GHz band, UNII devices are restricted to indoor operations to reduce any potential for harmful interference to co-channel Mobile Satellite Services (MSS) operations. FCC RF Exposure Information Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model handset when tested for use at the ear is 0.49 W/kg and when worn on the body, as described in this user guide, is 0.97 W/kg. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines. Please use an accessory designated for this product or an accessory which contains no metal and which positions the handset a minimum of 1.5 cm from the body. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. The FCC has granted an Equipment Authorization for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found under the Display Grant section of (http://transition.fcc.gov/oet/ea/fccid/) after searching on FCC ID APYHRO00212. Additional information on Specific Absorption Rates (SAR) can be found on the FCC website at (http://www.fcc.gov/encyclopedia/ radio-frequency-safety). FCC ID Location The FCC ID for this device can be found on the plate stowed near the docomo nano UIM card slot. Please pull out the plate when you want to see the FCC ID. The Japan Export Administration Regulations (“Foreign Exchange and Foreign Trade Act” and its related laws) may be applied to this product and its accessories under certain conditions. The Export Administration Regulations may also be applied. To export or reexport the handset and its accessories, conduct all legally required procedures at your own risk and expense. For details on the procedures, contact the Ministry of Economy, Trade and Industry or the US Department of Commerce. Data with third party copyrights such as text, images, music and software that is downloaded via Internet websites, acquired by TV, video, etc. or shot by the handset cannot be duplicated, altered or publicly transmitted without rightful party’s consent. Only duplicating, quoting, etc. for personal use are permitted under the Copyright Act. Even if for personal use, filming and recording may be prohibited for stage performances, shows, exhibitions, etc. Also, shooting another’s image or posting another’s image on Internet websites without his/her consent may constitute a violation of one’s right to his/her image. “FOMA”, “dmenu”, “dmarket”, “おサイフケータイ”, “ToruCa”, “mopera U”, “Deco-mail”, “i-appli”, “i-mode”, “iD”, “WORLD WING”, “WORLD CALL”, “ｉコンシェル”, “sp-mode”, “Xi”, “++あ んしん遠隔サポート”, “eトリセツ”, “しゃべってコンシェル”, the “iD” logo and the “Xi” logo are trademarks or registered trademarks of NTT DOCOMO, INC. “Catch Phone (Call waiting service)” is a registered trademark of Nippon Telegraph and Telephone Corporation. Microsoft ® , Windows ® , Windows Media ® , Windows Vista ® , PowerPoint ® and Exchange ® are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft Excel and Microsoft Word are product names of Microsoft Corporation in the U.S.A. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners. QR code is a registered trademark of Denso Wave Inc. microSD Logo, microSDHC Logo and microSDXC Logo are trademarks of SD-3C, LLC. The handset features LCFONT, developed by Sharp Corporation, to make the LCD easier to view and read. LCフォン ト/LCFONT and are registered trademarks of Sharp Corporation. OBEX ™ is a trademark of Infrared Data Association ® . a is a registered trademark of FeliCa Networks, Inc. Export Administration Regulations Intellectual Property Right Copyrights and rights of portrait Registered trademarks and trademarks SH-01G_E.book 94 ページ ２０１４年９月３０日 火曜日 午後１２時７分

Photo (Internal) FCC ID: APYHRO00212 1 / 51 / 5 Photo (Internal) FCC ID: APYHRO00212 2 / 52 / 5 Photo (Internal) FCC ID: APYHRO00212 3 / 53 / 5 Photo (Internal) FCC ID: APYHRO00212 4 / 54 / 5 Photo (Internal) FCC ID: APYHRO00212 5 / 55 / 5

Page 1 of 70 Technical document No. 23199-1201 JQA File No. :KL80140356 Issue Date :September 30, 2014 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Smart Phone Model No.:SH-01G SERIAL NO.:004401115221265 004401115221273 FCC ID:APYHRO00212 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results:Passed Date of Test:September 6 ~ 20, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 2 of 70 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Details of the Equipment Under Test............................................................................................. 6 7Details of the Test Item................................................................................................................... 9 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 3 of 70 Technical document No. 23199-1201 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Smart Phone 3.Model No.:SH-01G 4.Serial No.:004401115221265 :004401115221273 5.Product Type:Pre-production 6.Date of Manufacture:August, 2014 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA248AFN1 3300mAh) 8.EUT Grounding:None 9.Transmitting Frequency:2402.0 MHz(00CH) – 2480.0MHz(78CH) 10.Receiving Frequency:2402.0 MHz(00CH) – 2480.0MHz(78CH) 11.Max. RF Output Power:5.67dBm(Measure Value) 12.Antenna Type:Inverted-L Type Antenna (Integral) 13.Antenna Gain:0 dBi 14.Category:Spread Spectrum Transmitter(FHSS) 15.EUT Authorization:Certification 16.Received Date of EUT:September 5, 2014 17.Channel Plan The carrier spacing is 1 MHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Normal Mode: Transmitting Frequency (in MHz)= 2402.0 + n Receiving Frequency (in MHz) = 2402.0 + n where, n : channel number (0 ≤ n ≤ 78) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 4 of 70 Technical document No. 23199-1201 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. -No deviations were employed from the applied standard. -No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by:Tested by: Shigeru KinoshitaShigeru Osawa Deputy ManagerDeputy Manager JQA KITA-KANSAI Testing CenterJQA KITA-KANSAI Testing Center SAITO EMC BranchSAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 5 of 70 Technical document No. 23…

Text truncated - open the document above for the full version.

JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 67 of 70 Technical document No. 23199-1201 7.10Test Setup (Photographs) 7.10.1AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 68 of 70 Technical document No. 23199-1201 7.10.2Radiated Emission – Front View– – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 69 of 70 Technical document No. 23199-1201 – X axis – – Y axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140356Issue Date : September 30, 2014 Model No.: SH-01GFCC ID: APYHRO00212 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 70 of 70 Technical document No. 23199-1201 – Z axis – JAPAN QUALITY ASSURANCE ORGANIZATION
