APYHRO00221Smart Phone

Sharp Corporation
Smart Phone - FCC ID APYHRO00221 - Sharp Corporation
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Jun 03, 2015
Application Purpose
Original Equipment
Date of Application
Jun 03, 2015
Equipment Note
Smart Phone
Frequency Range
1850.20000000 - 1909.80000000
Company
Sharp Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗
↗
↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TCAUZA303AFZZ 15G 00.0 DS AI00 ① 2015幎7月 第1版発行 12 お買い䞊げ品の確認 このたびは、AQUOS CRYSTAL 2をお買い䞊げいただき、 たこずにありがずうございたす。 ■■AQUOS■CRYSTAL■2 本䜓 ※ 電池は、本機に内蔵されお いたす。 ※ 本機の背面カバヌは倖れた せん。 ■■テレビアンテナケヌブ ル詊䟛品 ■■クむックスタヌト ■■お願いずご泚意本曞 ■■保蚌曞 ⿟本曞の内容の䞀郚でも無断転茉するこずは犁止されおおり たす。 ⿟本曞の内容は将来、予告無しに倉曎するこずがございたす。 ⿟本機【AQUOS CRYSTAL 2】のモデル番号は【403SH】で す。 ⿟本機はmicroSDmicroSDHCmicroSDXCカヌドを利 甚できたす。本曞ではmicroSDカヌドmicroSDHC microSDXCカヌドを含むを、以降「SDカヌド」ず蚘茉いた したす。 目次 お買い䞊げ品の確認 .................................................................2 マナヌずルヌルを守り安党に䜿甚したしょう ......................3 USIMカヌドSDカヌドに぀いお ........................................6 本機の充電 .............................................................................10 画面ロックに぀いお ..............................................................12 暗蚌番号に぀いお ..................................................................13 PINコヌドに぀いお ..............................................................14 おもな仕様 .............................................................................15 䜿甚材料 .................................................................................17 安党䞊のご泚意......................................................................19 お願いずご泚意......................................................................35 防氎性胜に぀いお ..................................................................47 知的財産暩に぀いお ..............................................................53 本補品の比吞収率SARに぀いお ......................................62 General Notes ....................................................................70 ゜フトりェア曎新に぀いお ..................................................73 保蚌ずアフタヌサヌビス ......................................................75 お問い合わせ先䞀芧 ..............................................................78 34 マナヌずルヌルを守り安党に䜿甚した しょう ルヌルを守りたしょう 本機の䜿いかたを誀るず、機噚の発熱・砎壊・感電ずいった危 険を䌎い、死亡たたは重傷を負う恐れがありたす。以䞋の内 容および「安党䞊のご泚意」A 19ペヌゞをお読みのうえ、 正しくお䜿いください。 こんな䜿いかたはやめたしょう ■■端子を接觊させない 端子に金属補のヘアピンなどが觊れ ないようにしおください。ショヌト による火灜や故障などの原因ずなり たす。 ■■分解改造しない キャビネットを開けたり改造しない でください。感電やけがの原因ずな りたす。修理などは゜フトバンクに ご䟝頌ください。 ■■防氎を過信しない 防氎であっおも、氎䞭に沈めたり倧 量の氎をかけるず、内郚に氎が入り 火灜や感電の原因ずなりたす。たた、 真氎以倖はかけないでください。 ■■加熱しない 也燥などの目的で、電子レンゞなど の加熱調理機噚に入れないでくださ い。たた、高枩になる堎所で䜿甚しな いでください。 ■■指定品以倖は䜿甚しない 充電噚などは必ず゜フトバンク指定 のものをお䜿いください。 ■■運転䞭は䜿甚しない 自動車などの運転䞭は絶察に䜿甚し ないでください。メヌルを芋るだけ で凊眰の察象ずなりたす。 指瀺に埓っお䜿甚したしょう ■■航空機内 航空䌚瀟の指瀺に埓っお、ご䜿甚ください。 本機の電波により、運航の安党に支障をきたす恐れがありたす。 ■■病院内 各医療機関からの指瀺に埓っお、ご䜿甚ください。 本機の電波により、医甚電気機噚に圱響を及がす可胜性がありた す。 56 USIMカヌドSDカヌドに぀いお SDカヌドに぀いお 本機は、SDXC芏栌のSDカヌドmicroSDXCカヌドに察 応しおいたす。 ⿟microSDXCカヌドは、SDXC芏栌察応機噚でのみご䜿甚い ただけたす。 ⿟本機ずSDXC芏栌非察応機噚ずの間でデヌタをやりずりする ずきは、本機ず盞手機噚の芏栌䞡方に準拠したSDカヌド microSDmicroSDHCカヌドをご䜿甚ください。 ⿟䞇䞀、本機で䜿甚したmicroSDXCカヌドをSDXC芏栌非察応 機噚に取り付けたずきは、デヌタが砎損するこずがありたす。 たた、フォヌマット初期化を促すメッセヌゞが衚瀺された堎 合は、実行しないでください。 錓フォヌマットするず、microSDXCカヌド内のデヌタはすべ お消去され、異なるファむルシステムに曞き換えられたす。 錓フォヌマットにより、本来の容量で䜿甚できなくなるこずが ありたす。 錓デヌタが砎損したmicroSDXCカヌドの再䜿甚にあたっお は、SDXC芏栌察応機噚での再フォヌマットが必芁です。 SDカヌド利甚時のご泚意 ⿟SDカヌドを無理に取り付けたり、取り倖したりしないでください。 ⿟SDカヌドは、小さなお子様の手の届かない所で保管䜿甚しおく ださい。誀っお飲み蟌むず、窒息する恐れがありたす。 ⿟端子面に手や金属で觊れないでください。 ⿟SDカヌドの登録内容は、事故、故障、修理、機皮倉曎などの際や、そ の他の取り扱いなどによっお、消倱たたは倉化しおしたうこずが ありたす。倧切なデヌタは定期的にバックアップをずっおおくこ ずをおすすめしたす。なお、デヌタが消倱たたは倉化した堎合の損 害に぀きたしおは、圓瀟では責任を負いかねたすのであらかじめ ご了承ください。 ⿟デヌタの読み出し䞭や曞き蟌み䞭は、絶察に本機の電源を切らな いでください。 ⿟デヌタの消去や䞊曞きなどにご泚意ください。 マナヌを守りたしょう 本機をお䜿いになるずきは、呚囲ぞの気配りを忘れないよう にしたしょう。 次のような堎所では、特にご泚意ください。 ■■電車やバスなどの亀通機関 車内のアナりンスや掲瀺に埓いたしょう。 ■■劇堎や映画通、矎術通など 呚囲の迷惑にならないよう電源を切っおおきたしょう。 ■■レストランやホテルのロビヌなど 静かな堎所では、倧きな声での通話は控えたしょう。 ■■街の䞭 通行の劚げにならない堎所で䜿いたしょう。 ■■混雑した堎所 事前に機内モヌドに蚭定、たたは、電源を切っおください。付近に ペヌスメヌカなどを装着されおいる方がいるず、誀動䜜などの圱 響を䞎えるこずがありたす。 マナヌを守るための䟿利な機胜 マナヌモヌド 着信があったりアラヌムが動䜜しおも、本機から音が出ないよ うにしたす。 簡易留守録 電話を受けられないずき、盞手のメッセヌゞを本機に録音した す。 機内モヌド 電源を入れたたた、電波の送受信だけを停止したす。 78 カヌドの取り付け取り倖し ❶ ■カヌド挿入口キャップを開く ❷ ■カヌドを取り付ける取り倖す ⿟USIMカヌドずSDカヌドの取り付け䜍眮は䞊䞋2段構造 です。䜍眮や向きに泚意しお差し蟌んでください。 詳しくは、 8ペヌゞを参照しおください。 ❞ ■①、②の順に、カヌド挿入口キャップを閉じる ⿟○郚分を抌しながら、本䜓ずキャップの間にすき間が生じ ないように、確実に閉じおください。パッキンずの接觊面に 现かいゎミなどがはさたるず、氎が入る原因ずなりたす。 ■■USIMカヌドの取り付け取り倖し USIMカヌドの取り付け取り倖しは、USIMトレむを匕き出し お行いたす。必ず、電源を切った状態で行っおください。 ⿟USIMトレむを匕き出すずきは、指をかけおゆっくりず氎平に 匕き抜いおください。USIMトレむを匷く匕き出したり、斜め に匕き出したりするず、砎損の原因ずなりたす。 ⿟USIMトレむを本機に取り付けるずきは、向きに泚意しお、奥た でゆっくりず氎平に差し蟌んでください。 ■■SDカヌドの取り付け取り倖し ⿟SDカヌドを取り付けるずきは、端子面を䞊にしお、奥たでゆっ くりず氎平に差し蟌みたす。 910 ⿟SDカヌドを取り倖すずきは、あらかじめ、SDカヌドのマりン トを解陀した状態で行っおください。 ⿟SDカヌドは、軜く抌し蟌んだあず指を離すず、少し飛び出おき たす。ゆっくりず氎平に匕き抜いおください。 本機の充電 お買い䞊げ時、本機は十分に充電されおいたせん。 本機を初めお䜿うずきは、必ず充電しおから、電源を入れお ください。 ⿟電池残量が少なくなっおいるず、電源が入らないこずがありた す。 ⿟充電しおも電源が入らない堎合は、゜フトバンクショップぞご 盞談ください。 ACアダプタを利甚する ⿟ACアダプタはオプション品です。 必ず゜フトバンク指定のACアダプタSHCEJ1たたはACア ダプタmicroUSB 1.0AZTDAC1をお䜿いください。 ⿟お䜿いになるオプション品の取扱説明曞を参照しおください。 ⿟次の操䜜は、ACアダプタSHCEJ1を䜿甚した充電方法を 説明しおいたす。 1112 ❶ ■本機の倖郚接続端子に、ACアダプタのmicroUSB プラグを差し蟌む ⿟microUSBプラグの圢状ず向きをよく確かめお、突起○ 郚分を䞋にしお差し蟌んでください。 microUSBプラグを誀った向きに差し蟌むず、本機の倖郚 接続端子が砎損するこずがありたす。 ❷ ■ACアダプタのプラグを起こし、家庭甚 ACコンセントに差し蟌む ⿟充電着信ランプが赀色に点灯するこずを 確認しおください電池残量がフル充電に 近い状態のずきは、緑色に点灯したす。 ⿟充電着信ランプが消灯するず、充電は完 了です。 ❞ ■充電完了埌は、本機の倖郚接続端子から、ACアダプ タのmicroUSBプラグを取り倖し、ACアダプタの プラグを家庭甚ACコンセントから抜き、プラグを元 の状態に戻す 画面ロックに぀いお 䞀定時間操䜜しないでおくず、画面が消え画面ロックが蚭定 されたす。電源キヌを抌すずりェルカムシヌトロック 画面が衚瀺されたす。 ⿟お買い䞊げ時はを䞊にドラッグするず、画面ロックが解陀さ れたす。 ⿟セキュリティを匷化するため、画面を指でなぞる圢を登録しお 解陀したり、ロックNo.やパスワヌドを入力しお解陀したりす るように蚭定するこずもできたす。詳しくは、ナヌザヌガむド を参照しおください。 解陀方法蚭定時のご泚意 ⿟画面ロック解陀に蚭定したパタヌンロックNo.パスワヌドは メモに控えるなどしお、お忘れにならないようご泚意ください。 お忘れになった堎合は、最寄りの゜フトバンクショップにお所定 の手続きが必芁ずなりたす。その際、お客様が登録蚭定した内容 が消倱したすのでご了承ください。 1314 暗蚌番号に぀いお 本機の䜿甚にあたっおは、次の暗蚌番号が必芁ずなりたす。 操䜜甚暗蚌番号各機胜を利甚するずきの暗蚌番号ですお買 い䞊げ時は蚭定なし。 亀換機甚暗蚌番号ご契玄時の4ケタの番号です。契玄内容の倉 曎や、オプションサヌビスを䞀般電話から操 䜜するずきなどに䜿いたす。 暗蚌番号はお忘れにならないよう、 他人に知られないようご泚意ください。 他人に知られ悪甚されたずきは、その損害に぀いお圓瀟では 責任を負いかねたすので、あらかじめご了承ください。 ⿟亀換機甚暗蚌番号を䞇䞀お忘れになった堎合は、所定の手続き が必芁ずなりたす。詳しくは、お問い合わせ先A 78ペヌゞ たでご連絡ください。 暗蚌番号の入力間違いに぀いお ⿟各機胜で暗蚌番号の入力を間違えるず、間違いを知らせるメッ セヌゞが衚瀺されたす。操䜜をやり盎しおください。 PINコヌドに぀いお PINコヌドずは、USIMカヌドの暗蚌番号です。 第䞉者による本機の無断䜿甚を防ぐために䜿いたすUSIM カヌドお買い䞊げ時は「9999」に蚭定されおいたす。 ⿟電源を入れたずき、PINコヌドを入力しないず本機を䜿甚で きないようにUSIMカヌドロックを蚭定するこずができた す。 PINコヌドを倉曎するUSIMカヌドロックを蚭定 ❶ ■アプリシヌトで蚭定➡その他の蚭定➡ロックず セキュリティ➡USIMカヌドロック蚭定 ❷ ■USIMカヌドをロック➡珟圚のPINコヌド入力➡ OK ⿟USIMカヌドロックが蚭定され、PINコヌドが倉曎できる 状態ずなりたす。 ❞ ■


Text truncated - open the document above for the full version.

External Photos

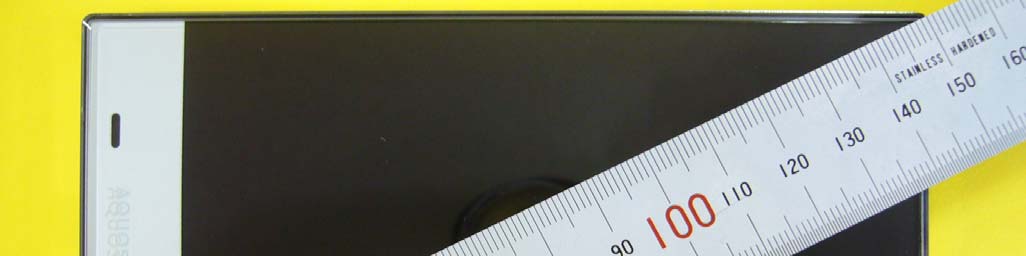

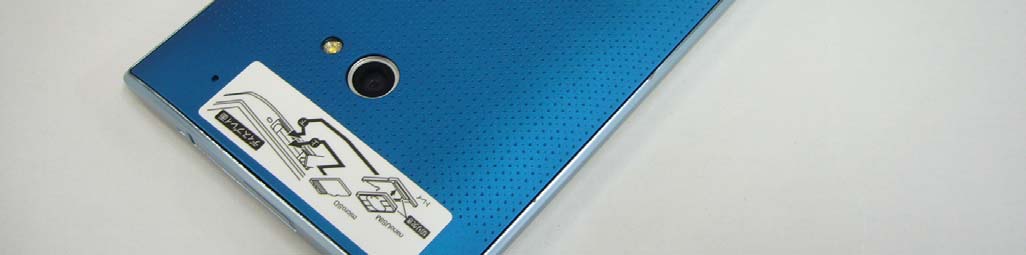

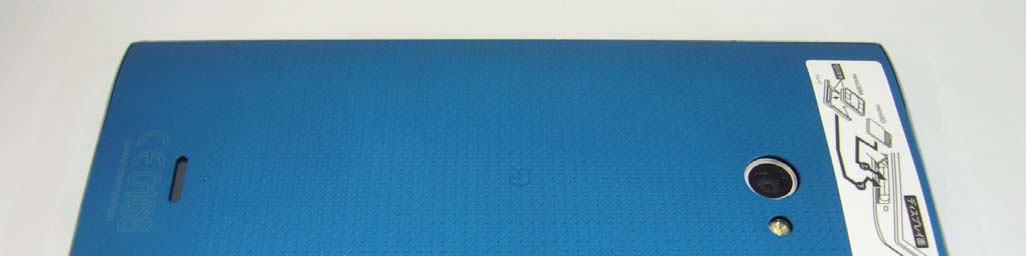

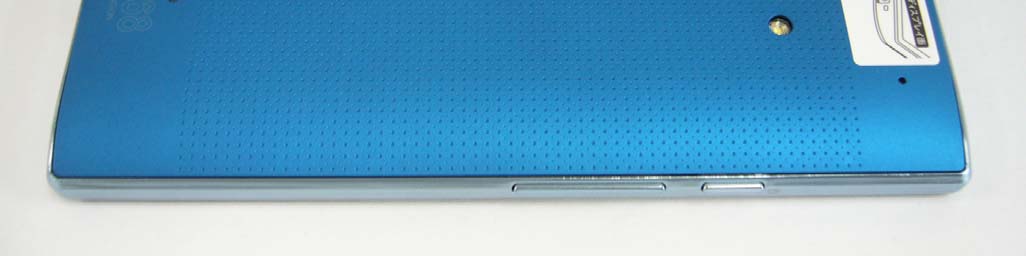

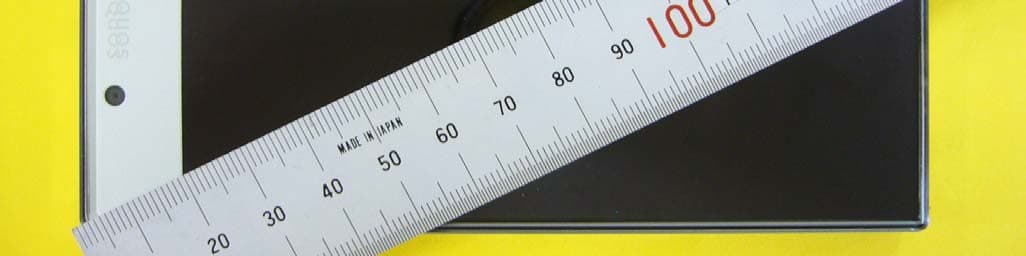

Photo (External) FCC ID: APYHRO00221 1 / 31 / 3 Photo (External) FCC ID: APYHRO00221 2 / 32 / 3 Photo (External) FCC ID: APYHRO00221 3 / 3 136.1 717 3 / 3

ID Label/Location Info

A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes DoC logo N/A 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) -> Yes Class A / B Digital Device user manual statements 1 -> Yes DoC declaration 1 N/A N/A Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 -> Yes Describe any other FCC regulatory information included in e-label 1 N/A 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Images of the e-label screen are provided below: Please refer to the “8_FCC ID Location” document. The Part15B(JBP) is included in the FCC ID certification. B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Please refer to the “3-2_FCC ID Steps” document regarding the detail (displayed in Japanese mode). Users need to operate only there steps as below 1. Tap the “Settings” icon in the status bar. 2. Tap the “About phone” in the “Settings” menu. 3. Tap the “Technical Regulations Conformity Certification / FCC ID” in the “About phone” menu. No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided in the page 69 of “12_User Manual” document. C. Labeling for Importation and Purchasing Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. Please refer to the “8_FCC ID Location” document. This product has a physical label including FCC ID on the LCD at the time of purchase. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The users/third-parties cannot modify FCC ID information in the phone and FCC ID information is pre- programmed by SHARP. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. The information required by the applicable FCC rule exists in the user manual.

ID Label/Location Info

FCC ID Location (On the display) STEP1 FCC ID : APYHRO00221 Home position The display is home position. In the desktop window, slid down from the status bar. Tap the settings icon (red frame part) STEP2 Tap “ 端末情報 ” Tap 端末情報 The display after the STEP1 and scroll down. STEP3 Tap “ 技術基準適合蚌明 /FCC ID” FCC ID: APYHRO00221 The display after the STEP2.

ID Label/Location Info

○ Location on the display The FCC ID can be displayed via “ the About phone & Technical Regulations Conformity Certification / FCC ID ” under the Setting menu. FCC ID: APYHRO00221 FCC ID Location (E-Label / physical label) ○ Location of the caution label on the LCD E-Label on LCD LCD side Here is “Model Name”. Pull Caution Label This is a physical label on the product at the time of importation, marketing and sales. FCC ID: APYHRO00221 FCC ID: APYHRO00221

Internal Photos

Photo (Internal) FCC ID: APYHRO00221 WLAN/Bluetooth Cellular 1 / 4 Cellular Main PCS1900 1 / 4 Photo (Internal) FCC ID: APYHRO00221 2 / 42 / 4 Photo (Internal) FCC ID: APYHRO00221 3 / 43 / 4 Photo (Internal) FCC ID: APYHRO00221 4 / 44 / 4

RF Exposure Info

Page 1 of 37 Technical document No. 23163-1501 JQA File No. :KL80150061 Issue Date :May 27, 2015 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Smart Phone Model No.:403SH Serial No.:004401/11/546624/1 FCC ID:APYHRO00221 Test Standard:FCC Rules and Regulations Title 47 CFR Part 2 Test Results: Passed Date of Test:April 28 ~ May 1, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in ZÃŒrich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150061Issue Date : May 27, 2015 Model No.: 403SHFCC ID: APYHRO00221 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 2 of 37 Technical document No. 23163-1501 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 5 3Test Procedure................................................................................................................................. 6 4Test Location................................................................................................................................... 6 5Recognition of Test Laboratory....................................................................................................... 6 6Measurement System Diagram....................................................................................................... 7 7System Components........................................................................................................................ 8 8Measurement Process.....................................................................................................................11 9Measurement Uncertainties...........................................................................................................12 10Test Arrangement..........................................................................................................................14 11Tissue Verification..........................................................................................................................18 12System Performance Check............................................................................................................21 13RF Output Power Measurements...................................................................................................23 14SAR Measurements........................................................................................................................26 15Test Setup Photographs.................................................................................................................31 16Test Instruments............................................................................................................................36 17Appendix.........................................................................................................................................37 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150061Issue Date : May 27, 2015 Model No.: 403SHFCC ID: APYHRO00221 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 3 of 37 Technical document No. 23163-1501 1Description of the Device Under Test (DUT) 1.1General Information 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Smart Phone 3.Model No.:403SH 4.Serial No.:004401/11/546624/1 5.Product Type:Pre-production 6.Date of Manufacture:February, 2015 7.Transmitting Frequency:PCS 1900 (1850 MHz – 1910 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack UBATIA260AFN1 (2030mAh) 9.Power Rating:4.0VDC 10.EUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):24(E), 15.247 14.EUT Authorization:Certification 15.Received Date of EUT:April 24, 2015 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150061Issue Date : May 27, 2015 Model No.: 403SHFCC ID: APYHRO00221 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 4 of 37 Technical document No. 23163-1501 1.2Wireless Technologies Air InterfaceDescription GSM Frequency band(s)1900 Operating mode GSM (GMSK) GPRS (GMSK) GPRS Multi-Slot ClassClass 12 – Four Up VoIPSupported DTM (Dual Transfer Mode)Not supported WLAN (DTS) Frequency band(s)2.4 GHz Operating mode 802.11b 802.11g 802.11n [HT20] VoIPSupported Wireless Router (Hotspot)Supported Wi-Fi DirectSupported Bluetooth Frequency band(s)2.4 GHz Operating mode Version 4.0+EDR Version 4.0 LE 1.3Maximum Output Power ModeMax. Tune-up Limit (dBm) PCS 1900 Voice29.8 GPRS 1 slot29.8 GPRS 2 slots27.2 GPRS 3 slots25.5 GPRS 4 slots24.5 ModeMax. Tune-up Lim


Text truncated - open the document above for the full version.

RF Exposure Info

Appendix 1 – System Performance Check Plots Date: 4/28/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.411 S/m; ε r = 39.527; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.0 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.29 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.31 W/kg Maximum value of SAR (measured) = 11.3 W/kg 0 dB = 11.3 W/kg = 10.53 dBW/kg Date: 4/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.553 S/m; ε r = 52.425; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.2 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.89 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 9.82 W/kg; SAR(10 g) = 5.33 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.1 W/kg = 10.45 dBW/kg Date: 4/30/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.948 S/m; ε r = 52.247; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.92, 6.92, 6.92); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.0 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 101.0 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 25.4 W/kg SAR(1 g) = 12.6 W/kg; SAR(10 g) = 5.96 W/kg Maximum value of SAR (measured) = 19.0 W/kg 0 dB = 19.0 W/kg = 12.79 dBW/kg Date: 5/1/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.856 S/m; ε r = 39.534; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.99, 6.99, 6.99); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.8 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.6 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 28.0 W/kg SAR(1 g) = 13.3 W/kg; SAR(10 g) = 6.17 W/kg Maximum value of SAR (measured) = 20.6 W/kg 0 dB = 20.6 W/kg = 13.14 dBW/kg

RF Exposure Info

Appendix 2 – Highest SAR Test Plots Date: 4/28/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Smart Phone; Type: 403SH; Serial: 004401/11/546624/1 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.389 S/m; ε r = 39.63; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.416 W/kg Head/Left Touched/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.11 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.591 W/kg SAR(1 g) = 0.386 W/kg; SAR(10 g) = 0.248 W/kg Maximum value of SAR (measured) = 0.415 W/kg 0 dB = 0.415 W/kg = -3.82 dBW/kg Plot No.1 Date: 4/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Smart Phone; Type: 403SH; Serial: 004401/11/546624/1 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.532 S/m; ε r = 52.514; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Front/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.415 W/kg Body/Front/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.14 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.533 W/kg SAR(1 g) = 0.382 W/kg; SAR(10 g) = 0.251 W/kg Maximum value of SAR (measured) = 0.402 W/kg 0 dB = 0.402 W/kg = -3.96 dBW/kg Plot No.2 Date: 5/1/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 6ch / 802.11b 1Mbps DUT: Smart Phone; Type: 403SH; Serial: 004401/11/546624/1 Frequency: 2437 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2437 MHz; σ = 1.839 S/m; ε r = 39.596; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.99, 6.99, 6.99); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (14x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0850 W/kg Head/Left Touched/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.816 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.153 W/kg SAR(1 g) = 0.071 W/kg; SAR(10 g) = 0.030 W/kg Maximum value of SAR (measured) = 0.108 W/kg 0 dB = 0.108 W/kg = -9.67 dBW/kg Plot No.3 Date: 4/30/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 6ch / 802.11b 1Mbps DUT: Smart Phone; Type: 403SH; Serial: 004401/11/546624/1 Frequency: 2437 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2437 MHz; σ = 1.93 S/m; ε r = 52.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.92, 6.92, 6.92); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (11x15x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.492 W/kg Body/Rear/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.550 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.740 W/kg SAR(1 g) = 0.365 W/kg; SAR(10 g) = 0.157 W/kg Maximum value of SAR (measured) = 0.553 W/kg 0 dB = 0.553 W/kg = -2.57 dBW/kg Plot No.4

RF Exposure Info

Appendix 3 – Dosimetric E-Field Probe Calibration Data

RF Exposure Info

Appendix 4 – System Validation Dipole Calibration Data

Test Report

Page 1 of 42 Technical document No. 23199-1501 JQA File No. :KL80150062 Issue Date :May 27, 2015 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Smart Phone Model No.:403SH Serial No.:004401/11/546622/5 004401/11/546619/1 FCC ID:APYHRO00221 Test Standard:CFR 47 FCC Rules and Regulations Part 24 Test Results:Passed Date of Test:April 27 ~ May 19, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150062Issue Date : May 27, 2015 Model No.: 403SHFCC ID: APYHRO00221 Standard: CFR 47 FCC Rules and Regulations Part 24 Page 2 of 42 Technical document No. 23199-1501 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Description of Test Setup................................................................................................................ 6 7Test Requirements.......................................................................................................................... 9 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150062Issue Date : May 27, 2015 Model No.: 403SHFCC ID: APYHRO00221 Standard: CFR 47 FCC Rules and Regulations Part 24 Page 3 of 42 Technical document No. 23199-1501 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Smart Phone 3.Model No.:403SH 4.Serial No.:004401/11/546622/5 :004401/11/546619/1 5.Product Type:Pre-production 6.Date of Manufacture:February, 2015 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA260AFN1 2030mAh) 8.Grounding:None 9.Transmitting Frequency:1850.2 MHz(512CH) – 1909.8MHz(810CH) 10.Receiving Frequency:1930.2 MHz(512CH) – 1989.8MHz(810CH) 11.Emission Designations:244KGXW 12.Max. RF Output Power:1.072 W(EIRP) 13.Category:Broadband PCS 14.EUT Authorization:


Text truncated - open the document above for the full version.

Contact Information

Applicant

Taihei Ohtsuka(Deputy Division Manager, ESG & Q promotion unit)
[email protected]+81-50-5433-4157Fax: -

Technical Contact

Sharp Electronics CorporationSteve Petruska
[email protected]201-529-9689

Sharp Plaza · Mahwah, New Jersey

Non-Technical Contact

Sharp Electronics CorporationSteve Petruska
[email protected]201-529-9689

Test Firm

Japan Qlty. Assur. Org. Kitakansai Testing CenterHiroyuki Nakamura
[email protected]81-72-640-5270Fax: 81-72-640-5271

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
124E1.85 GHz - 1.91 GHz1.072 W244KGXW2.5000000000 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is EIRP. SAR compliance for body-worn accessory operation is based on a separation distance of 1 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (hotspot), and simultaneous transmission exposure conditions are 0.39 W/kg, 0.39 W/kg, 0.39 W/kg and 0.84W/kg respectively. This device also contains functions that are not operational in U.S. territories.
