APYHRO00222Phablet (Handheld mini tablet)

Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales : Manufacturer : SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) ɡ From DOCOMO mobile phones ɡ From land-line phones <Universal number> International call access codefor the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-05G, you should dial the number +81-3-6832-6600 (to enter “+”, touch and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO website. ɜ ġ If you lose your tablet or have it stolen, immediately take the steps necessary for suspending the use of the tablet. ɜ ġ If the tablet you purchased is damaged, bring your tablet to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɡ From land-line phones (In Japanese only) ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɦ Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) ɦ Service available in: English, Portuguese, Chinese, Spanish. ɦ Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɦ Unavailable from land-line phones, etc. ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɡ From land-line phones (In Japanese only) ɜ Please confirm the phone number before you dial. ɜ For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website ȁ https://www.nttdocomo.co.jp/english/ INSTRUCTION MANUAL SH-05G ’15. ɜ (1st Edition) 15 ɜ HI*** ȁ 1 ’15. ɜ Introduction Thank you for purchasing “SH-05G”. Be sure to read this manual before and during use to ensure proper operation. For optional parts (sold separately) compatible with the tablet, refer to the DOCOMO website. (https://www.nttdocomo.co.jp/product/option/) (in Japanese only) Checking operation method Quick Start Guide (Basic package) (in Japanese only) This guide describes operations of basic functions. User's Manual (App of the tablet) (in Japanese only) This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual] User's Manual (in PDF format) This manual describes detailed guidance and operations of functions. Download from the DOCOMO website (https://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html) ɦThe URL and contents are subject to change without prior notice. The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ. The explanations in this manual are based on the case when the home app is docomo LIVE UX. If you change the home app, operation procedures etc. may be different from the explanations of this manual. Note that “SH-05G” is referred to as “tablet” in this manual. This manual refers to microSD Card, microSDHC Card or microSDXC Card as “microSD Card” or “microSD”. Reproduction of this manual in part or in whole without prior permission is prohibited. The contents of this manual are subject to change without prior notice. Basic package SH-05G (includes warranty) Quick Start Guide (in Japanese only) Notes on usage (in Japanese only) 4 Contents/Precautions Before use, read these “Precautions” carefully and use your tablet properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the tablet is used improperly. The following symbols indicate specific directions. “Precautions” is explained in the following six sections. Handling the tablet, adapters and docomo nano UIM card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 Handling the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 Handling docomo nano UIM card . . . . . . . . . . . . . . . . . . . . . P. 7 Handling near electronic medical equipment . . . . . . . . . . . . P. 7 Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to handle the device with wet hands. Indicates not to disassemble the device. Indicates that instructions specified are compulsory (must be followed). Indicates not to use the device near water or get it wet. Indicates that the power cord must be unplugged from the outlet. Handling the tablet, adapters and docomo nano UIM card (general) Danger Do not use, store or leave the equipment in locations subject to high temperatures (near a fire or heating unit, in a kotatsu, under direct sunlight, inside a vehic…

Text truncated - open the document above for the full version.

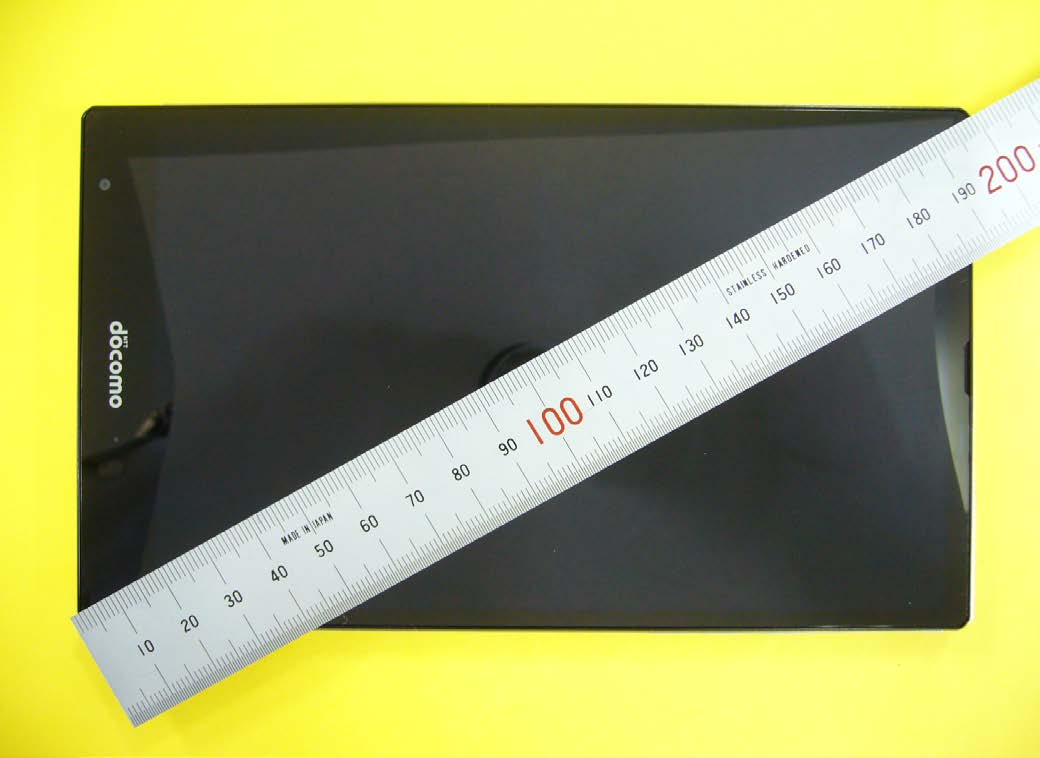

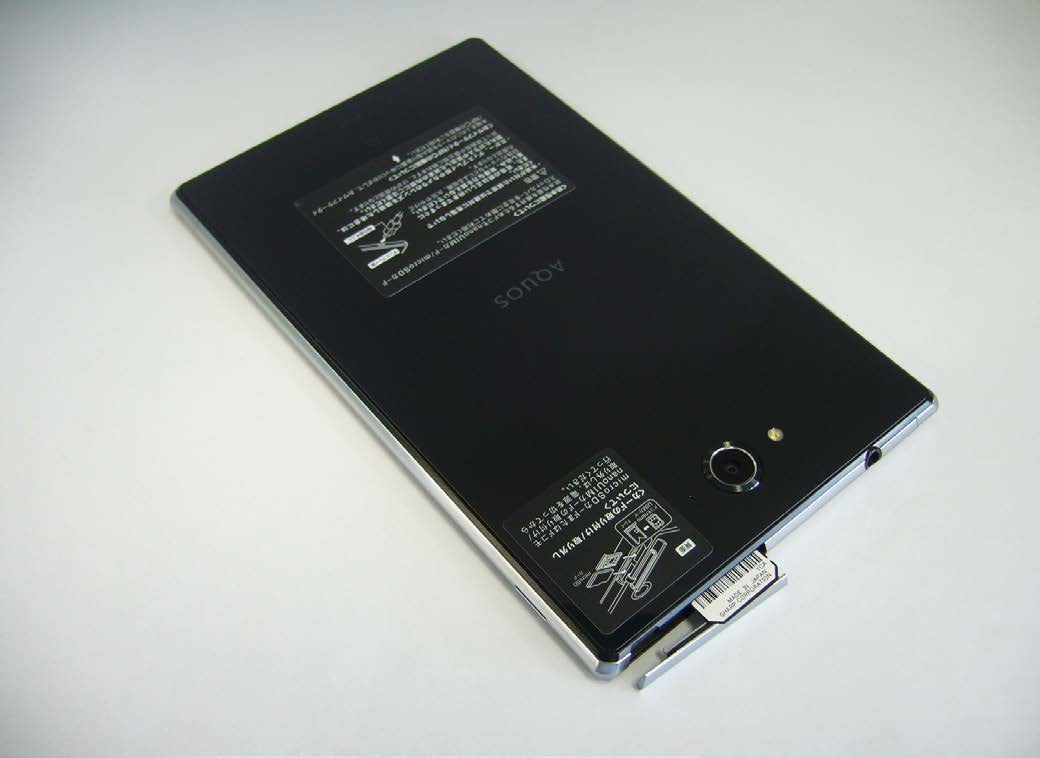

Photo (External) FCC ID: APYHRO00222 1 / 3 Photo (External) FCC ID: APYHRO00222 2 / 3 Photo (External) FCC ID: APYHRO00222 3 / 3 174 105

FCC ID Location (On the display) The display is home position. STEP1 In the desktop window, slid down from the status bar. STEP2 STEP3 Ta p “タブレット情報(=About tablet)” Ta p “認証 (=Authentication) ′′ FCC ID: APYHRO00222 FCC ID : APYHRO00222 Home position The display after the STEP1 and scroll down. The display after the STEP2. Tap the Settings icon (red frame part) Model Name Manufacture

○ Location on the display The FCC ID can be displayed via the About tablet & the Authentication under the Settings menu. FCC ID: APYHRO00222 FCC ID Location (On the display and the package) ○ Location on the individual package ① ① ① ② ① LCD display side Back cover side Manufacture :Model Name : ①③② FCC ID : APYHRO00222 ③ ② ①

E-labeling information as in KDB784748 D02 APYHRO00222 UL e-labeling (FCC) template.docx _Ver,; 02June 2015 A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes DoC logo N/A 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) -> Yes Class A / B Digital Device user manual statements 1 -> Yes DoC declaration 1 N/A N/A Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 -> Yes Describe any other FCC regulatory information included in e-label 1 N/A 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Images of the e-label screen are provided below: Please refer to the “08_FCC-ID_Location” document. And the Part15B(JBP) is included in the FCC ID certification. B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Please refer to the “03 _Declaration FCC ID label visibility” document regarding the detail (displayed in Japanese mode). Users need to operate only there steps as below 1. Tap the “Settings” icon in the status bar. 2. Tap the “About tablet” in the “Settings” menu. 3. Tap the “Authentication” in the “About tablet” menu. No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided in the page 95 of “12_UserManual_draft” document. C. Labeling for Importation and Purchasing Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive E-labeling information as in KDB784748 D02 APYHRO00222 UL e-labeling (FCC) template.docx _Ver,; 02June 2015 label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. Please refer to the “8_FCC-ID_Location” document. The FCC ID is displayed on the individual packages ready for sale. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The users/third-parties cannot modify FCC ID information in the phone and FCC ID information is pre- programmed by SHARP. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. The information required by the applicable FCC rule exists in the user manual.

Photo (Internal) FCC ID: APYHRO00222 Cellular (Receive only) 1 / 3 NFC ANT‐1 WLAN ANT‐0 WLAN/BT NFC Cellular ANT‐1 WLAN ANT0WAN/T Cellular 1 / 3 Photo (Internal) FCC ID: APYHRO00222 2 / 32 / 3 Photo (Internal) FCC ID: APYHRO00222 3 / 33 / 3

Page 1 of 53 Technical document No. 23163-1501 JQA File No. :KL80150049 Issue Date :May 28, 2015 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Phablet (Handheld Mini Tablet) Model No.:SH-05G Serial No.:004401115430411 FCC ID:APYHRO00222 Test Standard:FCC Rules and Regulations Title 47 CFR Part 2 Test Results: Passed Date of Test:April 18 ~ May 20, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150049Issue Date : May 28, 2015 Model No.: SH-05GFCC ID: APYHRO00222 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 2 of 53 Technical document No. 23163-1501 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 7 3Test Procedure................................................................................................................................. 8 4Test Location................................................................................................................................... 8 5Recognition of Test Laboratory....................................................................................................... 8 6Measurement System Diagram....................................................................................................... 9 7System Components.......................................................................................................................10 8Measurement Process.....................................................................................................................13 9Measurement Uncertainties...........................................................................................................14 10Test Arrangement..........................................................................................................................16 11Tissue Verification..........................................................................................................................20 12System Performance Check............................................................................................................25 13RF Output Power Measurements...................................................................................................27 14SAR Measurements........................................................................................................................36 15Test Setup Photographs.................................................................................................................47 16Test Instruments............................................................................................................................52 17Appendix.........................................................................................................................................53 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150049Issue Date : May 28, 2015 Model No.: SH-05GFCC ID: APYHRO00222 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 3 of 53 Technical document No. 23163-1501 1Description of the Device Under Test (DUT) 1.1General Information 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Phablet (Handheld Mini Tablet) 3.Model No.:SH-05G 4.Serial No.:004401115430411 5.Product Type:Pre-production 6.Date of Manufacture:March, 2015 7.Transmitting Frequency:GSM 850 (824 MHz – 849 MHz) PCS 1900 (1850 MHz – 1910 MHz) W-CDMA Band V (824 MHz – 849 MHz) LTE Band 17 (704 MHz – 716 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) WLAN 5 GHz (U-NII 1 : 5150 MHz – 5250 MHz) WLAN 5 GHz (U-NII 2A : 5250 MHz – 5350 MHz) WLAN 5 GHz (U-NII 2C : 5470 MHz – 5725 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack UBATIA264AFZZ (3900mAh) 9.Power Rating:4.0VDC 10.DUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):22(H), 24(E), 27(F), 15.247, 15.407 14.DUT Authorization:Certification 15.Received Date of DUT:April 18, 2015 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150049Issue Date : May 28, 2015 Model No.: SH-05GFCC ID: APYHRO00222 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 4 of 53 Technical document No. 23163-1501 1.2Wireless Technologies Air InterfaceDescription GSM Frequency band(s)850, 1900 Operating mode GSM (GMSK) GPRS (GMSK) GPRS Multi-Slot ClassClass 12 – Four Up VoIPSupported DTM (Dual Transfer Mode)Not supported W-CDMA Frequency band(s)Band V Operating mode UMTS Rel.99 (Voice & Data) HSDPA Rel.8 HSUPA Rel.8 VoIPSuppor…

Text truncated - open the document above for the full version.

Appendix 1 – System Performance Check Plots Date: 4/19/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.907 S/m; ε r = 41.999; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.36, 6.36, 6.36); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.52 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.92 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.40 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.56 W/kg = 4.08 dBW/kg Date: 4/20/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 750 MHz; Type: D750V3; Serial: 1124 Frequency: 750 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 750 MHz; σ = 0.9 S/m; ε r = 42.691; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.65, 6.65, 6.65); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.20 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.48 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.08 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.25 W/kg 0 dB = 2.25 W/kg = 3.52 dBW/kg Date: 4/21/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.982 S/m; ε r = 55.252; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.11, 6.11, 6.11); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.60 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.11 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.62 W/kg Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.63 W/kg = 4.20 dBW/kg Date: 4/22/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 750 MHz; Type: D750V3; Serial: 1124 Frequency: 750 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 750 MHz; σ = 0.974 S/m; ε r = 56.197; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.22, 6.22, 6.22); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.44 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.01 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.25 W/kg SAR(1 g) = 2.25 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.41 W/kg 0 dB = 2.41 W/kg = 3.82 dBW/kg Date: 4/28/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.411 S/m; ε r = 39.527; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.0 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.29 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.31 W/kg Maximum value of SAR (measured) = 11.3 W/kg 0 dB = 11.3 W/kg = 10.53 dBW/kg Date: 4/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.553 S/m; ε r = 52.425; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial:…

Text truncated - open the document above for the full version.

Appendix 2 – Highest SAR Test Plots Date: 4/19/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 189ch / GSM 850 - GPRS 4slots DUT: Phablet; Type: SH-05G; Serial: 004401115430411 Frequency: 836.4 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.908 S/m; ε r = 41.988; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.36, 6.36, 6.36); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (11x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.172 W/kg Head/Left Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.38 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.197 W/kg SAR(1 g) = 0.164 W/kg; SAR(10 g) = 0.129 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.172 W/kg 0 dB = 0.172 W/kg = -7.64 dBW/kg Plot No.1 Date: 4/21/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 251ch / GSM 850 - GPRS 4slots DUT: Phablet; Type: SH-05G; Serial: 004401115430411 Frequency: 848.8 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.996 S/m; ε r = 55.205; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.11, 6.11, 6.11); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (11x16x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.897 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.01 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.813 W/kg; SAR(10 g) = 0.524 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.888 W/kg 0 dB = 0.888 W/kg = -0.52 dBW/kg Plot No.2 Date: 4/28/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Phablet; Type: SH-05G; Serial: 004401115430411 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.389 S/m; ε r = 39.63; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Right Touched/Area Scan (11x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0552 W/kg Head/Right Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.908 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.0710 W/kg SAR(1 g) = 0.051 W/kg; SAR(10 g) = 0.034 W/kg Maximum value of SAR (measured) = 0.0527 W/kg 0 dB = 0.0527 W/kg = -12.78 dBW/kg Plot No.3 Date: 4/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Phablet; Type: SH-05G; Serial: 004401115430411 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.532 S/m; ε r = 52.514; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.53, 4.53, 4.53); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (11x16x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.238 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.166 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.477 W/kg SAR(1 g) = 0.295 W/kg; SAR(10 g) = 0.160 W/kg Maximum value of SAR (measured) = 0.335 W/kg 0 dB = 0.335 W/kg = -4.75 dBW/kg Plot No.4 Date: 4/19/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 4182ch / W-CDMA Band V DUT: Phablet; Type: SH-05G; Serial: 004401115430411 Frequency: 836.4 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.908 S/m; ε r = 41.988; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.36, 6.36, 6.36); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (11x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.155 W/kg Head/Left Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.81 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.179 W/kg SAR(1 g) = 0.150 W/kg; SAR(10 g) = 0.118 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.155 W/kg 0 dB = 0.155 W/kg = -8.10 dBW/kg Plot No.5 Date: 4/21/2015 Test Laboratory: JAPAN QUALITY ASSURANCE …

Text truncated - open the document above for the full version.

Appendix 3 – Dosimetric E-Field Probe Calibration Data

Appendix 4 – System Validation Dipole Calibration Data

Page 1 of 68 Technical document No. 23199-1501 JQA File No. :KL80150055 Issue Date :June 2, 2015 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Phablet (Handheld Mini Tablet) Model No.:SH-05G SERIAL NO.:004401115430510 004401115430676 FCC ID:APYHRO00222 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results:Passed Date of Test:April 21 ~ May 7, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085…

Text truncated - open the document above for the full version.
