APYHRO00223Cellular Phone

Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) ■From DOCOMO mobile phones ■From land-line phones <Universal number> International call access code for the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. ※ If you use SH-04G, you should dial the number +81-3-6832-6600 (to enter “+”, touch and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. ※ For international call access codes for major countries and universal number international prefix, refer to DOCOMO website. ● If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. ● If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) ■From DOCOMO mobile phones (In Japanese only) ■From land-line phones (In Japanese only) ※ Unavailable from part of IP phones. 0120-800-000 (toll free) ※ Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) ※ Service available in: English, Portuguese, Chinese, Spanish. ※ Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) ■From DOCOMO mobile phones (In Japanese only) ※ Unavailable from land-line phones, etc. ※ Unavailable from part of IP phones. 0120-800-000 (toll free) ■From land-line phones (In Japanese only) ● Please confirm the phone number before you dial. ● For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website https://www.nttdocomo.co.jp/english/ INSTRUCTION MANUAL SH-04G ’15.● (1st Edition) 15● YI*** 1 ’15.● SH-04G_E_01.fm [0/12]~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ Introduction Thank you for purchasing “SH-04G”. Be sure to read this manual before and during use to ensure proper operation. For optional parts (sold separately) compatible with the handset, refer to the DOCOMO website. (https://www.nttdocomo.co.jp/product/option/) (in Japanese only) Checking operation method Quick Start Guide (Basic package) (in Japanese only) This guide describes operations of basic functions. User's Manual (App of the handset) (in Japanese only) This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual] User's Manual (in PDF format) This manual describes detailed guidance and operations of functions. Download from the DOCOMO website (https://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html) ※The URL and contents are subject to change without prior notice. The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ. The explanations in this manual are based on the case when the home app is docomo LIVE UX and the setting of kisekae is [Gold]. If you change the home app, operation procedures etc. may be different from the explanations of this manual. Note that “SH-04G” is referred to as “handset” in this manual. This manual refers to microSD Card or microSDHC Card as “microSD Card” or “microSD”. Reproduction of this manual in part or in whole without prior permission is prohibited. The contents of this manual are subject to change without prior notice. Basic package SH-04G (includes warranty) Quick Start Guide (in Japanese only) Notes on usage (in Japanese only) SH-04G_E.book 0 ページ ２０１５年５月７日 木曜日 午後３時６分 4 Contents/Precautions SH-04G_E_01.fm [4/12] Before use, read these “Precautions” carefully and use your handset properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. “Precautions” is explained in the following six sections. Handling the handset, adapters and docomo nano UIM card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 Handling docomo nano UIM card . . . . . . . . . . . . . . . . . . . . . P. 7 Handling near electronic medical equipment . . . . . . . . . . . . P. 7 Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to handle the device with wet hands. Indicates not to disassemble the device. Indicates that instructions specified are compulsory (must be followed). Indicates not to use the device near water or get it wet. Indicates that the power cord must be unplugged from the outlet. Handling the handset, adapters and docomo nano UIM card (general) Danger Do not use, store or leave the equipmen…

Text truncated - open the document above for the full version.

FCC ID Location (On the display) The display is home position. STEP1 In the desktop window, slid down from the status bar. STEP2 STEP3 Ta p “端末情報” Ta p “認証” FCC ID: APYHRO00223 FCC ID : APYHRO00223 Home position The display after the STEP1 and scroll down. The display after the STEP2. Tap the settings icon (red frame part) Model Name Manufacture

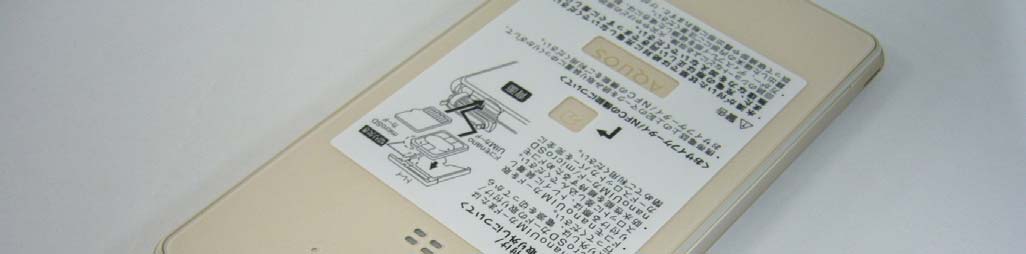

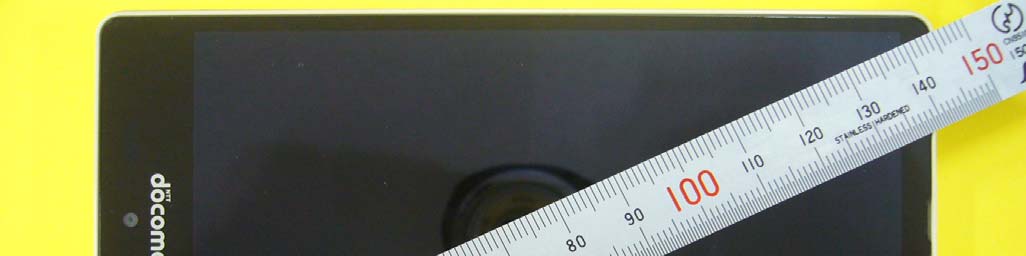

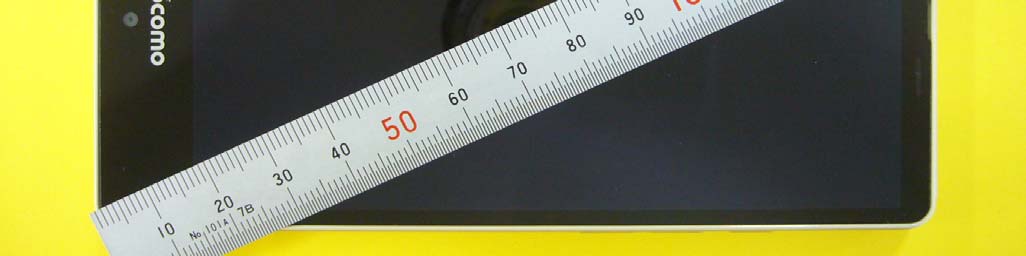

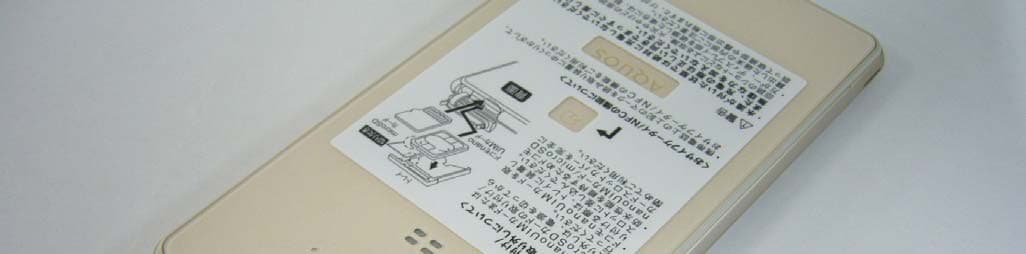

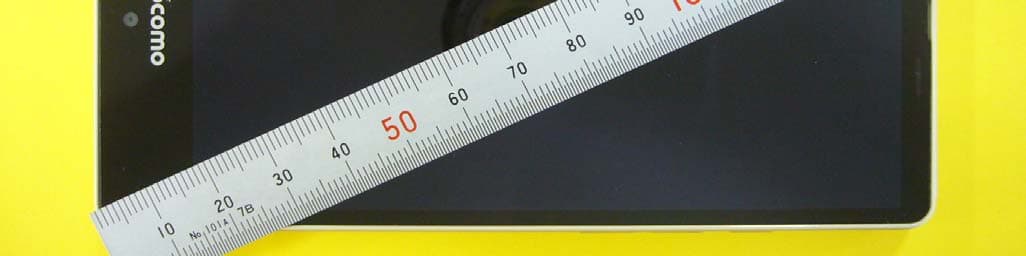

Photo (External) FCC ID: APYHRO00223 1 / 31 / 3 Photo (External) FCC ID: APYHRO00223 2 / 32 / 3 Photo (External) FCC ID: APYHRO00223 3 / 3 133 717 3 / 3

○ Location on the display The FCC ID can be displayed via the Device info & the Authentication under the Setting menu. FCC ID: APYHRO00223 FCC ID Location (On the display and the package) ○ Location on the individual package ① ① ① ② ① ② ① LCD display side Back cover side Manufacture :Model Name : ①③② FCC ID : APYHRO00223 ③

Photo (Internal) FCC ID: APYHRO00223 1 / 41 / 4 Photo (Internal) FCC ID: APYHRO00223 2 / 42 / 4 Photo (Internal) FCC ID: APYHRO00223 3 / 43 / 4 Photo (Internal) FCC ID: APYHRO00223 4 / 44 / 4

Page 1 of 42 Technical document No. 23163-1501 JQA File No. :KL80150015R Issue Date :May 18, 2015 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Smart Phone Model No.:SH-04G Serial No.:004401115451045 FCC ID:APYHRO00223 Test Standard:FCC Rules and Regulations Title 47 CFR Part 2 Test Results: Passed Date of Test:April 10 ~ 22, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150015RIssue Date : May 18, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 2 of 42 Technical document No. 23163-1501 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 6 3Test Procedure................................................................................................................................. 7 4Test Location................................................................................................................................... 7 5Recognition of Test Laboratory....................................................................................................... 7 6Measurement System Diagram....................................................................................................... 8 7System Components........................................................................................................................ 9 8Measurement Process.....................................................................................................................12 9Measurement Uncertainties...........................................................................................................13 10Test Arrangement..........................................................................................................................15 11Tissue Verification..........................................................................................................................19 12System Performance Check............................................................................................................22 13RF Output Power Measurements...................................................................................................24 14SAR Measurements........................................................................................................................30 15Test Setup Photographs.................................................................................................................36 16Test Instruments............................................................................................................................41 17Appendix.........................................................................................................................................42 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150015RIssue Date : May 18, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 3 of 42 Technical document No. 23163-1501 1Description of the Device Under Test (DUT) 1.1General Information 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Smart Phone 3.Model No.:SH-04G 4.Serial No.:004401115451045 5.Product Type:Pre-production 6.Date of Manufacture:February, 2015 7.Transmitting Frequency:W-CDMA Band V (824 MHz – 849 MHz) LTE Band 17 (704 MHz – 716 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack UBATIA263AFN1 (2450mAh) 9.Power Rating:4.0VDC 10.EUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):22(H), 27(F), 15.247 14.EUT Authorization:Certification 15.Received Date of EUT:April 10, 2015 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150015RIssue Date : May 18, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 4 of 42 Technical document No. 23163-1501 1.2Wireless Technologies Air InterfaceDescription W-CDMA Frequency band(s)Band V Operating mode UMTS Rel.99 (Voice & Data) HSDPA Rel.8 HSUPA Rel.8 VoIPSupported LTE (FDD) Frequency band(s)Band 17 Operating mode QPSK 16QAM VoLTESupported WLAN (DTS) Frequency band(s)2.4 GHz Operating mode 802.11b 802.11g 802.11n [HT20] VoIPSupported Wireless Router (Hotspot)Supported Wi-Fi DirectSupported Bluetooth Frequency band(s)2.4 GHz Operating mode Version 4.0+EDR Version 4.0 LE 1.3Maximum Output Power ModeMax. Tune-up Limit (dBm) W-CDMA Band V Rel. 9924.0 HSDPA23…

Text truncated - open the document above for the full version.

Appendix 1 – System Performance Check Plots Date: 4/13/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.944 S/m; ε r = 52.187; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.92, 6.92, 6.92); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.8 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 101.9 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 26.5 W/kg SAR(1 g) = 13 W/kg; SAR(10 g) = 6.14 W/kg Maximum value of SAR (measured) = 19.9 W/kg 0 dB = 19.9 W/kg = 12.99 dBW/kg Date: 4/14/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.844 S/m; ε r = 38.473; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.99, 6.99, 6.99); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.9 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.9 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 27.3 W/kg SAR(1 g) = 13 W/kg; SAR(10 g) = 6.03 W/kg Maximum value of SAR (measured) = 20.1 W/kg 0 dB = 20.1 W/kg = 13.03 dBW/kg Date: 4/19/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.907 S/m; ε r = 41.999; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.36, 6.36, 6.36); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.52 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.92 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.40 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.56 W/kg = 4.08 dBW/kg Date: 4/20/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 750 MHz; Type: D750V3; Serial: 1124 Frequency: 750 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 750 MHz; σ = 0.9 S/m; ε r = 42.691; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.65, 6.65, 6.65); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.20 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.48 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.08 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.25 W/kg 0 dB = 2.25 W/kg = 3.52 dBW/kg Date: 4/21/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.982 S/m; ε r = 55.252; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.11, 6.11, 6.11); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.60 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.11 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.62 W/kg Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.63 W/kg = 4.20 dBW/kg Date: 4/22/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 750 MHz; Type: D750V3; Serial: 1124 Frequency: 750 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 750 MHz; σ = 0.974 S/m; ε r = 56.197; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.22, 6.22, 6.22); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063…

Text truncated - open the document above for the full version.

Appendix 2 – Highest SAR Test Plots Date: 4/19/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 4182ch / W-CDMA Band V DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 836.4 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.908 S/m; ε r = 41.988; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.36, 6.36, 6.36); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Right Touched/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.463 W/kg Head/Right Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.26 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.553 W/kg SAR(1 g) = 0.462 W/kg; SAR(10 g) = 0.359 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.484 W/kg 0 dB = 0.484 W/kg = -3.15 dBW/kg Plot No.1 Date: 4/21/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 4182ch / W-CDMA Band V DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 836.4 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.984 S/m; ε r = 55.253; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.11, 6.11, 6.11); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.664 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.92 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.780 W/kg SAR(1 g) = 0.631 W/kg; SAR(10 g) = 0.479 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.656 W/kg 0 dB = 0.656 W/kg = -1.83 dBW/kg Plot No.2 Date: 4/20/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 23790ch / LTE Band 17 - QPSK 10MHz BW, RB #1/49 DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 710 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 710 MHz; σ = 0.857 S/m; ε r = 43.173; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.65, 6.65, 6.65); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.120 W/kg Head/Left Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.27 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.119 W/kg; SAR(10 g) = 0.091 W/kg Maximum value of SAR (measured) = 0.124 W/kg 0 dB = 0.124 W/kg = -9.07 dBW/kg Plot No.3 Date: 4/22/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 23790ch / LTE Band 17 - QPSK 10MHz BW, RB #1/49 DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 710 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 710 MHz; σ = 0.932 S/m; ε r = 56.618; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.22, 6.22, 6.22); Calibrated: 8/15/2014; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: ELI v4.0 (20deg probe tilt); Type: QDOVA001BB; Serial: TP:1063 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Body/Rear/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.243 W/kg Body/Rear/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.14 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.305 W/kg SAR(1 g) = 0.234 W/kg; SAR(10 g) = 0.176 W/kg Maximum value of SAR (measured) = 0.245 W/kg 0 dB = 0.245 W/kg = -6.11 dBW/kg Plot No.4 Date: 4/14/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 6ch / 802.11b 1Mbps DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 2437 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2437 MHz; σ = 1.829 S/m; ε r = 38.515; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.99, 6.99, 6.99); Calibrated: 9/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Head/Left Touched/Area Scan (14x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.313 W/kg Head/Left Touched/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.76 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.447 W/kg SAR(1 g) = 0.202 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.301 W/kg 0 dB = 0.301 W/kg = -5.21 dBW/kg Plot No.5 Date: 4/13/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 6ch / 802.11b 1Mbps DUT: Smart Phone; Type: SH-04G; Serial: 004401115451045 Frequency: 2437 MHz;Duty Cycle: 1:1 Room Ambient T…

Text truncated - open the document above for the full version.

Appendix 3 – Dosimetric E-Field Probe Calibration Data

Appendix 4 – System Validation Dipole Calibration Data

Page 1 of 43 Technical document No. 23199-1501 JQA File No. :KL80150016 Issue Date :May 7, 2015 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Smart Phone Model No.:SH-04G Serial No.:004401115451086 004401115450849 FCC ID:APYHRO00223 Test Standard:CFR 47 FCC Rules and Regulations Part 22 Test Results:Passed Date of Test:April 10 ~ 16, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150016Issue Date : May 7, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 2 of 43 Technical document No. 23199-1501 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Description of Test Setup................................................................................................................ 6 7Test Requirements.......................................................................................................................... 9 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150016Issue Date : May 7, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 3 of 43 Technical document No. 23199-1501 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Smart Phone 3.Model No.:SH-04G 4.Serial No.:004401115451086 :004401115450849 5.Product Type:Pre-production 6.Date of Manufacture:February, 2015 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA263AFN1 2450mAh) 8.Grounding:None 9.Transmitting Frequency:826.4 MHz(4132CH) – 846.6MHz(4233CH) 10.Receiving Frequency:871.4 MHz(4357CH) – 891.6MHz(4458CH) 11.Emission Designations:4M15F9W 12.Max. RF Output Power:0.380W (ERP) 13.Category:WCDMA850 14.EUT Authorization:Certification 15.Received Date of EUT:April 10, 2015 16.Channel Plan The carrier spacing is 200 kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz) = 826.4 + 0.2 × (n – 4132) where, n : channel number (4132 ≤ n ≤ 4233) Receiving Frequency (in MHz)= 871.4 + 0.2 × (n – 4357) where, n : channel number (4357 ≤ n ≤ 4458) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150016Issue Date : May 7, 2015 Model No.: SH-04GFCC ID: APYHRO00223 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 4 of 43 Technical document No. 23199-1501 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clau…

Text truncated - open the document above for the full version.
