APYHRO00228Smart Phone

SH-02H INSTRUCTION MANUAL ’15.● Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) From DOCOMO mobile phones From land-line phones <Universal number> International call access code for the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. If you use SH-02H, you should dial the number +81-3-6832-6600 (to enter “+”, press and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. For international call access codes for major countries and universal number international prefix, refer to DOCOMO website. If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) From DOCOMO mobile phones (In Japanese only) From land-line phones (In Japanese only) Unavailable from part of IP phones. 0120-800-000 (toll free) Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) Service available in: English, Portuguese, Chinese, Spanish. Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) From DOCOMO mobile phones (In Japanese only) Unavailable from land-line phones, etc. Unavailable from part of IP phones. 0120-800-000 (toll free) From land-line phones (In Japanese only) Please confirm the phone number before you dial. For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website https://www.nttdocomo.co.jp/english/ 1 15● xxx ’15.● (1st Edition) Introduction Thank you for purchasing "SH-02H". Be sure to read this manual before and during use to ensure proper operation. The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ. The explanations in this manual are based on the case when the home app is docomo LIVE UX and the setting of kisekae is [Yellow ×Silver]. If you change the home app, operation procedures etc. may be different from the explanations of this manual. Note that "SH-02H" is referred to as "handset" in this manual. This manual refers to microSD Card, microSDHC Card or microSDXC Card as "microSD Card" or "microSD". Reproduction of this manual in part or in whole without prior permission is prohibited. The contents of this manual are subject to change without prior notice. For optional parts (sold separately) compatible with the handset, refer to the DOCOMO website. https://www.nttdocomo.co.jp/product/option/ (in Japanese only) Checking operation method Quick Start Guide (Basic package) (in Japanese only) This guide describes operations of basic functions. User's Manual (App of the handset) (in Japanese only) This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual] User's Manual (in PDF format) This manual describes detailed guidance and operations of functions. Download from the DOCOMO website https://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html * The URL and contents are subject to change without prior notice. Basic package SH-02H (includes warranty) TV antenna cable (Sample) (includes manual) (Nuance sheet)(Sample) (includes cleaning cloth/manual) Quick Start Guide (in Japanese only) Notes on usage(in Japanese only) Contents/Precautions 4 Before use, read these "Precautions" carefully and use your handset properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. "Precautions" is explained in the following six sections. Handling the handset, adapters and docomo nano UIM card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.4 Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.5 Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.6 Handling docomo nano UIM card . . . . . . . . . . . . . . . . . . . . . . P.7 Handling near electronic medical equipment . . . . . . . . . . . . . P.7 Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.8 Handling the handset, adapters and docomo nano UIM card (general) Danger Do not use, store or leave the equipment in locations subject to high temperatures or accumulation of heat (near a fire or heating unit, in a kotatsu or bedding, under direct sunlight, inside a vehicle on a hot day, etc.). May cause fires, burns, bodily injury, electric shock, etc. Do not place the equipment inside cooking appliances such as microwave ovens or pressure cookers. May cause fires, burns, bodily injury, electric shock, etc. Do not attempt to disassemble or modify the equipment. May cause fires, burns, bodily injury, electric shock, etc. Do not get the equipment wet with liquids such as water (drinking water, sweat, seawater, pet urine, etc.). May cause fires, burns, bodily injury, electric shock, etc. Refer to the followi…

Text truncated - open the document above for the full version.

Appendix/Index 97 This product includes ZIRENE SOUND of AM3D A/S in Denmark. ZIRENE SOUND is a registered/trade mark of AM3D A/S. and AOSS™ are the trademarks of BUFFALO INC. Wi-Fi ® is a registered trademark of Wi-Fi Alliance ® . Wi-Fi Direct™, Miracast™, Wi-Fi Protected Setup™ and Wi-Fi Protected Setup logo are trademarks of Wi-Fi Alliance ® . The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. Twitter and Twitter logo are trademarks or registered trademarks of Twitter, Inc. DLNA ® , the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance. DLNA ® , the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Sharp Corporation has acquired DLNA certification for the device. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/) This product includes cryptographic software written by Eric Young([email protected]) Portions Copyright © 2004 Intel Corporation This product partly uses the software of Intel Corporation. iWnn of OMRON SOFTWARE Co., Ltd. is used for conversion methods for Japanese language, and for phrase prediction methods for English. iWnn © OMRON SOFTWARE Co., Ltd. 2008-2015 All Rights Reserved. iWnn IME © OMRON SOFTWARE Co., Ltd. 2009-2015 All Rights Reserved. Shin Go M, the font type installed in this product, is provided by Morisawa & Company, Ltd. *Shin Go is a registered trademark of Morisawa & Company, Ltd. aptX is a registered trademark of CSR plc. DigiOn and DiXiM are trademarks of DigiOn, Inc. VoiceText of HOYA Service Corporation is used for speech synthesis. VoiceText is a registered trademark of Voiceware co.,ltd. Speech recognition technology mimi ® is used in emopa 3.0. mimi ® is a registered trademark of Fairy Devices Inc. "AQUOS", "Feel Home", " /Welcome Sheet", " /Slow Talk", "Bright Keep", "Sweep ON", "NightCatch/ ", " FramingAdviser", "", "", "AV ", "/emopa", "/S-Shoin", "PrintSmash", "Grip Magic", " Clip Now" and "AQUOS" logo are trademarks or registered trademarks of Sharp Corporation. All other company names and product names are trademarks or registered trademarks of the respective companies. Others FeliCa is a contactless IC card technology developed by Sony Corporation. FeliCa is a registered trademark of Sony Corporation. Under the MPEG-4 Visual Patent Portfolio License, customers have licensed permission for the following use of this product to engage in non-profit personal use. Other uses are not permitted. „Encoding MPEG-4 standard video (henceforth referred to as MPEG-4 video). „Decoding an MPEG-4 video that a customer not engaged in personal commercial activities has encoded. „Decoding an MPEG-4 video obtained from a licensed provider. For details on other intended uses, contact MPEG LA, LLC. This product is licensed under the MPEG-4 Systems Patent Portfolio License for encoding in compliance with the MPEG-4 Systems Standard. An additional license and payment of royalties are necessary in the following cases. „Data stored or replicated in physical media which is paid for on a title by title basis. „Data which is paid for on a title by title basis and is transmitted to an end user for permanent storage and/or use. Such additional license may be obtained from MPEG LA, LLC. Contact MPEG LA, LLC for additional details. This product is licensed under the AVC patent portfolio license for the personal and noncommercial use of a consumer to (i) encode video in compliance with the AVC standard (henceforth referred to as AVC video) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and noncommercial activity and/or was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com. This product is licensed under the VC-1 Patent Portfolio License for the personal and noncommercial use of a consumer to (i) encode video in compliance with the VC-1 standard (henceforth referred to as VC-1 video) and/or (ii) decode VC-1 video that was encoded by a consumer engaged in a personal and noncommercial activity and/or was obtained from a video provider licensed to provide VC-1 video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. The abbreviations of operating systems (Japanese versions) below are used in this manual. „Windows10 stands for Microsoft ® Windows ® 10 (Home, Pro, Enterprise, Education). „Windows 8.1 stands for Microsoft ® Windows ® 8.1, Microsoft ® Windows ® 8.1 Pro and Microsoft ® Windows ® 8.1 Enterprise. „Windows 8 stands for Microsoft ® Windows ® 8, Microsoft ® Windows ® 8 Pro and Microsoft ® Windows ® 8 Enterprise. „Windows 7 stands for Microsoft ® Windows ® 7 (Starter, Home Basic, Home Premium, Professional, Enterprise and Ultimate). „Windows Vista stands for Windows Vista ® (Home Basic, Home Premium, Business, Enterprise and Ultimate). The Bluetooth word mark and logos are owned by the Bluetooth…

Text truncated - open the document above for the full version.

FCC ID Location (On the display) STEP1 FCC ID : APYHRO00228 Home position The display is home position. In the desktop window, slid down from the status bar. Tap the Settings icon (red frame part) STEP2 Tap “ 端末情報 (= About phone ) ”” Tap 端末情報 (= About phone ) The display after the STEP1 and scroll down. STEP3 FCC ID: APYHRO00228 Model Name Tap “ 認証 (= Authentication )” FCC ID: APYHRO00228 The display after the STEP2. Manufacture

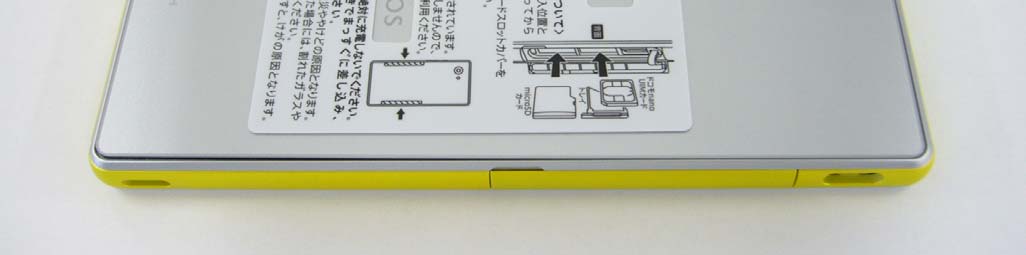

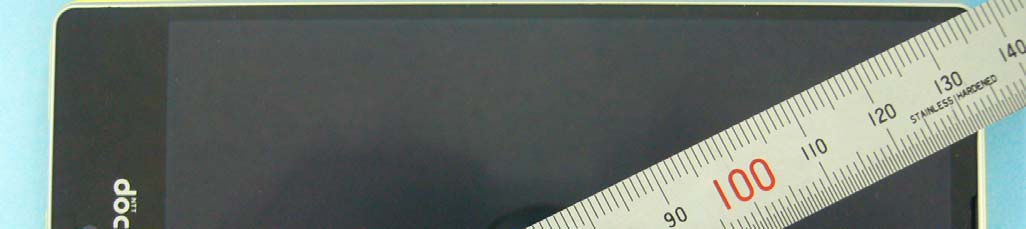

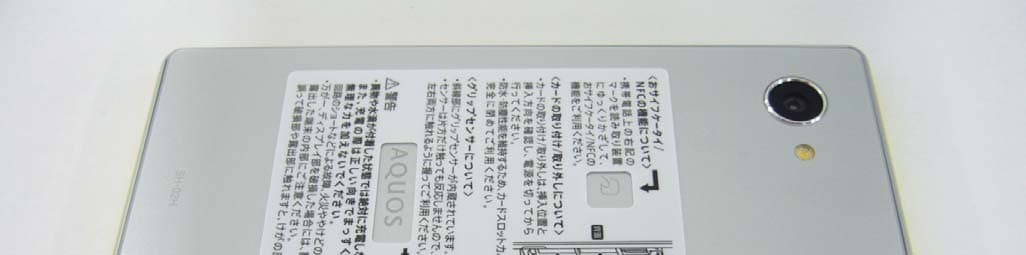

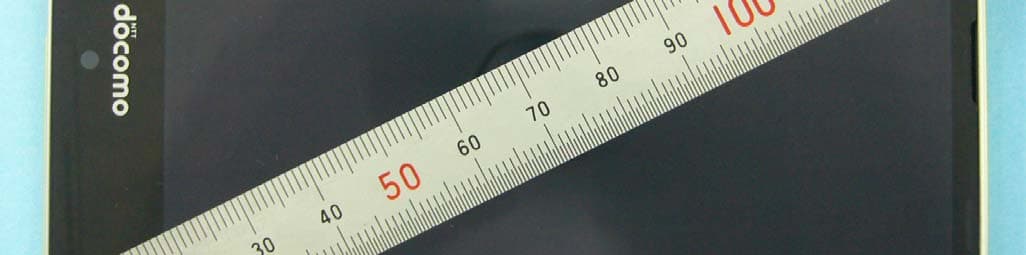

Photo (External) FCC ID: APYHRO00228 1 / 31 / 3 Photo (External) FCC ID: APYHRO00228 2 / 32 / 3 Photo (External) FCC ID: APYHRO00228 126.0 3 / 3 66.0 3 / 3

○ Location on the display The FCC ID can be displayed via the About phone & the Authentication under the Settings menu. FCC ID: APYHRO00228 FCC ID Location (On the display and the package) ○ Location on the individual package ① ① ② ① LCD display side Back cover side Manufacture :Model Name : ①③② FCC ID : APYHRO00228 ③ ② ①

E-labeling information KDB784748 D02 APYHRO00228 UL e-labeling (FCC) template.docx _Ver,; 21Oct 2015 _E-labeling information as in KDB784748 D02_ _FCC ID: APYHRO00228_ To whom it may concern We inform the following KDB594280 D02 E-Labeling Guidance. A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes DoC logo N/A 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) -> Yes Class A / B Digital Device user manual statements 1 -> Yes DoC declaration 1 N/A N/A Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 -> Yes Describe any other FCC regulatory information included in e-label 1 N/A 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Images of the e-label screen are provided below: Please refer to the “08_FCC-ID_Location” document. And the Part15B(JBP) is included in the FCC ID certification. Sharp Corporation, Consumer Electronics Company Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2-13-1, Iida, Hachihonmatsu, Higashihiroshima-shi, Hiroshima, 739-01 Japan. Tel : 81-824-20-1552 Fax : 81-824-20-1555 Hiroshima : October 21, 2015 E-labeling information KDB784748 D02 APYHRO00228 UL e-labeling (FCC) template.docx _Ver,; 21Oct 2015 B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Please refer to the “03 _Declaration FCC ID label visibility” document regarding the detail (displayed in Japanese mode). Users need to operate only three steps as below 1. Tap the “Settings” icon in the status bar. 2. Tap the “About phone” in the “Settings” menu. 3. Tap the “Authentication” in the “About phone” menu. No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided in the page 96 of “12_UserManual_draft” document. C. Labeling for Importation and Purchasing Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. Please refer to the “8_FCC-ID_Location” document. The FCC ID is displayed on the individual packages ready for sale. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The users/third-parties cannot modify FCC ID information in the phone and FCC ID information is pre-programmed by SHARP. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. The information required by the applicable FCC rule exists in the user manual.

Photo (Internal) FCC ID: APYHRO00228 WLAN/BT Antenna DTVCellular Sub‐Antenna 1 / 4 NFC Cellular Main‐Antenna 1 / 4 Photo (Internal) FCC ID: APYHRO00228 2 / 42 / 4 Photo (Internal) FCC ID: APYHRO00228 3 / 43 / 4 Photo (Internal) FCC ID: APYHRO00228 4 / 44 / 4

Page 1 of 46 Technical document No. 23163-1501 JQA File No. :KL80150401 Issue Date :October 13, 2015 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Smart Phone Model No.:SH-02H Serial No.:004401115590651 FCC ID:APYHRO00228 Test Standard:FCC Rules and Regulations Title 47 CFR Part 2 Test Results: Passed Date of Test:September 13 ~ October 1, 2015 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150401Issue Date : October 13, 2015 Model No.: SH-02HFCC ID: APYHRO00228 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 2 of 46 Technical document No. 23163-1501 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 6 3Test Procedure................................................................................................................................. 7 4Test Location................................................................................................................................... 7 5Recognition of Test Laboratory....................................................................................................... 7 6Measurement System Diagram....................................................................................................... 8 7System Components........................................................................................................................ 9 8Measurement Process.....................................................................................................................12 9Measurement Uncertainties...........................................................................................................13 10Test Arrangement..........................................................................................................................15 11Tissue Verification..........................................................................................................................19 12System Performance Check............................................................................................................23 13RF Output Power Measurements...................................................................................................25 14SAR Measurements........................................................................................................................31 15Test Setup Photographs.................................................................................................................40 16Test Instruments............................................................................................................................45 17Appendix.........................................................................................................................................46 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150401Issue Date : October 13, 2015 Model No.: SH-02HFCC ID: APYHRO00228 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 3 of 46 Technical document No. 23163-1501 1Description of the Device Under Test (DUT) 1.1General Information 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Smart Phone 3.Model No.:SH-02H 4.Serial No.:004401115590651 5.Product Type:Pre-production 6.Date of Manufacture:July, 2015 7.Transmitting Frequency:GSM 850 (824 MHz – 849 MHz) PCS 1900 (1850 MHz – 1910 MHz) W-CDMA Band V (824 MHz – 849 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) WLAN 5 GHz (U-NII 1 : 5150 MHz – 5250 MHz) WLAN 5 GHz (U-NII 2A : 5250 MHz – 5350 MHz) WLAN 5 GHz (U-NII 2C : 5470 MHz – 5725 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack 1UAF375986Z (2810mAh) 9.Power Rating:4.0VDC 10.DUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):22(H), 24(E), 15.247, 15.407 14.DUT Authorization:Certification 15.Received Date of DUT:September 11, 2015 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80150401Issue Date : October 13, 2015 Model No.: SH-02HFCC ID: APYHRO00228 Standard: FCC Rules and Regulations Title 47 CFR Part 2 Page 4 of 46 Technical document No. 23163-1501 1.2Wireless Technologies Air InterfaceDescription GSM Frequency band(s)850, 1900 Operating mode GSM (GMSK) GPRS (GMSK) GPRS Multi-Slot ClassClass 12 – Four Up VoIPSupported DTM (Dual Transfer Mode)Not supported W-CDMA Frequency band(s)Band V Operating mode UMTS Rel.99 (Voice & Data) HSDPA Rel.8 HSUPA Rel.8 VoIPSupported WLAN (DTS) Frequency band(s)2.4 GHz Operating mo…

Text truncated - open the document above for the full version.

Appendix 1 – System Performance Check Plots Date: 9/13/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.984 S/m; ε r = 55.118; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.33, 6.33, 6.33); Calibrated: 8/12/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.48 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.34 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.52 W/kg 0 dB = 2.52 W/kg = 4.01 dBW/kg Date: 9/14/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.91 S/m; ε r = 42.227; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.4, 6.4, 6.4); Calibrated: 8/12/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.53 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.55 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.39 W/kg SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.56 W/kg = 4.08 dBW/kg Date: 9/23/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.406 S/m; ε r = 40.268; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.08, 5.08, 5.08); Calibrated: 8/12/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.1 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.75 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.37 W/kg Maximum value of SAR (measured) = 11.4 W/kg 0 dB = 11.4 W/kg = 10.57 dBW/kg Date: 9/23/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.554 S/m; ε r = 52.739; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.6, 4.6, 4.6); Calibrated: 8/12/2015; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.3 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.34 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.44 W/kg Maximum value of SAR (measured) = 11.4 W/kg 0 dB = 11.4 W/kg = 10.57 dBW/kg Date: 9/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.868 S/m; ε r = 38.751; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7321; ConvF(7, 7, 7); Calibrated: 8/18/2015; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 20.2 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.9 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.12 W/kg Maximum value of SAR (measured) = 20.4 W/kg 0 dB = 20.4 W/kg = 13.10 dBW/kg Date: 9/29/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.948 S/m; ε r = 52.222; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7321; ConvF(7.09, 7.09, 7.09); Calibrated: 8/18/2015; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/7/2014 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.…

Text truncated - open the document above for the full version.

Appendix 2 – Highest SAR Test Plots Date: 9/14/2015 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 189ch / GSM 850 - GPRS 2slots DUT: Smart Phone; Type: SH-02H; Serial: 004401115590651 Frequenc…

Text truncated - open the document above for the full version.
