APYNAR0051Notebook Computer with WLAN

i Notice for Users in the USA FCC Statement WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. A shielded I/F cable and included ferrite core for LAN cable is required to insure compliance with FCC regulation for Class B computing equipment. * As an ENERGY STAR ® Partner, SHARP has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. Declaration of Conformity SHARP PERSONAL COMPUTER, PC-AV Series This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP ii About the Modem This equipment complies with Part 68 of FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The modem jack of this equipment complies with Sub-part F of Part 68 of FCC rules. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs contact the telephone company to determine the maximum REN for the calling areas. If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact Sharp Electronics Corp. for repair and (or) warranty information (Refer to the provided Consumer Limited Waranty). If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. The equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.) iii The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.) To program this information, refer to the manual of the communication software. Warning This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org Copyright It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary. Product Information and Customer Assistance For Product Information and Customer Assistance: Call: 1-800-BE-SHARP (237-4277) Sharp Systems of America 5901 Bolsa Avenue, Huntington Beach, CA 92647 Home Page: http://www.sharpsystems.com E-mail address: [email protected] iv CAUTION: TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD AND THE BATTERY BEFORE SERVICING. CAUTION: FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN PLUG AND THE BATTERY. VORSICHT: UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBR…

Text truncated - open the document above for the full version.

i Notice for Users in the USA FCC Statement WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. A shielded I/F cable and included ferrite core for LAN cable is required to insure compliance with FCC regulation for Class B computing equipment. * As an ENERGY STAR ® Partner, SHARP has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. Declaration of Conformity SHARP PERSONAL COMPUTER, PC-AV Series This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP ii About the Modem This equipment complies with Part 68 of FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. The modem jack of this equipment complies with Sub-part F of Part 68 of FCC rules. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs contact the telephone company to determine the maximum REN for the calling areas. If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service. If trouble is experienced with this equipment, please contact Sharp Electronics Corp. for repair and (or) warranty information (Refer to the provided Consumer Limited Waranty). If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved. The equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.) iii The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.) To program this information, refer to the manual of the communication software. Warning This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org Copyright It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary. Product Information and Customer Assistance For Product Information and Customer Assistance: Call: 1-800-BE-SHARP (237-4277) Sharp Systems of America 5901 Bolsa Avenue, Huntington Beach, CA 92647 Home Page: http://www.sharpsystems.com E-mail address: [email protected] iv CAUTION: TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD AND THE BATTERY BEFORE SERVICING. CAUTION: FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN PLUG AND THE BATTERY. VORSICHT: UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBR…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 12, 2003 RE: FCC ID: APYNAR0051 Attention: Yukari Ito / Yoshiaki Iwasa I have a few comments on this Application. 1. Please note that the technical specs state that the device has operating frequencies that lie outside those allowed in the US. Please verify that this device cannot be program selected via hardware or software or any other means to allow operation on channels higher than channel 11. 2. The report shows out of band emissions, but does not show band edge compliance data. Please provide the necessary band edge compliance plots/data. 3. There does not appear to be any information on the antenna used. Please explain Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

■ HEAD OFFICE EMC LAB. 4383-326, Asama-cho, Ise-shi, Mie 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8124 Date: 19 August, 2003 RE: Sharp Corporation FCC ID: APYNAR0051 Dear Mr. Dennis Ward, Regarding the above referenced application, please find our reply to the remaining comments to your inquiry dated August 12, 2003 1) Please find submitted letter from WLAN module manufacturer. 2) We uploaded band edge compliance data. Please confirm. 3) Please find the following antenna information: Manufacturer: Sansei Electric Co., Ltd. Type: Diversity Antenna Model: ANTB24 Antenna Gain: 2.75 dBi If there are any further problems, please let us know. Best regards, Yukari Ito (Ms.) UL Apex Co., Ltd.

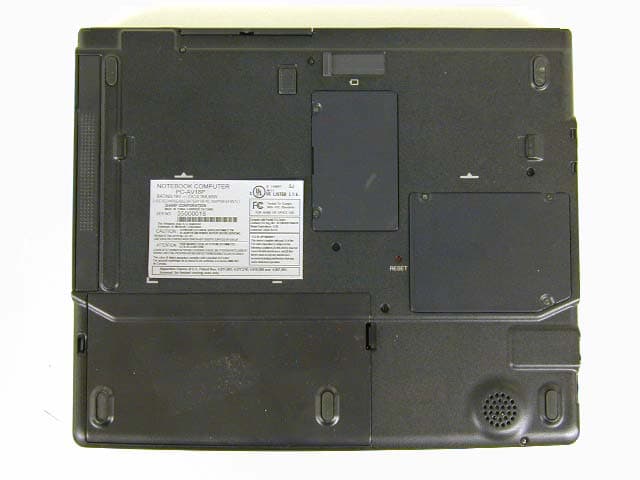

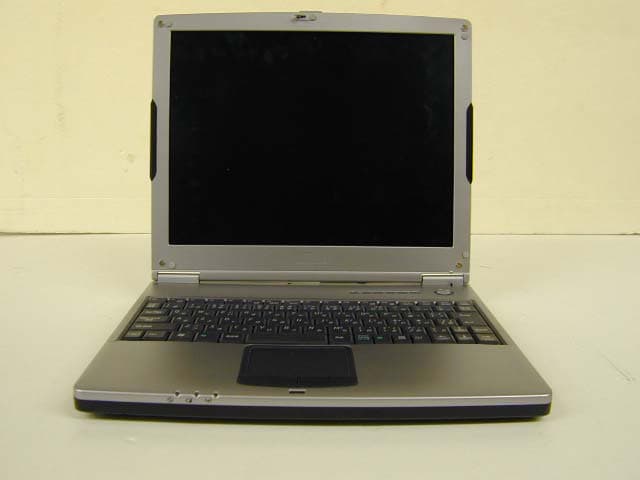

Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051 Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051 Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051

Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051 Location of WLAN module WLAN Module Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051 Location of Antennas Notebook Computer (PC-AV18P) Sharp Corporation FCC ID: APYNAR0051 WLAN Module: Side A WLAN Module: Side B

Applicant: SHARP CORPORATION T ype of Equipment : Notebook Computer Model No. : PC-AV18P FCC ID: APYNAR0051 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the Notebook Computer(PC-AV18P) as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considerin g maximum power and antenna gain, and considering a 1.0m W/cm 2 uncontrolled exposure limit. Since the shortest distance between the antenna inside EUT and human body is 2.2cm when LCD is closed, the calculation is as follows: S = (P * G) / (4* π * r 2 ) or r = √((P * G) / (4 * π* S)) WhereP =15.49 mW (Maximum Conducted Power) G =1.88 Numerical Antenna gain; equal to 2.75dBi r =2.20 cm (Minimum length antenna to human body) For: PC-AV18P S = 0.47967 mW/cm 2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 RF Exposure Statement No. : 23LE0055-HO

Applicant: SHARP CORPORATION T ype of Equipment : Notebook Computer Model No. : PC-AV18P FCC ID: APYNAR0051 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the Notebook Computer(PC-AV18P) as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considerin g maximum power and antenna gain, and considering a 1.0m W/cm 2 uncontrolled exposure limit. Since the shortest distance between the antenna inside EUT and human body is 11cm when LCD is opened, the calculation is as follows: S = (P * G) / (4* π * r 2 ) or r = √((P * G) / (4 * π* S)) WhereP =15.49 mW (Maximum Conducted Power) G =1.88 Numerical Antenna gain; equal to 2.75dBi r =11.00 cm (Minimum length antenna to human body) For: PC-AV18P S = 0.01919 mW/cm 2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 RF Exposure Statement No. : 23LE0055-HO

Test report No. : 23LE0055-HO-1 Page : 10 of 32 Issued date : August 11.2003 FCC ID : APYNAR0051 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 23LE0055-HO-1 Page : 11 of 32 Issued date : August 11.2003 FCC ID : APYNAR0051 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear

Test report No. : 23LE0055-HO-1 Page : 10 of 32 Issued date : August 11.2003 FCC ID : APYNAR0051 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 23LE0055-HO-1 Page : 11 of 32 Issued date : August 11.2003 FCC ID : APYNAR0051 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear
