APYNAR0054802.11b/g Mini PCI Module

802.11g Mini PCI User Manual T60H713 Chapter 1 About the Wireless MINI PCI .................................. 3 1-1 Features .......................................................................... 3 1-2 Applications.................................................................... 3 1-3 Product Kit ....................Error! Bookmark not defined. Chapter 2 Network Configuring and Planning .......................... 4 2-1 Network Topology.......................................................... 4 2-2 Roaming ......................................................................... 6 Chapter 3 Installation ................................................................ 7 3-1 System Requirements ....Error! Bookmark not defined. 3-2 Inserting the Wireless Card ............................................ 7 3-3 Installation and Uninstall Process .................................. 7 Chapter 4 Wireless Utility and Configuration ......................... 14 4-1 Windows 98/ME/2000 Wireless Utility........................ 14 4-2 Windows XP Wireless Utility ....................................... 18 Appendix A Troubleshooting ................................................. 24 Appendix B Glossary ............................................................. 25 Appendix C Specifications for Wireless Card.................Error! Bookmark not defined. Chapter 1 About the Wireless MINI PCI Windows 98/2000/ME/XP will automatically recognize the wireless MINI PCI and initiate the installation process. Upon successful installation, the wireless MINI PCI will communicate seamlessly with other IEEE 802.11g wireless products. 1-1 Features 1. Supports up to 54 Mbps data rate. 2. Supports point-to-point and point-to-multipoint access provides increased flexibility. 3. Seamless connectivity to wired Ethernet and PC network LAN offers quick, trouble-free integration with existing networks. 4. Direct Sequence Spread Spectrum (DSSS) technology provides secure wireless connection. 5. Wireless connections eliminate the hassle and cost of cabling. 6. Supports a wide range of LAN (Local Area Network) Network Operating Systems (NOS) including Windows 98/2000/XP 8. Omni - directional antenna provides wide range of reception. 9. Greater flexibility to locate or move networked PC 1-2 Applications This wireless MINI PCI offer a fast, reliable, cost-effective solution for wireless client access to the network. Refer below for examples : „ Remote access to corporate network information „ E-mail, file transfer and terminal emulation „ Difficult-to-wire environments „ Historic or older buildings without Ethernet wiring. „ Buildings with asbestos insulation „ Open areas where wiring is difficult to employ „ Re-layout frequently environments „ Retailers, manufacturers or other organizations that frequently rearrange the workplace or relocate „ Temporary LANs for special projects or peak time usage „ Trade shows, exhibitions and construction sites that employ temporary networks. „ Retailers, airline and shipping companies that need additional workstations for a peak period and auditors that require workgroups at customer sites. „ Access to database for mobile workers „ Medical, technical and retail specialists that require roaming access to a database or other network resources. „ Perfect for users that need a small, easy-to-install network that deploys rapidly. Chapter 2 Network Configuring and Planning The wireless MINI PCI supports legacy Ethernet LAN network configuration options as defined by the IEEE 802.11g. The wireless MINI PCI can be configured as: . Ad-Hoc mode for no Access Point wireless environment. . Infrastructure mode for wireless environment with Access Point. 2-1 Network Topology Ad-Hoc Wireless LAN Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Fig.1 Ad-Hoc Wireless LAN An Ad-Hoc wireless LAN is a group of computers. Each computer equipped with a wireless MINI PCI that configure to same radio channel in order to communicate with others. Ad-Hoc wireless LAN configurations are appropriate for branch level departments or SOHO operations. ¤A¤Óºô ̧ô File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.2 Infrastructure Wireless LAN Configuration Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 A group of wireless users and an Access Point compose a Basic Service Set (BSS). Wireless clients can talk to any computer in both wired and wireless LAN network via the Access Point. 2-2 Roaming Infrastructure mode also supports roaming capabilities for mobile users. More than one BSS can be configured as an Extended Service Set (ESS). The continuous network allows users to roam freely within ESS. All wireless MINI PCI and Access Point within one ESS must be configured with the same ESSID in order to utilize roaming function. Properly Access Point positioning with a clear radio signal can greatly enhance wireless performance. Ess BSS1 BSS2 ¤A¤Óºô ̧ô File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.4 Roaming in an Extended Service Set (ESS) Chapter 3 Installation 3-1 Inserting the Wireless MINI PCI 1. Locate an available Type II PCMCIA slot. 2. With the MINI PCI pin connector facing the MINI PCI slot, you must insert the card into the slot. 3. After properly inserting the wireless card, you can continue with wireless driver and utility installation. 3-2 Installation and Uninstall Process Install AMBIT Wireless LAN (Windows 98/2K/XP) e Execute the program ‘Setup.exe’ in the CD. Windows displays the dialog as below. Press ‘Next’ button to continue. e It displays a License Agreement dialog. Press ‘Next’ to continue. e Select the destination folder that you want to …

Text truncated - open the document above for the full version.

T60H713 Block Diagram PA ISL3686A Direct UP/Down MAC/Baseband Processor 40MHz Clock Loop Filter VCO ISL3084 BPF + MiniPCI Type III DPDT

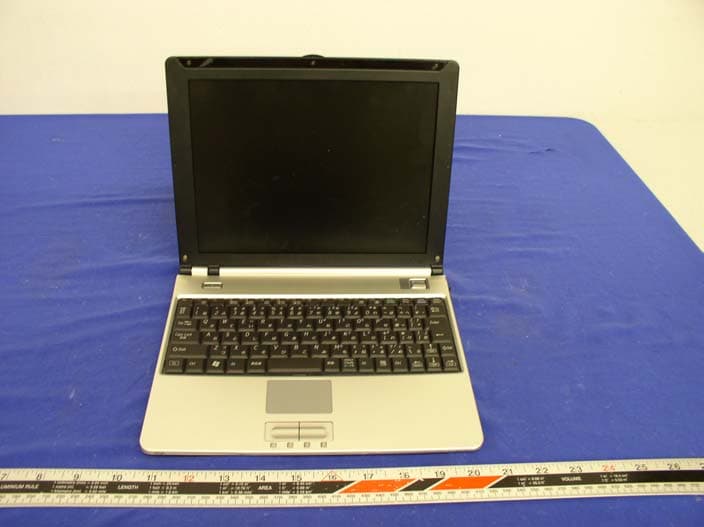

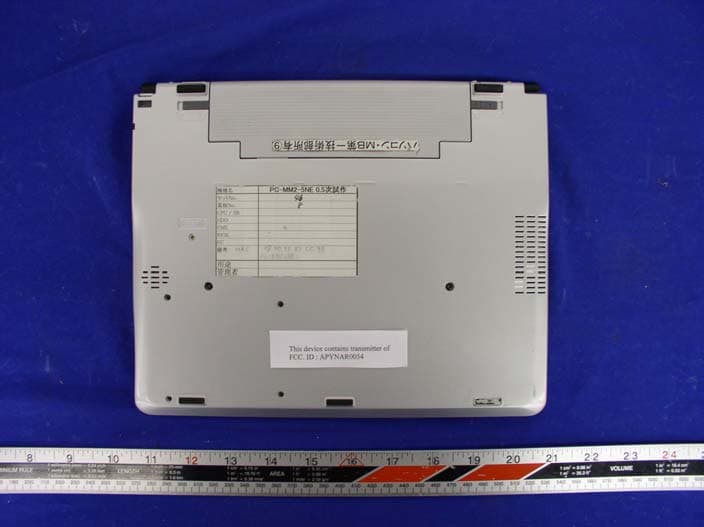

Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Exhibits Page 4 of 69 FCC Part 15.247 Test Report EXHIBIT C - EUT PHOTOGRAPHS Laptop PC Front View Laptop PC Bottom View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Laptop PC/Label location FCC ID: I38-NA8300-001 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0" FCC ID: APYNAR0054

Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Exhibits Page 4 of 69 FCC Part 15.247 Test Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Component with Shield EUT – Component View Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Exhibits Page 5 of 69 FCC Part 15.247 Test Report EUT – Solder View

Over View Wireless LAN Module Wireless LAN Antenna Wireless LAN Antenna Wireless LAN Module CONFIDENTIAL

MiniPCI 802.11g Module Marketing Requirements Specification Prepared by Reviewed by Approved by Rio Chen Total Pages Product Rev. Date Sales 9 0 0. REVISION HISTORY ............................................................................................................................................3 1. INTRODUCTION .........................................................................................................................................................4 1.1 SCOPE........................................................................................................................................................................4 1.2 FUNCTION..................................................................................................................................................................4 1.2.1 Wireless LAN Function.................................................................................................................................4 2. SPECIFICATION ....................................................................................................................................................5 2.1 HARDWARE SPECIFICATION.......................................................................................................................................5 3. PRODUCT REQUIREMENTS....................................................................................................................................6 3.1 HARDWARE REQUIREMENTS......................................................................................................................................6 3.2 HARDWARE ARCHITECTURE......................................................................................................................................6 3.3 SOFTWARE REQUIREMENTS.......................................................................................................................................7 3.2.1 Software setup...............................................................................................................................................7 3.2.2 Operating System Support...........................................................................................................................7 3.2.3 Documentation...............................................................................................................................................7 3.2.4 802.11 g/b Firmware/Software....................................................................................................................7 4. COMPATIBILITY REQUIREMENTS ......................................................................................................................7 5. REGULATORY REQUIREMENTS (TBD) ...............................................................................................................7 5.1 HOMOLOGATION REQUIREMENTS..............................................................................................................................7 6. RELIABILITY, MAINTAINABILITY AND QUALITY .........................................................................................8 6.1 RELIABILITY..............................................................................................................................................................8 6.2 MAINTAINABILITY.....................................................................................................................................................8 6.3 QUALITY....................................................................................................................................................................8 7. ENVIRONMENTAL REQUIREMENTS ...................................................................................................................8 7.1 TEMPERATURE...........................................................................................................................................................8 7.1.1 Operating Temperature Conditions............................................................................................................8 7.1.2 Non-Operating Temperature Conditions....................................................................................................8 7.2 HUMIDITY..................................................................................................................................................................8 7.2.1 Operating Humidity Conditions....................................................................................................................8 7.2.2 Non-Operating Humidity conditions............................................................................................................8 APPENDIX A MECHANICAL DRAWING .................................................................................................................9 APPENDIX B PIN ASSIGNMENT ...............................................................................................................................10 0. Revision History Date Change Note REV Note 10/25/2002 1 st Rev. 0.1 1. Introduction Project Name : MiniPCI 802.11g/b Module Project Number: T60H713 This documentation describes the marketing requirements specification of the 802.11g/b MiniPCI Module. The solution used for this product is Intersil 802.11g chipset. It is a confidential document of AMBIT. 1.1 Scope The MiniPCI 802.11g/b Module is designed to users a secure cost-effective high-speed wireless LAN access anywhere at anytime. With seamless roaming, fully interoperability and advanced security with WEP standard, it allows user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. The wireless LAN is compliant to both IEEE 802.11 g 54Mbps draft standard and 802.11b. For IEEE 802.11g, its data rates are up to 54Mbps and auto-fallback rates of 48,36, 24, 18, 12, 9, 6Mbps. Wh…

Text truncated - open the document above for the full version.

To Sharp Corporation The drawing of Film Antenna “HFS02” for 2.4 GHz band 2003/7/18 Hitachi Cable Co, Ltd. No. Description Supplier P/N 1 Film Antenna Hitachi Cable Co, Ltd. HFS02 2 0.81 mm Coaxial Cable L=715 mm or 838 mm Hitachi Cable Co, Ltd. UL1745-SB CX-50 1X36AWG 3 mPCI Connector JST Mfg Co., Ltd AYU1 Fig.1 The Shape and Size of HFS02 Unit : mm Thickness 0.2mm CONFIDENTIAL L 5 30.5 31 1 2 3 ENGINEERING SHEET Hitachi Cable, Ltd. Mobile Antenna Sec. CONFIDENTIAL Definition of the direction and Measurement Method Fig 1 defines the direction of the radiation pattern measurement, and Fig 2 shows the measurement method. Fig. 2 The direction of the radiation pattern measurement (a) XY Plane (b) XZ Plane (c) YZ Plane Fig. 3 Measurement method Measurement environment Signal Generator Spectrum Analyzer Agilent E8241A Advantest R3162 Fig. 4 Measurement environment Z X Y DUT Horn Antenna DUTChamber 3 x 3 x 7 [m] 3.5 m ENGINEERING SHEET Hitachi Cable, Ltd. Mobile Antenna Sec. CONFIDENTIAL Table 1 The Radiation pattern (Cable length = 715mm) Frequency : 2.45GHz, Power : 5dBm Vertical Horizontal XY Plane Peak Gain : -2.74 dBi Peak Gain : -10.96 dBi XZ Plane Peak Gain : -7.52 dBi Peak Gain : -3.09 dBi YZ Plane Peak Gain : -11.89 dBi Peak Gain : -2.99 dBi 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical X Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal X Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical Z X 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical Z Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal Z X 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal Z Y ENGINEERING SHEET Hitachi Cable, Ltd. Mobile Antenna Sec. CONFIDENTIAL Table 2 The Radiation pattern (Cable length = 838mm) Freuqnecy : 2.45GHz, Power : 5dBm Vertical Horizontal XY Plane Peak Gain : -2.81 dBi Peak Gain : -14.20 dBi XZ Plane Peak Gain : -7.31 dBi Peak Gain : -2.77 dBi YZ Plane Peak Gain : -11.67 dBi Peak Gain : -2.42 dBi 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical X Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal X Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical Z X 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Vertical Z Y 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal Z X 0 30 60 90 120 150 180 210 240 270 300 330 -50 -40 -30 -20 -10 0 10 -50 -40 -30 -20 -10 0 10 Gain (dBi) Horizontal Z Y

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For Sharp Corporation Information and Communication Systems Group 492 Minosho-cho, Yamatokoriyama-shi, Nara, 639-1186 Japan FCC ID: APYNAR0054 2004-02-14 This Report Concerns: Original Report Equipment Type: 802.11b/g mini PCI module Test Engineer: Eric Hong / Report No.: R0401191S Test Date: 2003-02-09 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Sharp Corporation FCC ID: APYNAR0054 Report #R0401191S SAR Evaluation Report Page 2 of 60 TABLE OF CONTENTS SUMMARY....................................................................................................................................................................3 1 - REFERENCE ...........................................................................................................................................................4 2 - TESTING EQUIPMENT.........................................................................................................................................5 2.1 EQUIPMENTS LIST & CALIBRATION INFO...............................................................................................................5 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................5 3 - EUT SUMMARY ...................................................................................................................................................28 4 - SYSTEM TEST CONFIGURATION...................................................................................................................29 4.1 JUSTIFICATION.....................................................................................................................................................29 4.2 EUT EXERCISE SOFTWARE AND PROCEDURE......................................................................................................29 4.3 SPECIAL ACCESSORIES.........................................................................................................................................29 4.4 EQUIPMENT MODIFICATIONS...............................................................................................................................29 5 - CONDUCTED OUTPUT POWER MEASUREMENT......................................................................................30 5.1 MEASUREMENT PROCEDURE................................................................................................................................30 5.2 TEST RESULTS.....................................................................................................................................................30 5.3 MEASUREMENT PLOTS.........................................................................................................................................30 6 - DOSIMETRIC ASSESSMENT SETUP...............................................................................................................33 6.1 MEASUREMENT SYSTEM DIAGRAM......................................................................................................................34 6.2 SYSTEM COMPONENTS.........................................................................................................................................35 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................39 7 - SYSTEM EVALUATION .....................................................................................................................................40 7.1 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................40 7.2 EVALUATION PROCEDURES..................................................................................................................................40 7.3 SYSTEM ACCURACY VERIFICATION.....................................................................................................................41 7.4 SAR EVALUATION PROCEDURE...........................................................................................................................45 7.5 EXPOSURE LIMITS................................................................................................................................................46 8 - TEST RESULTS ....................................................................................................................................................47 8.1 SAR BODY-WORN TEST DATA............................................................................................................................47 8.2 PLOTS OF TEST RESULT.......................................................................................................................................47 EXHIBIT A - SAR SETUP PHOTOGRAPHS .........................................................................................................55 NOTEBOOK COVER CLOSED, TOP TOUCHING, J1, ANTENNA AT LEFT.......................................................................55 NOTEBOOK COVER CLOSED, TOP TOUCHING, J2, ANTENNA AT RIGHT.....................................................................55 NOTEBOOK COVER CLOSED, PERPENDICULAR TOUCHING, J1, ANTENNA AT LEFT...................................................56 NOTEBOOK COVER CLOSED, PERPENDICULAR TOUCHING, J2, ANTENNA AT RIGHT.................................................56 NOTEBOOK COVER CLOSED, BOTTOM TOUCHING, J1, ANTENNA AT LEFT.…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 EMI MEASUREMENT AND TEST REPORT For Sharp Corporation Information and Communication Systems Group 492 Minosho-cho, Yamatokoriyama-shi, Nara, 639-1186 Japan FCC ID: APYNAR0054 2004-02-13 This Report Concerns: Original Report Equipment Type: 802.11b/g mini PCI module Test Engineer: Ming Jing / Report No.: R0401191 Test Date: 2004-02-05 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Rpt Page 2 of 61 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.203 - ANTENNA REQUIREMENT......................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 §15.207(A) - CONDUCTED EMISSIONS.................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 SPECTRUM ANALYZER SETUP....................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................11 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................11 PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................................................................................11 §15.209(A) - SPURIOUS EMISSION ........................................................................................................................14 STANDARD APPLICABLE............................................................................................................................................14 MEASUREMENT PROCEDURE......................................................................................................................................14 EQUIPMENT LISTS......................................................................................................................................................14 MEASUREMENT RESULT...................................................................................................................…

Text truncated - open the document above for the full version.

Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Exhibits Page 2 of 69 FCC Part 15.247 Test Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Sharp Corporation FCC ID: APYNAR0054 Report # R0401191Exhibits Page 3 of 69 FCC Part 15.247 Test Report Radiated Emission - Front View Radiated Emission - Rear View
