APYNAR0055GSM Mobile Phone

1-1 Introduction Introduction Thank you for purchasing this SHARP mobile handset. Before and while using the handset, please read this manual throughly and retain it for future reference. This handset is your partner. Handle it carefully at all times to ensure its long-term performance. About this Operation Manual Instruction scheme Instructions in this manual are carefully designed to help you operate the handset smoothly and easily. At the beginning of each section, the steps that have to be followed to reach the function you wish to utilise are shown (Example 1). The steps for all subsequent subsections are simplified (Example 2). Make sure to press B to enter your selection. Example 1: (Excerpt from “Using the Camera”) 1Press B. The main menu appears. 2Press a, b, c, or d to highlight “Camera” press B. 3Press a or b to highlight “Create picture” and press B. The each step to reach camera mode is shown. Example 2: (Excerpt from “Capturing Still Images”) 1At the main menu, select in the following order: “Camera” → “Create picture.” 2Press C []. The "Options" menu appears. The steps to reach camera mode are simplified as shown above (step 1). Symbols B, a, b, c, d, and C [Options] indicate the operation keys in this manual. For information on the keys and handset operations, refer to “Parts and Controls” on page 4-18. This indicates useful extra information for operating the handset. This indicates important background information or items that need to be recognised when operating the handset. This indicates operations that require extreme caution before performing on the handset. 1-2 Introduction NOTICE We strongly recommend that you keep separate permanent written records of all important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause. We assume no responsibility, directly or indirectly, for financial losses or claims from third parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc. All company and/or product names are trademarks and/or registered trademarks of their respective holders. Screen layouts illustrated in this operation manual may differ from those on the handset. The information described in this operation manual is subject to change without notice. All the functions described in this operation manual may not be supported by all networks. We assume no responsibility for contents, information, etc. downloaded from the network. The CGS-LCD is a world advanced technology product, giving you fine picture quality. Occasionally, a few black or bright pixels may appear on the screen. Please note that this will not have any impact on any of the features or performance. Copyright According to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyrights or has not received the explicit permission from the copyright owner to reproduce, alter or use a copy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gives the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. 1-3 Introduction Powered by JBlend ™ , Copyright1997-2004 Aplix Corpora- tion. All rights reserved. Java and all Java-based trademarks and logos are trade- marks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. In this product, JBlend ™ is incorporated. JBlend ™ is a Java execution environment that Aplix developed for implementing advanced performance and fast operation on small-memory systems. JBlend and JBlend logo are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pend- ing, including U.S. Patents: 4,675,863: 4,779,262: 4,785,450 & 4,811,420. Licensed under U.S. Patent 4,558,302 and foreign counter- parts. T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/ DK, FI, FR, IT, NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide. 1-4 Introduction Declaration of Conformity Safety Precautions and Conditions of Use Your handset conforms to international regulations insofar as it is used under normal conditions and in accordance with the following instructions. Electromagnetic waves Do not switch on your handset aboard an aircraft (as your handset may interfere with the aircraft’s electronic systems). Current legislation forbids this use and legal action can be taken against the user. Do not switch on your handset in a hospital, except in designated areas. Use of your handset’s functions may affect the performance of medical electronic units (pacemakers, hearing aids, insulin pumps, etc.). When the handset function is on, do not bring it near medical equipment or into areas in which medical equipment is being used. If …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 2, 2004 RE: FCC ID: APYNAR0055_ATCB001065 Attention: I have a few comments on this Application. 1. Please note that on pages 16, 24 and 31 of the report are not clear if the actual values are EIRP as required. While you give a procedure for substitution measurements, it appears that the actual numbers are only calculated from radiated field strengths. Please note that EIRP is to be measured, not calculated. Please provide the substitution antenna gain factors and please show the actual measurement values including all transducer factors involved in antenna substitution measurements. 2. FYI – Please note that band edge compliance only need be shown for the highest and lowest channel in the PCS band. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

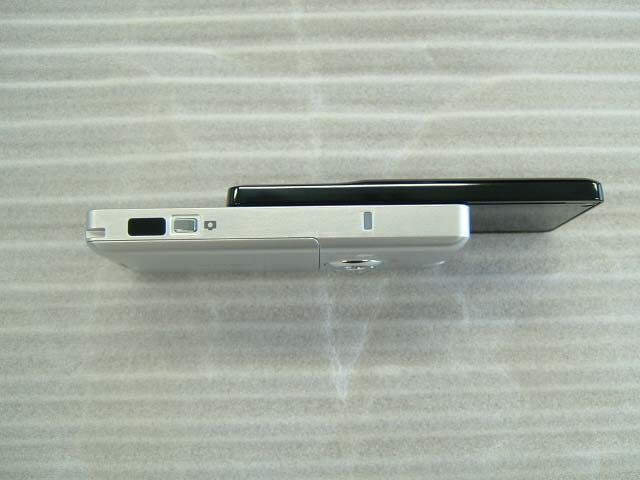

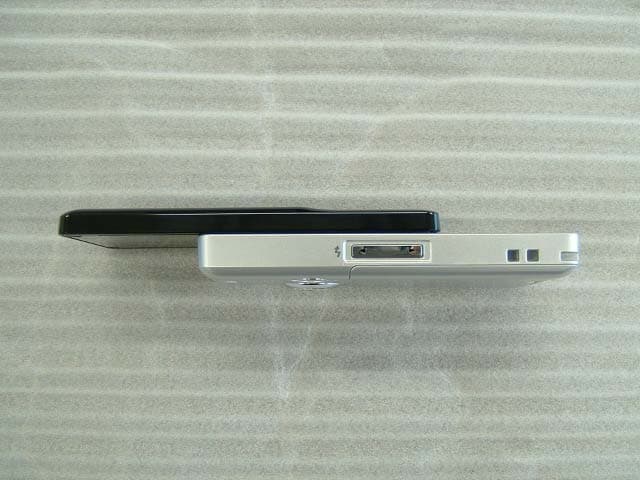

Sharp Corporation FCC ID: APYNAR0055 External Photo Front Rear Sharp Corporation FCC ID: APYNAR0055 Top Bottom Sharp Corporation FCC ID: APYNAR0055 Left Right

Label Location Destination Code The date of manufacture

Sharp Corporation FCC ID: APYNAR0055 Internal Photo Top Layer Side A Top Layer Side B Sharp Corporation FCC ID: APYNAR0055 Middle Layer Side A Middle Layer Side A Detail Sharp Corporation FCC ID: APYNAR0055 Middle Layer Side B Middle Layer Side B Detail Sharp Corporation FCC ID: APYNAR0055 Bottom Layer

Test report No. : 24EE0050-HO-2 Page : 1 of 73 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF058b(10.04.03) SAR EVALUATION REPORT Report No. : 24EE0050-HO-2 Applicant : SHARP CORPORATION Type of Equipment : GSM Mobile Phone Model No. : TM100 FCC ID : APYNAR0055 Test standard : FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C Test Result : Complied Max SAR Measured : Head 0.135 W/kg( 1850.2 MHz ) Body 0.392 W/kg( 1880.0 MHz ) 1. This test report shall not be reproduced except full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the SAR profile. 4. The test results in this test report are traceable to the national or international standards. Date of test : December 26, 2003 and January 11, 2004 Tested by : Miyo Ikuta Head Office EMC Lab. Approved by : Tetsuo Maeno Site Manager of Head Office EMC Lab. Test report No. : 24EE0050-HO-2 Page : 2 of 73 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ..................................................................................................................3 SECTION 2 : Equipment under test (E.U.T.)..............................................................................................4 SECTION 3 : Requirements for compliance testing defined by the FCC .................................................5 SECTION 4 : Dosimetry assessment setup ..................................................................................................5 SECTION 5 : Test system specifications ......................................................................................................9 SECTION 6 : Test setup of EUT .................................................................................................................10 SECTION 7 : Measurement uncertainty....................................................................................................13 SECTION 8 : Simulated tissue liquid parameter ......................................................................................14 SECTION 9 : System validation data .........................................................................................................16 SECTION 10 : Evaluation procedure.........................................................................................................17 SECTION 11 : Exposure limit.....................................................................................................................18 SECTION 12 : SAR Measurement results .................................................................................................19 SECTION 13 : Equipment & calibration information .............................................................................21 SECTION 14 : References ...........................................................................................................................22 APPENDIX 1 : Photographs of test setup ............................................................................................... 23 APPENDIX 2 : SAR Measurement data ................................................................................................. 32 APPENDIX 3 : Validation Measurement data .......................................................................................48 APPENDIX 4 : System Validation Dipole (D1800V2,S/N: 2d040) ........................................................ 51 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) ...................................... 61 Test report No. : 24EE0050-HO-2 Page : 3 of 73 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : SHARP CORPORATION Brand Name : SHARP Address : 2-13-1 Iida Hachihonmatsu Higashihiroshima-city Hirosima, 739-0192 , Japan Telephone Number : +81-824-20-1863 Facsimile Number : +81-824-20-1864 Contact Person : Hiroyuki Uwatoko Test report No. : 24EE0050-HO-2 Page : 4 of 73 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Applicant : SHARP CORPORATION Type of Equipment : GSM Mobile Phone Model No. : TM100 Serial No. : 187 Country of Manufacture : JAPAN Receipt Date of Sample : December 25, 2003 Condition of EUT : Engineering prototype Battery option : Only one model with EUT ( M/N:OSH20056, 3.7V / 700mA.h.) Accessories : Earphone Category Identified : Portable device 2.2 Product Description Tx Frequency : 1850.2 - 1909.8 MHz for PCS1900 Modulation : GMSK Rating : DC 2.7-3.0V Max.Output Power Tested : 27.5 dBm Peak Conducted Antenna Type : Internal antenna Size of EUT : 49.4*100*19.1 (W*L*H) Position of Antenna : See photograph of following Transmitting antenna Test report No. : 24EE0050-HO-2 Page : 5 of 73 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routi…

Text truncated - open the document above for the full version.

Test report No. : 24EE0050-HO-1 Page : 11 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Test report No. : 24EE0050-HO-1 Page : 12 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Radiation Front Rear Test report No. : 24EE0050-HO-1 Page : 13 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Z-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis

Test report No. : 24EE0050-HO-1 Page : 11 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Test report No. : 24EE0050-HO-1 Page : 12 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Radiation Front Rear Test report No. : 24EE0050-HO-1 Page : 13 of 32 Issued date : January 19, 2004 FCC ID : APYNAR0055 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Z-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
