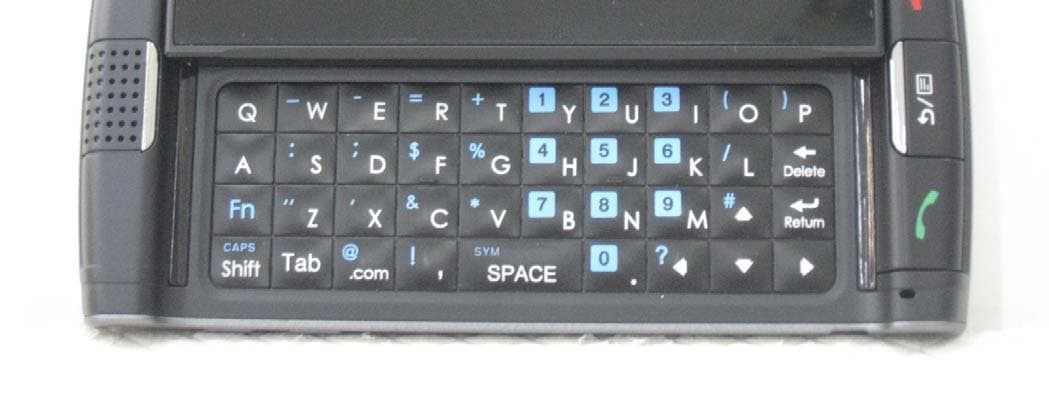

APYNAR0068Slide GSM/UMTS Phone with Bluetooth

Sharp Corporation

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 26, 2010
Application Purpose: Original Equipment
Date of Application: Jan 26, 2010
Equipment Note: Slide GSM/UMTS Phone with Bluetooth
Frequency Range: 1852.40000000 - 1907.60000000
Company: Sharp Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TABLEOFCONTENTS CHAPTER 1.BEFOREUSINGYOURAT&TSTX-2 PACKAGE CONTENTS............................................................................................ 8 HANDSET DESCRIPTION........................................................................................ 9 THE FUNCTION KEYS ........................................................................................................ 10 DISPLAY INDICATORS........................................................................................................ 11 BATTERY USAGE ................................................................................................. 14 BATTERY INSTALLATION.................................................................................................... 14 BATTERY REMOvAL........................................................................................................... 14 BATTERY CHARGING......................................................................................................... 15 USING AT&T SIM CARD....................................................................................... 16 INSERTING THE AT&T SIM CARD....................................................................................... 16 REMOvING THE AT&T SIM CARD ...................................................................................... 16 USING microSD CARD ......................................................................................... 17 INSERTING THE microSD CARD ......................................................................................... 17 REMOvING THE microSD CARD ........................................................................................ 17 USING QWERTY KEYPAD .................................................................................... 18 BLOCKING ANTENNA WHILE MAKING A CALL ................................................... 20 CORRECT/INCORRECT FINGER POSITION ......................................................................... 20 BATTERY HANDLING INFORMATION................................................................... 21 IEEE STANDARD FOR RECHARGEABLE BATTERIES FOR CELLULAR TELEPHONES.............. 21 CHAPTER 2.BASICOPERATION TURNING THE PHONE ON/OFF............................................................................ 24 TOUCH SCREEN LOCK MODE.............................................................................. 24 USING SHORTCUT KEY........................................................................................ 24 IDLE SCREEN....................................................................................................... 25 USING THE TOUCHSCREEN ................................................................................. 25 MENU SUMMARY ............................................................................................... 27 9-UP CENTER MENU ......................................................................................................... 27 9-UP LEFT MENU .............................................................................................................. 27 9-UP RIGHT MENU............................................................................................................ 28 LANDSCAPE MODE MENU................................................................................................ 29 BASIC FUNCTIONS .............................................................................................. 30 MAKING A CALL................................................................................................................ 30 ANSWERING CALLS .......................................................................................................... 31 1 TABLE OFCONTENTS WAIT/PAUSE FEATURE ...................................................................................................... 31 3-WA Y CALLING................................................................................................................ 32 CALLER ID FUNCTION ....................................................................................................... 32 CALL WAITING FUNCTION ................................................................................................ 32 ADJUSTING vOLUME ........................................................................................................ 33 MAKING AN INTERNATIONAL CALL.................................................................................. 33 DURING A CALL .................................................................................................. 34 MUTE (UNMUTE) .............................................................................................................. 34 SPEAKERPHONE................................................................................................................ 34 RECENT CALLS .................................................................................................................. 34 FIND NAME...................................................................................................................... .34 MESSAGING...................................................................................................................... 35 BLUETOOTH....................................................................................................................... 35 MAKING AN EMERGENCY CALL ......................................................................... 36 911 IN LOCK MODE .......................................................................................................... 36 911 USING ANY AvAILABLE SYSTEM ................................................................................ 36 vIDEO SHARE...................................................................................................... 37 START A vIDEO SHARE CALL ............................................................................................. 37 A CCEPT…

Text truncated - open the document above for the full version.

Cover Letter(s)

SHARP CORPORATION 22-22 Nagaike-cho, Abeno-ku, Osaka 545-8522 Japan Date: January 7, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: APYNAR0068 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SHARP CORPORATION hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SHARP CORPORATION temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ---------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. SHARP CORPORATION

Cover Letter(s)

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701,KOREA SUBJECT: SHARP CORPORATION FCC ID: APYNAR0068 Part 22(H) / 24 (E) / 15(C) / 20 Certification Gentlemen: Submitted herewith, on behalf of SHARP CORPORATION is an application for Part 22(H)/ 24(E)/ 15(C) Certification of the following Slide GSM/UMTS Phone with Bluetooth: Trade Name/Model(s): SHARP / STX-2 EUT Type: Slide GSM/UMTS Phone with Bluetooth Tx Frequency: 824.20 - 848.80 MHz (GSM850) / 1 850.20 - 1 909.80 MHz (GSM1900) 826.40 - 846.60 MHz (WCDMA850) / 1 852.4 – 1 907.6 MHz (WCDMA1900) Rx Frequency: 869.20 - 893.80 MHz (GSM850) / 1 930.20 - 1 989.80 MHz (GSM1900) 871.40 - 891.60 (WCDMA850) / 1 932.4 – 1 987.6 MHz (WCDMA1900) Max. RF Output Power: 1.107 W ERP GSM850 (30.44 dBm) / 0.746 W EIRP GSM1900 (28.73 dBm) 0.828 W ERP EDGE850 (29.18 dBm) / 0.706 W EIRP EDGE1900 (28.49 dBm) 0.494 W ERP WCDMA850(26.94 dBm) / 0.409 W EIRP WCDMA1900(26.12 dBm) Maximum SAR: 0.468 W/kg GSM850 Head SAR / 1.18 W/kg GSM850 Body SAR 0.365 W/kg GSM1900 Head SAR / 0.433 W/kg GSM1900 Body SAR 0.294 W/kg WCDMA850 Head SAR / 0.407 W/kg WCDMA850 Body SAR 0.455 W/kg WCDMA1900 Head SAR / 0.289 W/kg WCDMA1900 Body SAR HAC Rating: M3/ T3 Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, ---------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. SHARP CORPORATION January 8, 2010 Test Site: HCT CO., LTD.. FRN: 0005866421 TEL: +82 31 639 8518 FAX: +82 31 639 8525 http://www.hct.co.kr

External Photos

ID Label/Location Info

Size 100% Size 200% Note : The FCC Label will be vi sible at the time of purchase 2.6mm 3.6mm

Internal Photos

The distance between Main And Bluetooth antennas FCC ID: APYNAR0068 Bluetooth Antenna Main Antenna Distance : 7 mm Top

Internal Photos

Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 23 INTERNAL PHOTOGRAPHS Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １１ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １２ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １３ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １４ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １５ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １６ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １７ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １８ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １９ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２０ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２１ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２２ of 23 ■ INTERNAL PHOTO Report No.: HCTR1001FR05 FCC ID: APYNAR0068 DATE: January 08, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２３ of 23 ■ INTERNAL PHOTO

RF Exposure Info

SAR TEST REPORT HCT CO., LTD EUT Type: Slide GSM/UMTS Phone with Bluetooth FCC ID: APYNAR0068 Model: STX-2 Trade Name SHARP CORPORATION Date of Issue: Jan.05, 2010 Test report No.: HCTA1001FS01 Test Laboratory: HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 Applicant : SHARP CORPORATION 22-22 Nagaike-cho, Abeno-ku, Osaka 545-8522 Japan TEL: +81 743 55 4091 FAX: +81 743 55 2553 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 2005 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ２ of 101 Table of Contents 1. INTRODUCTION..........................................................................................................................................３ 2. DESCRIPTION OF DEVICE .........................................................................................................................４ 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................................５ 3.1 SAR MEASUREMENT SETUP ....................................................................................................５ 3.2 DASY E-FIELD PROBE SYSTEM ................................................................................................６ 3.3 PROBE CALIBRATION PROCESS ..............................................................................................７ 3.4 SAM Phantom .............................................................................................................................９ 3.5 Device Holder for Transmitters .....................................................................................................９ 3.6 Brain & Muscle Simulating Mixture Characterization ..................................................................１０ 3.7 SAR TEST EQUIPMENT ..........................................................................................................１１ 4. SAR MEASUREMENT PROCEDURE .....................................................................................................１２ 5. DESCRIPTION OF TEST POSITION .......................................................................................................１３ 5.1 HEAD POSITION .....................................................................................................................１３ 5.2 Body Holster/Belt Clip Configurations ........................................................................................１４ 6. MEASUREMENT UNCERTAINTY ...........................................................................................................１５ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS ..................................................................................１６ 8. SYSTEM VERIFICATION .........................................................................................................................１７ 8.1 Tissue Verification ....................................................................................................................１７ 8.2 System Validation .....................................................................................................................１７ 9. RF CONDUCTED POWER ......................................................................................................................１８ 9.1 Procedures Used to Establish RF Signal for SAR ......................................................................１８ 10. SAR TEST DATA SUMMARY .................................................................................................................１９ 10.1 Measurement Results (GSM850 Head SAR Touch) .................................................................１９ 10.2 Measurement Results (GSM850 Head SAR Tilt) ......................................................................２０ 10.3 Measurement Results (GSM1900 Head SAR Touch) ...............................................................２１ 10.4 Measurement Results (GSM1900 Head SAR Tilt) ....................................................................２２ 10.5 Measurement Results (WCDMA850 Head SAR Touch) ............................................................２３ 10.6 Measurement Results (WCDMA850 Head SAR Tilt) ................................................................２４ 10.7 Measurement Results (WCDMA1900 Head SAR Touch) ..........................................................２５ 10.8 Measurement Results (WCDMA1900 Head SAR Tilt) ...............................................................２６ 10.9 Measurement Results (GSM850 Body SAR) ............................................................................２７ 10.10 Measurement Results (GSM1900 Body SAR) ........................................................................２８ 10.11 Measurement Results (WCDMA850 Body SAR) ....................................................................２９ 10.12 Measurement Results (WCDMA1900 Body SAR) ..................................................................３０ 11. CONCLUSION ........................................................................................................................................３１ 12.REFERENCES ........................................................................................................................................３２ Attachment 1. –…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８１ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８２ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８３ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８４ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８５ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８６ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８７ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８８ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ８９ of 101 Attachment 4. – Dipole Calibration Data Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９０ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９１ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９２ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９３ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９４ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９５ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９６ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９７ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９８ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr ９９ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr １００ of 101 Report No.: HCTA1001FS01 FCC ID: APYNAR0068 Date of Issue: Jan.05, 2010 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr １０１ of 101

Test Report

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1001FR05 Date of Issue: January 08, 2010 EUT Type: Slide GSM/UMTS Phone with Bluetooth FCC ID: JYCP2000 Page 2 of 61 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 3 2. INTRODUCTION ........................................................................................................................................... 4 2.1. EUT DESCRIPTION............................................................................................................................ 4 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 4 2.3. TEST FACILITY .................................................................................................................................. 4 3. DESCRIPTION OF TESTS ........................................................................................................................... 5 3.1 Effective Radiated Power/Equivalent Isotropic Radiated Power................................................... 5 3.2 Peak- to- Average Ratio ..................................................................................................................... 6 3.3 Occupied bandwidth. ......................................................................................................................... 7 3.4 Spurious and Harmonic Emissions at Antenna Terminal. ............................................................. 8 3.5 Radiated Spurious and Harmonic Emissions ................................................................................. 9 3.6 Frequency stability / variation of ambient temperature ............................................................... 10 4. LIST OF TEST EQUIPMENT ............................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Taihei Ohtsuka(Deputy Division Manager, ESG & Q promotion unit)

[email protected]+81-50-5433-4157Fax: -

Test Firm

HCT Co., Ltd.Lee Yoon-Jung

[email protected]82-31-645-6432Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	409.00 mW	4M18F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power listed is ERP in the 850 MHz band and EIRP in the 1900 MHz band. This device was tested with a 2.0 cm device-to-body spacing gap and was not tested with any body-worn accessories made by Sharp or any other manufacturer. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 2.0 cm separation between the device and the user body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are: 850 MHz band Head: 0.468 W/kg, Body-worn: 1.18 W/kg.; 1900 MHz band, Head: 0.455 W/kg, Body-worn: 0.433 W/kg. HAC Rating: M3/T3:2007 This device contains functions that are not operational in U.S. territories.
