ARG-OS-322BT Module for Data Transfer

Specifications of OS-322 MCU Board (Preliminary) 1 HARDWARE Specifications Frequency Band: Support for 802.11 co-existence 2.4GHz ~ 2.48GHz unlicensed band Bluetooth System: v2.1 (Class 2) Antenna: Class 2 power output with printed PCB antenna Power: 3.3V from uSqueez App Power PCBA (2.7V to 3.6V) RF: 1Mbps GFSK. Interfaces : 7 connectors – CN1 – 5 pins (1 x 5 connector 2.0mm pitch) CN7 – 3 pins (1 x 3 connector 2.50mm pitch) CN9 – 2 pins (1 x 2 connector 2.50mm pitch) CN12 – 9 pins (1 x 9 connector 2.0mm pitch) ISO3 – 7 pins, 2.54mm (1 x 7 connector 2.50mm pitch) J1 – 6pins (1 x 6 connector 2.54mm pitch) J4 – 7 pins, 2.0mm (1 x 7 connector 2.0mm pitch) Limit Safety Switch: A safety limit switch will be connecting to CN9. The safety limit switch is normally close (GND) and makes the uSqueez App working normally. If the safety limit switch is opened (Pull-high), the motors in uSqueez App will stop immediately and output beep sound twice. Optical Sensor: The optical sensor is used to detect the wide and narrow position. It will be connected to CN7. Operating: 0 - 70°C Temperature Range Dimensions: 80mm x 43mm x 8.6mm Indicators: 8 LEDs (on Button PCBs) – Power On/OFF (Color Red) Vibration Hi (Color Red) Vibration Lo (Color Red) Soothe of Auto Mode (Color Red) Pulse of Auto Mode (Color Red) Energize of Auto Mode (Color Red) Specifications of OS-322 MCU Board (Preliminary) 2 Bluetooth power indictor (Color Red) BT connection status (Color Blue) Buttons: 4 buttons (on Button PCBs) – Power On/OFF Vibration Hi/Lo Auto Mode Bluetooth button Current consumption: 50mA (approx.) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Information for the OEMS Integrators This device is intended for OEM integrators only. Please see the full grant of equipment document for restrictions. Label Information to the End User by the OEM or Integrators If the FCC ID of this module is not visible when it is installed inside another device, then the outside of the device into which the module is installed must be labelled with “Contains FCC ID: ARG-OS-322 and IC: 10142A-OS322”. Specifications of OS-322 MCU Board (Preliminary) 3 MECHANICAL SIZE Specifications of OS-322 MCU Board (Preliminary) 4 CONNECTOR PIN LAYOUT Connector Pin Signal Name Description CN1 (To Push Button PCB - BT) 1 VDD_3V3 3.3V power for LED 2 BT_LED1 Bluetooth LED1 enable / disable 3 BT_LED2 Bluetooth LED2 enable / disable 4 ADC1 Detect Push button according to input voltage level No button press : 0.28×VDD to VDD Bluetooth button: 0V to 0.28×VDD 5 KEY_DET Push button press detect CN7 (To Optical Sensor) 1 SENS_VDD 3.3V Power for Sensor 2 OPT_IN Input signal from Optical Sensor 3 GND Signal Ground CN9 (To Safety Limit Switch) 1 SAFE_DET Safety Limit Switch detection input 2 GND Signal Ground CN4 (To Button PCB - Function) 1 VDD_3V3 3.3V power for LED 2 M_DATA5 LED5 enable / disable 3 M_DATA4 LED4 enable / disable 4 M_DATA3 LED3 enable / disable 5 M_DATA2 LED2 enable / disable 6 M_DATA1 LED1 enable / disable 7 M_DATA0 LED0 enable / disable 8 ADC0 Detect Push button according to input voltage level No button press: 0.90×VDD to VDD Vibration button: 0.59×VDD to 0.90×VDD Power button : 0.28×VDD to 0.59×VDD Program button : 0V to 0.28×VDD 9 KEY_DET Push button press detect ISO3 (To Power PCBA) 1 VDD 3.3V Power supply from power board (2.7 to 3.6V) 2 GND Signal Ground 3 O_BUZZER Buzzer control signal to power board 4 O_MOMI Massage motor control signal to power board 5 O_VIB Vibration motor control signal to power board 6 GND Signal Ground 7 ZERO_CRS Zero cross signal from power board J4 1 GND Signal Ground 2 3V3 Control Signal for MCU firmware upgrade 3 PGM Control Signal for MCU firmware upgrade 4 SDO Control Signal for MCU firmware upgrade 5 RESET Control Signal for MCU firmware upgrade Specifications of OS-322 MCU Board (Preliminary) 5 6 SDI Control Signal for MCU firmware upgrade 7 SCK Control Signal for MCU firmware upgrade J1 1 BT_3V3 Control Signal for BT module firmware upgrade 2 MOSI Control Signal for BT module firmware upgrade 3 MISO Control Signal for BT module firmware upgrade 4 CSB Control Signal for BT module firmware upgrade 5 CSK Control Signal for BT module firmware upgrade 6 GND Signal Ground Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digita…

Text truncated - open the document above for the full version.

It was tested among the host device.

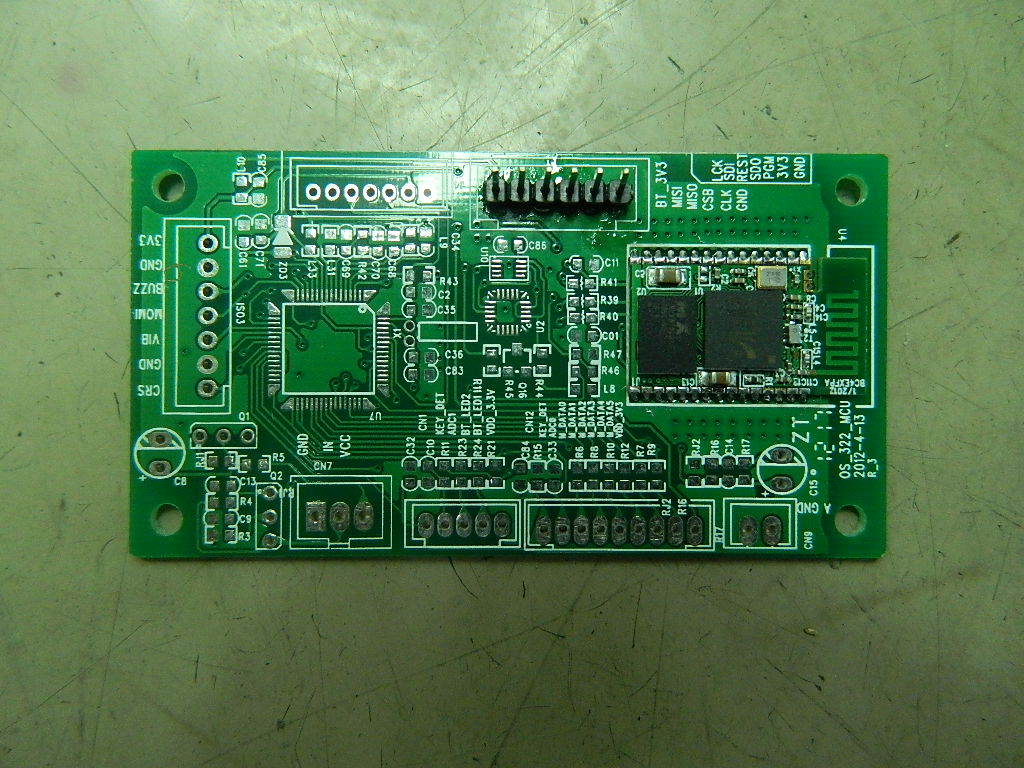

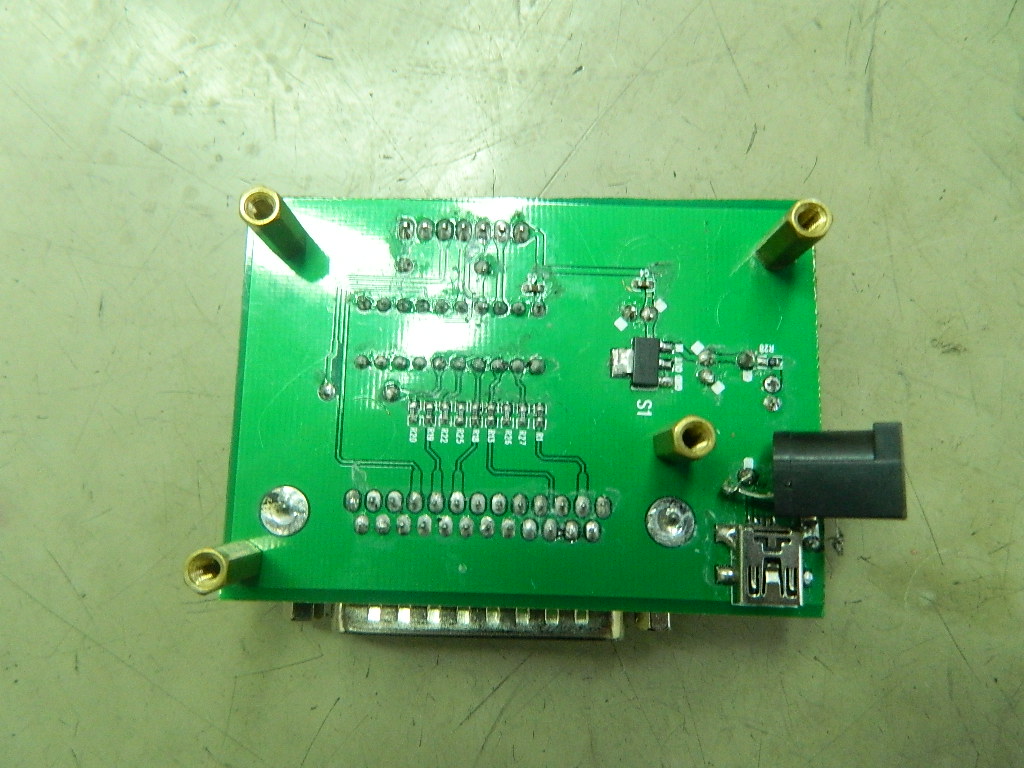

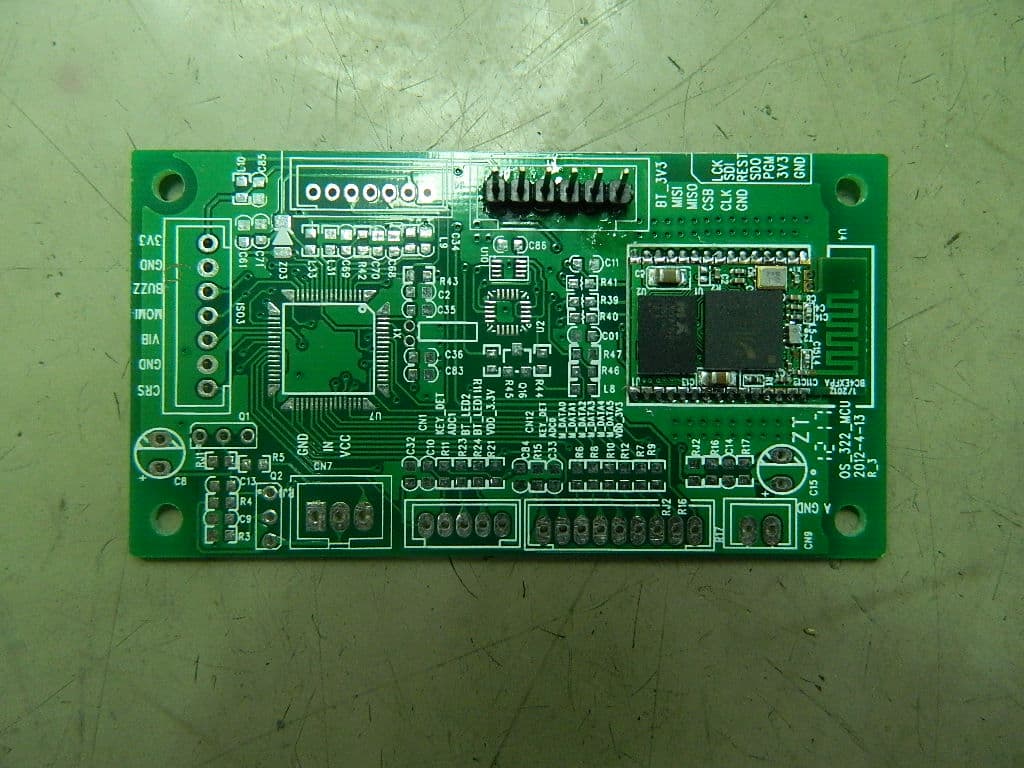

FCC ID: ARG-OS-322 IC: 10142A-322 Page 1 of 5 External Picture FCC ID: ARG-OS-322 IC: 10142A-322 Page 2 of 5 EUT FCC ID: ARG-OS-322 IC: 10142A-322 Page 3 of 5 Debug Board FCC ID: ARG-OS-322 IC: 10142A-322 Page 4 of 5 Host device FCC ID: ARG-OS-322 IC: 10142A-322 Page 5 of 5

FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 1 of 2 FCC ID & IC Label FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 2 of 2 EUT Size: 80mm * 45mm Label Location

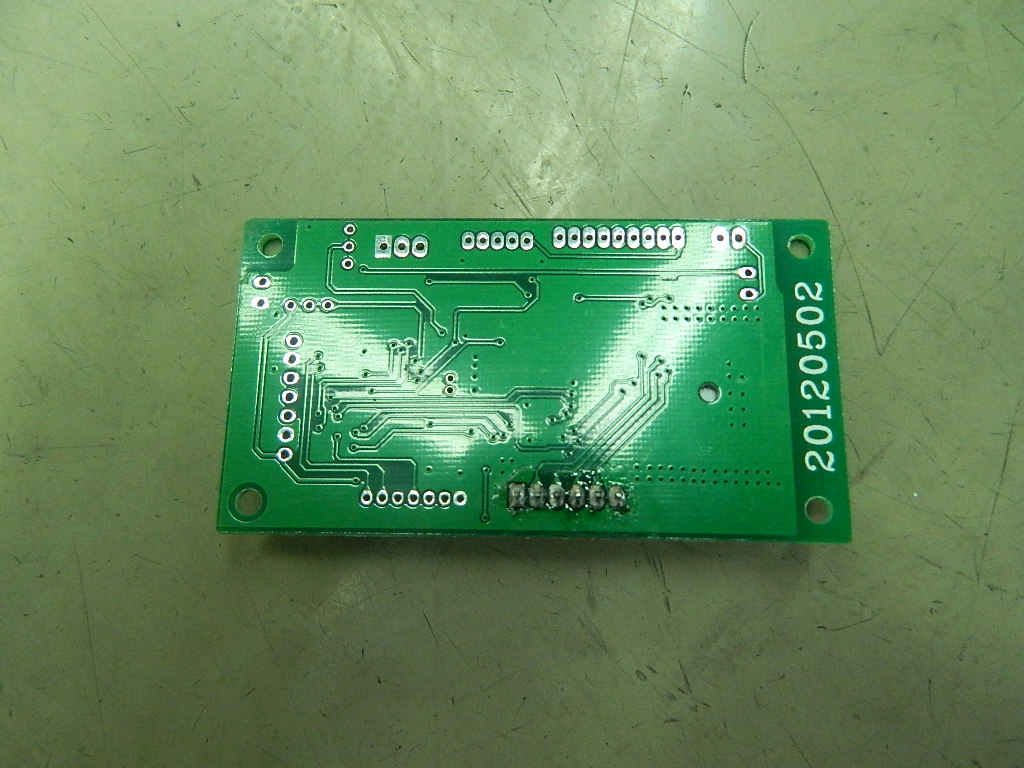

FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 1 of 3 Internal Picture FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 2 of 3 FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 3 of 3

FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 1 of 1 Statement of compliance to SAR Equipment : BT Module for Data Transfer Type/Model : iBT-02 Applicant : OSIM INTERNATIONAL LTD 65 Ubi Avenue 1 OSIM Headquarters, Singapore, 408939, Singapore According to KDB 447498, KDB 616217 and TCB Exclusion list (July 7, 2002), the output power ≤ 60/f(GHz) mW can follow the test exclusion procedure. As we can see from the test report SH12041020-001: The maximum P = -2.01dBm G = 1.00dBi EIRP = PG = -2.01 + 1.00 = -1.01dBm = 0.793mW The test exclusion limit = 60 / 2.5 = 24mW It is found the EIRP of EUT is lower than the test exclusion limit. Therefore, the EUT complies the requirement of 15.247(I) without test. Date of issue: June 25, 2012 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer)

FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 1 of 30 EMC TEST REPORT for Intentional Radiator No. SH12041020-001 Applicant : OSIM INTERNATIONAL LTD 65 Ubi Avenue 1 OSIM Headquarters, Singapore, 408939, Singapore Manufacturer : MAG Digital Limited Room 918, East Baihou Plaza, 3020 Shennan East Road, Luohu District, Shenzhen City, China. Product Name : BT Module for Data Transfer Type/Model : iBT-02 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2010): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: June 25, 2012 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 2 of 30 Description of Test Facility Name: Intertek Testing Services Ltd. Shanghai ETL Semko Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: ARG-OS-322 IC: 10142A-OS322 Page 3 of 30 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1 Applicant Information ..................................................................................................... 5 1.2 Identification of the EUT ................................................................................................ 5 1.3 Technical specification ................................................................................................... 6 1.4 Mode of operation during the test / Test peripherals used .............................................. 6 2. TEST SPECIFICATION .................................................................................................................................. 7 2.1 Instrument list ................................................................................................................. 7 2.2 Test Standard .................................................................................................................. 7 3. 20 DB BANDWIDTH ...................................................................................................................................... 9 3.1 Limit ................................................................................................................................ 9 3.2 Test Configuration .......................................................................................................... 9 3.3 Test Procedure and test setup .......................................................................................... 9 3.4 Test Protocol ................................................................................................................. 10 4. CARRIER FREQUENCY SEPARATION ........................................................................................................ 11 4.1 Limit .............................................................................................................................. 11 4.2 Test Configuration ........................................................................................................ 11 4.3 Test Procedure and test setup ........................................................................................ 11 4.4 Test Protocol ................................................................................................................. 12 5. MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 13 5.1 Test limit ....................................................................................................................... 13 5.2 Test Configuration ........................................................................................................ 13 5.3 Test procedure and test setup ........................................................................................ 13 5.4 Test protocol ................................................................................................................. 14 6. RADIATED SPURIOUS EMISSIONS.............................................................................................................. 15 6.1 Test limit ....................................................................................................................... 15 6.2 Test Configuration ........................................................................................................ 15 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. CONDUCTED SPURIOUS EMISSIONS & BAND EDGE ................................................................................. 19 7.1 Limit .............................................................................................................................. 19 7.2 Test Configuration ........................................................................................................ 19 7…
