ARG-OS-818BT Module

ValenceTech Bluetooth module for OSIM uDivine 1 INTRODUCTION The ValenceTech Bluetooth module for OSIM uDivine offers the communication between OSIM uDivine and Apple iOS device via Class 2 Bluetooth system v2.1+EDR. The primary components include CSR BM150 Bluetooth module, MCU, optical coupler, LDO and Apple’s authentication IC. HARDWARE Specifications Frequency Band: 2.4GHz ~ 2.48GHz unlicensed band Power: from uDivine Main Board Interfaces : 8 connectors – CN1, CN2 4-pins (1 x 4 connector 2.50mm pitch) CN3, CN4 3-pins (1 x 3 connector 2.50mm pitch) CN5, 8 5-pins (1 x 5 connector 2.50mm pitch) CN6 7-pins (1 x 7 connector 2.0mm pitch) CN7 6-pins (1 x 6 connector 2.54mm pitch) Bluetooth System: v2.1+EDR (Class 2) Modulation: only GFSK applied. Antenna: 2.4GHz Inverted-F and Meander Line Antennas on PCB Operating: 0 - 70C Temperature Range Indicators: 2 LED (Red and Blue) Buttons: 2 buttons (1 for Bluetooth power on/off and 1 for Bluetooth pairing) Current consumption: Operating 130mA RF receives sensitivity: -90dBm typically RF power: 10mW max. Data Rate: 2kbytes/s ValenceTech Bluetooth module for OSIM uDivine 2 MECHANICAL SIZE ValenceTech Bluetooth module for OSIM uDivine 3 PIN LAYOUT Connector (CN) Pin Description 1 (To remote) 1 Power 2 TX 3 RX 4 Gnd 2 (To uDivine Main board) 1 Power 2 TX 3 RX 4 Gnd 3 (To MP3) 1 L 2 Gnd 3 R 4 (To Audio Amp) 1 L 2 Gnd 3 R 5 (To Key PCB) 1 Gnd 2 S1 3 S2 4 Led1 5 Led2 6 ( PGM_BT) 1 GND 2 MISO 3 MISI 4 CLK 5 CSB 6 3V3 7 (PCM AP928) 1 SCK 2 SDI 3 RSTB 4 SDO 5 PGM 6 3V3 7 GND 8 (On Key PCB) 1 GND 2 S1 3 S2 ValenceTech Bluetooth module for OSIM uDivine 4 4 Led1 5 Led2 Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. ValenceTech Bluetooth module for OSIM uDivine 5 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Information for the OEMS Integrators This device is intended for OEM integrators only. Please see the full grant of equipment document for restrictions. Label Information to the End User by the OEM or Integrators If the FCC ID of this module is not visible when it is installed inside another device, then the outside of the device into which the module is installed must be labelled with “Contains FCC ID: ARG-OS-818 and IC: 10142A-OS818”.

PCB OSIM INTERNATIONAL LTD

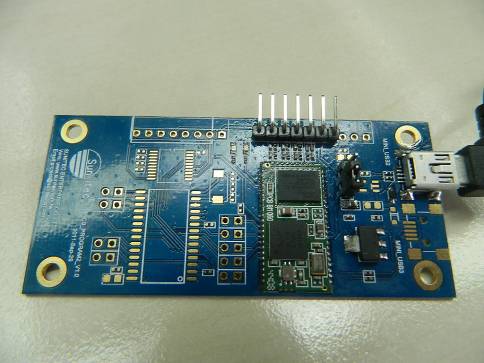

FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 1 of 3 External Picture FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 2 of 3 EUT FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 3 of 3 Debug Board

FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 1 of 2 FCC ID & IC Label FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 2 of 2 EUT Size: 96mm * 60mm Note: The label would be silkscreened on the EUT. Label Location

FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 1 of 2 Internal Picture FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 2 of 2

FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 1 of 1 Statement of compliance to SAR Equipment : BT Module Type/Model : D410XX Applicant : OSIM INTERNATIONAL LTD 65 Ubi Avenue 1 OSIM Headquarters, Singapore, 408939, Singapore According to KDB 447498, KDB 616217 and TCB Exclusion list (July 7, 2002), the output power ≤ 60/f(GHz) mW can follow the test exclusion procedure. As we can see from the test report SH12010366-001: The maximum P = 6.57dBm G = 1.00dBi EIRP = PG = 6.57 + 1.00 = 7.57dBm = 5.71mW The test exclusion limit = 60 / 2.5 = 24mW It is found the EIRP of EUT is lower than the test exclusion limit. Therefore, the EUT complies the requirement of 15.247(I) without test. Date of issue: April 11, 2012 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer)

FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 1 of 30 EMC TEST REPORT for Intentional Radiator No. SH12010366-001 Applicant : OSIM INTERNATIONAL LTD 65 Ubi Avenue 1 OSIM Headquarters, Singapore, 408939, Singapore Manufacturer : Sunitec Enterprise Co., Ltd. No.2,Qilin Road2,RunTang Ind,Dan-Keng Village,FuMing Community,Guanlan BaoAn District,Shenzhen,China Product Name : BT Module Type/Model : D410XX SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2010): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: April 11, 2012 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 2 of 30 Description of Test Facility Name: Intertek Testing Services Ltd. Shanghai ETL Semko Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: ARG-OS-818 IC: 10142A-OS818 Page 3 of 30 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1 Applicant Information ..................................................................................................... 5 1.2 Identification of the EUT ................................................................................................ 5 1.3 Technical specification ................................................................................................... 6 1.4 Mode of operation during the test / Test peripherals used .............................................. 6 2. TEST SPECIFICATION .................................................................................................................................. 7 2.1 Instrument list ................................................................................................................. 7 2.2 Test Standard .................................................................................................................. 7 3. 20 DB BANDWIDTH ...................................................................................................................................... 9 3.1 Limit ................................................................................................................................ 9 3.2 Test Configuration .......................................................................................................... 9 3.3 Test Procedure and test setup .......................................................................................... 9 3.4 Test Protocol ................................................................................................................. 10 4. CARRIER FREQUENCY SEPARATION ........................................................................................................ 11 4.1 Limit .............................................................................................................................. 11 4.2 Test Configuration ........................................................................................................ 11 4.3 Test Procedure and test setup ........................................................................................ 11 4.4 Test Protocol ................................................................................................................. 12 5. MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 13 5.1 Test limit ....................................................................................................................... 13 5.2 Test Configuration ........................................................................................................ 13 5.3 Test procedure and test setup ........................................................................................ 13 5.4 Test protocol ................................................................................................................. 14 6. RADIATED SPURIOUS EMISSIONS.............................................................................................................. 15 6.1 Test limit ....................................................................................................................... 15 6.2 Test Configuration ........................................................................................................ 15 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. CONDUCTED SPURIOUS EMISSIONS & BAND EDGE ................................................................................. 19 7.1 Limit .............................................................................................................................. 19 7.2 Test Configuration ........................................................................................................ 19…
