ARN-ELEMENT-B-211Avalanche Beacon

V e r s i o n 1 . 0 2 0 1 2 USER MANUAL Find the Barryvox Reference Handbook at: www.mammut.ch/BarryvoxManual Setup and Carrying Positions Batteries, Handling and Maintenance Only use alkaline LR03/AAA batteries. Always replace all 3 batteries and use new batteries of the same type. Never use rechargeable batteriesand always replace all the batteries at the same time. When not using the transceiver for an extended period of time (summer), remove the batteries. Handle your Barryvox with care. Do not drop it on the ground and avoid mechanical shocks. Avoidhaving other electronic devices(e.g. mobile phones, radios, headlamps, cameras), metal objects(pocket knives, magnetic buttons), or other transceivers close to your run- ning avalanche transceiver. To ensure the proper performance of the transceiver, it is highly recommended that you send your device to an official Barryvox service center once every three yearsfor a func- tional test. Press the key on the side during shut-down to view the recommended date of the next check. Stick the emergency planon the back of the battery compartment lid. Carrying System and Carrying Positions Regardless of the carrying position, the display should always face your body! Carrying System (Recommended Carrying Position) The carrying system has to be put on your innermost layer of clothing prior to beginning the trip (see illustration on the base plate of the carrying system) and has to be worn on your body for the duration of the trip. The transceiver shall always remain covered by one layer of cloth- ing.Using the red hook on the wrist loop the device should always remain anchored to the base plate of the carrying system. Carrying the Transceiver in a Pocket If you carry the Barryvox in a secure pant pocket, the zipper must remain closed for the duration of the trip. If possible, attach the wrist loop to your pants or secure it around your belt. 1 2 Before a party takes off, the transceivers of all party members must be checked. The group members switch their trans- ceivers to SEND. The group leader switches his device to “group check” by turn- ing it from OFF into the SEND and presses the lateral key within the first 5 seconds. Now, the group leader checks the device of each participant: The test is successfulif you can clearly hear beep sounds from each participant's transceiver within the range indicated on the display. The test distance is 1m, the spacing between the partic- ipants is 2m. The indicated test distance must not be shortened. In case the device discovers that the distances are too short a distance warning and alarm sound warns the user. If your ELEMENT Barryvox ® detects that the transmit frequency of the tested device is not within the normative regulations, an «E6» warning message will be shown. In this case, repeat the test with 5m distance between the participants to identify the defective transmitter. Such devices must be checked/repaired by the manufacturer. When all devices of the participants have been tested, the group check is finished. The group leader switches his device now as well to SEND by pressing the key on the side. How to solve a problem: If no tone is heard within the in- dicated range, the device may not be used. 1. Check if the device is switched to SEND. 2. Replace the batteries. 3. Have the device checked by the manufacturer. Main Switch OFF / SEND / SEARCH Start-Up / Self- and Battery Test Single Group Check (GROUP CHECK) Touring O F F OFFSENDSEARCH OFFSENDSEARCH OFF -> SEND SEND -> OFF OFFSENDSEARCH S E A R C H OFFSENDSEARCH SEND -> SEARCHSEARCH -> SEND While starting, the device conducts a selftest. If the self-test fails, an error message is displayed for 20 seconds along with an acoustic warning. If the battery power falls below 20% or the battery icon is displayed, the batteries must be replaced as soon as possible! Mode SEND The SEND mode is the normal operating mode outdoors or in all other sit- uations in which there is a risk of avalanches. Each time the SEND mode has been activated, this is confirmed by a triple beep sound. Each individ- ual signal pulse is tested. If the test is successful, this is confirmed by a blink of the red SEND-Control LED. The LCD display is automatically de- activated in the SEND mode. Always make sure that the switch locks into position mechanically to avoid an undesired change of mode. Personal Rescue Equipment Avalanche Transceiver + Shovel + Probe The additional use of a Mammut or Snowpulse Airbag increases the chance to stay on the surface and therefore considerably reduces the risk of a complete burial. GROUP CHECKSEND Head Office: Mammut Sports Group AG Birren 5 5703 Seon, Switzerland Tel. +41 (0)62 769 81 81 [email protected] North America: Mammut Sports Group Inc. 135 Northside Drive US-Shelburne, VT 05482 Tel. +1 802 985 5056 [email protected] Your Barryvox ® will not protect you against avalanches! As a winter outdoor enthusiast, you must consider all possible avalanche prevention measures and plan your trips carefully. Companion rescue – the worst case – must be practiced fre- quently. Technical DataDigital device with 3 antennas / Transmit frequency: 457 kHz / Maximum range: > 60 m / Search strip width: 50 m / W-Link communication channel / Alkaline batteries: 3 x AAA 1,5 Volt / Battery life: typical 250 h SEND, min 200 h in SEND mode followed by 1 h in SEARCH / Dimensions: 113 x 75 x 27 mm / Weight: 210 g (incl. Batteries). Type/Model: ELEMENT Barryvox ® A10010-10000 (W-Link 868 MHz), A10012-10000 (W-Link 915 MHz), A10013-10000 (W-Link off). Technical data and specifications are subject to change without notice. © Copyright by Mammut Sports Group AG and Genswein. All rights reserved. Barryvox Service Centers, Registration and Additional Resources For additional information on avalanche rescue, avalanche theory, the registration of your Barryvox and the official Barryvox Service Centers please visit www.mammut.ch/Barryvox. The following documents are available for …

Text truncated - open the document above for the full version.

Standard 457kHz Avalanche Transceiver Funtionality Independently of the availability of W-Link data, your transceiver will always operate as a n ormal 457kHz avalanche transceiver in transmit and receive mode. US, Canadian and New Zealand Version (US/W-Link Region B) Please note that the W-Link frequency used in Europe is different than that used in North A merica and New Zealand. If you own an ELEMENT Barryvox ® p urchased in North America or New Zealand your device is only able to exchange W-Link information with devices com- m unicating on the W-Link region B frequency. European Version (EU/W-Link Region A) P lease note that the W-Link frequency used in North America and New Zealand is different than that used in Europe. If you own an ELEMENT Barryvox ® purchased in Europe your d evice is only able to exchange W-Link information with devices communicating on the W- Link region A frequency. Japanese Version (no/W-Link not available) Please note that the W-Link function is not allowed in Japan and therefore not available. How to verify the W-Link setting of your ELEMENT Barryvox ® P ress the key on the side during shut-down to view the W-Link region of your device. EU = W-Link Region A, NA = W-Link Region B, no = W-Link not available. Shut-down screenTop left: W-Link Region Bottom: Year of next periodic check EC Declaration of Conformity Manufacturer:Mammut Sports Group AG Address:Birren 5 City:CH-5703 Seon Country:Switzerland Declares that the equipment: Product:Avalanche Beacon Type designation(s):ELEMENT Barryvox ® A10010-10000 Trademark:Mammut ® is in compliance with the essential requirements and other relevant provisions of Directive 1999/05/EC. ETSI EN 300 718-1:2001-05; EN 300 220-2 V2.3.1; EN 301 489-1 V1.8.1; EN 301 489-3 V1.4.1; EN 60950-1:2006 / A11:2009 Date:20. April 2012 City:CH-5703 Seon Name:Andres LiethaMick Farnworth Signature:.......................................................................... Head of BusinessPurchasing Manager Unit HardwareHardware R&TTE Declaration of Conformity Hereby, Manufacturer:Mammut Sports Group AG Address:Birren 5 City:CH-5703 Seon Country:Switzerland declares that the equipment: Product:Avalanche Beacon Type designation(s):PULSE Barryvox ® 462001-10000 Trademark:Mammut ® is in compliance with the essential requirements and other relevant provisions of Directive 1999/05/EC. Date:19. Juli 2008 City:CH-5703 Seon Name:Andres LiethaMick Farnworth Signature:.......................................................................... Head of BusinessPurchasing Manager Unit HardwareHardware USA/Canada/New Zealand Type/Model: PULSE Barryvox ® 462002-10000 IC: 8038A-PULSE FCC ID: ARN-PULSE-B-212 New Zealand: N11394 All Regions With Disabled W-Link Type/Model: PULSE Barryvox ® 462003-10000 Manufacturer Mammut Sports Group AG Country of origin Switzerland Type PULSE Barryvox ® Code number Approval / Conformity USA/Canada/New Zealand Type/Model: ELEMENT Barryvox ® A10012-10000 IC: 8038A-ELEMENT FCC ID: ARN-ELEMENT-B-211 New Zealand: N11394 All Regions With Disabled W-Link Type/Model: ELEMENT Barryvox ® A10013-10000 Manufacturer Mammut Sports Group AG Country of origin Switzerland Type ELEMENT Barryvox ® Code number Approval / Conformity Standard 457kHz Avalanche Transceiver Funtionality Independently of the availability of W-Link data, your transceiver will always operate as a n ormal 457kHz avalanche transceiver in transmit and receive mode. US, Canadian and New Zealand Version (W-Link Region B) Please note that the W-Link frequency used in Europe is different than that used in North A merica and New Zealand. Furthermore the American Federal Communications Commission (FCC) specifically prohibits that the customer can choose the W-Link region on his or her o wn, except for disabling the W-Link completely. If you own a PULSE Barryvox ® p urchased i n North America or New Zealand and need to use your device in Europe, you can have the European W-Link configuration activated by an official Barryvox Service Center. European Version (W-Link Region A) T he European Telecommunications Standards Institute (ETSI) allows the customer to choose the W-Link frequency on his or her own. If you have a European W-Link configuration, you c an choose in the settings whether your device should operate in the W-Link region A or B, or if W-Link should be completely disabled. Japanese Version Please note that the W-Link function is not allowed in Japan. When using your PULSE B arryvox ® o utside of Japan, you can have the appropriate W-Link configuration activated by an official Barryvox Service Center. How to modify the W-Link setting of your PULSE Barryvox ® To access the «Settings», switch the transceiver from OFF to SEND, wait for the «Group Check» message to appear at the bottom of the screen and then press any key. The confir- mation «activated» appears at the bottom of the screen. Wait until the start menu appears. The selection is now on the first entry «Group Check», press the -key within 8 seconds to get to the menu item «Profile». Confirm your selection by pressing the -key. Press the -key, to get to the “Advanced” profile. Confirm your selection by pressing the -key. Press the -key, to get to the menu item «Settings». Confirm your selection by pressing the -key. Press the -key, to get to the menu item «W-Link». Confirm your selection by pressing the -key. Press the -key, to choose the appropriate W-Link setting (see «W- Link World Map»). Confirm your selection by pressing the -key. Barryvox ® W(ireless)-Link Y our Barryvox ® h as a W-Link communication channel that allows data communication between W-Link capable avalanche transceivers. The W-Link channel allows the exchange of vital data (PULSE Barryvox ® only), providing faster and more reliable multiple burial data as well as the c ommunication with the W-Link based test and configuration a dapters. T he W-Link channel is c ompletely separate from the primary 457kHz functions of the transceiver. Without W…

Text truncated - open the document above for the full version.

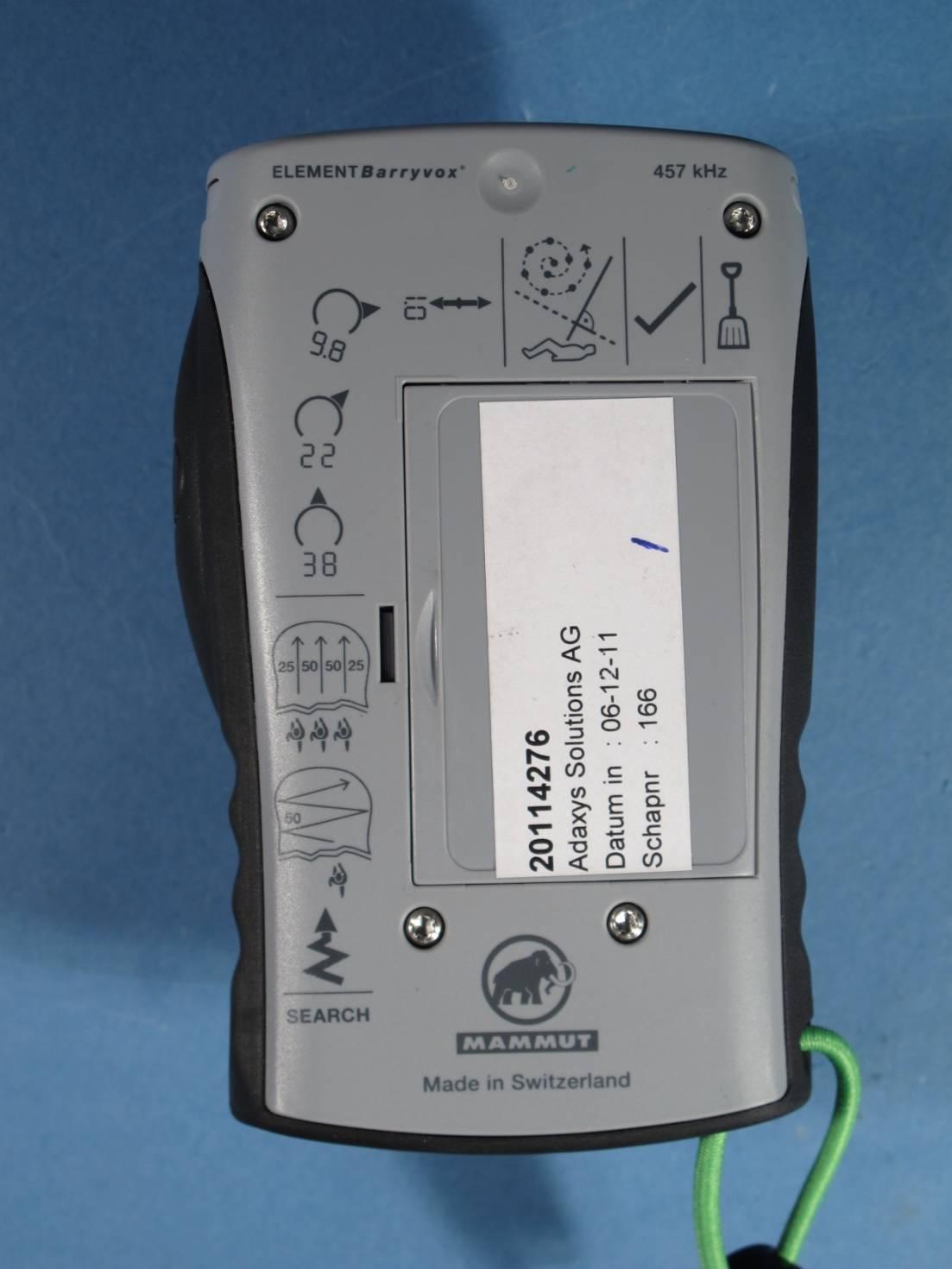

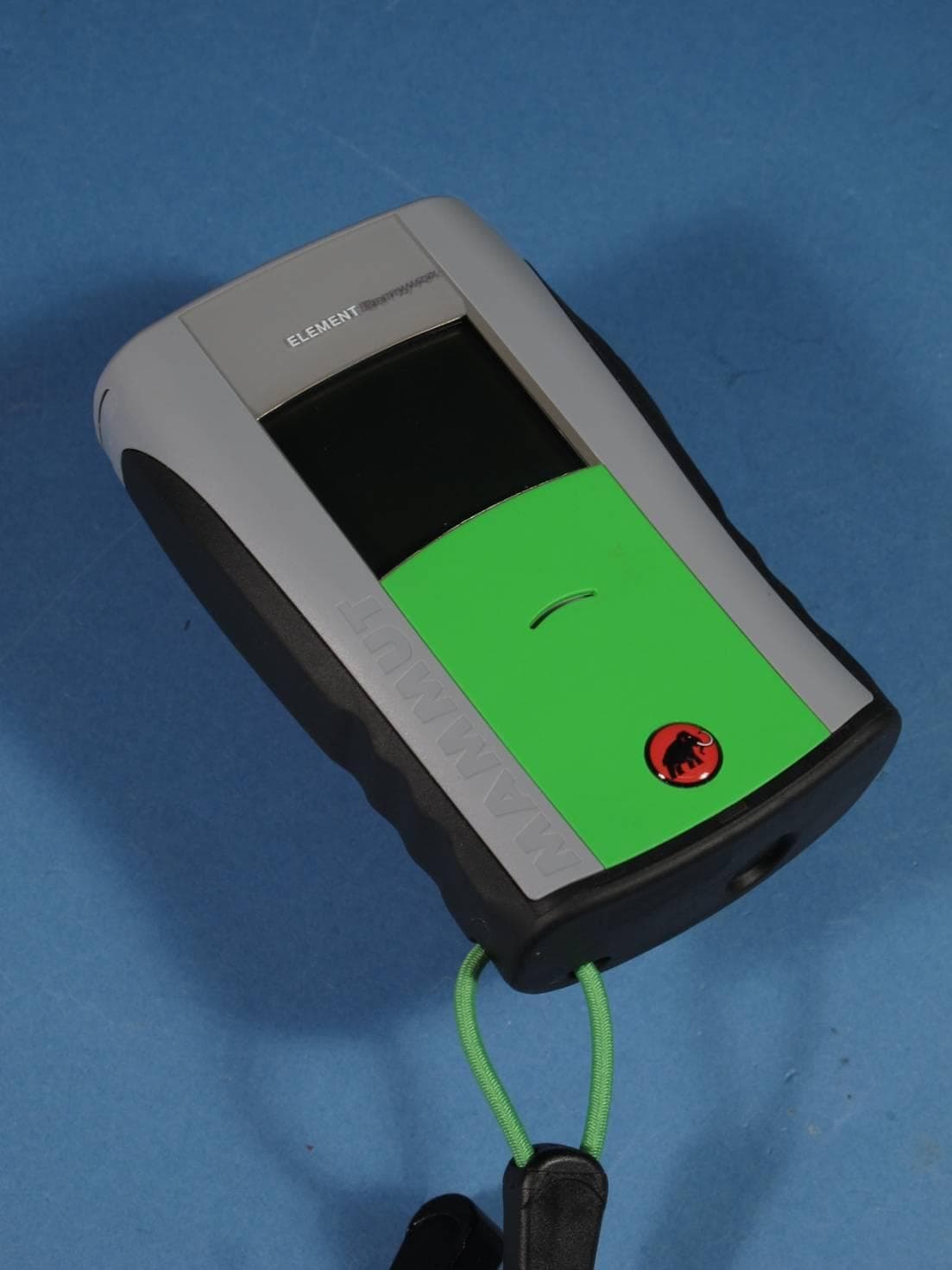

Photographs module 20114276302 External PHOTOGRAPH 1: - TOP VIEW OF ELEMENT BARRYVOX ....................................................................................... 2 PHOTOGRAPH 2: - BOTTOM VIEW OF ELEMENT BARRYVOX ................................................................................ 3 PHOTOGRAPH 3: - BATTERY COMPARTMENT OF ELEMENT BARRYVOX ................................................................ 4 Page: 2 of 4 Photograph module: 20114276302 external Photograph 1: - Top view of Element Barryvox Page: 3 of 4 Photograph module: 20114276302 external Photograph 2: - Bottom view of Element Barryvox Page: 4 of 4 Photograph module: 20114276302 external Photograph 3: - Battery compartment of Element Barryvox

ELEMENT Barryvox A10012-10000 Label sample .docx 05.09.2012 muu Page 1 / 1 ELEMENT Barryvox A10012-10000 Label Sample with IC ID printed in battery compartement:

Photographs module 20124276302 Internal PHOTOGRAPH 1: - INSIDE VIEW OF ELEMENT BARRYVOX, TOP SIDE .................................................................... 2 PHOTOGRAPH 2: - INSIDE VIEW OF ELEMENT BARRYVOX, BOTTOM SIDE ............................................................. 3 PHOTOGRAPH 3: - PCB OF ELEMENT BARRYVOX, TOP VIEW .............................................................................. 4 PHOTOGRAPH 4: - PCB OF ELEMENT BARRYVOX, BOTTOM VIEW........................................................................ 5 PHOTOGRAPH 5: - BATTERY OF ELEMENT BARRYVOX ........................................................................................ 6 Page: 2 of 6 Photograph module: 20114276302 internal Photograph 1: - Inside view of Element Barryvox, top side Page: 3 of 6 Photograph module: 20114276302 internal Photograph 2: - Inside view of Element Barryvox, bottom side Page: 4 of 6 Photograph module: 20114276302 internal Photograph 3: - PCB of Element Barryvox, top view Page: 5 of 6 Photograph module: 20114276302 internal Photograph 4: - PCB of Element Barryvox, bottom view Page: 6 of 6 Photograph module: 20114276302 internal Photograph 5: - Battery of Element Barryvox

ELEMENT Barryvox A10012-10000 internal and external Photos .docx 31.08.2012 muu Page 1 / 2 ELEMENT Barryvox A10012-10000 Internal & external Photos ELEMENT Barryvox A10012-10000 internal and external Photos .docx 31.08.2012 muu Page 2 / 2

Test report 20114276302 - rev. 1.0 based on: FCC Part 15 Subpart C, section 15.209 (10-1-11 Edition) RSS-210 (Issue 8, December 2010) section 2.5 Avalanche Beacon Mammut Element Barryvox A10012-10000 Report number: 20114276302 - rev. 1.0 Contents MAIN MODULE ......................................................................................................................................................... 3 1 INTRODUCTION .................................................................................................................................................. 3 2 PRODUCT .......................................................................................................................................................... 4 3 TEST SCHEDULE ................................................................................................................................................ 4 4 PRODUCT DOCUMENTATION .............................................................................................................................. 5 5 OBSERVATIONS AND COMMENTS ....................................................................................................................... 5 6 SUMMARY ......................................................................................................................................................... 5 7 CONCLUSIONS ................................................................................................................................................... 6 TEST RESULTS MODULE ....................................................................................................................................... 7 1 SUMMARY ......................................................................................................................................................... 7 2 EMISSION TESTS ................................................................................................................................................ 8 2.1 Field strength of intentional signal.......................................................................................................... 8 2.2 Field strength of unwanted emissions (  30 MHz) ................................................................................. 9 USED TEST EQUIPMENT MODULE ................................................................................................................... 11 REVISION HISTORY .............................................................................................................................................. 12 This report comprises of three modules. The total number of pages exclusive of the pages enclosed in the additional information module is: 12 Page: 3 of 12 Main module Report number: 20114276302 - rev. 1.0 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The copyright of this test report is owned by Telefication bv and may not be reproduced except in full without the written approval of Telefication bv. Ordering party: Company name : Adaxys Solutions AG Address : Eichtalstrasse 55 Zipcode : CH-8634 City/town : Hombrechtikon Country : Switzerland Date of order : 8 November 2011 Page: 4 of 12 Main module Report number: 20114276302 - rev. 1.0 2 Product A sample of the following product was submitted for testing: Product name : Avalanche Beacon Product category : Intentional radiators Manufacturer : Mammut Sports Group AG Trade mark : Mammut Type designation : Element Barryvox A10012-10000 FCC ID : ARN -ELEMENT-B-211 Emission designator : P0N Hardware version : HW1 Software version : 1.0 Serial number : 1127807097 3 Test schedule Tests were carried out in accordance with the specification detailed in chapter 6 "Summary" of this report. Tests were carried out at the following location:  Telefication, Zevenaar The sample of the product was received on:  6 December 2011 Tests were carried between:  30 January and 10 February 2012 Page: 5 of 12 Main module Report number: 20114276302 - rev. 1.0 4 Product documentation For production of this report the following product documentation was used: Identification Date ELEMENT_Barryvox_WLINK_certification_short_instructions_nov_2011.pdf 2011-12-05 ELEMENT Barryvox Users Manual.pdf 2012-01-20 ELEMENT Barryvox Operational Description.pdf 2012-01-20 5 Observations and comments The Element Barryvox A10012-10000 is an avalanche beacon that transmits on 457 kHz and in the 902 - 928 MHz band. This report only describes the tests on the 457 kHz transmitter and receiver 6 Summary The product is intended for use in the following application area:  Avalanche beacon The sample was tested according to the following specification:  FCC Part 15 Subpart C, section 15.209 (10-1-11 Edition)  RSS-210 (Issue 8, December 2010), section 2.5 Page: 6 of 12 Main module Report number: 20114276302 - rev. 1.0 7 Conclusions The sample of the product showed NO NON-COMPLIANCES to the specification stated in chapter 6 of this report. The results of the tests as stated in this report, are exclusively applicable to the product item as identified in this report. Telefication does not accept any responsibility for the results stated in this report, with respect to the properties of product items not involved in these tests. All tests are performed by: name : ing. J.C. le Clercq function : Test Engineer signature : Review of test methods and report by: name : G.J. Gort function : Senior Test Engineer signature : The above conclus…

Text truncated - open the document above for the full version.

Photographs module 20114276302 Test set up, Element Barryvox PHOTOGRAPH 1: TEST SETUP RADIATED EMISSIONS (0.15 - 30 MHZ) ................................................................. 2 Page: 2 of 2 Photograph module: 20114276302 test setup Photograph 1: Test setup radiated emissions (0.15 - 30 MHz)
