ATL-AUDAIRAud Air

Inspired in New York. Styled by iLuv ® .Inspired in New York. Styled by iLuv ® . 快速入门指南 Aud ™ Air WiFi and Bluetooth® Portable Streo Speaker Haut-parleur portable Wi et Bluetooth® QSG 1. Power on / Power on / Power on / Power on a. Press Power button for 2 seconds a. Press Power button for 2 seconds a. Press Power button for 2 seconds a. Press Power button for 2 seconds c. Power LED (red) will be on c. Power LED (red) will be on c. Power LED (red) will be on c. Power LED (red) will be on 1. Connect your mobile device to Wi-Fi network 1. Connect your mobile device to Wi-Fi network 1. Connect your mobile device to Wi-Fi network 1. Connect your mobile device to Wi-Fi network 2. Download the free Aud Air app from the app store 2. Download the free Aud Air app from the app store 2. Download the free Aud Air app from the app store 2. Download the free Aud Air app from the app store 4. Select ‘Add Device’ button 4. Select ‘Add Device’ button 4. Select ‘Add Device’ button 4. Select ‘Add Device’ button a. Please make sure your Aud Air device is powered and on the same network as your phone or tablet. If not, please tap the “Add Device” button to congure your device to your Wi-Fi network. a. Please make sure your Aud Air device is powered and on the same network as your phone or tablet. If not, please tap the “Add Device” button to congure your device to your Wi-Fi network. a. Please make sure your Aud Air device is powered and on the same network as your phone or tablet. If not, please tap the “Add Device” button to congure your device to your Wi-Fi network. a. Please make sure your Aud Air device is powered and on the same network as your phone or tablet. If not, please tap the “Add Device” button to congure your device to your Wi-Fi network. 5. Press the WPS (Wi-Fi Protected Setup) button on Aud Air to congure network. 5. Press the WPS (Wi-Fi Protected Setup) button on Aud Air to congure network. 5. Press the WPS (Wi-Fi Protected Setup) button on Aud Air to congure network. 5. Press the WPS (Wi-Fi Protected Setup) button on Aud Air to congure network. 1. Click ‘Mode’ button to select Bluetooth 1. Click ‘Mode’ button to select Bluetooth 1. Click ‘Mode’ button to select Bluetooth 1. Click ‘Mode’ button to select Bluetooth a. Mode light will ash in blue quickly a. Mode light will ash in blue quickly a. Mode light will ash in blue quickly a. Mode light will ash in blue quickly 2. Hold button down for 3 seconds for manual pairing 2. Hold button down for 3 seconds for manual pairing 2. Hold button down for 3 seconds for manual pairing 2. Hold button down for 3 seconds for manual pairing 3. Set up from mobile device 3. Set up from mobile device 3. Set up from mobile device 3. Set up from mobile device a. Go to settings a. Go to settings a. Go to settings a. Go to settings c. Scan for and select 'iLuv Aud Air' c. Scan for and select 'iLuv Aud Air' c. Scan for and select 'iLuv Aud Air' c. Scan for and select 'iLuv Aud Air' 4. When Aud Air is paired, Mode light will be blue. 4. When Aud Air is paired, Mode light will be blue. 4. When Aud Air is paired, Mode light will be blue. 4. When Aud Air is paired, Mode light will be blue. 1. Click ‘Mode’ button to select Aux in 1. Click ‘Mode’ button to select Aux in 1. Click ‘Mode’ button to select Aux in 1. Click ‘Mode’ button to select Aux in a. Mode indicator will blink yellow a. Mode indicator will blink yellow a. Mode indicator will blink yellow a. Mode indicator will blink yellow b. When Aux Cable is plugged in, Mode light will be solid yellow b. When Aux Cable is plugged in, Mode light will be solid yellow b. When Aux Cable is plugged in, Mode light will be solid yellow b. When Aux Cable is plugged in, Mode light will be solid yellow 1. Click (Play/Pause) button to play or pause 1. Click (Play/Pause) button to play or pause 1. Click (Play/Pause) button to play or pause 1. Click (Play/Pause) button to play or pause 2. Click multifunction button again to pause 2. Click multifunction button again to pause 2. Click multifunction button again to pause 2. Click multifunction button again to pause 3. Click VOLUME '+' button to increase volume 3. Click VOLUME '+' button to increase volume 3. Click VOLUME '+' button to increase volume 3. Click VOLUME '+' button to increase volume 4. Click VOLUME '-' button to decrease volume 4. Click VOLUME '-' button to decrease volume 4. Click VOLUME '-' button to decrease volume 4. Click VOLUME '-' button to decrease volume 5. Hold VOLUME '+' button to select next track 5. Hold VOLUME '+' button to select next track 5. Hold VOLUME '+' button to select next track 5. Hold VOLUME '+' button to select next track 6. Hold VOLUME '-' button to move to previous track 6. Hold VOLUME '-' button to move to previous track 6. Hold VOLUME '-' button to move to previous track 6. Hold VOLUME '-' button to move to previous track 1. Each number keys from 1 to 6 are pre-set to playlists 1. Each number keys from 1 to 6 are pre-set to playlists 1. Each number keys from 1 to 6 are pre-set to playlists 1. Each number keys from 1 to 6 are pre-set to playlists 2. Connect Aud Air to internet 2. Connect Aud Air to internet 2. Connect Aud Air to internet 2. Connect Aud Air to internet 3. Set up pre-set through the App 3. Set up pre-set through the App 3. Set up pre-set through the App 3. Set up pre-set through the App a. Search internet radio station you want to pre-set a. Search internet radio station you want to pre-set a. Search internet radio station you want to pre-set a. Search internet radio station you want to pre-set b. Click Pre-set button on the right side of station list b. Click Pre-set button on the right side of station list b. Click Pre-set button on the right side of station list b. Click Pre-set button on the right side of station list c. Select number out of 1~6 for pre-set c. Select number out of 1~6 for pre-set c. Select number out of 1~6 for pre-set c. Select number out of 1~6 for pre-set 4. Press number key to play the pr…

Text truncated - open the document above for the full version.

iLuv Creative Technology To whom concerns: The product Aud Air, models name: AUDAIRxxyy (xx‐EU=Europe version, US=USA version; yy‐color‐BK=Black) All models are electrically identical, only the appearance, color and model No. are different。

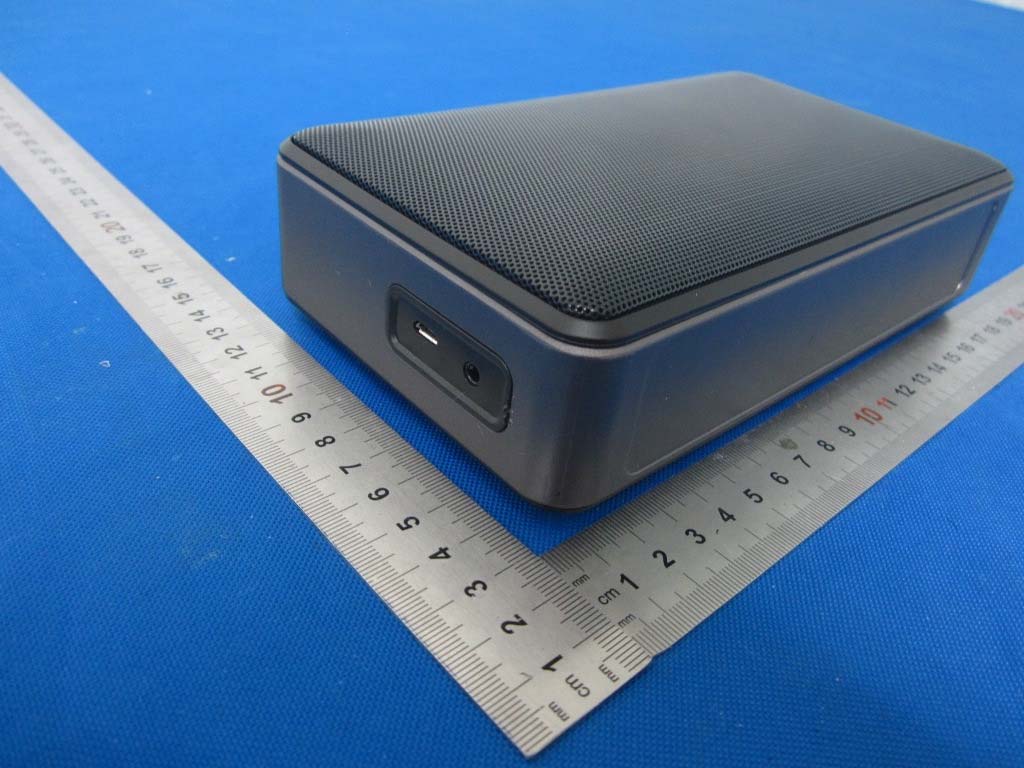

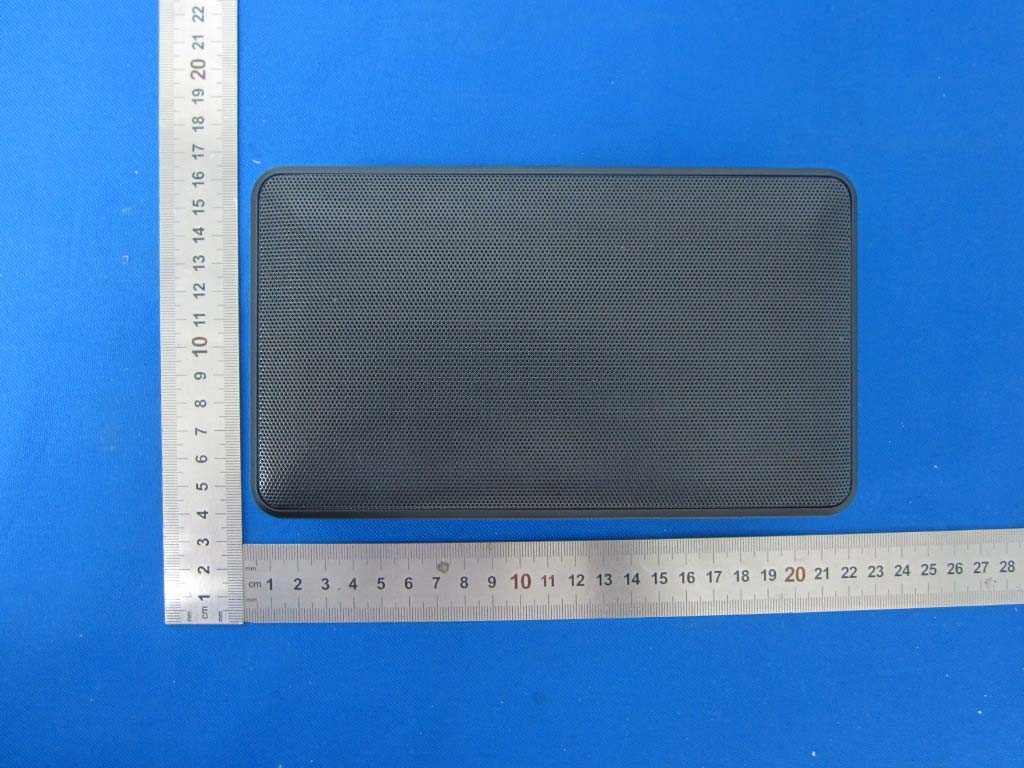

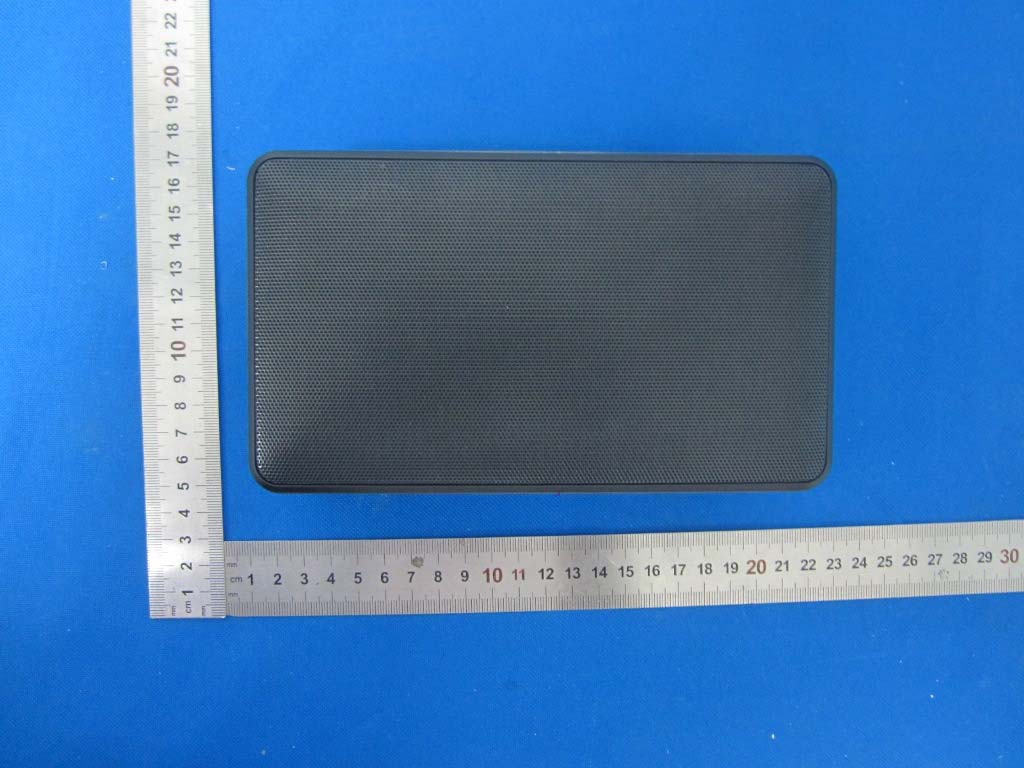

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 46 of 55 15. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 47 of 55 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 48 of 55

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 49 of 55 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 50 of 55 BT antenna WIFI antenna port Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 51 of 55 WIFI Antenna Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 52 of 55 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 53 of 55 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 54 of 55 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 55 of 55 END OF REPORT

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: Bluetooth:[2402 MHz -1.57dBm（0.7mW）output power] (0.7mW /5mm) ·[√2.402(GHz)]= 0.22 WiFi: [2462 MHz 13.47dBm（22.233mW）output power] (22.233mW /5mm) ·[√2.462(GHz)]= 6.977 So, 0.22+6.977=7.197 < 7.5 for 10-g SAR Then SAR evaluation is not required Remark: the Bluetooth and WIFI can transmit at the same time.

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 1 of 55 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant : iLuv Creative Technology Address : 2 Harbor Park Drive, Port Washington, NY 11050, USA Equipment under Test : Aud Air Model No : AUDAIRxxyy (xx-EU=Europe version, US=USA version; yy-color-BK=Black) Trade Mark : iLuv FCC ID : ATL-AUDAIR Manufacturer : DongGuan JinWenHua Digital Technology Co., Ltd Address : No1 bldg, Hua da Road, Longbeiling Village, Tangxia Town, Dongguan City, Guangdong Province, China Report No.: DDT-R15Q0921-3E2 Issued Date: Nov. 2, 2015 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 2 of 55 TABLE OF CONTENTS Test report declares......................................................................................................................4 1. Summary of test results ............................................................................................................... 5 2. General test information .............................................................................................................. 6 2.1. Description of EUT ..................................................................................................................... 6 2.2. Accessories of EUT ..................................................................................................................... 6 2.3. Assistant equipment used for test ................................................................................................ 6 2.4. Block diagram of EUT configuration for test ............................................................................. 6 2.5. Deviations of test standard .......................................................................................................... 7 2.6. Test environment conditions ....................................................................................................... 7 2.7. Test laboratory ............................................................................................................................. 7 2.8. Measurement uncertainty ............................................................................................................ 7 3. Equipment used during test ......................................................................................................... 8 4. Maximum Peak Output Power .................................................................................................. 10 4.1. Test equipment .......................................................................................................................... 10 4.2. Block diagram of test setup ....................................................................................................... 10 4.3. Limits ........................................................................................................................................ 10 4.4. Test Procedure ........................................................................................................................... 10 4.5. Test Result ................................................................................................................................. 10 5. 20dB Bandwidth ........................................................................................................................ 11 5.1. Test equipment .......................................................................................................................... 11 5.2. Block diagram of test setup ....................................................................................................... 11 5.3. Limits ........................................................................................................................................ 11 5.4. Test Procedure ........................................................................................................................... 11 5.5. Test Result ................................................................................................................................. 11 5.6. Original test data ....................................................................................................................... 11 6. Carrier Frequency Separation .................................................................................................... 13 6.1. Test equipment .......................................................................................................................... 13 6.2. Block diagram of test setup ....................................................................................................... 13 6.3. Limits ........................................................................................................................................ 13 6.4. Test Procedure ........................................................................................................................... 13 6.5. Test Result ................................................................................................................................. 13 6.6. Original test data ....................................................................................................................... 14 7. Number Of Hopping Channel ................................................................................................... 15 7.1. Test equipment .......................................................................................................................... 15 7.2. Block diagram of test setup ....................................................................................................... 15 7.3. Limits ..................................................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 44 of 55 14. Test setup photograph Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q0921-3E2 Page 45 of 55
