ATL-FITACTAIRFit Active Air

1, Power On Press and Hold Multifunction button 1 Second , promotes " Power On" , LED lights up , unit goes into Discovering mode, Blue LED switch to fast flashing ( 2times /s) 2, Pairing Press and Hold Multifunction button 3 Seconds comes from Speaker then promotes " ready to pair ", unit goes into "Pairing" mode, Blue LED switch to Blue/Red flashing alternately ( 2times /s) .A voice prompt when pairing success (pairing complete) 3, Connect to device Touch and click Headset name in device blue tooth setting menu, Speaker then promotes " device connected" , unit paired sucessfuly , Blue LED switch to slow flashing ( 4seconds /time) 4, Playing Music 1) . If Music player app opened, after paired with speaker , Music start play directly 2) . On paired mode, Open apps , Press multifunction button on headset to start play, Press again, Pause playback. 3) . Press and Hold“VOL+”button, skip to next song, Press and Hold“VOL-”button go back to last song. 4) . Press “VOL+/VOL-”button repeatedly to adjust volume ,Volume will go to maximum or minimum ,and a voice prompt"minimum volume/maximum volume" 5, Incoming call, hand free 1) . When incoming call received ,he phone ringing or voice prompt"incoming call " , LED switch to fast flashing 2 times/second 2) . When incoming call received , Press and Multifunction button to pick up ,Speaker then promotes "call ended" Blue LED switch to slow flashing ( 1time /s), Press the same button again to hang up. 3) . During hand free conversation , During hand free conversation , Press and Hold “VOL-”button to mute the sounds , Press and Hold “VOL-”button to cancel mute and go back conversation 4) . During hand free conversation Press “VOL+/VOL-”button repeatedly to adjust volume ,Volume will go to maximum or minimum ,and a voice prompt"minimum volume/maximum volume） 5) . Double click multifunction button , Redial the last dialed number, voice prompt:（last number redial） 6, Refused to call When incoming call received, Press and Hold multifunction button 1 second Drip hint sound comes from speaker and voice prompt"calling rejected" 7, Three-party conference(This function only applies to the current paired device and Communication operators support ) In case conference is on, another call is incoming : 1) .Double click multifunction button to hang up current call and pick up new incoming call; 2). Short press multifunction button to pick up new call also keep current conference 3) . Short press multifunction button to Switch new and current conference call 8, Call conference transferring between mobile phone and bluetooth headset On call conference, press and Hold multifunction button 1 second , switch between mobile phone and blue tooth headset , "Di" tone prompt every time . 9, Voice Control On Standby and playing music mode, Press and Hold Multifunction button 1Second , unit goes into Voice control mode ,"Di" tone prompt 10, Power Off Press and Hold Multifunction button 5 Second , Speaker promotes " Di " tone then say " Power Off" , Red LED flashing 3 times then goes off 11 , Low battery promotes When battery level is below preset value ( 70% of rating ), Red LED start to flashing slowly (one time in every 2 seconds), Speaker promotes " Di " tone then say " Battery low " in every one minitue. 12, Battery Charging indication During charging battery, Red LED keeps solid ON, and Blue LED lighs up once battery is full charged ., 13, Auto reconnection 1).When Headset is disconnected with Bluetooth device in case they are out of effective range, it will go into " Discovering " mode and Blue LED switch to fast flashing (2times /s), they will reconnect automatically within 3 minutes when they go back to effective range , " Di " tone from Speaker then promotes " Your headset connected" , once re-connected successfully . 2).When headset disconnected over 3 seconds, the blue LED switched to fast flashing(2times/s), unit goes into standby mode, keep standby over 5 minutes, shutdown automatically with "Di" tone pormotes then say 3).When Headset is Power on from Off mode , LED lights up and switch to fast flashing (2times/s), it will search the device paired last time, If found the device and reconnected successfully , LED will turn to slow flashing ( one time/4s), meanwhile , a short " Di " tone comes from Speaker then promotes " device connected" 14, FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party Responsible for compliance could void the user ’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF warning statem…

Text truncated - open the document above for the full version.

iLuv Creative Technology FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name iLuv Creative Technology Address 2 Harbor Park Drive, Port Washington, 11050 City New York Country United States declare that the following representative (agent): Name (person) David Dai Company name Shenzhen iPEN Testing Technology Co., Ltd. Address 8/F Haoyunlai Building B, 2 Baomin Road Xixiang Street, Bao’an District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Fit Active Air Type or Model(s) FITACTAIR Tradename or Brand(s) iLuv We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New York, United States 04/20/2015 Jimmy Chan Manager

Report No.: IP-RF15040223 Page : 44 of 47 13 FCC ID Label FCC ID: ATL- FITACTAIR iLuv

Report No.: IP-RF15040223 Page : 45 of 47 14 Label Location

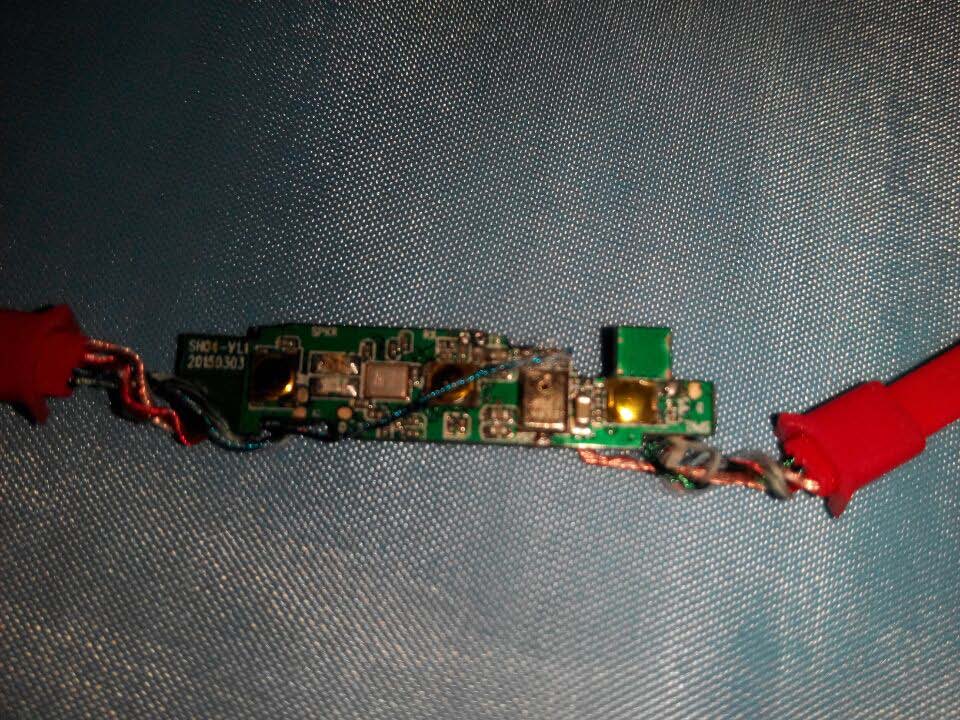

Report No.: IP-RF15040223 Page : 48 of 54 Photo 3 Internal of EUT Photo 4 Appearance of PCB1 Report No.: IP-RF15040223 Page : 49 of 54 Photo 5 Appearance of PCB 2 Photo 6 Appearance of PCB 3 Report No.: IP-RF15040223 Page : 50 of 54 Photo 7 Appearance of PCB 3

Report No.: IP-RF15040223 Page : 39 of 47 11 Appendix- RF Exposure Information FCC ID: ATL- FITACTAIR SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: IP-RF15040223 Page : 40 of 47 2. Calculation: Bluetooth Mode (BLE) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -3.923 0 0.405 5 0.126 3.0 2.442 -3.938 0 0.404 5 0.126 3.0 2.480 -4.435 0 0.360 5 0.113 3.0 So standalone SAR measurements are not required.

Shenzhen iPEN Testing Technology Co., Ltd. Report No.: IP-RF15040228 Page : 1 of 68 8/F Haoyunlai Building B, 2 Baomin Road Xixiang Street, Bao’an District, Shenzhen, China Tel: +86 (0)755 29630351 Fax: +86 (0)755 29630361 Radio Test Report FCC ID: ATL- FITACTAIR Report No. : IP-RF15040228 Applicant : iLuv Creative Technology Equipment Under Test (EUT) EUT Name : Fit Active Air Model No. : FITACTAIR Serial No. : N/A Receipt Date : 2015-03-26 Test Date : 2015-03-27 to 2015-04-13 Issue Date : 2015-04-15 Standards : FCC Part 15C, 15.247 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above Test/Witness Engineer : Approved & Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: IP-RF15040223 Page : 2 of 54 TABLE OF CONTENTS 1 GENERAL INFORMATION .................................................................................................. 4 1.1 Client Information ....................................................................................................... 4 1.2 General Description of EUT (Equipment Under Test) ............................................ 4 1.3 Block Diagram Showing the Configuration of System Tested ............................... 5 1.4 Description of Support Units ..................................................................................... 5 1.5 Description of Operating Mode ................................................................................. 6 1.6 Description of Test Software Setting ............................................................................. 6 1.7 Test Facility ...................................................................................................................... 7 2 TEST RESULTS SUMMARY ............................................................................................... 8 3 TEST EQUIPMENT ............................................................................................................... 9 4 CONDUCTED EMISSION ................................................................................................... 10 4.1 Test Standard and Limit .......................................................................................... 10 4.2 Test Setup ................................................................................................................. 10 4.3 Test Procedure ......................................................................................................... 10 4.4 Test Data ................................................................................................................... 11 5 RADIATE EMISSION TEST ............................................................................................... 14 5.1 Test Standard and Limit .......................................................................................... 14 5.2 Test Setup ................................................................................................................. 14 5.3 Test Procedure ......................................................................................................... 16 5.4 Test Data ................................................................................................................... 16 6 BAND EDGE ........................................................................................................................ 24 6.1 Test Standard and Limit .......................................................................................... 24 6.2 Test Setup ................................................................................................................. 24 6.3 Test Procedure ......................................................................................................... 24 6.4 Test Data ................................................................................................................... 25 7 PEAK POWER TEST .......................................................................................................... 30 7.1 Test Standard and Limit .......................................................................................... 30 7.2 Test Setup ................................................................................................................. 30 7.3 Test Procedure ......................................................................................................... 30 7.4 Test Data ................................................................................................................... 30 8 BANDWIDTH ....................................................................................................................... 33 8.1 Test Standard and Limit .......................................................................................... 33 8.2 Test Setup ................................................................................................................. 33 8.3 Test Procedure ......................................................................................................... 33 8.4 Test Data ................................................................................................................... 33 9 POWER DENSITY ............................................................................................................... 36 9.1 Test Standard and Limit .......................................................................................... 36 9.2 Test Setup ................................................................................................................. 36 9.3 Test Procedure ......................................................................................................... 36 9.4 Test Data ..…

Text truncated - open the document above for the full version.

Report No.: IP-RF15040223 Page : 46 of 47 15 PHOTOGRAPHS – TEST SETUP Radiation Test Setup (Bellow 1 GHz) Radiation Test Setup (Above 1 GHz) Report No.: IP-RF15040223 Page : 47 of 47 Conducted Test Setup END OF REPORT
