AUICB350Wireless Speaker

1 MODEL :CB350 User Guide 2 Contents A. Package Contents B. Important Safety Notifications C. Your CB350 D. Power Up E. Get Connected F. Get Listening G. USB Universal Charging H. Trouble Shooting I. Specifications 3 A. Package contents Your CB350 comes with the following :
AC Power adaptor
User guide
3.5mm Line In Audio Cable B. Important Safety Notifications CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: Any unapproved changes or modifications will void the warranty. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 4 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment” SURGE PROTECTORS: It is recommended to use a surge protector when connected to AC power. Lightning and power surges are NOT covered under the product warranty . Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 5 C. Your CB350 LED Status Indicator LED LED Status Speaker Status Blue LED Steady Power On Steady Connected to Bluetooth device Flashes Music is paused Bluetooth Pairing mode Bluetooth Connecting mode 6 D. Power Up AC Connection 1. Connect the supplied AC adaptor (DC 12V 1A) to the DC IN jack on the back of your CB350 and plug the other end into a standard wall outlet (100~240V 50-60Hz). 2. Press Power button and the blue LED will illuminate. 3. Your CB350 also includes a USB power jack (5V 0.5A) on the back that can charge most standard USB devices. E. Get connected CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 CB350 7 F. Get In Control Play/Pause Press the Play/Pause button（）to start playback. Press again to pause playback. The blue LED will flash while the music is paused. Volume Control Increase or decrease the volume using the VOL or VOL buttons. NOTE: The VOL or VOL buttons do NOT function when playing music through Line in. H. Troubleshooting CB350 CB350 8 I. SPECIFICATIONS
Class 2 Bluetooth Ranges : 33ft (10m)
Supported Bluetooth profile : A2DP
Power: 2 x 3W ＜10%THD
Power Adaptor AC Input : 100-240V 50-60Hz
Power Adaptor DC Output : 12V 1 A
USB jack DC power output : 5V 0.5A NOTE: Specifications are subject to change without notice. For operating assistance, please contact customer service at (email address) or (phone no.).

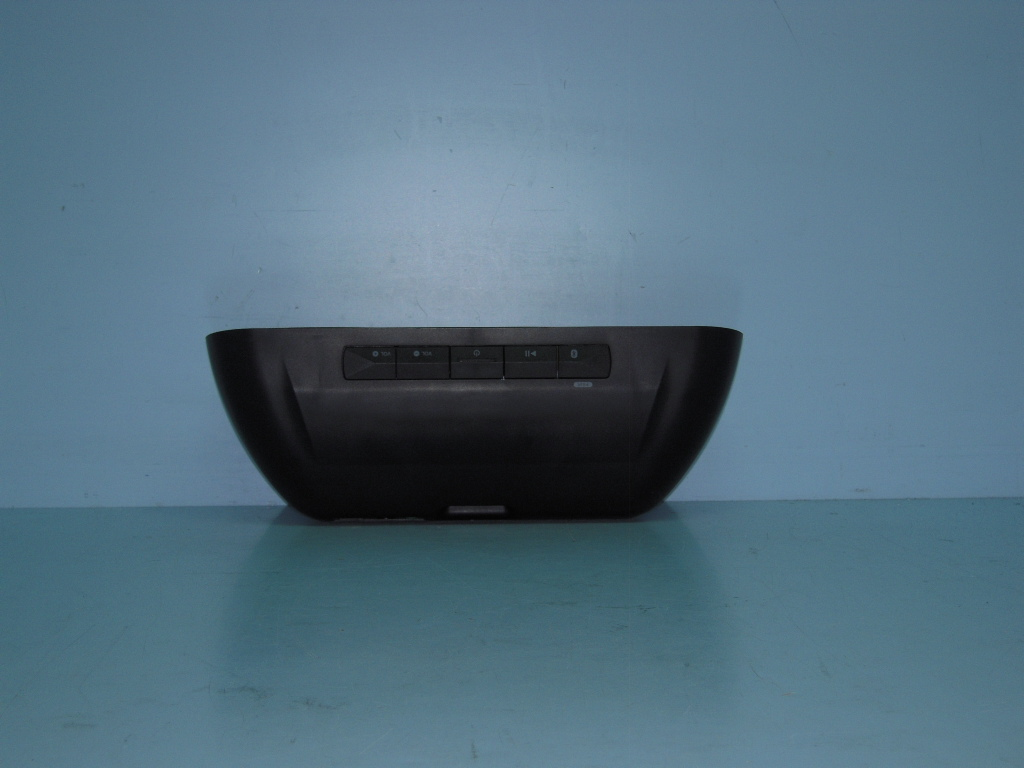

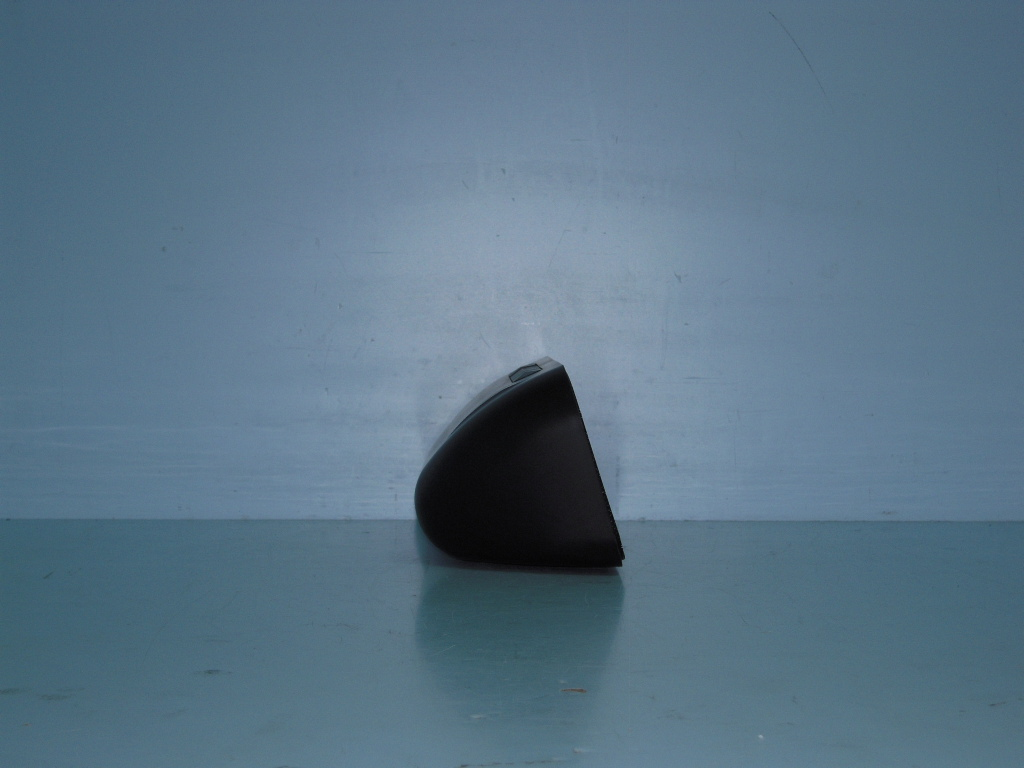

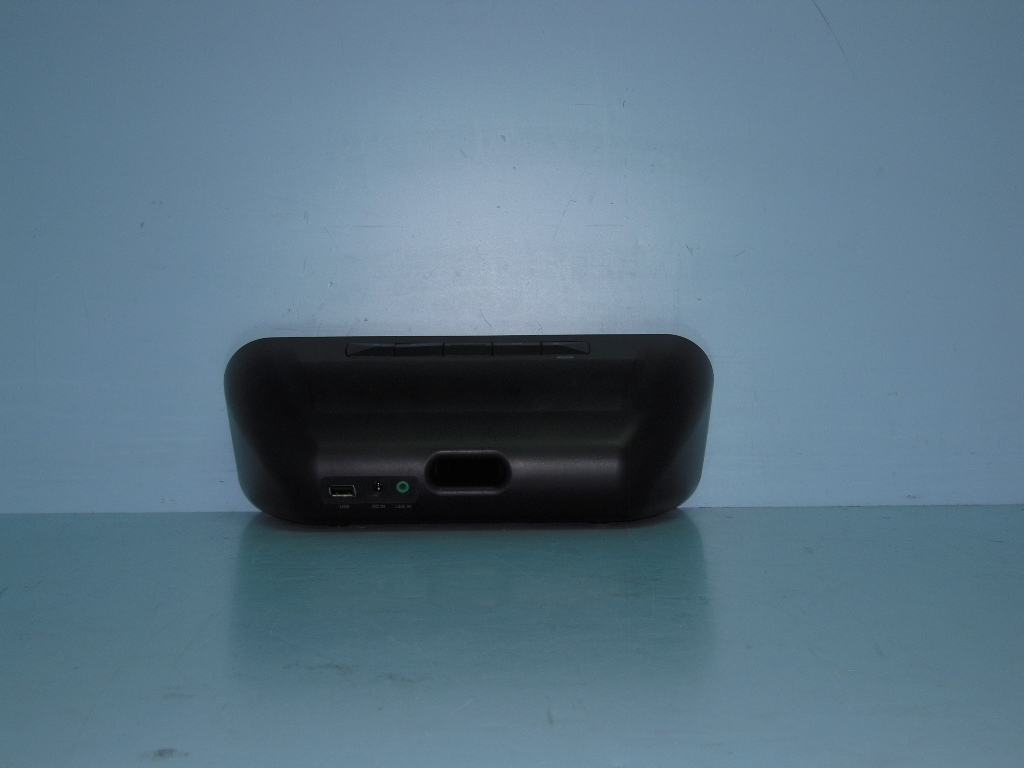

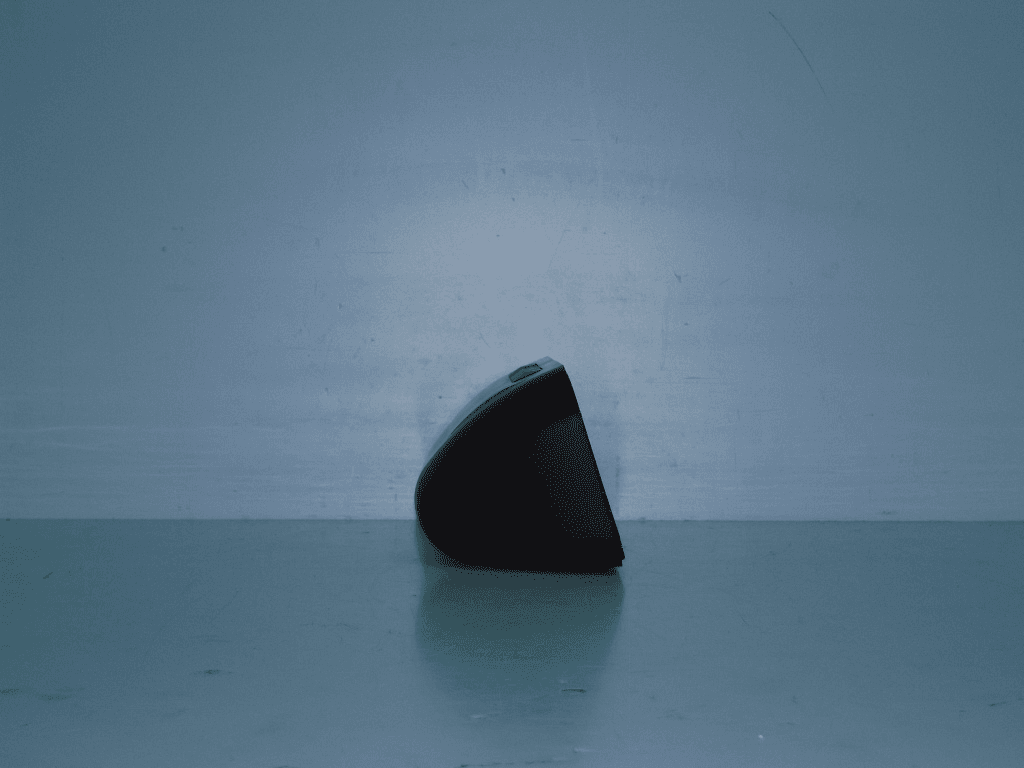

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

Wireless Speaker Model No.: CB350 Power Source : DC 12V 1A Distributed by Life Lab International Ltd. Made in China Wireless Speaker Model No.: CB350 Power Source : DC 12V 1A Distributed by Life Lab International Ltd. Made in China TOP BUTTON MOULD BLACK with YS 1285 B Print: PMS 429C Print: PMS 429c Model :CB350 Date : 2012-08-03 Prepare by : Hui BACK CABINET MOULD BLACK with YS1282 B FRONT CABINET MOULD BLACK with YS 1282 B SPRAY GROSS BLACK ENGRAVE RATING LABEL SIZE: 50mm x28mm 1 6 m m 2 8 m m 2 8 m m 16mm 50mm 60mm Date Code Label Date Code Label Serial No Label Serial No Label Rating label size: 50mm x 28mm Color : Black background and white text Serial No. Label size : 25mm x 5mm Date Code Label size : 35mm x 5mm Color : White background and black text QR Code label size : 16mm x 16mm Color : White background and black content Color : White background and black text QR CODE LABEL SIZE:16mm x16mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. QR CODE LABEL LOGO Diamoud Cut Badge FCC ID : AUICB350 FCC ID : AUICB350 FCC ID : AUICB350 FCC ID No. silk w/429C colour

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2012-08-07 Page 1 of 50 No. : HM167758 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (MUE001): Musical Electronics Limited Flat H, J, K, 12/F, World Tech Centre, 95 How Ming Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: Musical Electronics (Qing Yuan) Limited Tai He Industrail Park, Qing Xin Country, Qing Yuan City, Guang Dong Province, China. Description of Sample(s): Product: Wireless Speaker Brand Name: Capello Model Number: CB350 FCC ID: AUICB350 Date Sample(s) Received: 2012-07-13 Date Tested: 2012-07-25 to 2012-08-07 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2011 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2012-08-07 Page 2 of 50 No. : HM167758 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 50 Content Page 2 of 50 1.0 General Details 1.1 Test Laboratory Page 3 of 50 1.2 Equipment Under Test [EUT] Page 3 of 50 Description of EUT operation 1.3 Date of Order Page 3 of 50 1.4 Submitted Sample Page 3 of 50 1.5 Test Duration Page 3 of 50 1.6 Country of Origin Page 3 of 50 1.7 RF Module Details Page 4 of 50 1.8 Antenna Details Page 4 of 50 2.0 Technical Details 2.1 Investigations Requested Page 5 of 50 2.2 Test Standards and Results Summary Page 5 of 50 2.3 Table for Test Modes Page 6 of 50 3.0 Test Results 3.1 Emission Page 7 – 43 of 50 Appendix A List of Measurement Equipment Page 44 of 50 Appendix B Ancillary Equipment Page 44 of 50 Appendix C Photographs Page 45 - 50 of 50 STC Test Report Date : 2012-08-07 Page 3 of 50 No. : HM167758 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Wireless Speaker Manufacturer: Musical Electronics (Qing Yuan) Limited Tai He Industrail Park, Qing Xin Country, Qing Yuan City, Guang Dong Province, China. Brand Name: Capello Model Number: CB350 Input Voltage: The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Two pins (Live / Neutral) only adaptor, Model Number: BI10-120100-AdU, Input: 100- 240Va.c. 50/60Hz 0.5A, Output: 12Vd.c. 1A. Or USB power jack Output: 5V 0.5A for Charge any device with a USB jack. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Musical Electronics Limited, Wireless Speaker, it is Audio System, modulation by IC; and type is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2012-07-13 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2012-07-25 to 2012-08-07 1.6 Country of Origin China STC Test Report Date : 2012-08-07 Page 4 of 50 No. : HM167758 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.7 RF Module Details Module Model Number: BM160 Module FCC ID: N/A Module Transmission Type: Bluetooth V2.1+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: Inverted-F Antenna (PCB Layout) Antenna Gain: 2.12dBi STC Test Report Date : 2012-08-07 Page 5 of 50 No. : HM167758 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC …
