AUIG-100G-Go Portable Wireless Speaker

1 MODEL :G-GO USER’S Guide 2 Contents A. Package contents B. Important Safety Instructions C. Your G-GO D. Power Up E. Get Connected F. Get Listening G. USB Universal Charging H. Trouble Shooting I. Specifications 3 A. Package contents Your G-Go comes with the items shown below. l AC adaptor l User’s guide and Quick start guide B. Important Safety Instruction CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: Changes or Modifications not expressly approved by the party responsible could void the user’s authority to operate this device. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 4 SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 5 C. Your G-Go Keys/Jacks EQ + - Power Button Vol Up Botton Vol Down Botton EQ Play Button Forward Button Reverse Button Pair Handle USB External Jack Door DC IN LINE IN White LED Blue LED OPEN LOCK Door Lock OPEN LOCK Door Lock Battery Door 6 LED status Indicator LED Status Speaker Status White Lit Steady Power On Flashes Battery is low; Pause music when playback Blue Lit Steady Connected to Bluetooth device Flashes Pair mode Splash Proof G-Go is splash proof, which is suitable for outdoor use. D. Power Up AC Connection or Battery installation 1. Insert the supplied AC adaptor (DC 9V 1.8A) to DC IN. Connect the other end to a wall outlet. Or, For portable use, insert four “AA” size batteries in the battery compartment 2. Press Power button and then white LED lit steady Note: For portable use, white LED flashes when battery is low and need replacing new batteries. PRECAUTION WHEN USING BATTERIES ≤ Use only the size and type of batteries specified. ≤ Do not mix different types of batteries together (e.g. alkaline, rechargeable and standard (carbon Zinc) or old batteries with fresh ones. ≤ Exhausted batteries must be removed to prevent any battery leakage. ≤ Dispose of batteries properly according to environmental regulations. ≤ Battery (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 7 E. Get connected Wireless stream audio from any Bluetooth device (Phone, Computer, etc.) via Bluetooth 1. Prepare your G-Go for pairing i. Press Bluetooth button and blue LED flashes ii. Blue LED flashes in pair mode iii. Blue LED lit up steady when connected Noted: Press and hold Bluetooth button for 3 seconds to disconnect the Bluetooth connection. G-Go then go back to pair mode and blue LED flashes. 2. Prepare your phone or device for pairing i. Turn on Bluetooth feature on your Bluetooth device ii. Add or Search for “G-go” iii. When “G-go” appears, select it. iv. When pairing successful, ready to stream music. 3. Reconnection between your Bluetooth device and G-GO Select “G-go” entry on the Bluetooth device to reconnect the recently linked Bluetooth devices Playback with other audio devices via Line In Insert one end of the audio cable (not supplied) into the Line-out jack on your external audio devices and the other end into Line in G-Go. Noted: Audio content via Line In will override wireless audio via Bluetooth. Go-Go go back to Bluetooth mode automatically when take out audio from Line In. F. Get Listening Play/Pause Press Play button to start playback and press again to pause playback. White LED flashes when pause the music. Volume Control Increase or decrease the volume using + or – buttons. White LED flashes once when volume pressed up/down. White LED lit steady when reach to maximum or minimum volume. 8 EQ There are 4 preset EQ settings. EQ1 = Flat, EQ2=Rock, EQ3=Pop, EQ4=Jazz. Press EQ button to cycle through the following options: EQ1, EQ2, EQ3 and EQ4. White LED flash 1, 2, 3 or 4 times when EQ button pressed to indicate if on preset EQ1, 2, 3 or 4. Note: Default setting is EQ1 (Flat). Forward or Reverse Press forward or reverse buttons to skip to the beginning of the current/previous or next track. G. USB Universal Charging Charge any phones or any device with a USB jack Noted: Charging current 1A H. Trouble Shooting Problem Solution Hearing distortion Lower the volume on your G-Go and/or phone/device Not loud enough Turn up the volume on your phone/device or your G-Go Unable to pair with …

Text truncated - open the document above for the full version.

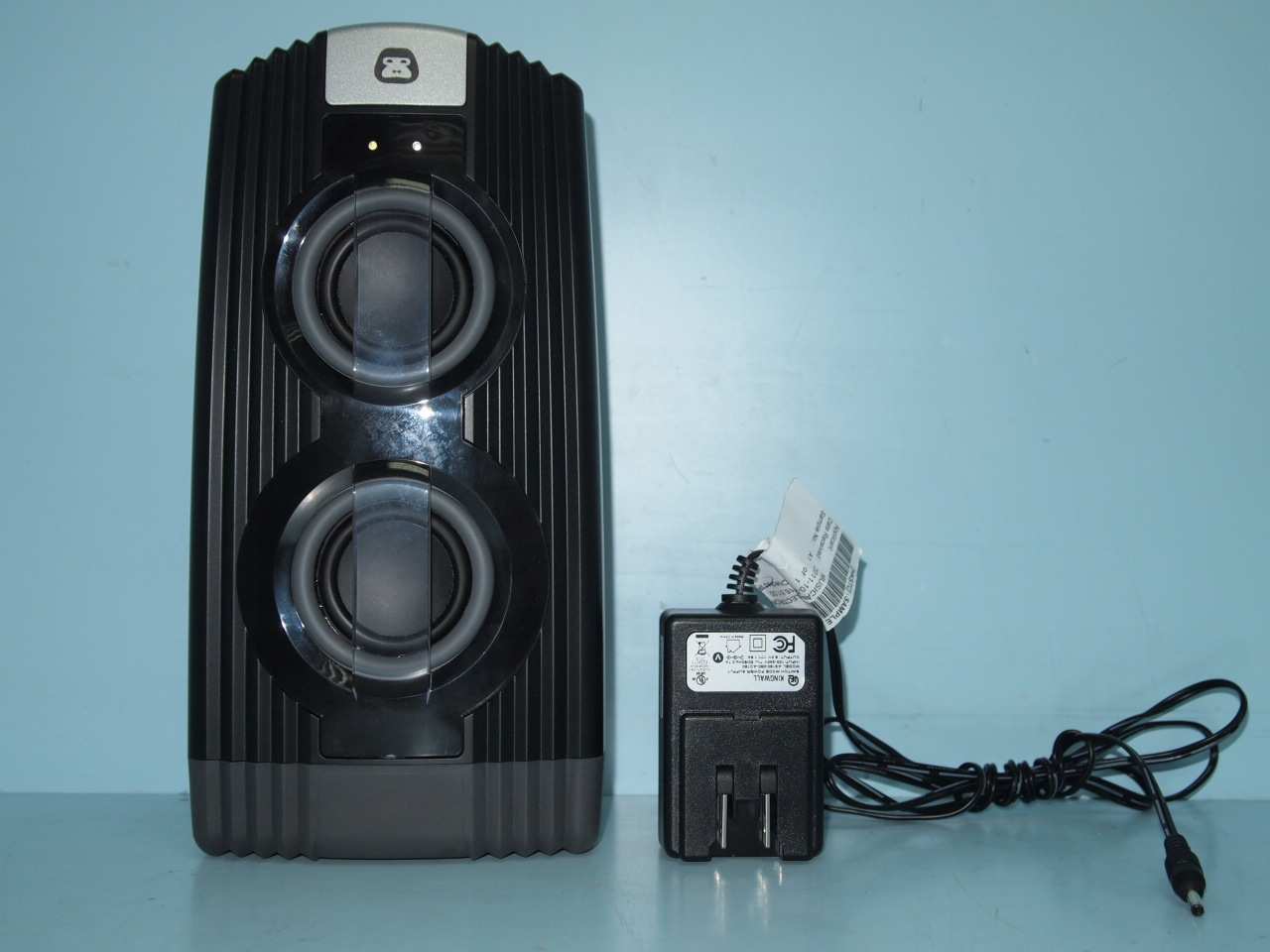

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. G-100 Silkscreen Color

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2011-11-08 Page 1 of 40 No. : HM167192 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (MUE001): Musical Electronics Limited 8th Floor, Wlder Industrial Building, 58 Tsun Yip Street, Kwun Tong, Hong Kong Manufacturer: Musical Electronics (Qing Yuan) Limited Tai He Industrail Park, Qing Xin Country, Qing Yuan City, Guang Dong Province, China. Description of Sample(s): Product: G-GO Portable Wireless Speaker Brand Name: G-PROJECT Model Number: G-100 FCC ID: AUIG-100 Date Sample(s) Received: 2011-10-26 Date Tested: 2011-11-01 to 2011-11-02 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional models details, see page 3. Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-11-08 Page 2 of 40 No. : HM167192 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 40 Content Page 2 of 40 1.0 General Details 1.1 Test Laboratory Page 3 of 40 1.2 Equipment Under Test [EUT] Page 3 of 40 Description of EUT operation 1.3 Date of Order Page 3 of 40 1.4 Submitted Sample Page 3 of 40 1.5 Test Duration Page 3 of 40 1.6 Country of Origin Page 3 of 40 2.0 Technical Details 2.1 Investigations Requested Page 4 of 40 2.2 Test Standards and Results Summary Page 4 of 40 3.0 Test Results 3.1 Emission Page 5 – 36 of 40 Appendix A List of Measurement Equipment Page 37 of 40 Appendix B Photographs Page 38 - 40 of 40 STC Test Report Date : 2011-11-08 Page 3 of 40 No. : HM167192 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: G-GO Portable Wireless Speaker Manufacturer: Musical Electronics (Qing Yuan) Limited Tai He Industrail Park, Qing Xin Country, Qing Yuan City, Guang Dong Province, China. Brand Name: G-PROJECT Model Number: G-100 Additional Model Number(s): G-100B, G-100W Input Voltage: The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Two pins (Live / Neutral) only adaptor, Model Number: AS190-090-AC180, Input: 100- 240Va.c. 50/60Hz 0.7A, Output: 9Vd.c. 1.8A. Or 6Vd.c. (“AA” size battery x 4) for portable use. Output: 5V 1A for Charge any phones or any device with a USB jack. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Musical Electronics Limited, G-GO Portable Wireless Speaker, it is Audio System, modulation by IC; and type is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2011-10-26 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2011-11-01 to 2011-11-02 1.6 Country of Origin China STC Test Report Date : 2011-11-08 Page 4 of 40 No. : HM167192 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Output Power of Fundamental Emissions FCC 47CFR 15.247(b)(1) ANSI C63.4:2009 N/A RF Conduct Spurious Emission FCC 47CFR 15.247(c) N/A N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 N/A N/A Number of Operating Channel FCC 47CFR 15.247(a)(2)(b)(1) N/A N/A Band-edge compliance of Conducted Emission FCC 47CFR 15.247© N/A N/A Channel Separation FCC 47CFR 15.247(a)(1) N/A N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy FCC 47CFR 15.247(a)(1)(iii) N/A N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) N/A N/A Antenna requirement FCC 47CFR 15.203 N/A N/A Note: N/A – No…

Text truncated - open the document above for the full version.

Measurement of Radiated Emission Test Set Up [Aux mode] Measurement of Radiated Emission Test Set Up [communication mode] Measurement of Radiated Emission Test Set Up [communication mode] Measurement of Conducted Emission Test Set Up [Aux mode] Measurement of Conducted Emission Test Set Up [Communication mode]
