CR3037B Harmony Radio Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Radio • Power Adapter • Aux in cable Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 10V 1A Power consumption 12W Speaker 4Ω 10W Frequency Range FM 87.5 – 108 MHz Note: • Design and specifications are subject to change without notice. • To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. Speaker 2. Dial Scale 3. Dial Pointer 4. Tuning Knob 5. Volume Knob 6. Mode Button 7. Play/Pause Button 8. Function Indicator 9. Backward Skip Button 10. Forward Skip Button 11. SD Card Slot 12. FM Antenna 13. USB Port 14. Aux In Jack 15. Power Jack 16. On/Off Switch English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Connect the Power Adapter to the Power Jack of the unit. 3. Switch the On/Off Switch to the ON position. Radio Operation 1. Press the Mode Button repeatedly to select the Radio (FM only) mode. Note: The FM Indicator will be pink. 2. Rotate the Tuning Knob for desired radio station. Note: • The unit is equipped with a FM antenna. To improve FM reception, move the wire around until the reception is clear without interferences. Bluetooth Operation 1. Press the Mode Button repeatedly to select the Bluetooth mode, you will hear an activation sound from the unit. Note: The Function Indicator will be blue. 2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY CR3037B” and pair. 3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit. 4. Play and stream music from your device to the unit. 5. During playback, press the Play/Pause Button to suspend and resume song. 6. During playback, press the Backward Skip Button or the Forward Skip Button for the previous or next song. Note: Bluetooth version - *2.1* Aux Input Connection You can connect an audio device to this unit and play your music through its speakers. To do this, turn on the unit, press the Mode Button to Aux-In Mode (yellow), connect a 3.5 mm auxiliary cable between your audio device to the Aux In Jack of this unit and start playing the music. English 6 USB/SD Playback 1. Press the Mode Button repeatedly to select the USB (Green) or SD (Purple) mode. 2. Insert a USB device into the USB port or a SD memory card into the SD card slot. 3. To skip to the next or previous track, press the Forward Skip or Backward Skip button correspondingly. 4. During the playback, press the Play/Pause button to pause. Press it again to resume playback. Troubleshooting There is no power • No power at the power outlet. • Power adaptor is not connected correctly. There is no sound • Make sure the volume is turned up. • Mode is in the Bluetooth position. • Make sure the volume on your third party device is turned up. FCC Statements NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used i…

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. Jan.15, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : AUSCR3037B Model Number: CR3037B, CR3037B-WS, CR3037B-XX, CS-2026 To Whom It May Concern: We, The Modern Marketing Concepts, Inc. hereby declare that the model : CR3037B-WS, CR3037B-XX, CS-2026 is identical with the model : CR3037B, except the model name and color. Except for the different above, no other modification is performed. Sincerely, Signature: Modern Marketing Concepts, Inc. Contact person: Scott McWhorter

Modern Marketing Concepts, Inc. Agent Authorization Company: Modern Marketing Concepts, Inc. Address: 1220 East Oak St, Louisville KY, United States. 40204 Product Name: Multifunctional FM Radio Speaker Model Number(s): CR3037B, CR3037B-WS, CR3037B-XX, CS-2026 Product Description: Multifunctional FM Radio Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-15 Name: Scott McWhorter Company: Modern Marketing Concepts, Inc.

Modern Marketing Concepts, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-25 Subject; Request for Confidentiality FCC ID: AUSCR3037B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Modern Marketing Concepts, Inc. Contact person: Scott McWhorter

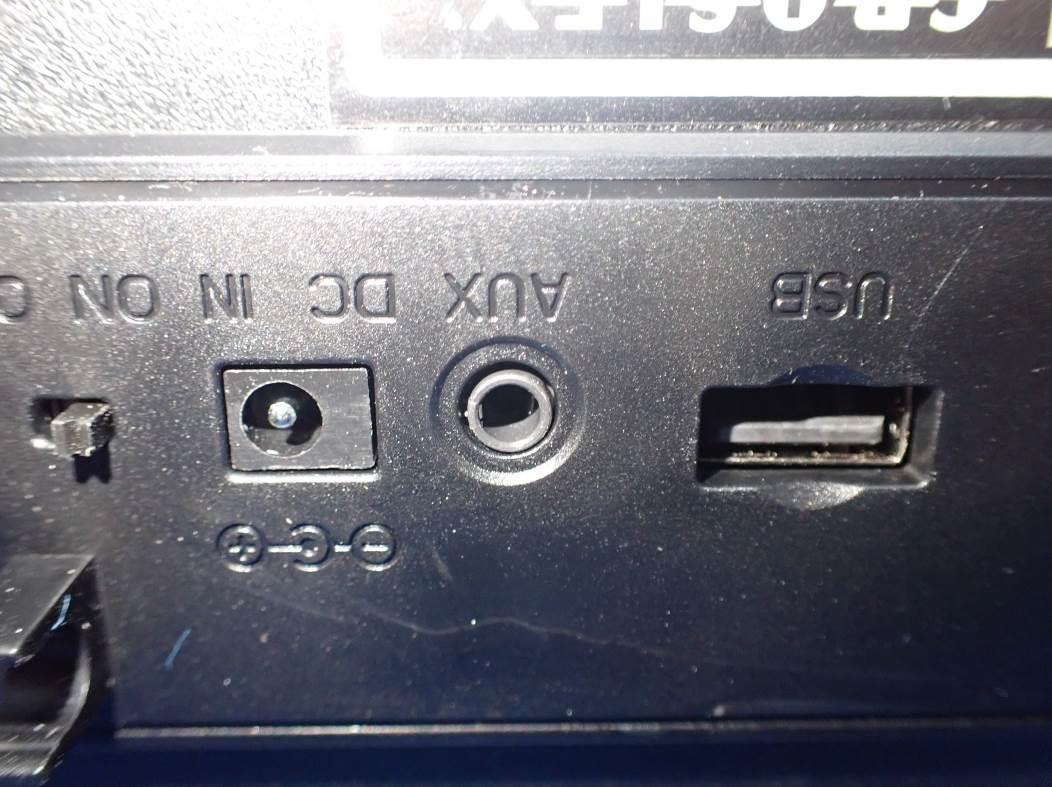

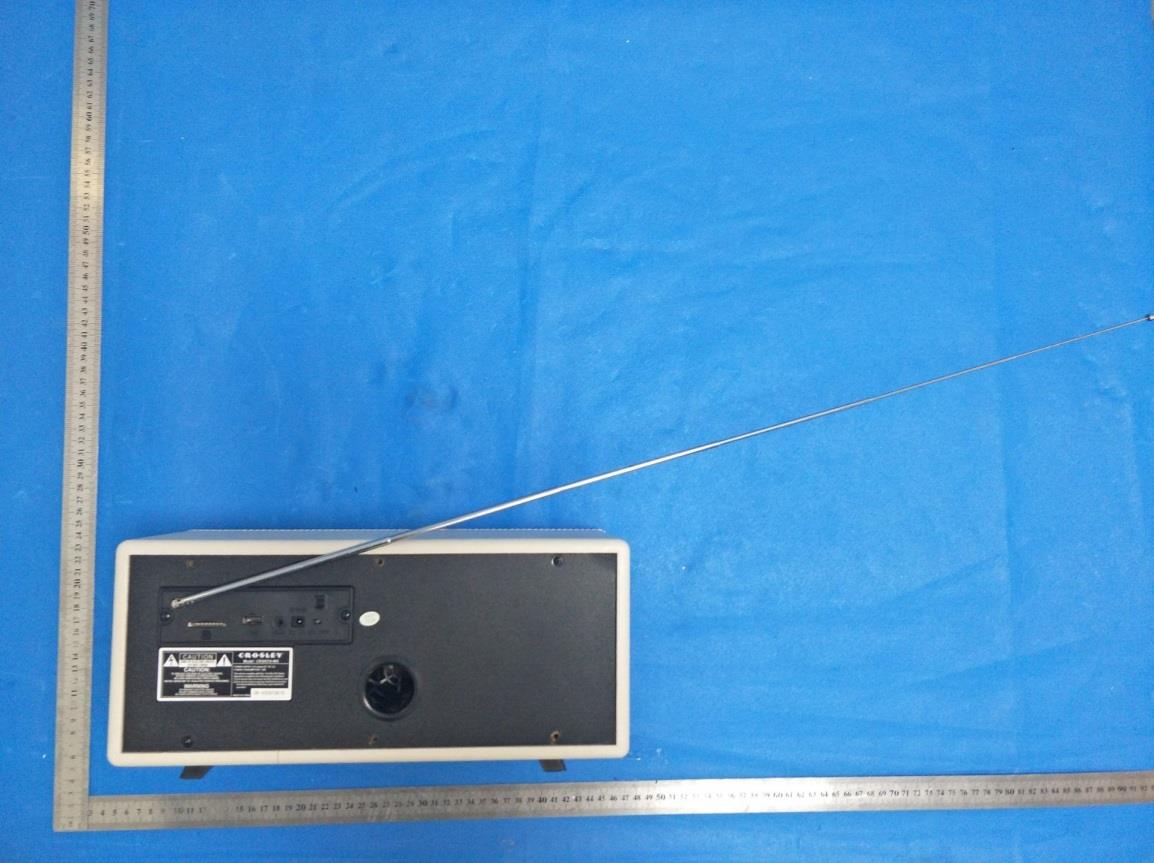

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2 FM ANTENNA FM Antenna VIEW OF EUT ADAPTER-1 VIEW OF EUT ADAPTER-2

FCC ID Label Location FCC ID: AUSCR3037B

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Multifunctional FM Radio Speaker Model Name CR3037B, CR3037B-WS, CR3037B-XX, CS-2026 FCC ID AUSCR3037B 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =-2.741dBm=0.53mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.53mW /5mm) .[√2.402GHz)]=0.16<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 75 FCC Test Report Report No.: AGC02728201102FE03 FCC ID : AUSCR3037B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Multifunctional FM Radio Speaker BRAND NAME : CROSLEY MODEL NAME : CR3037B, CR3037B-WS, CR3037B-XX, CS-2026 APPLICANT : Modern Marketing Concepts, Inc. DATE OF ISSUE : Dec. 24, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02728201102FE03 Page 2 of 75 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 24, 2020 Valid Initial Release Report No.: AGC02728201102FE03 Page 3 of 75 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 21 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC02728201102FE03 Page 4 of 75 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 40 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 40 10.2. TEST SETUP ....................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 43 10.4. TEST RESULT ..................................................................................................................................... 43 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 5…
