CR3038A Lewis Retro Radio Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Radio • Power adaptor Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 5V 2 A Power consumption 8 W Speaker 4Ω, 5W Note: • Design and specifications are subject to change without notice. • To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. Sleep Knob 2. Clock Display 3. Function Knob 4. Light/Snooze Button 5. Tuning Knob 6. Standby/Volume Knob 7. Power Jack 8. Time Setting Knob 9. Battery Compartment 10. Alarm Setting Knob 11. Telescopic Antenna English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Connect the adaptor to the Power Jack of the unit. Note: Do not plug the power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting. Clock Setup Turn the Time Setting Knob, located at the back of the unit, counter-clockwise to set the time. Note: The clock will not function when the power is disconnected. Battery Backup This model includes a battery back-up circuit. The battery will maintain the clock in the event of a power failure. The battery back-up requires one AAA battery (not included). To install/replace the battery, follow the instructions below. 1. Press in on the locking tab to remove the battery cover. 2. Insert one AAA battery into the battery compartment. 3. Tuck the battery back into the battery compartment and replace the battery cover. Setting the Alarm 1. Turn the Alarm Setting Knob, located on the back of the unit, counter clockwise to set the alarm indicator hand to the desired alarm time. 2. Set the function switch to the desired function of the alarm. (Alarm, AM, or FM) Note: If setting the alarm mode to AM or FM, press the Standby button for the upcoming alarm to turn off the radio. 3. To turn off the alarm function, turn the function knob to the Off position. Snooze the alarm 1. When the Alarm is going off, press the Snooze button. 2. After 10 minutes, the alarm will go off again. 3. To stop the alarm while it is going off, turn the function knob to the Off position.. English 6 Radio Operation 1. Rotate the Function knob to the desired band 2. Rotate the Tuning Knob for desired radio station. Note: • When operating FM band radio, pull up the TELESCOPIC ANTENNA, and adjust position to get better reception. Set the Sleep Timer 1. Rotate the Sleep Knob on the unit to select your desired number of minutes. 0 minutes – 20 minutes – 40 minutes – 60 minutes – 80 minutes 2. To cancel the sleep timer, rotate the Sleep knob to the 0 position. Bluetooth Operation 1. Turn the Function knob to the Bluetooth position 2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY CR3038A” and pair. 3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit. 4. Play and stream music from your device to the unit. Note: Bluetooth version – 5.0 Troubleshooting There is no power • Power adaptor is not connected correctly. • No power at the power outlet. • To help save …

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. Model Difference Product description: LEWIS RETRO RADIO Model name: CR3038A-BK，CR3038X-XXXX(“X-XXXX”can be replaced by letter fro m“A”to“Z”，number from“0”to“9”or blank) Trade Name: CROSLEY FCC ID: AUSCR3038A All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : Scott McWhorter (Director of Engineering) Contact information / address: 1220 E Oak, St. Louisville, KY 40204, United States

C5266091_X8_Ed.1 Letter of Authorization Modern Marketing Concepts, Inc. Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, KY 40204, United States Product Name: LEWIS RETRO RADIO Model Number: CR3038A-BK, CR3038X-XXXX(“X- XXXX”can be replaced by letter from“A”to“Z”，number from“0”to“9”or blank) FCC Identifier: We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Scott McWhorter Date: 2020.09.18 Title: Director of Engineering Signature of applicant: 1/1

C5266091_X10_Ed.2 Modern Marketing Concepts, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020.09 .18 Subject: Request for Confidentiality FCC ID: AUSCR3038A To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ____45 __ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 1/1 C5266091_X10_Ed.2 Sincerely, Signature: Name: Scott McWhorter Title: Director of Engineering 1/1

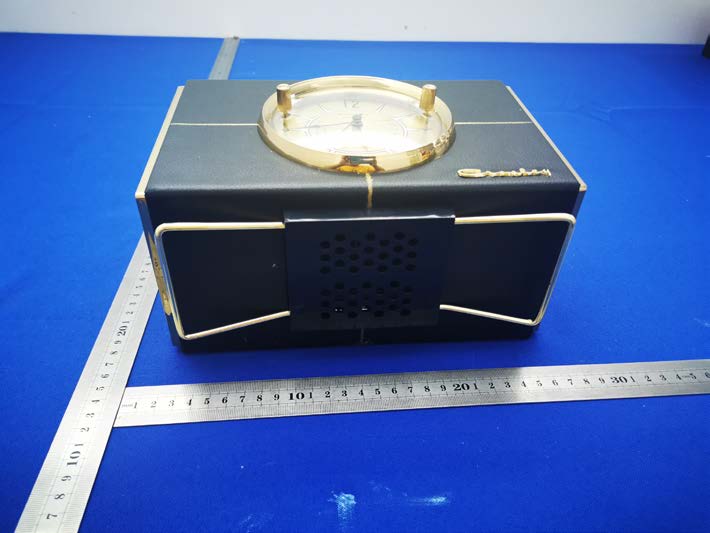

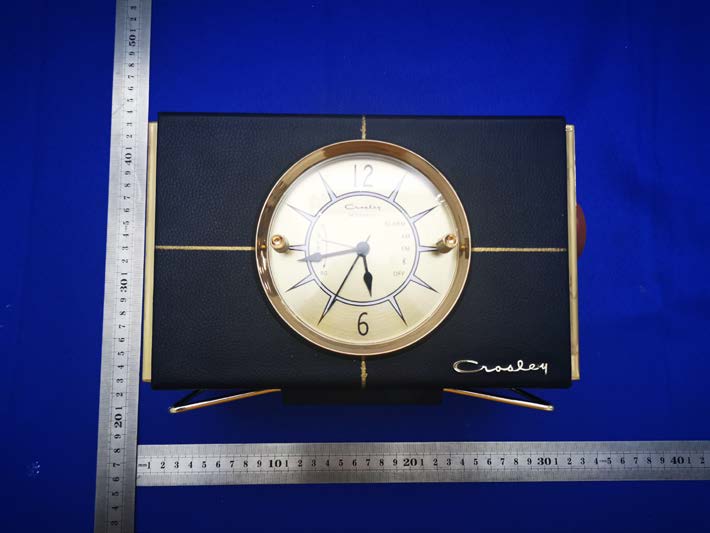

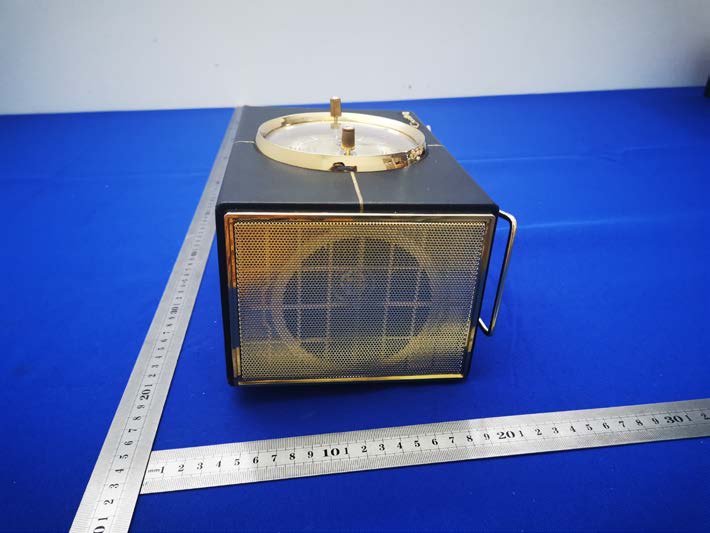

External Photos

Model: CR3038A-BK FCC ID: AUSCR3038A Label Location

Internal Photos AB5305B BT Antenna

Shenzhen CTB Testing Co., Ltd. FCC ID: AUSCR3038A Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.4021.8261.522±13.002.00<50.618473.00 YES 2.440.3991.101±12.001.58<50.495143.00YES 2.480-1.0190.79-1±10.001.00<50.314963.00 YES 2.402-0.3260.93 0±1 1.001.26<50.390233.00YES 2.441-1.1340.77-1±10.001.00<50.31247 3.00 YES 2.480-2.450.57-2±1-1.00 0.79<50.250183.00YES 2.402-0.4040.910±11.001.26 <50.390233.00YES 2.441-0.4270.910±1 1.001.26<50.393383.00YES 2.480-1.8170.66 -1±1 0.001.00<5 0.314963.00 YES GFSK Pi/4 DQPSK 8DPSK Conclusion: For the max result : 0.61847W/Kg ≤ FCC Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB200812010RFX TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Rita Xiao Sherwin Qian/ Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: LEWIS RETRO RADIO FCC ID: AUSCR3038A Trademark: CROSLEY Model Number: CR3038A-BK，CR3038X-XXXX(“X- XXXX” can be replaced by letter from“A”to“Z”，number from“0”to“9”or blank) Prepared For: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, KY 40204, United States Manufacturer: Timsen Development Limited Address: 5F, 447# Tianhebei Road, Guangzhou, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Jul. 7, 2020 Sample tested Date: Jul. 7, 2020 to Aug. 12, 2020 Issue Date: Aug. 12 , 2020 Report No.: CTB200812010RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Report Tel: 4008-258-120 Web: http://www.ctb-lab.com Page 1 of 59 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB200812010RFX TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................................................................ 4 2. TEST SUMMARY ............................................................................................... 5 3. MEASUREMENT UNCERTAINTY ...................................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ................................................. 7 4.1 Product Information .............................................................................................. 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 7 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 4.6 Test Environment .................................................................................................. 8 5. TEST FACILITY AND TEST INSTRUMENT USED ............................................. 9 5.1 Test Facility .......................................................................................................... 9 5.2 Test Instrument Used ........................................................................................... 9 6. AC POWER LINE CONDUCTED EMISSION ..................................................... 11 6.1 Block Diagram Of Test Setup ............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test procedure.................................................................................................... 11 6.4 Test Result ......................................................................................................... 13 7. RADIATED SPURIOUS EMISSION .................................................................. 15 7.1 Block Diagram Of Test Setup ............................................................................. 15 7.2 Limit .................................................................................................................... 15 7.3 Test procedure.................................................................................................... 16 7.4 Test Result ......................................................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ..................... 26 8.1 Block Diagram Of Test Setup ............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test procedure.................................................................................................... 26 8.4 Test Result ......................................................................................................... 27 9. COUDUCTED PEAK OUTPUT POWER ........................................................... 34 9.1 Block Diagram Of Test Setup ............................................................................. 34 Report Tel: 4008-258-120 Web: http://www.ctb-lab.com Page 2 of 59 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB200812010RFX 9.2 Limit .................................................................................................................... 34 9.3 Test procedure.................................................................................................... 34 9.4 Test Result ......................................................................................................... 35 10. 20DB OCCUPIED BANDWIDTH ...................................................................... 39 10.1 Block Diagram Of Test Setup ........................................................................... 39 10.2 Limit .................................................................................................................. 39 10.3 Test procedure .................................................................................................. 39 10.4 Test Result........................................................…
