AUSCR3113ABLUETOOTH SPEAKER

CR3113A Montero Small Bluetooth Speaker Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Speaker • USB-C Cable Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power Source DC Output 5V 2A Power consumption 12W Speaker 4Ω 10W x 2 Playing Time Up to 10-11 hours (50% volume) Charging Time 3-4 hours Battery Capacity 4000 mA/h Bluetooth Version 5.3 Note: • Design and specifications are subject to change without notice. English 4 Product Description 1. Play/Pause Button 2. Volume Down Button 3. Volume Up Button 4. Function Indicator 5. Battery Indicator 6. Power Button 7. Aux In Jack 8. Power Jack English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Plug the small end of USB-C Cable into the Power Jack. 3. Plug the bigger end of USB Cable into either a computer's USB jack, or a USB wall charging block (DC output 5V, 2 A, not included) for power. 4. Fully charge the battery before the first use. Charging the Speaker 1. This unit has a built in rechargeable battery. 2. Connect to a PC, Laptop or 5V USB adaptor with the provided USB-C cable. 3. There are four battery indicators and when the unit is fully charged all four will be illuminated. English 6 Bluetooth Operation 1. Turn on the speaker, the unit will enter Bluetooth mode automatically. Note: The function indicator will be flashing blue. 2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY CR3113A” and pair. 3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue. 4. Play and stream music from your device to the unit. 5. During playback, press the Play/Pause Button to suspend and resume song. Note: Bluetooth version - *5.3* Aux Input Connection You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5 mm auxiliary cable (not included) between your audio device and the Aux In Jack of this unit and start playing the music. Note: The aux in connection will automatically override the Bluetooth functions. To resume using the Bluetooth functions, unplug the auxiliary cable from the aux in jack. The function indicator will be red. English 7 Troubleshooting There is no power • The battery needs to be charged. There is no sound • Make sure the volume is turned up. • Make sure the volume on your third party device is turned up. FCC Statements NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connect…

Text truncated - open the document above for the full version.

ModernMarketingConcepts,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/29/24 U.S.AgentDesignation ModernMarketingConcepts,Inc.acknowledgestheirconsentforthefollowingcontactlocatedintheUnited Statestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID: AUSCR3113A): NameandcompanyofU.S.agent:ModernMarketingConcepts,Inc. PhysicalU.S.addressofagent:1220EOak,St.LouisvilleKentucky40204UnitedStates FRNofU.S.agent:0021475454 EmailaddressofU.S.agent:[email protected] ModernMarketingConcepts,Inc.acknowledgestheirobligationtoacceptserviceofprocessonbehalfof ModernMarketingConcepts,Inc.. ModernMarketingConcepts,Inc.withtheFRN0021475454acceptsitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature ScottMcWhorter DirectorofEngineering ModernMarketingConcepts,Inc. Signature ScottMcWhorter DirectorofEngineering ModernMarketingConcepts,Inc. 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-29 Name / Title: Scott McWhorter / Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name AUSCR3113A CR3113A, CR3113A-BK, CR3113X-XXX We, applicant Company Name: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-29 Name / Title: Scott McWhorter / Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name AUSCR3113A CR3113A, CR3113A-BK, CR3113X-XXX For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-07-29 Name / Title: Scott McWhorter / Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

Modern Marketing Concepts, Inc. 1220 E Oak, St. Louisville, Kentucky 40204, United States Date: July 29, 2024 FCC ID: AUSCR3113A Model Number: CR3113A, CR3113A-BK, CR3113X-XXX To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Modern Marketing Concepts, Inc. hereby declares that our product (BLUETOOTH SPEAKER) Model Number: CR3113A, CR3113A-BK, CR3113X-XXX board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Scott McWhorter / Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, Kentucky 40204, United States Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

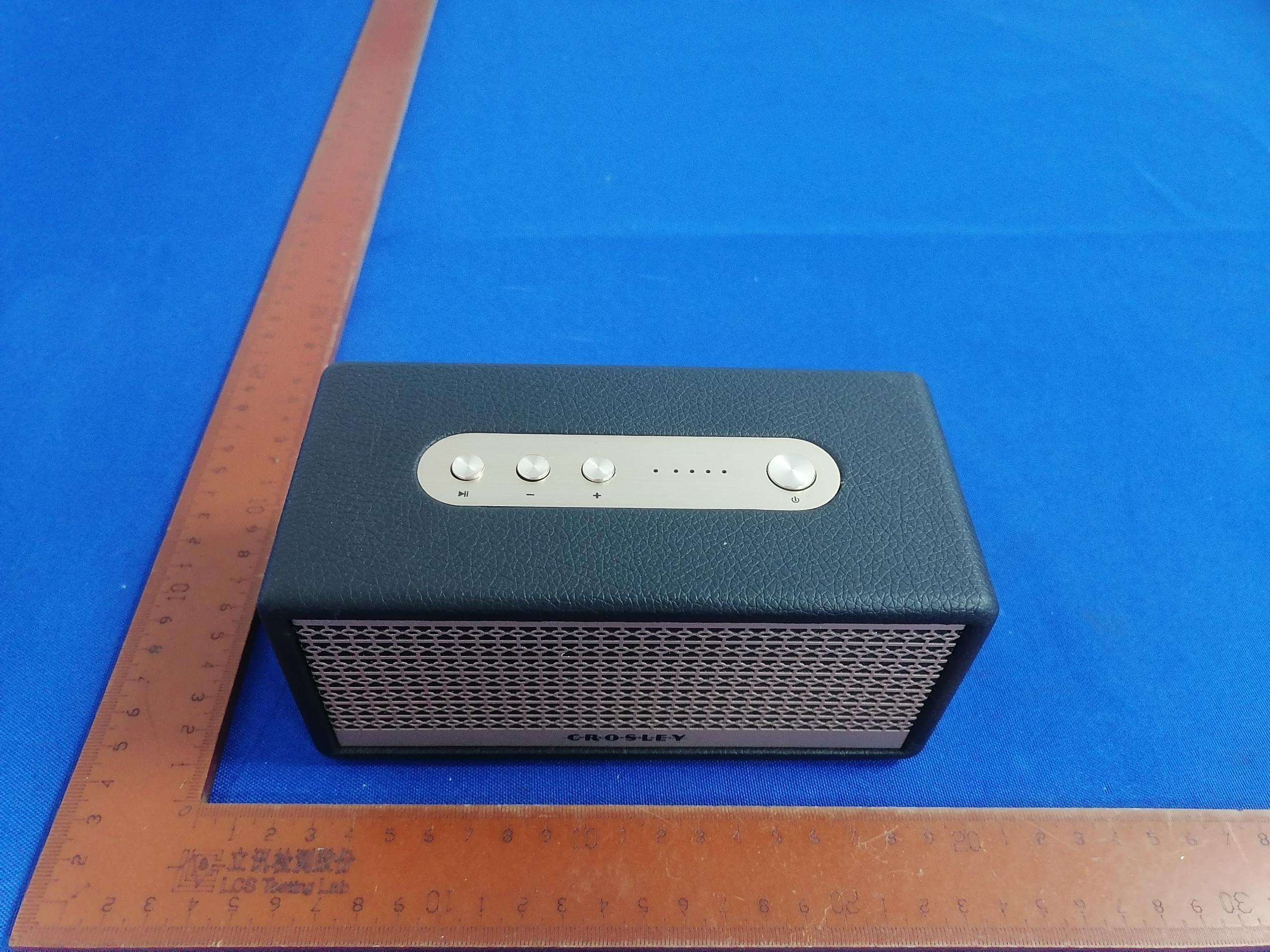

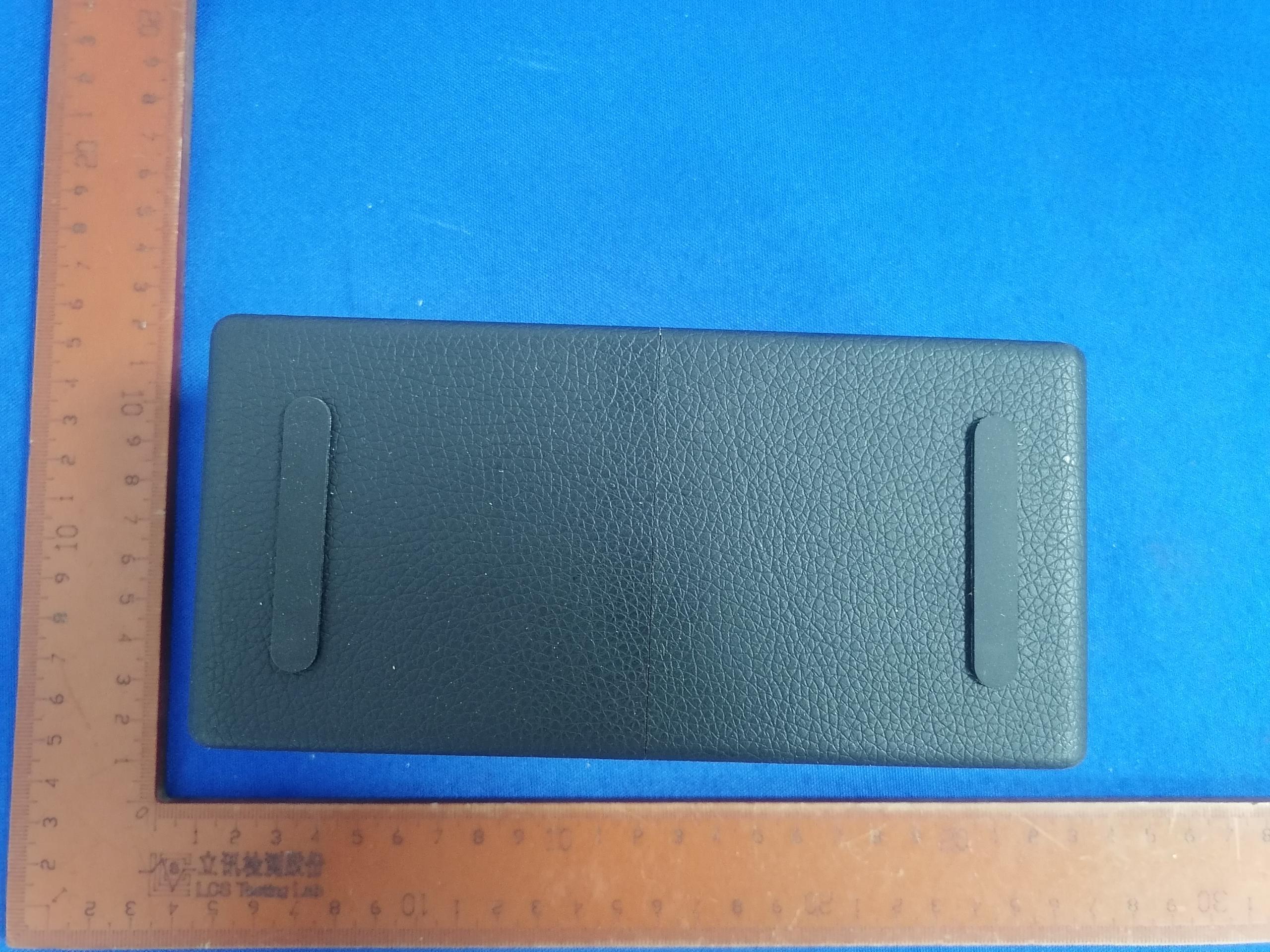

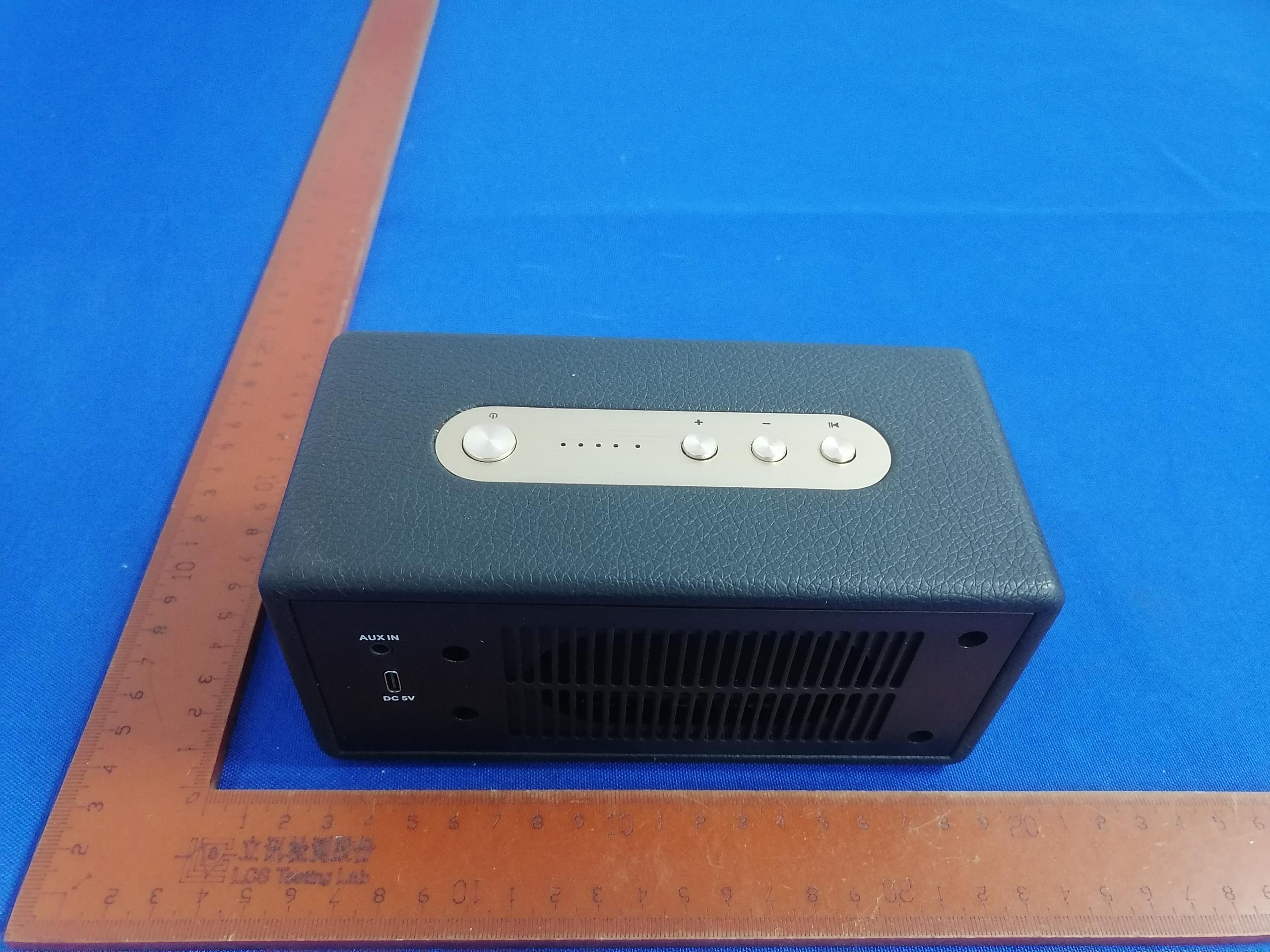

Page1of4FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page1of1FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L5.0cmxW2.0cm) LabelLocation BLUETOOTHSPEAKER Model:CR3113A FCCID:AUSCR3113A

Page1of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 BTAntenna Page3of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5

Page1of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation Productname:BLUETOOTHSPEAKER TestModel:CR3113A AdditionalModelNo.: CR3113A-BK,CR3113X-XXX(X-XXXcanbereplacedby letterfrom"A"to"Z"ornumberfrom"0"to"9"orblank.) ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethe same,Sonoadditionalmodelsweretested Ratings: Input:5V2000mA DC3.7VbyBattery,4000mAh HardwareVersion:NPJ-EX591-MAIN-V02 SoftwareVersion: EX-591_JL7016C8_(CROSLEYCR3113A)_ (DAAA-F7011031)_D20240624 BluetoothFrequencyRange:2402MHz~2480MHz ChannelNumber:79channelsforBluetoothV5.3(DSS) ChannelSpacing:1MHzforBluetoothV5.3(DSS) ModulationType:GFSK,π/4-DQPSK,8-DPSKforBluetoothV5.3(DSS) BluetoothVersion:V5.3 AntennaDescription:PCBAntenna,1.7dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSAR testexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDB procedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulation exposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition,listedbelow,issatisfied.Thesetest exclusionconditionsarebasedonsource-basedtime-averagedmaximumconductedoutputpower oftheRFchannelrequiringevaluation,adjustedfortune-uptolerance,andtheminimumtest separationdistancerequiredfortheexposureconditions.22Theminimumtestseparationdistance isdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresoroutersurfaceof thedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements,toany partofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbythe operatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequired publishedRFexposureKDBprocedures.WhennootherRFexposuretestingorreportingis Page2of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity required,astatementofjustificationandcompliancemustbeincludedintheequipmentapproval,in lieuoftheSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfiedbefore applyingtheseSARtestexclusionprovisions;forexample,handheldPTTtwo-wayradios,handsets, laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsof simultaneoustransmissionconfigurations,furtherequipmentapprovalisnotrequiredto incorporatetransmittermodulesinhostdevicesthatoperateinthemixedmobileandportablehost platformexposureconditions.ThegranteeisresponsiblefordocumentingthisaccordingtoClassI permissivechangerequirements.AntennasthatqualifyforstandaloneSARtestexclusionmust applytheestimatedstandaloneSARtodeterminesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration, adjustedformaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairs operatinginportabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤ 1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevices RFExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BT> ModeChannelFrequency(MHz)PeakConductedOutputPower(dBm) GFSK 02402-0.51 392441-0.32 782480-0.09 π/4DQPSK 024020.09 3924410.57 7824800.46 8DPSK 024020.31 3924410.79 7824800.74 Page3of3FCCID:AUSCR3113A ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 5.ManufacturingTolerance <BT> GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)000 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)000 Tolerance±(dB)1.01.01.0 8DPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)000 Tolerance±(dB)1.01.01.0 6.EvaluationResults 6.1StandaloneEvaluation Band/Mode Frequ ency (GHz) Antenna Distance (mm) RFoutputpower SARTest Exclusion Threshold SARTest Exclusion dBmmW BT GFSK2.48051.0 1.2589 0.3965<3.0Yes π/4DQPSK2.48051.01.25890.3965<3.0Yes 8DPSK2.48051.01.25890.3965<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection 4.…
