AUSCR7017AKoda Turntable

CR7017A Koda Turntable Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:  Turntable  Turntable Slip Mat  45 RPM adapter  3.5mm aux in cable  Power adaptor  Speakers Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power DC power adaptor, DC output 12V 2A Power consumption 25W Speaker 3” 4Ω, 15W x 2, 1” 8Ω, 5W x2 Turntable speed 33 1 / 3 , 45, 78 RPM Replacement needle Crosley NP5 Note:  Design and specifications are subject to change without notice.  To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. LCD Display 2. Phono Button 3. Aux Button 4. Bluetooth Button 5. Tuner Button 6. Pair/Scan Button 7. Preset Back Button 8. Preset Forward Button 9. ON/OFF-Volume Button 10. Tuning Knob 11. Aux In Jack 12. Headphone Jack 13. Turntable Platter 14. Turntable Spindle 15. Tonearm Counterweight 16. Downforce Scale Dial 17. Hold Down Clip 18. Tonearm Lever 19. Tonearm Rest 20. Tonearm 21. Speed Selector 22. Pitch Control 23. Headshell English 5 24. Power Jack 25. Line Out Jack 26. Speaker Jacks 27. Speakers Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Remove the tie-wrap that is holding the tonearm. 3. Place the slip mat on top of the turntable platter. 4. Connect the speakers to the speaker jacks at the back of the unit. 5. Connect power adaptor to the Power Jack of the unit. Note: Do not plug the power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting. Turntable Platter and Belt Setup 1. Place the platter through the turntable spindle, then rotate the platter until you see the drive motor pulley through the window at the top right corner. 2. Carefully grab the drive belt and put it around the slot of motor pulley. English 6 Clock Setup Manually setting the clock can only be done in STANDBY mode. 1. In STANDBY mode, long press the Tuning knob. 2. Rotate the Tuning knob to adjust between the 12 or 24 setting. Press Tuning knob to confirm. 3. Rotate the Tuning knob to change the hour digits to the correct hour. Press the Tuning knob to confirm. 4. Rotate the Tuning knob to change the minute digits to the correct minute. Press the Tuning knob to confirm Stereo System Connection When used as a line output, the jacks output analog line-level signals and could be connected directly with a pair of active speakers or the appropriate input of your stereo system. Aux Input Connection You can connect an audio device to this unit and play your music through its speakers. To do this, press the Aux button, connect the 3.5 mm auxiliary cable between your audio device, and the Aux In Jack of this unit and start playing the music. Turntable Operation 1. Press the On/Off Volume Knob to turn on the power. 2. Press the PHONO button. 3. Set the Speed Switch accordingly. 4. Place the record on the turntable. Use the 45 RPM Adapter if necessary. 5. Remove the stylus protector from the stylus assembly. Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned. 6. Release the tonearm Hold Down C…

Text truncated - open the document above for the full version.

Product Name: Koda Turntable Model No.: CR7017A-BK, CR7017X-XX FCC ID: AUSCR7017A All models are electrically identical . <Signature> Name Scott McWhorter Title :Director of Engineering Applicant Company :Modern Marketing Concepts, Inc.

DATE：2020/8/21 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:AUSCR7017A ProductName:KodaTurntable RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...) Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> NameScottMcWhorter Title:DirectorofEngineering ApplicantCompany:ModernMarketingConcepts,Inc.

DATE ：2020/8/21 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointBlueAsiatechnicalservicesLimited.andIOTTestCentreof BlueAsiaNo.448BulongRoad,BantianStreet,LonggangDistrict,Shenzhen(Nameof Agentcompanynameandaddress)toactasouragentinthepreparationofthis applicationforequipmentcertification.Icertifythatsubmitteddocumentsproperlydescribe thedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythateach unitmanufactured,importedormarketed,asdefinedintheFederalCommunications Commission’sregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedfor approvalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditions forcertification,stillresideswithModernMarketingConcepts,Inc.and1220 EOak,St.Louisville,KY40204UnitedStates(ApplicantNameand address) <Signature> NameScottMcWhorter Title:DirectorofEngineering ApplicantCompany: ModernMarketingConcepts,Inc.

Model No.: CR7017A-BK

80mm 33mm

Model No.: CR7017A-BK

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -1.02dBm（ 0.79mW）output power] (0.79mW /5mm) ·[√2.402(GHz)]= 0.24 <3.0 for 1-g SAR Then SAR evaluation is not required

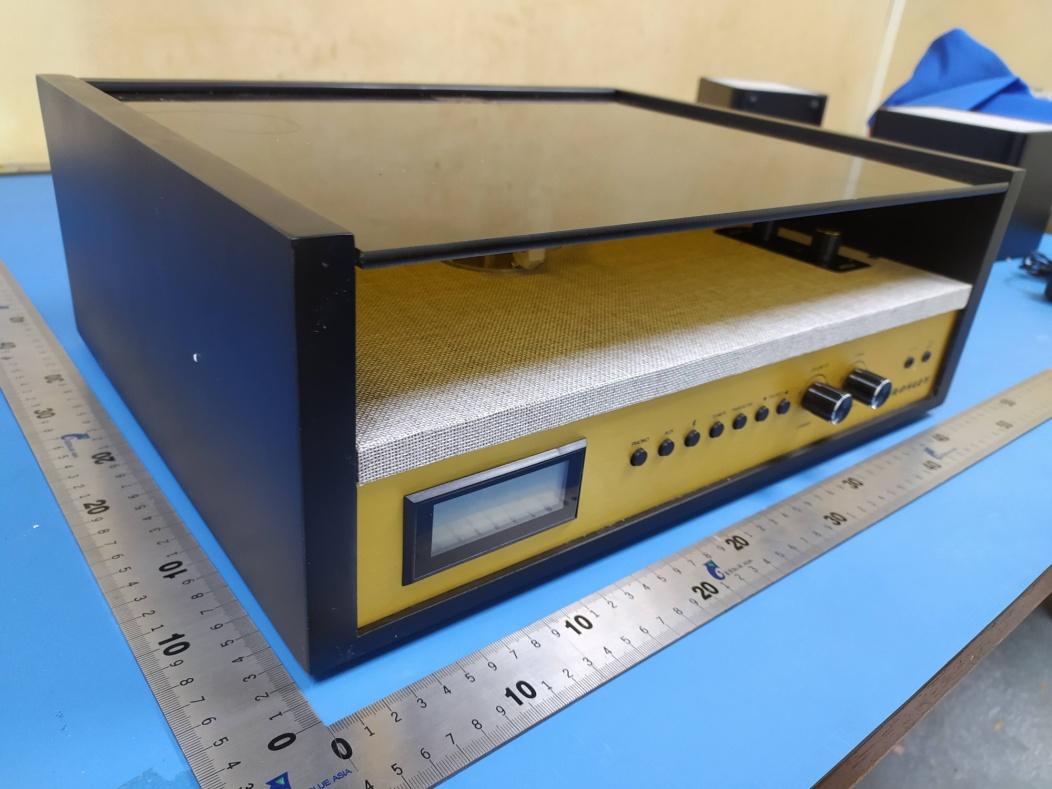

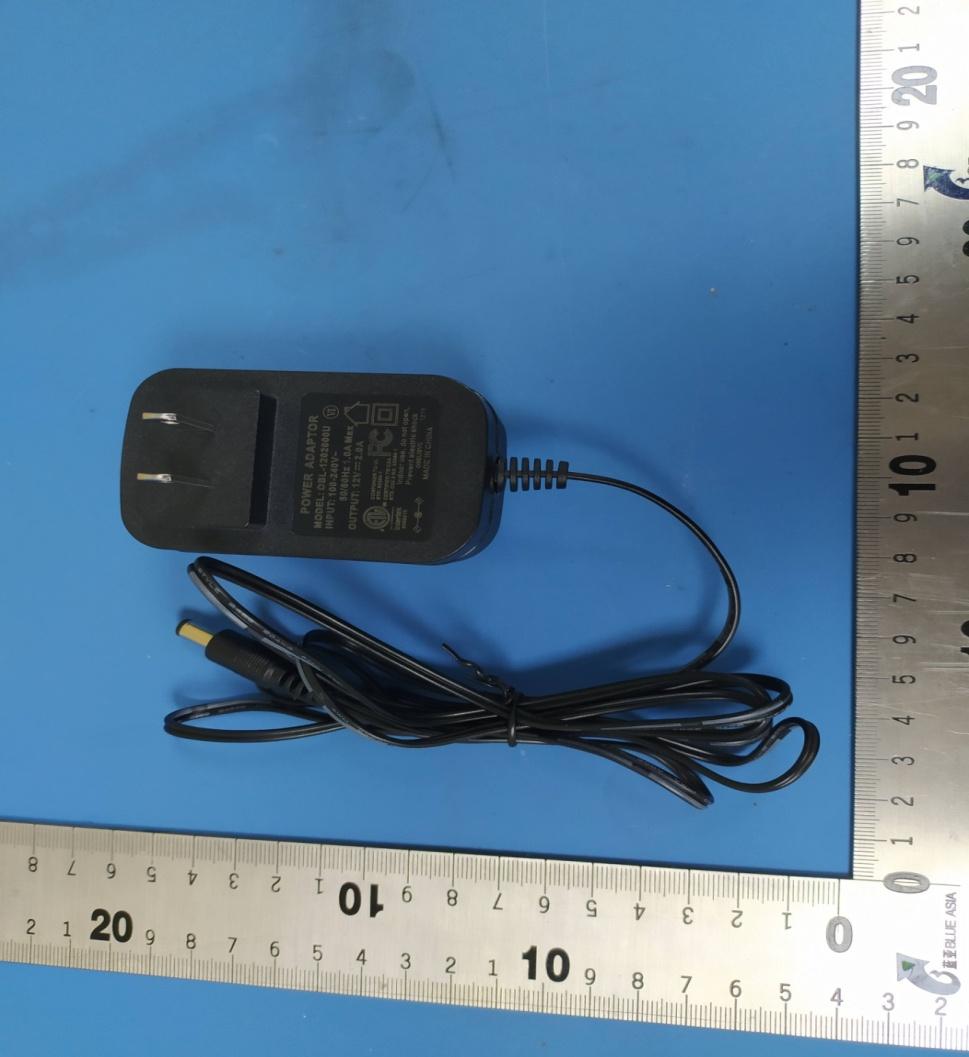

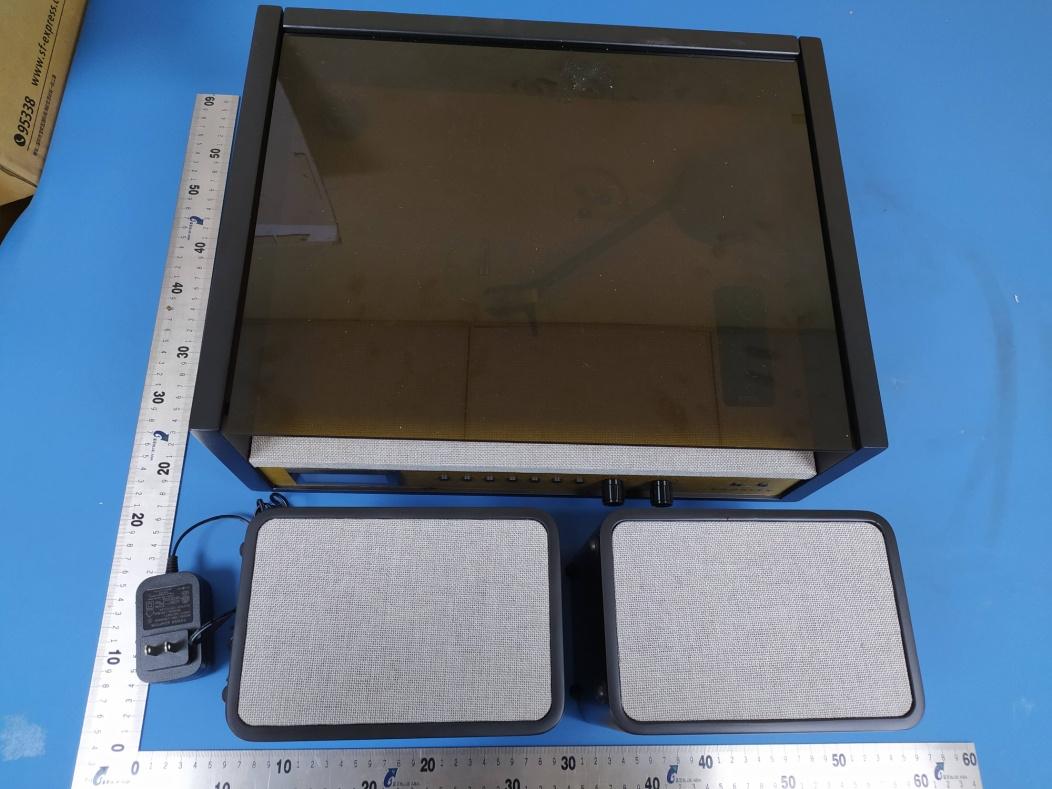

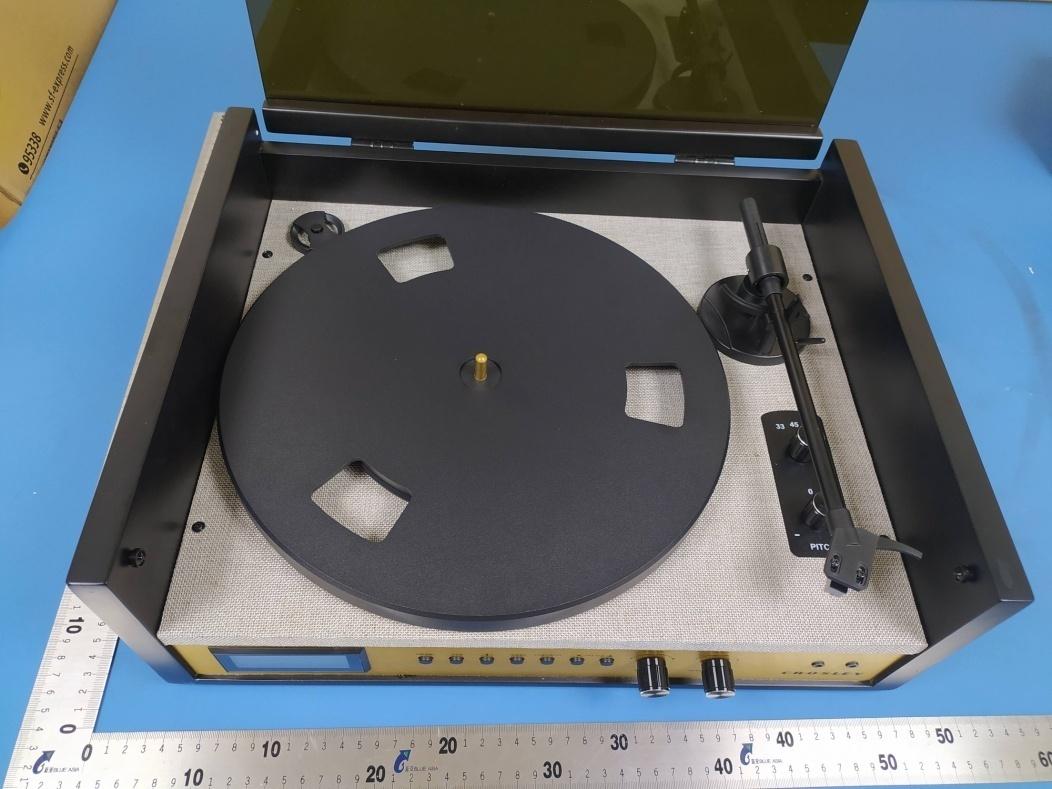

Report No.: BLA-EMC-202008-A1001 Page 76 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] APPENDIX A: PHOTOGRAPHS OF TEST SETUP Antenna Requirement Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202008-A1001 Page 77 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Radiated Spurious Emissions Report No.: BLA-EMC-202008-A1001 Page 78 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202008-A1001 Page 79 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Report No.: BLA-EMC-202008-A1001 Page 80 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Report No.: BLA-EMC-202008-A1001 Page 81 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Report No.: BLA-EMC-202008-A1001 Page 82 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Report No.: BLA-EMC-202008-A1001 Page 83 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Report No.: BLA-EMC-202008-A1001 Page 84 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] T Report No.: BLA-EMC-202008-A1001 Page 85 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Report No.: BLA-EMC-202008-A1001 Page 61 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 10.6 APPENDIXG:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 -2.23 -56.12 <=-22.23 PASS High 2480 -2.90 -55.49 <=-22.9 PASS Low Hop_2402 -2.47 -56.08 -22.47 PASS High Hop_2480 -3.12 -55.35 -23.12 PASS 2DH1 Ant1 Low 2402 -2.23 -54.7 <=-22.23 PASS High 2480 -3.03 -55.25 <=-23.03 PASS Low Hop_2402 -2.66 -56.12 -22.66 PASS High Hop_2480 -2.67 -55.41 -22.67 PASS 3DH1 Ant1 Low 2402 -2.19 -52.8 <=-22.19 PASS High 2480 -2.98 -55.4 <=-22.98 PASS Low Hop_2402 -3.16 -55.46 -23.16 PASS High Hop_2480 -2.77 -55.22 -22.77 PASS Report No.: BLA-EMC-202008-A1001 Page 62 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202008-A1001 Page 63 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202008-A1001 Page 64 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202008-A1001 Page 65 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202008-A1001 Page 66 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 10.7 APPENDIXH:CONDUCTED SPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference -2.22 -2.22 --- PASS 30~1000 30~1000 -52.227 <=-22.22 PASS 1000~26500 1000~26500 -36.832 <=-22.22 PASS 2441 Reference -3.14 -3.14 --- PASS 30~1000 30~1000 -52.397 <=-23.137 PASS 1000~26500 1000~26500 -34.09 <=-23.137 PASS 2480 Reference -3.55 -3.55 --- PASS 30~1000 30~1000 -52.368 <=-23.548 PASS 1000~26500 1000~26500 -33.306 <=-23.548 PASS 2DH1 Ant1 2402 Reference -2.23 -2.23 --- PASS 30~1000 30~1000 -51.997 <=-22.227 PASS 1000~26500 1000~26500 -35.605 <=-22.227 PASS 2441 Reference -2.86 -2.86 --- PASS 30~1000 30~1000 -52.013 <=-22.86 PASS 1000~26500 1000~26500 -33.122 <=-22.86 PASS 2480 Reference -3.45 -3.45 --- PASS 30~1000 30~1000 -52.432 <=-23.449 PASS 1000~26500 1000~26500 -34.329 <=-23.449 PASS 3DH1 Ant1 2402 Reference -2.79 -2.79 --- PASS 30~1000 30~1000 -52.27 <=-22.79 PASS 1000~26500 1000~26500 -38.085 <=-22.79 PASS 2441 Reference -4.24 -4.24 --- PASS 30~1000 30~1000 -51.898 <=-24.24 PASS 1000~26500 1000~26500 -33.458 <=-24.24 PASS 2480 Reference -3.02 -3.02 --- PASS 30~1000 30~1000 -52.299 <=-23.019 PASS 1000~26500 1000~26500 -34.18 <=-23.019 PASS Report No.: BLA-EMC-202008-A1001 Page 67 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202008-A1001 Page 68 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202008-A1001 Page 69 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 2DH1_Ant1_2402_0~Reference Report No.: BLA-EMC-202008-A1001 Page 70 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202008-A1001 Page 71 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 2DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202008-A1001 Page 72 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference Report No.: BLA-EMC-202008-A1001 Page 73 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202008-A1001 Page 74 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202008-A1001 Page 75 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500

Page 1 of85 BlueAsia Technology Services(Shenzhen) Limited Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] TEST REPORT Product Name : Koda Turntable Brand Mark : N/A Model No. : CR7017A-BK,CR7017X-XX FCC ID : AUSCR7017A Report Number : BLA-EMC-202008-A1001 Date of Sample Receipt : 2020/8/7 Date of Test : 2020/8/7 to 2020/8/17 Date of Issue : 2020/8/17 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Modern Marketing Concepts, Inc. 1220 E Oak, St. Louisville, KY 40204 United States Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/8/17 Report No.: BLA-EMC-202008-A1001 Page 2 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/8/17 Original Report No.: BLA-EMC-202008-A1001 Page 3 of85 BlueAsia Technology Services(Shenzhen) LimitedTel: +86-755-23059481 Email: [email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 16 HOPPING CHANNEL NUMBER ....................................................................................................................... 17 LIMITS ............................................................................................................................................................................. 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 17 TEST DATA ........................................................................................................................................................................ 17 CARRIER FREQUENCIES SEPARATION ....................................................................................................... 18 LIMITS ............................................................................................................................................................................. 18 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 18 TEST DATA ........................................................................................................................................................................ 18 20DB BANDWIDTH .......................................................................................................................................... 19 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 19 TEST DATA ........................................................................................................................................................................ 19 CONDUCTED PEAK OUTPUT POWER .......................................................................................................... 20 LIMITS ............................................................................................................................................................................. 20 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 20 Report No.: BLA-EMC-202008-A1001 Page 4 of85 BlueAsia Technology Se…

Text truncated - open the document above for the full version.

Model No.: CR7017A-BK
