CR8005G Cruiser Premier Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Turntable • 45 RPM adapter • Power adaptor Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 5V 1A Power consumption 13W Speaker 4Ω, 3W x 2 Turntable speed 33 1 / 3 , 45, 78 RPM Replacement needle Crosley NP-16 Note: • Design and specifications are subject to change without notice. • To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. Turntable Platter 2. Turntable Spindle 3. Function Switch 4. Tonearm Lever 5. Function Indicator 6. Auto-stop Switch 7. Pitch Control 8. Tonearm 9. Speed Switch 10. On/Off Volume Knob 11. Hold Down Clip 12. Headphone Jack 13. RCA Jacks 14. Aux In Jack 15. Power Jack 16. 45 RPM Adapter English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Remove the tie-wrap that is holding the tonearm. 3. Connect AC adaptor to the Power Jack of the unit. Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting. Stereo System Connection RCA Jacks • The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system. • The Red plug connects with the Right channel and the White plug connects with the Left channel. Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low. Aux Input Connection You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing the music. Note: The aux in connection will automatically override the turntable and Bluetooth functions. To resume using the turntable or Bluetooth functions, unplug the auxiliary cable from the aux in jack. The Function Indicator will be purple. English 6 Turntable Operation 1. Rotate the On/Off Volume Knob to turn on the power. 2. Set the Function Switch to PHONO position. Note: The Function Indicator will be red 3. Set the Speed Switch accordingly. 4. Place the record on the turntable. Use the 45 RPM Adapter if necessary. 5. Remove the stylus protector from the stylus assembly. Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned. 6. Release the tonearm Hold Down Clip. Note: when the turntable is not in use, remember to lock back hold down clip. 7. Use the Tonearm Lever to lift up the tonearm. 8. Gently move the tonearm over the record where play is desired to begin. Set the Tonearm Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback. 9. When the record is finished playing, use the Tonearm Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps. 10. …

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. 1220 E Oak, St. Louisville Kentucky United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-9-27 U.S. Agent Designation Modern Marketing Concepts, Inc. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: AUSCR8005G): Name and company of U.S. agent: Modern Marketing Concepts, Inc. Physical U.S. address of agent: 1220 E Oak, St. Louisville Kentucky United States FRN of U.S. agent: 0021475454 Email address of U.S. agent: [email protected] Modern Marketing Concepts, Inc. acknowledges their obligation to accept service of process on behalf of Modern Marketing Concepts, Inc. . Modern Marketing Concepts, Inc. with the FRN [0021475454] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Scott McWhorter Director of Engineering Modern Marketing Concepts, Inc. Signature Scott McWhorter Director of Engineering Modern Marketing Concepts, Inc. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Scott McWhorter/Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville Kentucky United States Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

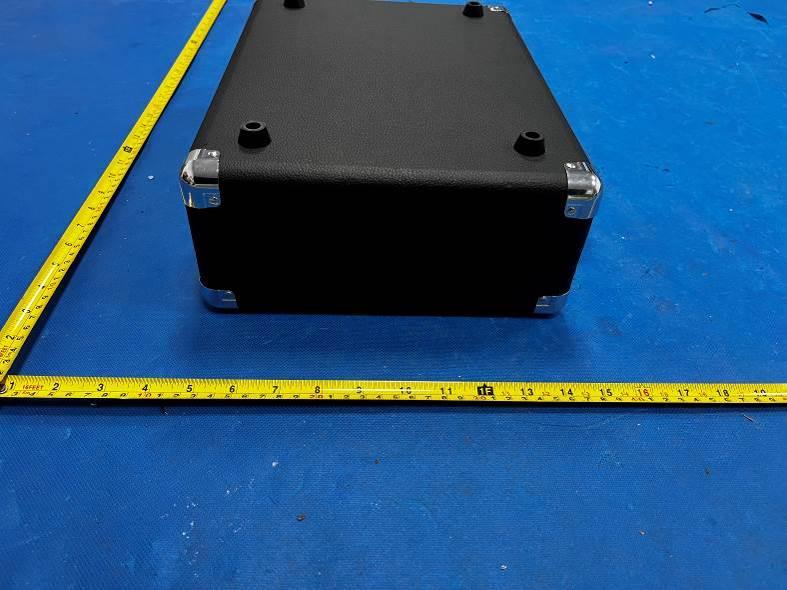

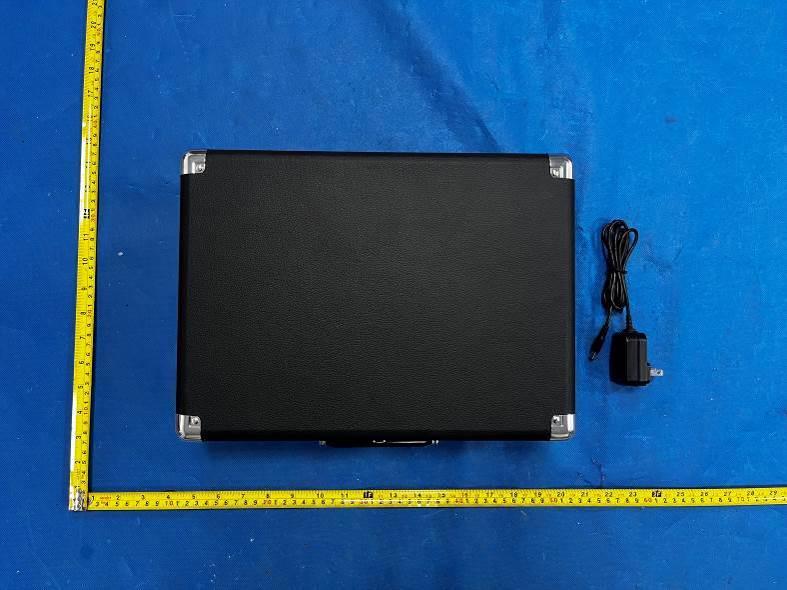

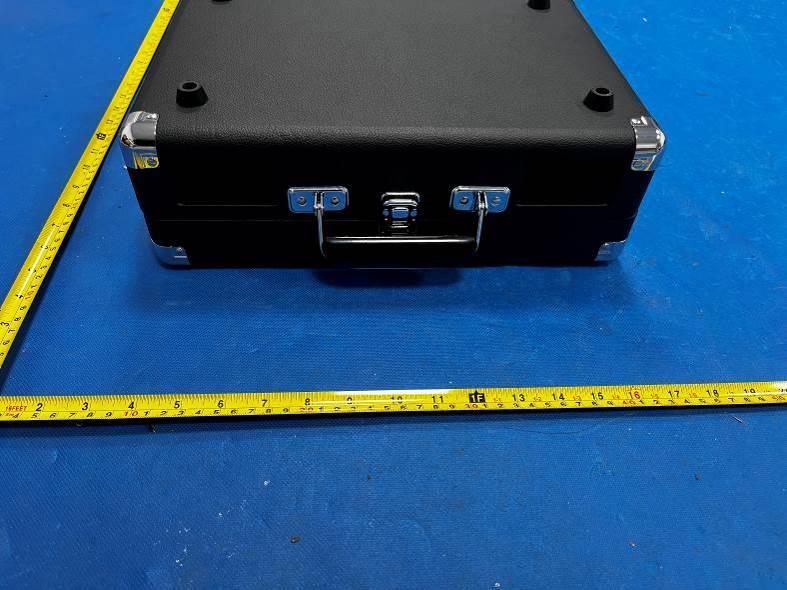

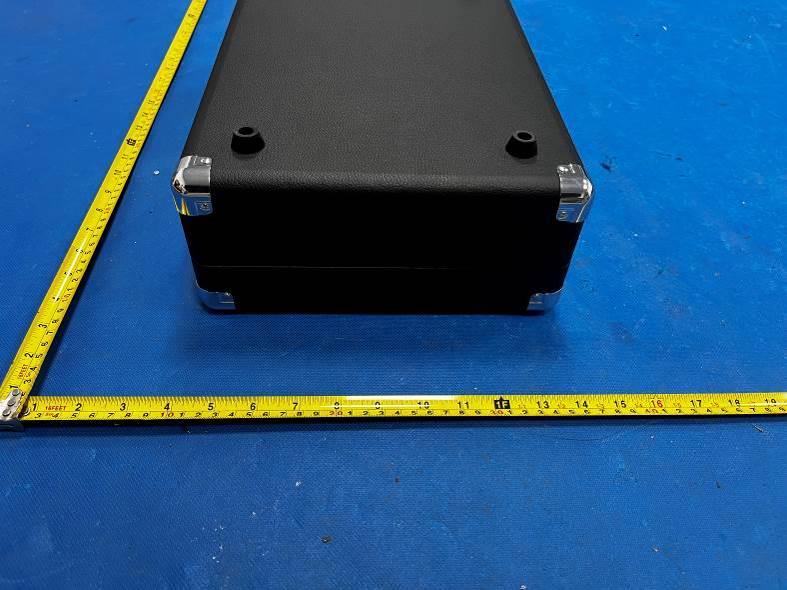

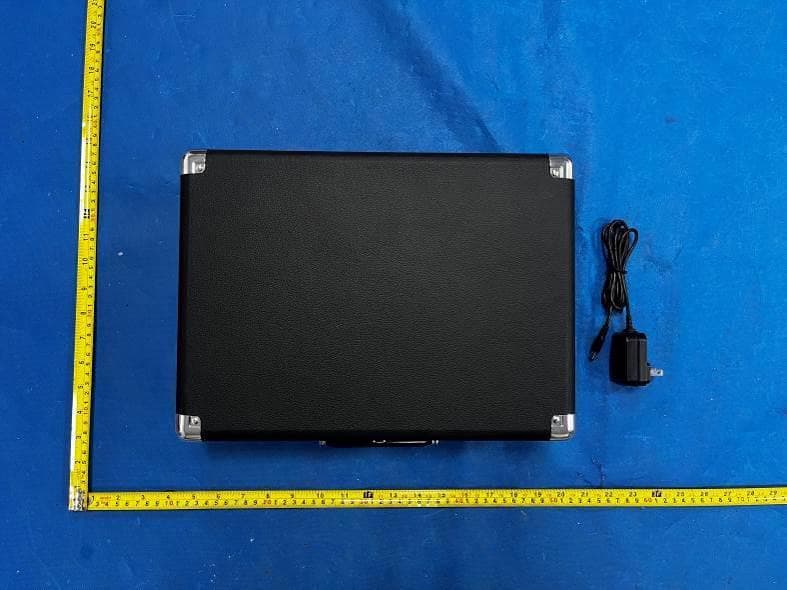

FCC ID: AUSCR8005G External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: AUSCR8005G Photo 4 Photo 5 Photo 6 FCC ID: AUSCR8005G Photo 7

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: CR8005G-BK FCC ID : AUSCR8005G Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: AUSCR8005G Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: AUSCR8005G Photo 4 Photo 5 Photo 6 FCC ID: AUSCR8005G Photo 7 Photo 8 Photo 9 BT PCB Antenna FCC ID: AUSCR8005G Photo 10 Photo 11 Photo 12 FCC ID: AUSCR8005G Photo 13 Photo 14 Photo 15 FCC ID: AUSCR8005G Photo 16 Photo 17 Photo 18

RF Exposure evaluation FCC ID: AUSCR8005G Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information CR8005G-BK can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB antenna 0.62dBi for 2400-2500MHz; 5. Manufacturing Tolerance Bluetooth(Peak) Frequency (MHz) GFSK Channel 00 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) π/4DQPSK Channel 00 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 8DPSK Channel 00 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.62dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 1.0 1.2589 0.62 1.1535 0.0003 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model CR8005G-BK Frequency range 2400-2500MHz Manufacturer ZHUHAI YALI TECHNOLOGY CO.,LTD ANT Peak Gain 0.62 dBi 2. Antenna Photo: Length: 14.50mm Width: 3.43mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23091500101 AUSCR8005G Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 21, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Modern Marketing Concepts, Inc. Address ............................................ : 1220 E Oak, St. Louisville, Kentucky, United States 40204 Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Turntable Trade Mark ....................................... : CROSLEY Manufacturer .................................... : ZHUHAI YALI TECHNOLOGY CO.,LTD Model/Type reference ...................... : CR8005G-BK Listed Models .................................. : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23091500101 Page 2 of 52 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Turntable Model /Type : CR8005G-BK Listed Models : CR8005G-TN, CR8005G-WS, CR8005G-MT, CR8005XX-XX (XX-XX can be replaced by letter from “A” to“Z” or number from “0” to “9” or blank), LP-23, LP-XX(XX can be replaced by letter from “A” to “Z” or number from “0” to“9” or blank) Applicant : Modern Marketing Concepts, Inc. Address : 1220 E Oak, St. Louisville, Kentucky, United States 40204 Manufacturer : ZHUHAI YALI TECHNOLOGY CO.,LTD Address : 4th Floor, No.119, Huawei Road, Qianshan Industrial Park, ZhuHai, GuangDong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23091500101 Page 3 of 52 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 19 4.4 20dB Bandwidth 20 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 32 4.9 Pseudorandom Frequency Hopping Sequence 41 4.10 Antenna Requirement 42 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 43 6 P H O T O S O F T H E E U T ........................................................... 44 Report No.: CTA23091500101 Page 4 of 52 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A RDS The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23091500101 Page 5 of 52 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-75…
