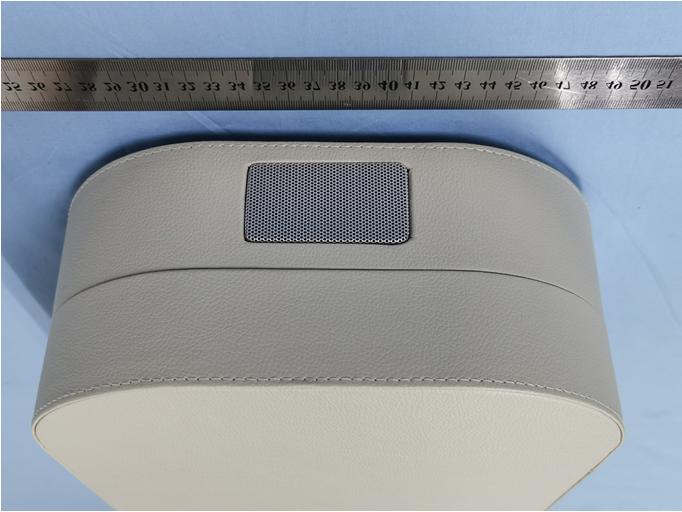

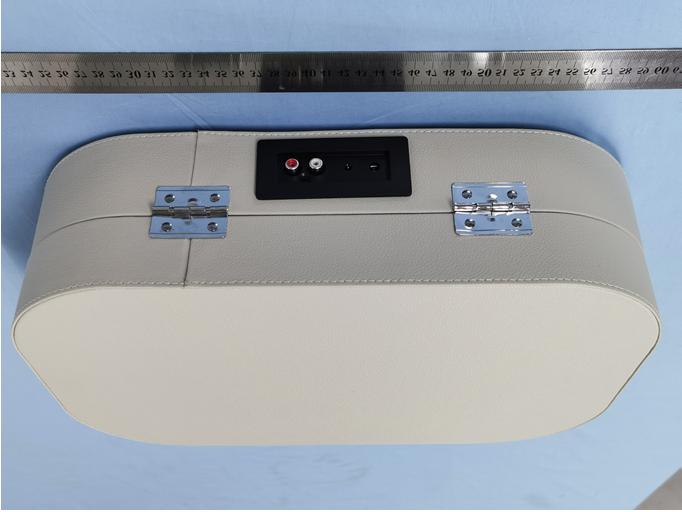

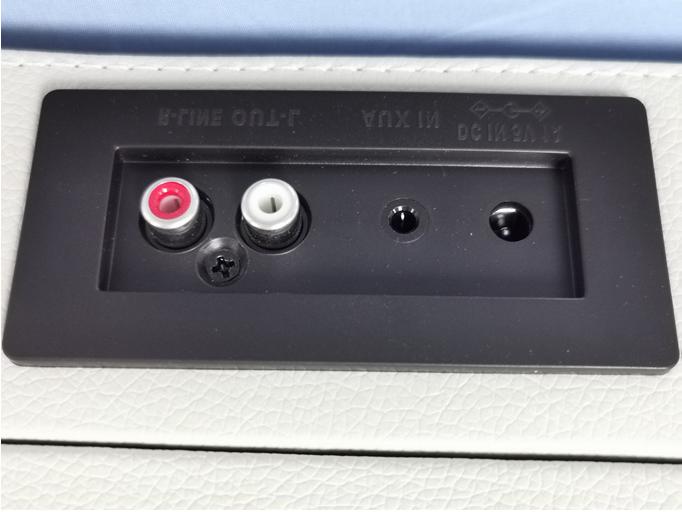

Reference No.: WTX20X10075898W-1 Page 2 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX20X10075898W-1 Page 3 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX20X10075898W-1 Page 4 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTX20X10075898W-1 Page 5 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7 EUT View 8

Reference No.: WTX20X10075898W-1 Page 1 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AUSCR8009 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX20X10075898W-1 Page 6 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX20X10075898W-1 Page 7 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX20X10075898W-1 Page 8 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX20X10075898W-1 Page 9 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTX20X10075898W-1 Page 10 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 7 Solder Board-Component View 8 Reference No.: WTX20X10075898W-1 Page 11 of 14 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: Modern Marketing Concepts, Inc. Address of applicant: 1220 E Oak, St. Louisville, KY 40204 United States Manufacturer: Timsen Development Limited Address of manufacturer: 5F, 447# Tianhebei Road, Guangzhou, China General Description of EUT: Product Name: DISCOVERY Trade Name CROSLEY Model No.: CR8009A-DU Adding Model(s): CR8009X-XXXX(“X-XXXX”can be replaced by letter from “A”to “Z”，number from “0” to “9”or blank) Rated Voltage: DC 5V Battery Capacity: / Adapter Model: MODEL: ZWSP-050100US0202 INPUT: AC 100-240V,~50/60Hz , 0.5A OUTPUT: DC5.0V, 1000mA Software Version: V 1.0 Hardware Version: V 1.0 FCC ID: AUSCR8009 Equipment Type: Mobile Technical Characteristics of EUT: Bluetooth Version: V4.2 (BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: -3.73dBm (Conducted) Data Rate: 1Mbps, 2Mbps Modulation: GFSK, π/4 DQPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: PCB Antenna Antenna Gain: -0.58dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result Maximum Tune-Up output power: -3 (dBm) Maximum peak output power at antenna input terminal: 0.50 (mW) Prediction distance: >20(cm) Prediction frequency: 2441 (MHz) Antenna gain: -0.58 (dBi) Directional gain (numeric gain): 0.87 The worst case is power density at prediction frequency at 20cm: 0.0001 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 61 TEST REPORT Reference No. .................... : WTX20X10075898W-1 FCC ID ................................ : AUSCR8009 Applicant ........................... : Modern Marketing Concepts, Inc. Address.............................. : 1220 E Oak, St. Louisville, KY 40204 United States Product Name ................... : DISCOVERY Test Model. ........................ : CR8009A-DU Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : Oct.19, 2020 Date of Test........................ : Oct.19, 2020 to Nov. 09, 2020 Date of Issue ..................... : Nov. 09, 2020 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jack Huang/ Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX20X10075898W-1 Page 2 of 61 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ` TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE .................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................7 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................ 11 3.1 STANDARD APPLICABLE ....................................................................................................................................... 11 3.2 EVALUATION INFORMATION................................................................................................................................. 11 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS.................................................................................... 12 4.1 STANDARD APPLICABLE ....................................................................................................................................... 12 4.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 12 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 13 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 14 5.1 STANDARD APPLICABLE ....................................................................................................................................... 14 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 14 5.3 TEST PROCEDURE ................................................................................................................................................. 14 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 6. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 16 6.1 STANDARD APPLICABLE ....................................................................................................................................... 16 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 16 6.3 TEST PROCEDURE ................................................................................................................................................. 16 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 7. 20DB BANDWIDTH ............................................................................................................................................... 18 7.1 STANDARD APPLICABLE ....................................................................................................................................... 18 8.2 TEST SETUP BLOCK DIAGRAM .................................................................................................................…
