AUST150Stereo Turntable System

T150C-BK Stereo Turntable System Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package: • Turntable • Turntable Slip Mat • 45 RPM adapter • Speaker wire • Power adaptor Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 12V 2.5A Power consumption 32 W Speaker 4”, 4Ω, 15W x 2 Turntable speed 33 1 / 3 , 45 RPM Replacement needle Crosley NP-15 Note: • Design and specifications are subject to change without notice. English 4 Product Description 1. Turntable Platter 2. Turntable Spindle 3. Tonearm Counterweight 4. Tonearm Lever 5. Tonearm Rest 6. Tonearm 7. Function Knob 8. Pitch Control 9. Volume Knob 10. Power Indicator 11. Ground Connector 12. RCA Jacks 13. Phono/Line Switch 14. Power Jack 15. Bluetooth Output Switch 16. Speaker Output Terminals 17. Power Switch 18. Speaker Input Terminals 19. 45 RPM Adapter English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Remove the tie-wrap that is holding the tonearm. 3. Install the turntable platter and drive belt accordingly 4. Place the slip mat on top of the turntable platter. 5. Slide Tonearm Counterweight onto the rear shaft of tonearm and push it as close to the stop point as possible. This will automatically set the needle’s down force to be in range for the factory fitted needle (2.5g-3.5g). 6. Use the Speaker Wire to connect the left and right speakers’ Input Terminals to the turntable’s Output Terminals correspondingly. Make sure the left and right channels are connected correctly. 7. Connect AC adaptor to the Power Jack of the unit. Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting. Turntable Platter and Belt Setup 1. Install the drive belt over the inner ring under the platter and make sure it won’t fall off during the setup. 2. Place the platter through the turntable spindle, then rotate the platter until you see the drive motor pulley through the window at the top right corner. 3. Carefully grab the drive belt and put it around the slot of motor pulley. English 6 Phono/Line Switch For increased flexibility of use, this unit has a built-in stereo phono pre-amplifier. If you prefer to use the phono input of your stereo system or your standalone phono pre-amplifier, set the Phono/Line switch to the PHONO position. Otherwise, please set it to LINE position and make connection to the AUX input or other high-level input on your stereo system. Stereo System Connection RCA Jacks • The RCA Jacks of this unit can be used as either Phono output jacks or Line output jacks. This is determined by using the Phone/Line Switch. • To connect to active speakers, set Phono/Line switch to Line setting. To connect to a phono pre-amp or the phono input of a stereo system, set Phono/Line switch to Phono setting. • The Red plug connects with the Right channel and the White plug connects with the Left channel. Note: − If the Phono/Line switch is set at LINE position but RCA jacks connected to the stereo system’s phono input, the sound might be distorted due to input overload and could damage your stereo system. − If the Phono/Line switch is set at PHONO position but RCA jack connected to the stereo system’s line input, the volume will be very low due to lacking signal pre- amplification. − RCA Jack is not…

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. 1220 E Oak, St. Louisville, KY 40204 United States Statement Product: Stereo Turntable System Model:T150C-BK Additional Model: T150XX-XXXX ("XX-XXXX" can be replaced by letter from "A" to "Z", number from "0" to "9"or blank) Trademark : Crosley We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names and color are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2022/04/20 Name: Scott McWhorter Company Name: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, KY 40204 United States Tel / Fax: +1-502-212-4291/+1-502-212-4291 E-Mail: [email protected]

Modern Marketing Concepts, Inc. Date: 2022-04-20 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: AUST150 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Scott McWhorter Title: Director of Engineering

Modern Marketing Concepts, Inc. Agent Authorization Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville, KY 40204 United States Product Name: Stereo Turntable System Model Number(s): T150C-BK, T150XX-XXXX ("XX-XXXX" can be replaced by letter from "A" to "Z", number from "0" to "9"or blank) Product Description: Stereo Turntable System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-04-20 Name: Scott McWhorter Title: Director of Engineering Company: Modern Marketing Concepts, Inc.

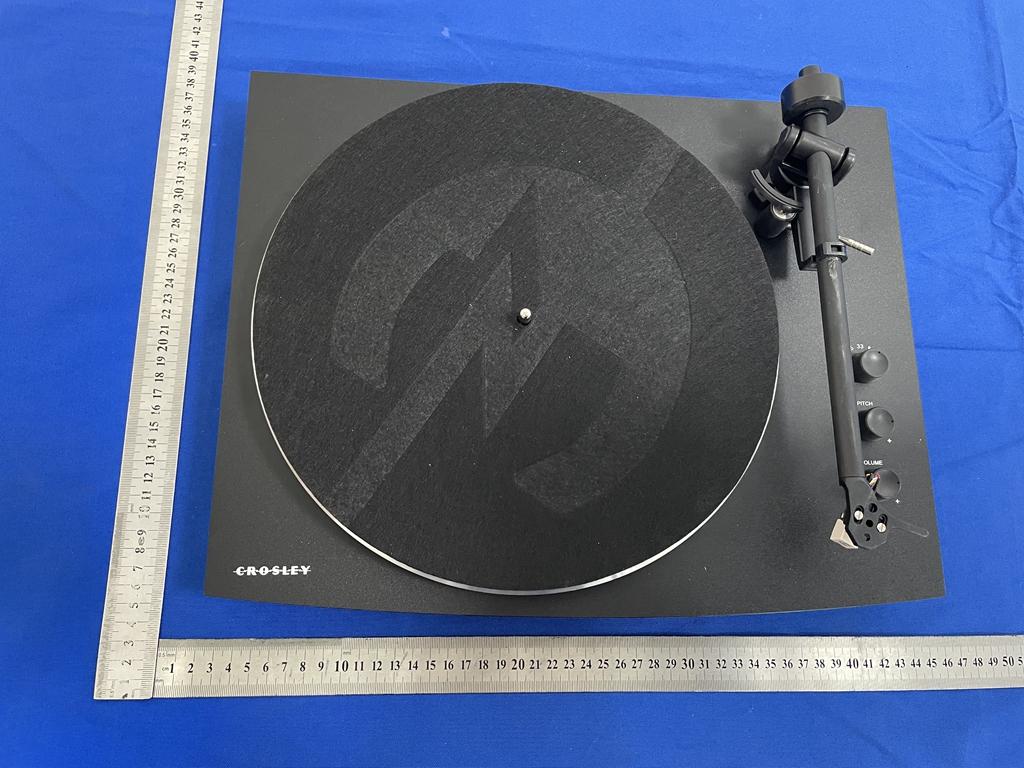

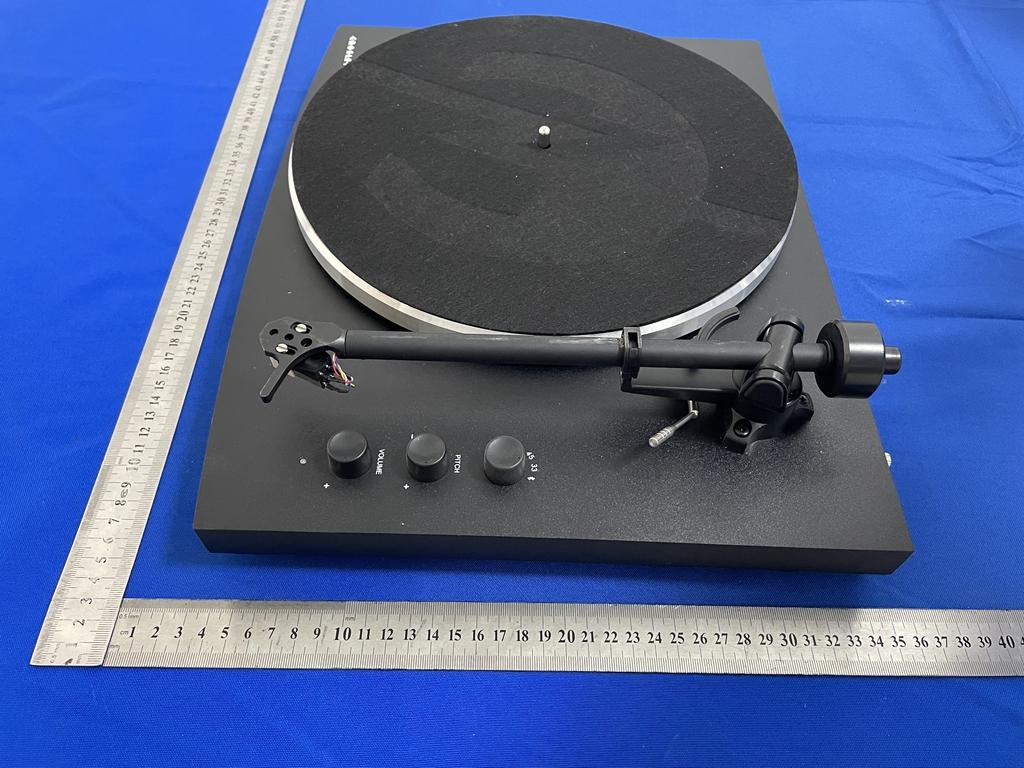

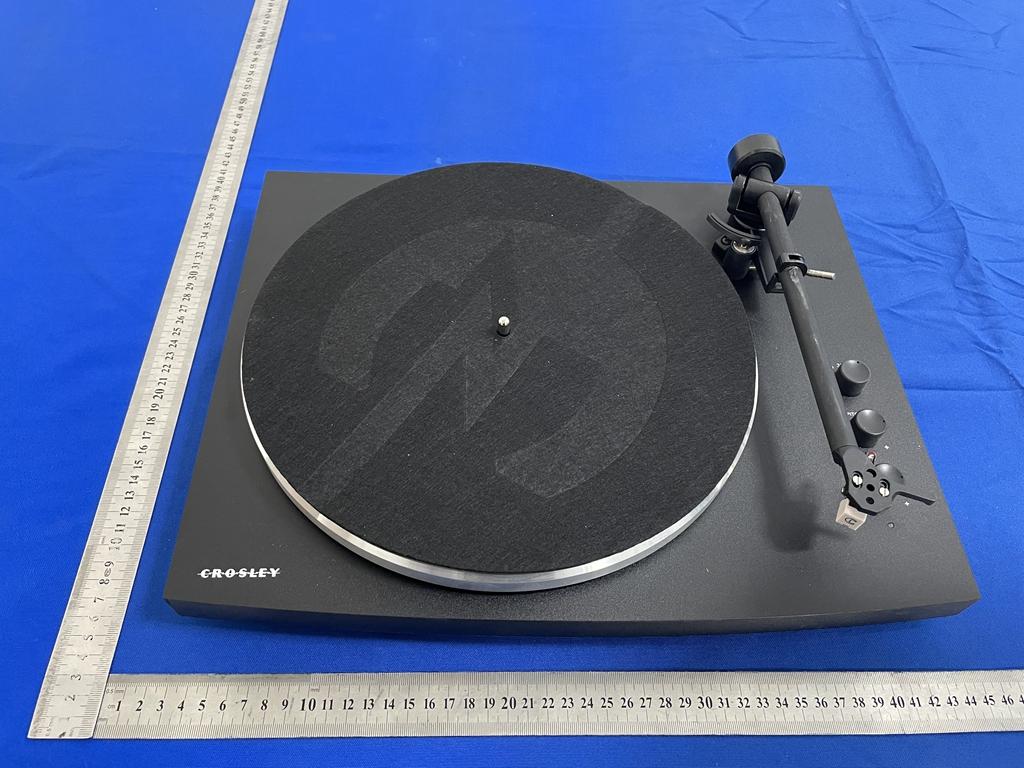

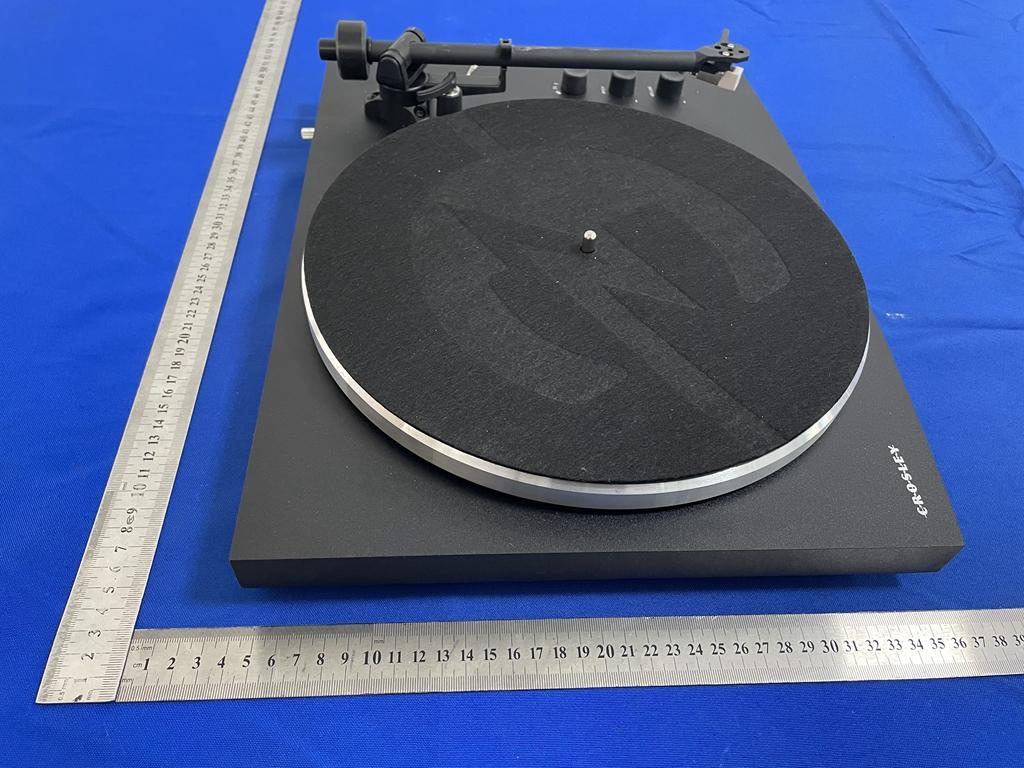

Page 1 of 4 Appendix C: Photographs of EUT Product: Stereo Turntable System Model: T150C-BK External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

LabelArtworkandLocation Model:T150C-BK Label: Size:L*W=100*45mm Location

Page 1 of 4 Appendix C: Photographs of EUT Product: Stereo Turntable System Model: T150C-BK Internal Photos Antenna Page 2 of 4 Page 3 of 4 Page 4 of 4

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : AUST150 Test Report No. ............... : TCT220321E110 Date of issue ................... : Apr. 12, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Modern Marketing Concepts, Inc. Address ........................... : 1220 E Oak, St. Louisville, KY 40204 United States Manufacturer's name ... : Timsen Development Limited Address ........................... : 5F, 447# Tianhebei Road, Guangzhou, China Standard(s) ..................... : FCC CFR Title 47 Part 1.1307 Product Name ................. : Stereo Turntable System Trade Mark ...................... : Crosley Model/Type reference..... : T150C-BK, T150XX-XXXX ("XX-XXXX" can be replaced by letter from "A" to "Z", number from "0" to "9"or blank) Rating(s).......................... : Adapter Information: MODEL: JQS0361A-U120250 INPUT: AC 100-240V, 50/60Hz, 0.85A OUTPUT: DC 12.0V, 2.5mA Date of receipt of test item ......................................... : Mar. 21, 2022 Date (s) of performance of test ................................... : Mar. 21, 2022 - Apr. 12, 2022 Tested by (+signature) ... : Rleo LIU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220321E110 Page 2 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Test Results and Measurement Data ..................................................... 6 Report No.: TCT220321E110 Page 3 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Stereo Turntable System Model/Type reference........... : T150C-BK Sample Number....................: TCT220321E062-0101 Operation Frequency ........... : 2402MHz~2480MHz Modulation Type ................... : For BT: GFSK, π/4-DQPSK, 8DPSK For BLE: GFSK Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -0.58dBi Rating(s)................................ : Adapter Information: MODEL: JQS0361A-U120250 INPUT: AC 100-240V, 50/60Hz, 0.85A OUTPUT: DC 12.0V, 2.5mA Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list No. Model No. Tested with 1 T150C-BK Other models T150XX-XXXX ("XX-XXXX" can be replaced by letter from "A" to "Z", number from "0" to "9"or blank) Note: T150C-BK is tested model, other models are derivative models. The models are identical in circuit and PCB layout, only different on the model names and colors. So the test data of T150C-BK can represent the remaining models. Report No.: TCT220321E110 Page 4 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage AC 120V Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT220321E110 Page 5 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 SHENZHEN TONGCE…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : AUST150 Test Report No. ............... : TCT220321E062 Date of issue ................... : Apr. 12, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Modern Marketing Concepts, Inc. Address ........................... : 1220 E Oak, St. Louisville, KY 40204 United States Manufacturer's name ... : Timsen Development Limited Address ........................... : 5F, 447# Tianhebei Road, Guangzhou, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Product Name ................. : Stereo Turntable System Trade Mark ...................... : Crosley Model/Type reference..... : T150C-BK, T150XX-XXXX ("XX-XXXX" can be replaced by letter from "A" to "Z", number from "0" to "9"or blank) Rating(s).......................... : Adapter Information: MODEL: JQS0361A-U120250 INPUT: AC 100-240V, 50/60Hz, 0.85A OUTPUT: DC 12.0V, 2.5mA Date of receipt of test item ......................................... : Mar. 21, 2022 Date (s) of performance of test ................................... : Mar. 21, 2022 - Apr. 12, 2022 Tested by (+signature) ... : Rleo LIU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220321E062 Page 2 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 6 4. Facilities and Accreditations .................................................................. 7 4.1. Facilities ................................................................................................................. 7 4.2. Location ................................................................................................................. 7 4.3. Measurement Uncertainty ..................................................................................... 7 5. Test Results and Measurement Data ..................................................... 8 5.1. Antenna requirement ............................................................................................ 8 5.2. Conducted Emission ............................................................................................. 9 5.3. Conducted Output Power ................................................................................... 13 5.4. 20dB Occupy Bandwidth .................................................................................... 14 5.5. Carrier Frequencies Separation ......................................................................... 15 5.6. Hopping Channel Number .................................................................................. 16 5.7. Dwell Time ............................................................................................................ 17 5.8. Pseudorandom Frequency Hopping Sequence ................................................ 18 5.9. Conducted Band Edge Measurement ................................................................ 19 5.10.Conducted Spurious Emission Measurement .................................................. 20 5.11.Radiated Spurious Emission Measurement ..................................................... 21 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT220321E062 Page 3 of 96 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Stereo Turntable System Model/Type reference........... : T150C-BK Sample Number....................: TCT220321E062-0101 Bluetooth Version ................ : V5.1 (This report is for BDR+EDR) Operation Frequency ........... : 2402MHz~2480MHz Transfer Rate ........................ : 1/2/3 Mbits/s Number of Channel .............. : 79 Modulation Type ................... : GFSK, π/4-DQPSK, 8DPSK Modulation Technology ....... : FHSS Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -0.58dBi Rating(s)................................ : Adapter Information: MODEL: JQS0361A-U120250 INPUT: AC 100-240V, 50/60Hz, 0.85A OUTPUT: DC 12.0V, 2.5mA Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list No. Model No. Tested with 1 T150C-BK Other m…
