AUST400DPlastic phonograph

T400D T400 Turntable Instruction Manual Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 6 p.m., EST, Monday – Friday 1-888-CROSLEY www.crosleyradio.com English 2 Safety Instructions Read and understand this entire manual before using this product. Keep these instructions for future reference. 1. Do not use this product near water. 2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual. 3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician. 4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product. 5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 9. Do not use attachments not recommended by the product manufacturer as they may cause hazards. 10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storm or when unused for long periods of time. English 3 Items in this package Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:  Turntable  Turntable Lid  Turntable Platter  Turntable Slip Mat  45 RPM Adapter  Power Adaptor Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes. Specifications Power AC power adaptor, DC output 12V 200mA Power consumption 2W Turntable speed 33 1 / 3 , 45 RPM Replacement needle Crosley NP5 Note:  Design and specifications are subject to change without notice.  To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again. English 4 Product Description 1. Hinges 2. 45 RPM Adapter 3. Turntable Platter 4. Turntable Spindle 5. Size Selector 6. Tonearm 7. Hold Down Clip 8. Speed Selector 9. Start Button 10. Stop Button 11. Lift Button 12. Bluetooth Indicator 13. Bluetooth Button 14. Phone Line Switch 15. RCA Jack 16. Power Jack 17. ON/OFF Button English 5 Initial Setup Essential Setup 1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration. 2. Install the turntable lid to the hinges. 3. Remove the tie-wrap that is holding the tonearm. 4. Install the turntable platter and drive belt accordingly. 5. Place the slip mat on top of the turntable platter. 6. Connect AC adaptor to the Power Jack of the unit. Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting. Turntable Platter and Belt Setup 1. Install the drive belt over the inner ring under the platter and make sure it won’t fall off during the setup. 2. Place the platter through the turntable spindle, then rotate the platter until you see the drive motor pulley through the window at the top right corner. 3. Carefully grab the drive belt and put it around the slot of motor pulley. Stereo System Connection RCA Jacks  The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.  The Red plug connects with the Right channel and the White plug connects with the Left channel. Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low. English 6 Turntable Operation Automatic Operation 1. Press the ON / OFF Button to turn on the power. 2. Set the Size Selector to the appropriate record size. 3. Set the Speed Button accordingly. 4. Place the record on the turntable. Use the 45 RPM Adapter if necessary. 5. Remove the stylus protector from the stylus assembly. Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned. 6. Release the tonearm Hold Down Clip. Note: when the turntable is not in use, remember to lock back hold down clip. 7. Gently push the START Button. The turntable will start and the tone arm automatically will move to the record. When the record has finished playing, the tone arm will automatically return to the tone arm rest and the turntable will shut off. 8. To stop playing the record before it reaches the end, press the STOP Button. The tone arm will lift and return to the tone arm rest, and the turntable…

Text truncated - open the document above for the full version.

Modern Marketing Concepts, Inc. Add:1220 E Oak, St. Louisville Kentucky, United States. 40204 Date: 2021-7-23 FCC ID: AUST400D Dear Sir/Madam, We,Modern Marketing Concepts, Inc.Hereby declares the following statement for Federal Communications Commission, PCB board, circuit,structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Plastic phonograph Model no.: T400D-BK, TT16010-2, T400D-XX(Above models are identical in schematic and structure. XX represent the colorcode, they can be replaced by letters from A to Z or blank.) Sincerely, Name/Title ： Scott McWhorter/Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville Kentucky, United States. 40204 Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-23> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name AUST400DT400D-BK For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Scott McWhorter/Director of Engineering Company: Modern Marketing Concepts, Inc. Address: 1220 E Oak, St. Louisville Kentucky, United States. 40204 Phone: +1-502-212-4291 Fax: +1-502-212-4291 E-Mail: [email protected]

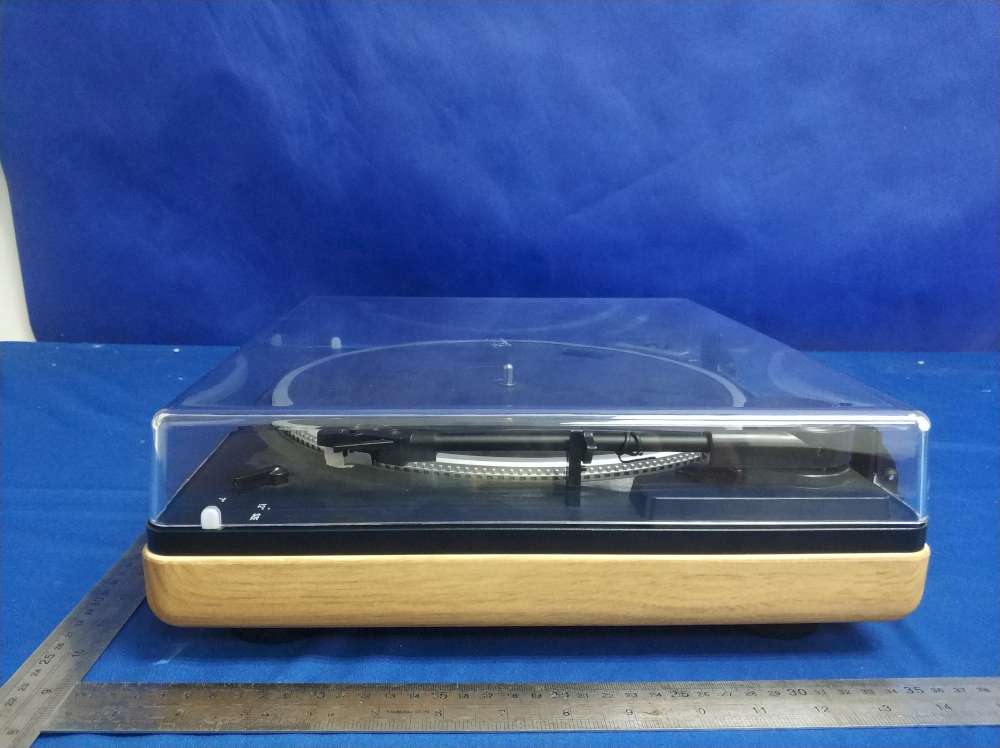

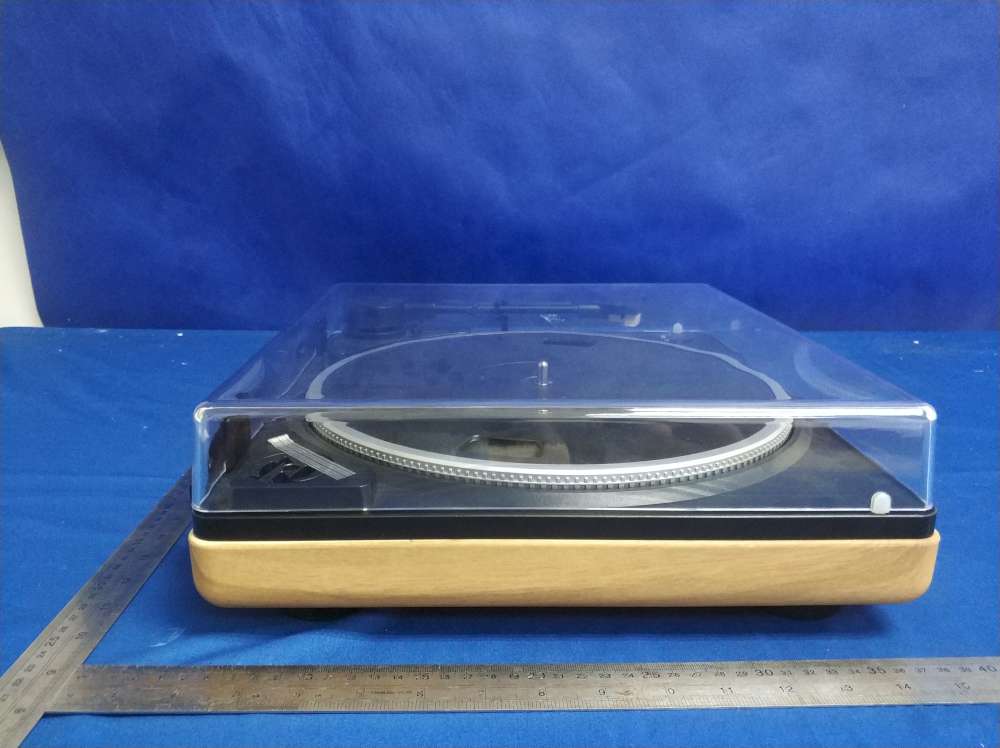

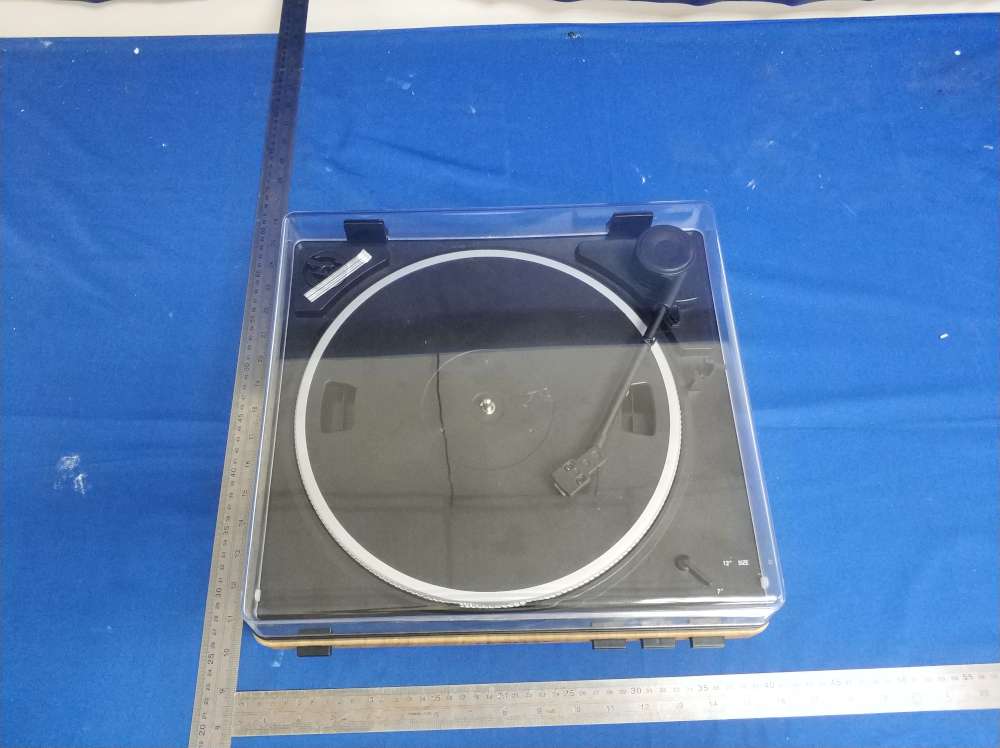

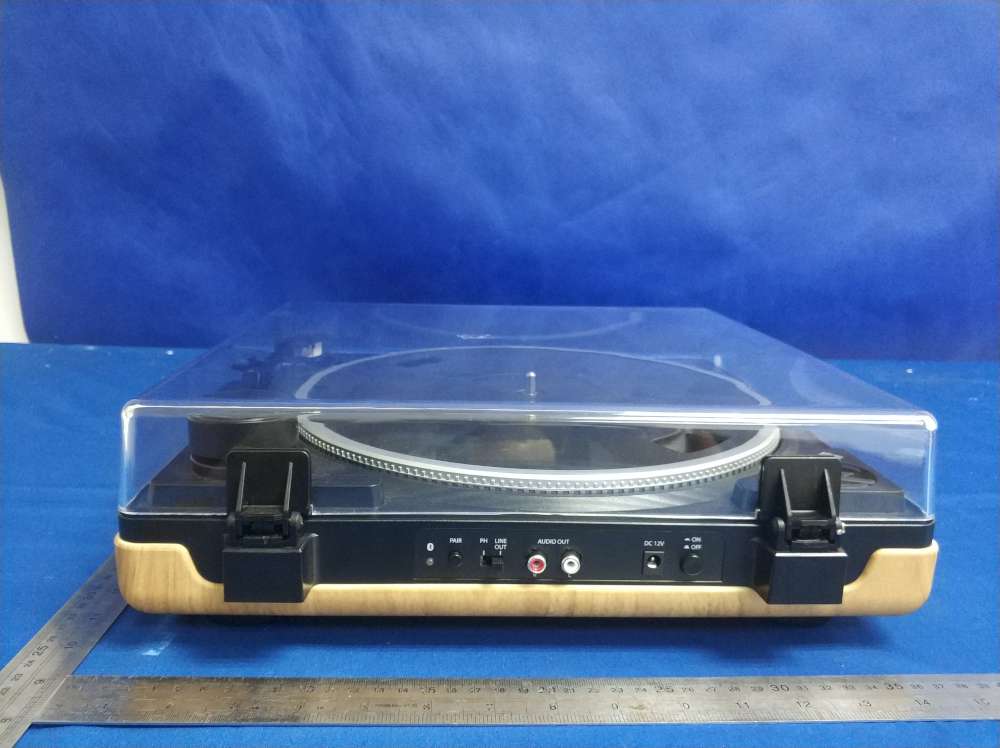

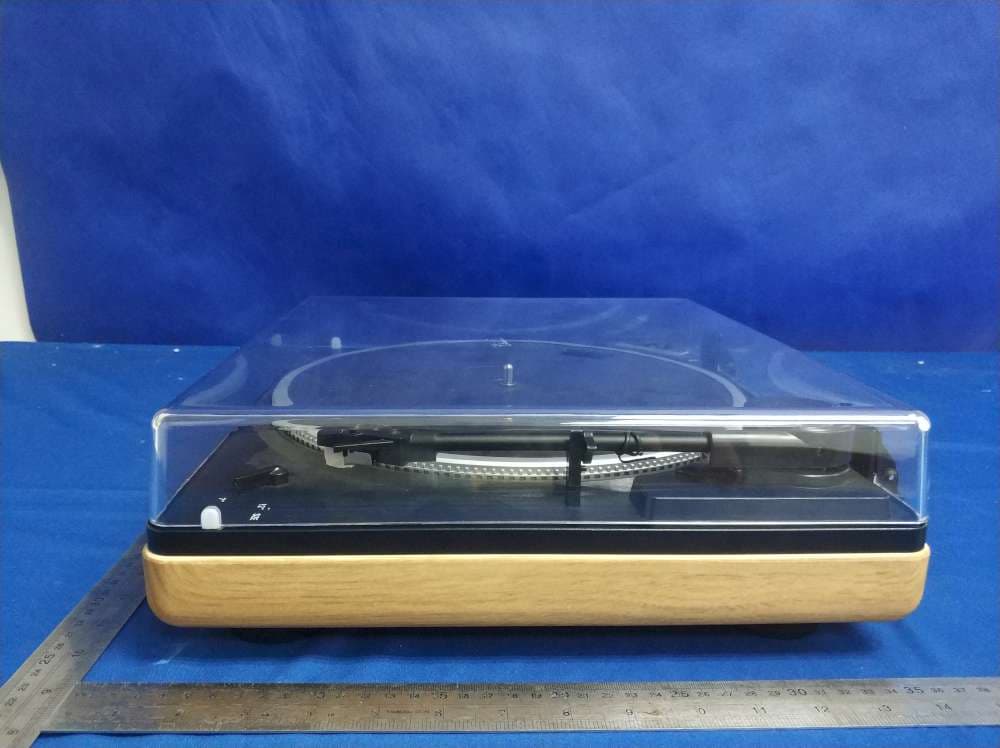

FCC ID: AUST400D FCC ID: AUST400D FCC ID: AUST400D FCC ID: AUST400D SW1200200-F04 FCC ID: AUST400D GKYPS0020120UL1

FCC ID: AUST400D FCC ID: AUST400D ANT FCC ID: AUST400D

RF Exposure evaluation Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1091 FCC ID: AUST400D 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shallbe operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.06141.63(100) * 6 3.0 – 301842/f4.89/f(900/f 2 )*6 30 – 30061.40.1631.06 300 – 1500//f/3006 1500 – 100,000//56 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.06141.63(100) *30 3.0 – 30824/f2.19/f(180/f 2 )*30 30 – 30027.50.0730.230 300 – 1500 //f/150030 1500 – 100,000 //1.030 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used BT antenna is 0Bi, the RF power density can be obtained. EDR Freq. (MHz) Output Power (dBm) Target power W/ tolerance (dBm) Max tune up power (dBm) Output power to antenna (mW) Ant Gain (dBi) Power Density at R=20cm (mW/cm2) Limit (mW/c m2) Result GFSK 2402 1.579 1.58521±1.0 0 Pass10.00032 224401.2101±1.0 1.585 0 0.00032 Pass1 124800.6520±1.0 1.259 0 0.00025 Pass1 π /4DQPSK 2402 -0.034 0±1.0 1 1.259 0 0.00025 1 Pass Pass100.000251.25912440 12480 1.259 0 0.00025 Pass1 8DPSK 2402 1 1.259 0 0.00025 1 Pass 12440 1.259 0 0.00025 Pass1 12480 -0.407 0±1.0 -0.998 0±1.0 0.043 0±1.0 -0.332 0±1.0 -0.900 0±1.0 1.259 0 0.00025 Pass1 Note: The estimation distance is 20cm 5. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device.

Project No.: ZKT-210701L3097 Page 1 of 74 FCC TEST REPORT FCC ID:AUST400D Report Number. ............................... : ZKT-210701L3097 Date of Test ....................................... Jun. 15, 2021 to Jul. 06, 2021 Date of issue .................................... : Jul. 08, 2021 Total number of pages ...................... 74 Test Result ..................................... : PASS Testing Laboratory. .......................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ............................ : Modern Marketing Concepts, Inc. Address .......................................... : 1220 E Oak, St. Louisville Kentucky, United States. 40204 Manufacturer's name ..................... : Shenzhen Jiayinking Technology Holding Company Limited Address .......................................... : A1102, workshop 1, Tianan Digital Innovation Park, No. 524, Qinglin Road, huanggekeng community, Longcheng street, Longgang District, Shenzhen Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-116_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2021-07-08 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................... : Plastic phonograph Trademark ...................................... : CROSLEY Model/Type reference ...................... : T400D-BK, TT16010-2, T400D-XX(Above models are identical in schematic and structure. XX represent the colorcode, they can be replaced by letters from A to Z or blank.) Ratings ............................................. : DC 12V/0.2A From adapter Project No.: ZKT-210701L3097 Page 2 of 74 Testing procedure and testing location: Testing Laboratory ..................................... :Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-210701L3097 Page 3 of 74 Table of Contents Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 2.1 TEST FACILITY ....................................................... 7 2.2 MEASUREMENT UNCERTAINTY ....................................... 7 3. GENERAL INFORMATION ............................................. 8 3.1 GENERAL DESCRIPTION OF EUT ..................................... 8 3.2 Test Setup Configuration ............................................... 9 3.3 Support Equipment .................................................... 9 3.4 Test Mode .......................................................... 11 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................. 12 4. EMC EMISSION TEST ................................................ 13 4.1 Conducted emissions ................................................. 13 4.1.1 POWER LINE CONDUCTED EMISSION Limits ........................ 13 4.1.2 TEST PROCEDURE ................................................ 13 4.1.3 DEVIATION FROM TEST STANDARD ................................ 13 4.1.4 TEST SETUP ...................................................... 14 4.1.5 EUT OPERATING CONDITIONS ..................................... 14 4.1.6 Test Result ........................................................ 15 4.2 Radiated emissions .................................................. 19 4.2.1 Radiated Emission Limits ............................................ 19 4.2.2 TEST PROCEDURE ................................................ 19 4.2.3 DEVIATION FROM TEST STANDARD ................................ 20 4.2.4 TEST SETUP ...................................................... 20 4.2.5 EUT OPERATING CONDITIONS ..................................... 21 4.2.6 TEST RESULTS ................................................... 22 5. RADIATED BAND EMISSION MEASUREMENT ......................... 29 5.1 Test Requirement: ................................................... 29 5.2 TEST PROCEDURE ................................................. 29 5.3 DEVIATION FROM TEST STANDARD ................................. 30 5.4 TEST SETUP ....................................................... 30 5.5 EUT OPERATING CONDITIONS ...................................... 30 5.6 TEST RESULT ...................................................... 31 6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION ................. 32 6.1 Limit ................................................................ 32 6.2 Test Setup .......................................................... 32 6.3 Test procedure ...................................................... 32 6.4 DEVIATION FROM STANDARD ....................................... 32 6.5 Test Result .......................................................... 33 7. 20DB BANDWIDTH .................................................. 45 7.1 Test Setup .......................................................... 45 7.2 Limit ................................…
