ANYMODE SOUNDWEAR SonicBlock Bluetooth Speaker USER’S MANUAL To ensure a safe and correct use of the product, please this Manual carefully before use. How to Use Turn ON/OFF the Power ‐ Press and hold the power button for two seconds or more. Then, the red LED on the product blinks and the product is powered on with the following voice message: “Power ON” ‐ Press and hold the power button for two seconds or more when the product power is on. Then, the red LED on the product blinks and the product is powered off with the following voice message: “Power OFF” Bluetooth Pairing ‐ For 15 seconds after the power is turned on, the speaker searches for paired products while the blue LED is blinking. If there is no paired product, the blue LED blinks rapidly and the speaker goes to the pairing standby mode with the following voice message: Ready to pair. Please connect with Phone or Computer. Go to Phone or Computer Bluetooth Menu. ‐ Select “SonicBlock” from Bluetooth devices displayed on your smart phone, and your phone is paired to SonicBlock with the following message: “Pairing Complete” ‐ When the pairing is completed, the blue LED blinks every 4 seconds. ‐ If there is a smart phone that has already been paired, the product is automatically connected to the smart phone with the following voice message: “Phone 1 Connected” ‐ For new pairing, press and hold the Play button and the product goes to the pairing mode. Playing Music ‐ You can play music either at your smart phone or by pressing the Play button on SonicBlock. ‐ Press and release “+” or “-” button, and you can raise or lower the volume. ‐ Press and hold “+” or “-” button, and you can play the next or the previous music. ‐ If you press the Play button on SonicBlock while music is being played, the music pauses. In order to resume playing, press the Play button again. Line-in Function ‐ With the Line-in port, you can play music with a device that does not have Bluetooth. ‐ When the Aux cable is connected to the Line-in port, the power is automatically turned on regardless whether the Power button is pressed or not, and thus power is consumed. Charging ‐ If you hear “Battery is Low” message, you have to charge the product immediately. When the product does not work normally ‐ You can reset the product by pressing the reset hole on the back of the product, using a sharp tool. Product Components SonicBlock Body Micro USB Cable AUX Cable User’s Manual * The product composition is subject to change without notice. Product Specification Product Name Soundwear SonicBlock Bluetooth Version V3.0 Operating Frequency 20Hz ~ 20,000 Hz Communication Distance 10m Speaker Output Full range 3W + 3W (Stereo) External Input Micro USB / Line-in Bluetooth Profile A2DP, AVRCP Charging Time 3 hours Battery Life Standby: 100 hours Operating: 10 hours (Set to 70% of maximum volume) Battery Input Port1,100mAh Li-Polymer Micro USB, Line-in Product Size 185.25 x 62.35 x 65mm Product Weight 377g LEDs and Voice Messages Function LED Blinking Voice Message 1 Power ON (1 sec push) Red 0.2 Sec *3 Power On 2 Power OFF (1 sec push) Red 1 Sec *1 Power Off 3 Pairing Standby (Auto Pairing & Connected) Blue 0.5 Sec (5 Min)Ready to pair Please Connect with Phone or Computer Go to Phone or Computer Bluetooth Menu 4 Pairing Successful Blue 4 Sec (5 Min) Pairing Complete 5 Phone 1 Connected Blue 4 Sec Phone1 Connected 6 Phone 2 Connected Blue 4 Sec Phone2 Connected 7 Phone 1 Disconnected Blue 4 Sec (5 Min) Phone1 Disconnected 8 Phone 2 Disconnected Blue 4 Sec (5 Min) Phone2 Disconnected 9 Low Battery Red 4 Sec Battery is low 10 Charging Red On 11 Full Charging LED Off * The corresponding radio equipment cannot be used for rescue service as it may be subject to radio interference. Names and Functions of Parts Front View Top View Rear View 1. Play/Pause Button: Used for playing music. If this button is pressed while music is being played, the music is played. 2. + Button: If you press and release this button immediately, it raises the volume and if you press and hold it for 2 seconds or more, the next music is played. 3. Power Button: Used for turning on/off the power 4. - Button: If you press and release this button immediately, it lowers the volume and if you press and hold it for 2 seconds or more, the previous music is played. 5. Charging Port (microUSB): Used for charging the product, via the enclosed micro USB cable. 6. Line-in Port (AUX Cable Connection): Used for direct connection without Bluetooth. Product Warranty The Company warrants the quality of this product as follows in compliance with the Consumer Damage Compensation Act. If there is any manufacturer’s defect or the product fails during the warranty period, we provide full services free of charge. Model Name SonicBlock Body Accessories (Cables) Warranty Period 1 year 6 months Date of Purchase / / (MM/DD/YY) (Store: ) Warranty and Reference 1. If the product fails in normal use during the warranty period, the Company will provide adequate tangible/intangible services at our A/S Center in compliance with the Consumer Damage Compensation Act under the Notice of the Ministry of Finance and Economy. 2. This warranty certificate is not reissued and is valid only in the Republic of Korea. To obtain service, please present this warranty certificate. The service technician should verify the content of the above warranty table. 3. All accessories other than the body are consumables. 4. In the following cases, you may be charged a small nominal fee or actual repair cost: ‐ No warranty certificate ‐ Failure by user’s fault or negligence ‐ Unauthorized disassembly/modification by the user ‐ Damage by immersion in water or contamination by foreign matter ‐ Failure by natural disaster like fire, earthquake, flooding, or lightening ‐ Damage by drop or transport ‐ Failure after inadequate service at a service center other than the Company’s service center ‐ Failure by applying wrong voltage ‐ External damage or deformation by the…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

ANYMODE CORPORATION FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ANYMODE CORPORATION Address Hokyoung Bldg, 1464-22 Seocho-dong, Seocho-gu City Seoul Country KOREA request for this certification filing under: Grantee Code Product Number FCC ID: AUZ EBHF002KXX to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description √ Operational Description Cruit Description.pdf explaining the functioning of the block diagram √ Block Diagrams Block Diagram.pdf showing the systematic building blocks of the EUT √ Schematics Diagrams SCH.pdf showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Seoul/ KOREA 2012-12-05 Hyunsuk Oh Manager

ANYMODE CORPORATION FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Com pany name ANYMODE CORPORATION Address Hokyoung Bldg, 1464-22 Seocho-dong, Seocho-gu City Seoul Country KOREA declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth speaker Type or Model(s) EBHF002KBK, EBHF002KWH, EBHF002KGR, EBHF002KBL, EBHF002KPK, EBHF002KYL, EBHF002KXX (Note: XX=A~Z are variations of outlook and color) Tradename or Brand(s) N.A. We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Seoul/ KOREA 2012-12-05 Hyunsuk Oh Manager

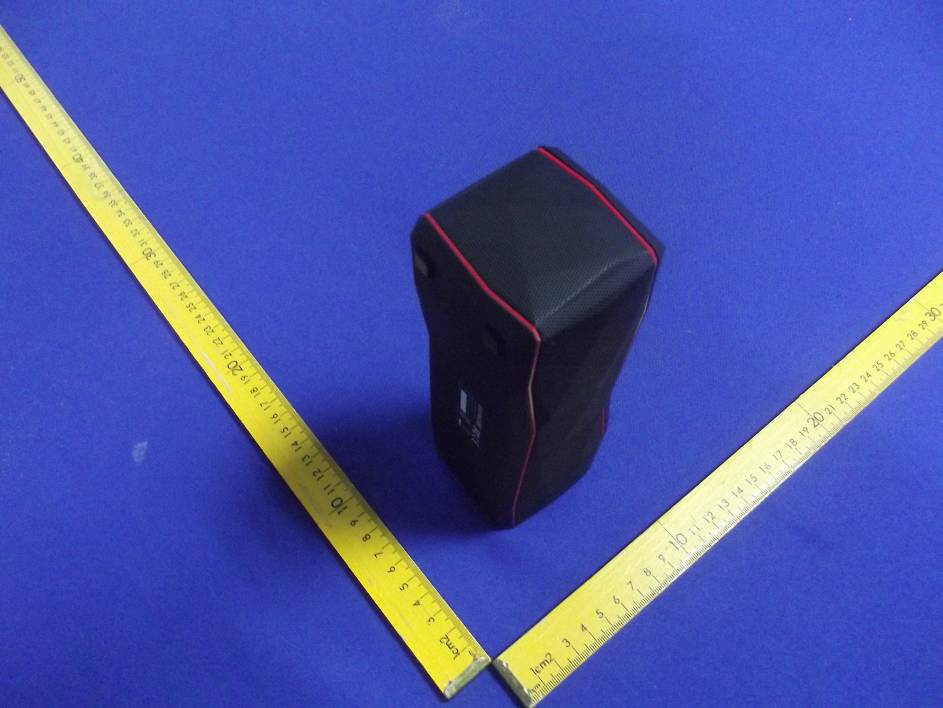

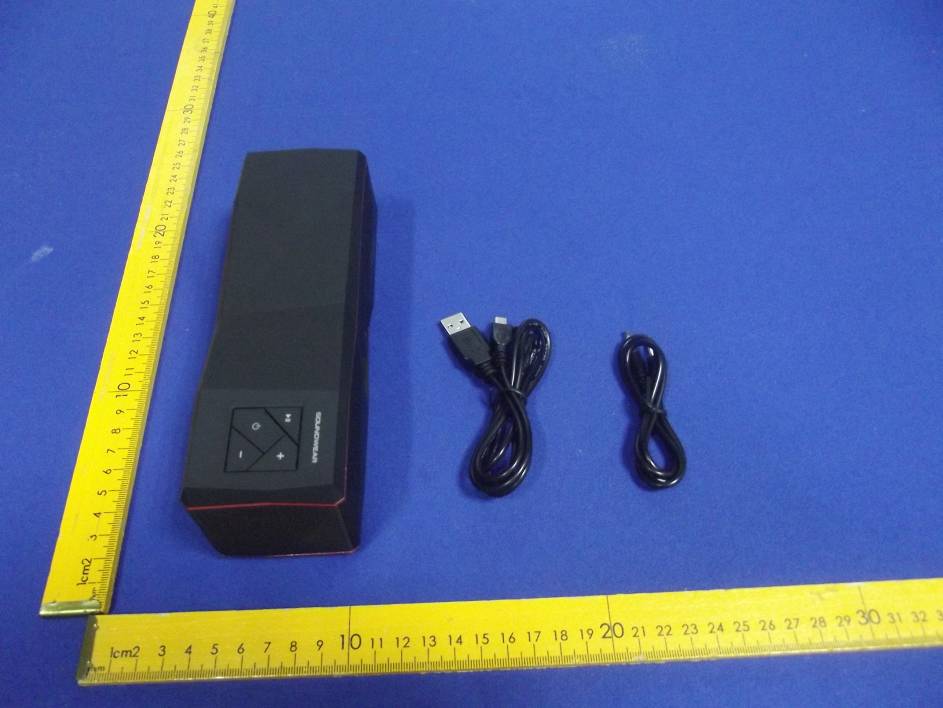

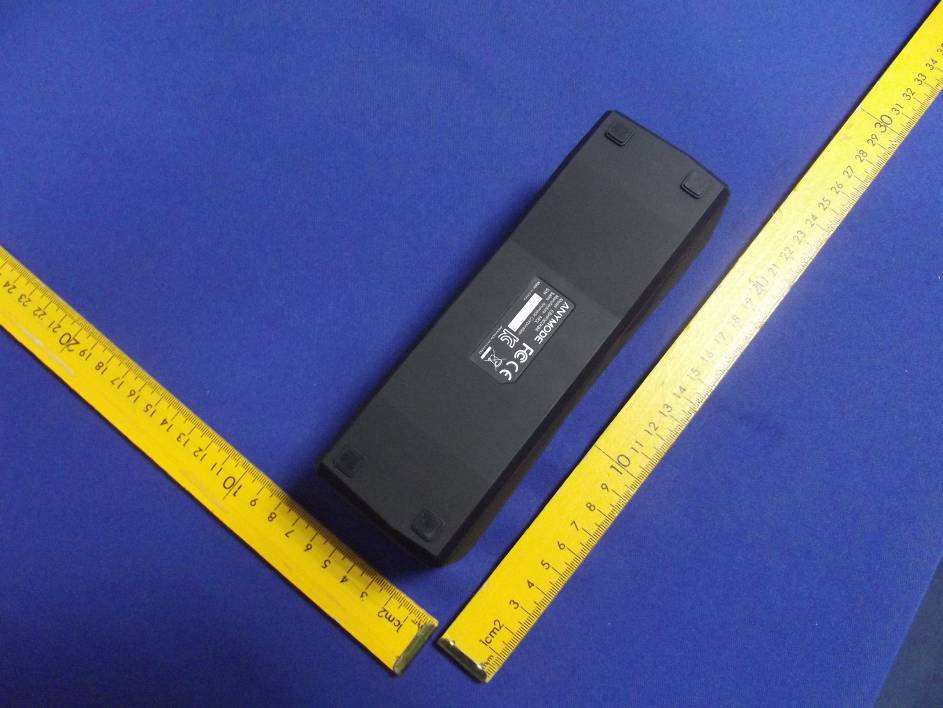

Page 21 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F APPENDIX I (External Photos) Figure 1 The EUT-Overall View Figure 2 The EUT-Back View Page 22 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F Figure 3 The EUT-Side View Figure 4 The EUT-Side View

FCC ID Label Sample for FCC ID: AUZEBHF002KXX FCC ID: AUZEBHF002KXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC Label Location Proposed Label Location on EUT The EUT-Side View/Proposed FCC Label Location

Page 23 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F APPENDIX II(Internal Photos) Figure 5 The EUT-Inside View Figure 6 PCB of the EUT-Front View Page 24 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F Figure 7 PCB of the EUT-Back View Figure 8 PCB of the EUT-Front View( BT module) Page 25 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F Figure 9 PCB of the EUT-Back View( BT module)

Page 1 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F FCC TEST REPORT for ANYMODE CORPORATION Bluetooth Speaker Model No.: EBHF002KBK, EBHF002KWH, EBHF002KGR, EBHF002KBL, EBHF002KPK, EBHF002KYL, EBHF002KXX (Note: XX=A~Z are variations of outlook and color) Report Number : 201211774F Date of Test : Nov. 20~Dec. 05, 2012 Date of Report : Dec. 05, 2012 Prepared for : ANYMODE CORPORATION Address : Hokyoung Bldg, 1464-22 Seocho-dong, Seocho-gu, Seoul KOREA Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Page 2 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F TABLE OF CONTENTS Description Page Test Report 1.GENERAL INFORMATION ..........................................................................................................4 1.1.Description of Device (EUT).....................................................................................................................4 1.2.Auxiliary Equipment Used during Test .....................................................................................................5 1.3.Description of Test Facility .......................................................................................................................6 1.4.Measurement Uncertainty..........................................................................................................................6 2. TEST PROCEDURE ....................................................................................................................... 7 3. CONDUCTED LIMITS .................................................................................................................. 8 3.1. Block Diagram of Test Setup ...................................................................................................................8 3.2. Power Line Conducted Emission Measurement Limits (15.207) .............................................................8 3.3. Configuration of EUT on Measurement ...................................................................................................8 3.4. Operating Condition of EUT ....................................................................................................................9 3.5. Test Procedure ..........................................................................................................................................9 3.6. Power Line Conducted Emission Measurement Results ..........................................................................9 4. RADIATION INTERFERENCE.................................................................................................. 12 4.1. Requirements (15.249, 15.209): .............................................................................................................12 4.2 Test Procedure .........................................................................................................................................12 4.3 Test Results..............................................................................................................................................12 5. OCCUPIED BANDWIDTH..........................................................................................................16 5.1. Requirements (15.249): ..........................................................................................................................16 5.2. Test Procedure ........................................................................................................................................16 5.3. Test Configuration:.................................................................................................................................16 5.4. Test Results.............................................................................................................................................16 6. PHOTOGRAPH............................................................................................................................. 19 6.1. Photo of Power Line Conducted Emission Measurement ......................................................................19 6.2. Photo of Radiation Emission Test ..........................................................................................................19 APPENDIX I (External Photos) (2 Pages) APPENDIX II(Internal Photos) (3 Pages) Page 3 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F TEST REPORT Applicant : ANYMODE CORPORATION Manufacturer : DigiFi Co., LTD. EUT : Bluetooth Speaker Model No. : EBHF002KBK, EBHF002KWH, EBHF002KGR, EBHF002KBL, EBHF002KPK, EBHF002KYL, EBHF002KXX (Note: XX=A~Z are variations of outlook and color) Serial No. : N/A Rating : DC 5V /1A Trade Mark : N/A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Nov. 20~Dec. 05, 2012 Prepared by : (Tested Engineer / Rock Zeng ) Reviewer : (Project Manager / Andy Chen ) Approved & Authorized Signer : (Manager / Tom Chen) Page 4 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 20121…

Text truncated - open the document above for the full version.

Page 19 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F 6. PHOTOGRAPH 6.1. Photo of Power Line Conducted Emission Measurement 6.2. Photo of Radiation Emission Test Page 20 of 25 FCC ID: AUZEBHF002KXX Anbotek Compliance Laboratory Limited Report No. 201211774F
