User Guide Wireless TV Audio Transceiver Thank you for purchasing this wireless TV Midnight Sound. Please read this User Manual carefully before using the machine. TV Solodio 18 Table of Contents SAFETY TIPS ..................................19 COMPONENTS ................................21 PORTS AND BUTTONS ..................22 Transmitter (Tx) .......................................22 Receiver (Rx) ...........................................22 OPERATION ...................................23 Connecting ..............................................23 Charging .................................................26 USING ..............................................27 Volume control .........................................27 Setting 3D-sound effect ...........................27 Mute .........................................................28 Restarting ................................................28 TROUBLESHOOTING .....................29 SPECIFICATIONS ...........................31 WARRANTY ....................................32 19 Safety Tips Be sure to comply with the following advice to prevent danger or property damage by using your TV Midnight sound as advised. Warning No compliance with the following advice may cause the risk of death or serious injuries. Be careful not to allow water, beverages or chemicals to flow into the device. • It may cause electric shocks, fire or device damage. Install the device in a place with no heat, for example, heaters. • Overheating may cause fire or electric shocks. Do not leave the power adapter or the cable in passageways. • It may cause device damages and injuries. Use a charger of which the safety is approved • Non-approved chargers may cause electric shocks, fire or device damage. Keep the packaging materials (desiccant, plastic materials) out of reach of children. • The packaging materials may cause injuries or suffocation. Do not listen to high-volume sound for a long period of time. • It may cause hearing disorders. 20 Safety Notice Non-compliance with the advice may cause minor injuries or device damage. Do not leave the device next to an object with strong electromagnetic waves or magnetic properties. • It may cause malfunction or failures, and reduce the service life of the device. Wipe the outside of the device with a dry soft cloth and do not use benzene or alcohol for cleaning. • It may cause device deformation. Do not drop the device or do not give shocks to the device. • It may cause failures of the device. Do not dissemble, repair or alter the device. • It may cause damage or failures of the device. Do not place heavy objects on top of the device. • It may cause damage or failures of the device. Disconnect the power adapter in lightning strikes or if the device is not used for a long period of time. • It may cause damage or failures of the device. 21 Components Audio Transmitter Audio Receiver User Guide AUX Cable Micro USB Charging Cable (2EA) Cable tie EarphoneEartips (S, L) Optical cable (Rectangle / Circle Type) (optional) Notice • Device information may change without prior notice. • The optical cable is optional, and you can buy it if required. • To use the optical cable, set the optical output of your TV as PCM mode for normal sound output. Be sure to check PCM mode compatibility of the TV before using the cable. (Do not support DOLBY and DTS from.) 22 Por ts and Buttons Transmitter (Tx) Status LED Pairing button Mini(3.5) stereo optical input port Micro USB port Receiver (Rx) Earphone output port Clip Sound effect setting / mute button Status LED Volume button / pairing button Power Micro USB port Reset hole 23 Operation Connecting 1 Use the USB cable to connect the USB port of your TV with the micro USB port of the transmitter. 2 Use an analog or digital connection cable to connect the input port of the transmitter with the TV output port. 3 Press the power button on the receiver to supply power. 24 4 Connect the earphone cable with the earphone output port. • Enjoy TV sound. Notice • While power is ON, press the power button for at least 2 seconds to turn it off. 5 Press both the pairing button of the transmitter and the paring button of the receiver (-/+) for at least 2 seconds at the same time to carry out pairing, if no sound is heard from the earphone although the USB cable power is connected to the transmitter. Receiver Transmitter 25 • Replay automatically starts when pairing finishes. • Automatic connection is conducted when first pairing is completed after device connection. • Check LED colors to identify pairing. State Device for indication LED Pairing between receiver and transmitter Transmitter Red LED blinking Receiver Fast LED blinking alternately between red and blue LEDs Pairing completed between receiver and transmitter TransmitterRed Receiver blue LED blinking every 1 second Caution • Set the optical output of your TV as PCM for normal sound while using the optical cable. • Receiver power is automatically off when pairing is unsuccessful for 3 minutes after power is on or pairing is released. • The device already paired cannot be connected with other devices. Carry out pairing for connection with other devices. 26 Charging Connect the USB port of your PC or general adapter with the micro USB port on the receiver through the enclosed USB cable for charging. • You can charge the device by connecting the micro USB port of any charging adapter for Android smartphones with the micro USB port on the receiver. • Check receiver charging with LED color. State LED Receiver charging Red Receiver charging completed Blue Low receiver battery level Red LED blinking every 1 seconds 27 Using Volume control Press the + / - button to control volume. Setting 3D-sound effect 1 Press the sound effect setting button. The 3D sound effect is then set. • It returns to the original state after the red LED blinks twice. 2 Press the sound effect setting button again. The 3D sound effect is released. • It returns to the original sta…

Text truncated - open the document above for the full version.

Anymode Corporation 4RD FI, HOKYUNG LDG. 1464-22 SEOCHO-DONG, SEOCHO-GU, SEOULl, South of Korea Date: January 1, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;

Anymode Corporation 4RD FI, HOKYUNG LDG. 1464-22 SEOCHO-DONG, SEOCHO-GU, SEOULl, South of Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: AUZFC00TX To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards

Movon Corporation 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Subject: Cover Letter FCC ID: AUZFC00TX We hereby confirm that only the files of external, internal and test setup photos have been wrongly uploaded by mistake during the internal process. There is nothing to be revised on the test reports or other documents except for the external, internal and test set up photo files. Below 3 files with photos are revised correctly. 1st [FC00TX] External photo All photos on this document on page 2, 3, 4 have been changed from photos of FC00RX to FC00TX. 2st [FC00TX] Internal photo All photos on this document on page 2, 3 have been changed from photos of FC00RX to FC00TX. 3st [FC00TX] Test setup photo All photos on this document on page 2, 3, 4 have been changed from photos of FC00RX to FC00TX. Best Regards Issac Jin / Manager Movon Corporation

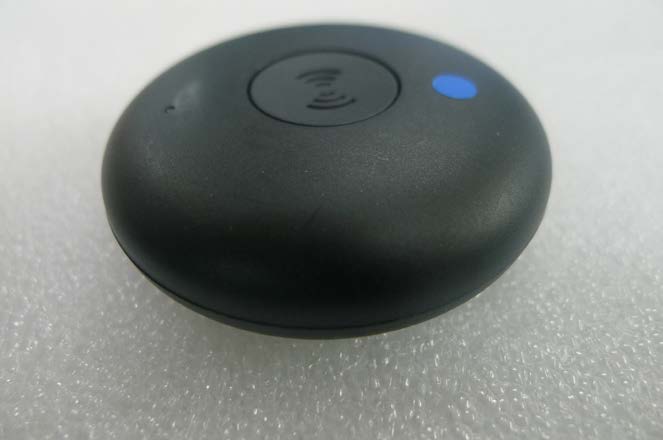

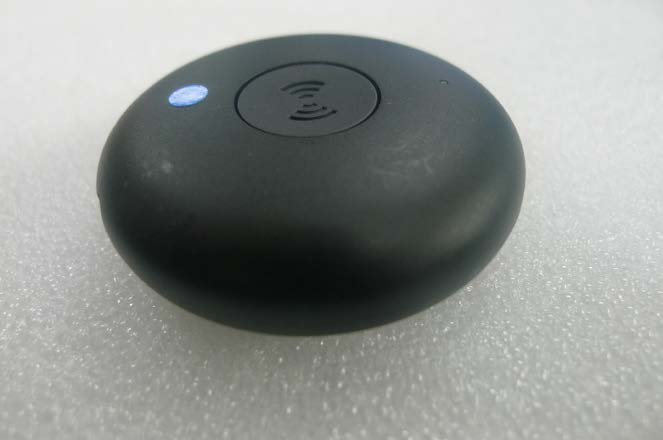

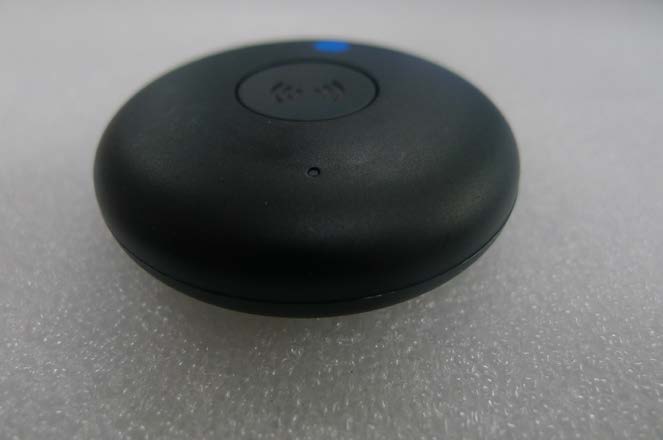

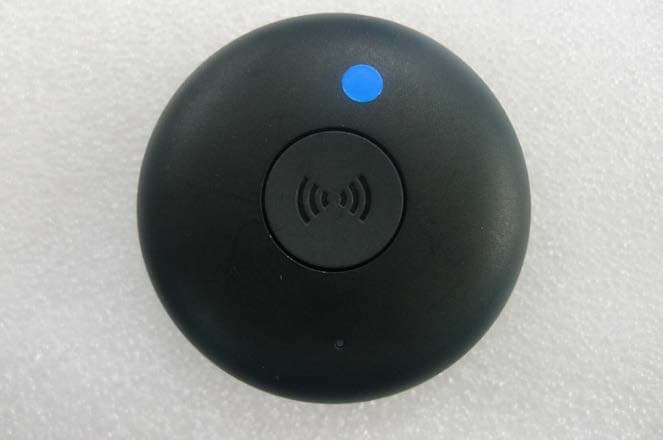

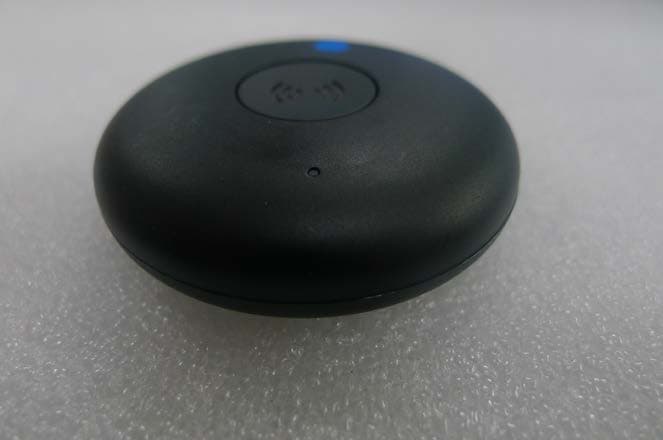

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT

DESIGNED.CHECKED.APPROVED. Park Sung-Hee Kim Yun-Sang MANUFACTURING PROCESSFINISH COLORREMARK ( COLOR No.)MATERIALNo. PA R T No. PA R T NAME G·Design Group AV R&D Team 3 R&D Center inkel Corporation. MAKER MODEL TYPE MODEL No. BREND Kim Sang-Hoon DESIGN SPECIFICATION 2015-01-09 4317-21646-100-0s 2015-01-092015-01-092015-01-09 COVER DONGLE BOTTOM ANYMODE LPP REVISION � 1 ABS SILK GRAY* COLOR No. : Cool Gray 9C YIMING DOM TV MIDNIGHT SOUND � 1 Silk change.

Internal photos of EUT Internal photo (Front) Internal photo (Rear) Antenna

ACS2450HFL57 Ver 1.0 (2014.10.24) 1 / 27 page 22-6, Seokwoo-dong, Hwaseong-si, Gyeonggi-do, 445-170, KOREA Tel : 82-31-201-7870~6 Fax : 82-31-201-7800 www.partron.co.kr ProductsDielectric Chip Antenna CustomerInkel Model Customer CODE SupplierPARTRON Supplier CODEACS2450HFL57 Inkel By designedBy checkedBy approved PARTRON By designedBy checkedBy approved 김홍기 Antenna 2 Team Quality AssuranceLaboratory Hongki.KimNam-Sik. MinByoung-Jun.Yim 10/2410/2410/24 2014 . 10. 24 Approval Sheet ACS2450HFL57 Ver 1.0 (2014.10.24) 2 / 27 page DIELECTRIC CHIP ANTENNA SPECIFICATION MODEL : ACS2450HFL57 By designedBy checkedBy approved 김홍기 Antenna 2 TeamQuality AssuranceLaboratory Hongki.KimNam-Sik. MinByoung-Jun.Yim 10/2410/2410/24 2014 . 10. 24 22-6, Seokwoo-dong, Hwaseong-si, Gyeonggi-do, 445-170, KOREA Tel : 82-31-201-7870~6 Fax : 82-31-201-7800 www.partron.co.kr ACS2450HFL57 Ver 1.0 (2014.10.24) 3 / 27 page -Contents- 1. Revision History ......................................................................................................................... 2. Electrical Characteristics ........................................................................................................... 3. Mechanical Characteristics ........................................................................................................ 4. Measurement Process ............................................................................................................. 5. Primary Inspection List.......................................................................................................... 6. Reliability Condition ................................................................................................................... 7. Soldering Condition ................................................................................................................... 8. Attention ................................................................................................................................... 9. Packing .................................................................................................................................... 10. Process Control ...................................................................................................................... 11. RoHS Data .............................................................................................................................. 4 p 5 p 9 p 12 p 13 p 14 p 15 p 15 p 16 p 19 p 22 p ACS2450HFL57 Ver 1.0 (2014.10.24) 4 / 27 page 1. Revision Revision NoOriginatorDescription of changesDate of changes Ver 1.0Hongki.KimIssued2014.10.24 ACS2450HFL57 Ver 1.0 (2014.10.24) 5 / 27 page 2. Electrical Characteristics 2.1 Set Condition ITEMSPEC Frequency Range [MHz]2400 ~ 2485 VSWR [Max]3:1 Bandwidth [MHz]85 PolarizationLinear Matching Value of ANT Matching Circuit (Direction, from Antenna to Module) Antenna Matching Circuit Series1 (Feed) 1.8nH T-Matching Circuit (nearby Module) Series2100pF Series3100pF Gain[dBi] Azimuth Plane Peak-1.43 Average-4.20 Elevation1 Plane Peak1.93 Average-2.81 Elevation2 Plane Peak1.98 Average-3.78 3D Peak3.66 Average-2.89 2.2 Test Fixture Condition ITEMSPEC Frequency Range [MHz] 1840 ~ 1920 SWR [Max] 4.0 : 1 Bandwidth [MHz]80 ACS2450HFL57 Ver 1.0 (2014.10.24) 6 / 27 page 2.3 Graph of Set Condition 2.4 Graph of Test Fixture Condition ACS2450HFL57 Ver 1.0 (2014.10.24) 7 / 27 page 2.5Radiation Pattern Azimuth PlaneElevation 1 PlaneElevation2 Plane Azimuth Plane ACS2450HFL57 Ver 1.0 (2014.10.24) 8 / 27 page Elevation1 Plane Elevation2 Plane ACS2450HFL57 Ver 1.0 (2014.10.24) 9 / 27 page 2.6 3D Radiation Pattern 3D Radiation Pattern 3 . Mechanical Characteristics -ThestructureismaterializedprintingAgpasteatthedielectricblock 3.1 Structure and Material Material Dielectric Block 3D Structure Ag Paste Size [mm] W = 2.0±0.1 L = 6.0±0.1 T = 1.2±0.1 Temperature [ °C ] -40~ +80 Humidity [%]At the normal temperature, RH 100 Ag paste L W T Dielectric Block Top-Side ViewBottom-Side View ACS2450HFL57 Ver 1.0 (2014.10.24) 10 / 27 page 3.2 PCB Layout & Soldering Pad Dimension ParameterABCDE Value[mm] 1.24.02.46.06.4 Unit;mm Unless specified tolerances are ±0.1 3.3 Antenna Pattern Dimension Antenna Pattern View Unit;mm Unless specified tolerances are ±0.1 Top Side2 Side1 Bottom ACS2450HFL57 Ver 1.0 (2014.10.24) 11 / 27 page 3.3.1 Real Measurement Value (1)(2)(3)(4)(5)(6) Drawing Dimension [m m]1.05±0.10.45±0.11.0±0.10.65±0.10.45±0.11.05±0.1 11.1360.4401.0330.6400.5131.099 20.9620.4600.9530.6340.5091.036 31.0360.5071.0260.6450.4701.108 41.1220.4901.0220.6400.4741.080 50.9820.4610.9700.6690.5031.073 Min [mm]0.9620.4400.9530.6340.4701.036 Max [mm]1.1360.5071.0330.6690.5131.108 Average [mm]1.0480.4721.0010.6460.4941.079 3.4 LOT Notation 4AO ①②③ ① Year ; 3 - 2013, 4 - 2014, .... 9 - 2019, 0 - 2020 .... ② Month ; 1 - January, 2 - February, .... A-October,B-November .... ③ Date;1-1st,2-2nd,3-3rd .... O-24th, P-25th .... 3.5 Marking Marking View ◀ L57 4 A O ① ② ③④⑤ ① Input Signal ② Serial ③ Year ; 3 - 2013, 4 - 2014, .... 9 - 2019, 0 - 2020 .... ④ Month ; 1 - January, 2 - February, .... A-October,B-November .... ⑤ Date;1-1st,2-2nd,3-3rd .... O-24th, P-25th .... ACS2450HFL57 Ver 1.0 (2014.10.24) 12 / 27 page 4. Measurement Process 4.1 SWR/Returnloss -The SWR/Returnloss is measured by Network Analyzer Set ConditionTest Fixture Condition Network Analyzer Agilent HP8753Dor Advantest R3765CGAgilent HP8753D or Advantest R3765CH CableRF cable(300mm)RF cable(300mm) Test condition 4.2 Gain -The Antenna Gain is measured using the set at Anechoic Chamber Anechoic Chamber for Antenna Gain Measurement ACS2450HFL57 Ver 1.0 (2014.10.24) 13 / 27 page 5. Primary Inspection List ItemElectrical Characteristic [MHz] Mechanical Dimension [mm] Standard VSWR 4.0 : 1 [Max] W=2.0±0.1L=6.0±0.1 T=1.2±0.1 1840 MHz1920 MHz 12.211.992.036.021.23 22.062.132.046.011.24 31.962.112.046.001.24 42.092.062.056.011.24 51.982.232.046.001.24 62.101.972.046.011.25 7…

Text truncated - open the document above for the full version.

1 5 R5R1026AASP 20 5 8 10 4 11 15 RED NJM2100V DONGLE (TX ) PARING AIC809N 7020-07702-020-0S POWER BLUE MODE RED VOLUME- DOWN VOLUME UP

MOVON CORPORATION Report Number: MOV-15-RF-I004 FCC Part 15 Subpart C §15.247 Test Report Equipment Under Test TV Solodio Model Name FC00TX Applicant Anymode Corporation FCC ID AUZFC00TX Manufacturer Anymode Corporation Date of Test(s) 2014. 12. 26 ~ 2015. 01. 09 Date of Issue 2015. 01. 12 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by Anymode Corporation 4RD FI, HOKYUNG LDG. 1464-22 SEOCHO-DONG, SEOCHO-GU, SEOULl, South of Korea, 137-885 Te l . : +82-02-6711-3607 Fax: +82-02-6711-3565 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 Page : (1) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 Revision history Revision Date of issue Description Revised by -- January 12, 2015 Initial -- Page : (2) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 Table of contents 1.General information 1.1. Details of applicant Applicant : Anymode Corporation Address : 4RD FI, HOKYUNG LDG. 1464-22 SEOCHO-DONG, SEOCHO-GU, SEOULl, South of Korea Contact Person : Ki won, Choi Telephone : + 82-02-6711-3607 Fax : + 82-02-6711-3565 1.2. Manufacturer Manufacturer : Anymode Corporation Address : 4RD FI, HOKYUNG LDG. 1464-22 SEOCHO-DONG, SEOCHO-GU, SEOULl, South of Korea Page : (3) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 2.EUT Description Kind of product TV Solodio FCC ID AUZFC00TX Model Name FC00TX Serial Number N/A Power supply DC 5.0V Frequency range 2 406 ㎒ ~ 2 474㎒ Modulation technique O- QPSK Number of channels 18 Antenna gain 3.66㏈i (Max.) Test S ite R egistration Number FCC(670686) 2.1. Declarations by the manufacturer None 2.2. Details of modification None Page : (5) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 3. Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration due. EMI Test Receiver R&S ESIB26 100196/026 1 year 2015-12-11 Signal Generator R&S SMR27 100089 1 year 2015-12-11 Spectrum Analyzer R&S FSV-40 100832 1 year 2015-08-13 Power Meter Agilent E4416A GB41290645 1 year 2015-09-29 Power Sensor Agilent 9327A US40441490 1 year 2015-07-09 Double Redge Horn Antenna R&S HF906 100236 2 year 2015-02-28 Biolog Antenna A.H.System SAS-521-7 127 2 year 2015-07-25 Power Amplifier MITEQ AM-1431 1497315 1 year 2015-09-29 Power Amplifier MITEQ AFS43-01002600 1374382 1 year 2015-09-29 High Pass Filter Wainwright WHK3.0/18G-10SS 508 1 year 2015-09-29 DC Power Supply HP 6674A 3637A01351 1 year 2015-09-29 Controller INNCO CO2000 co200/064/6961003/L N/A N/A Antenna Master INNCO MA4000 MA4000/038/6961003/L N/A N/A Loop Antenna ETS LINDGREN 6502 00118166 2 year 2015-09-27 Two LINE-V-BETWORK R&S ESH3-Z5 100296 1 year 2015-12-11 Two LINE-V-BETWORK Rolf Heine NNB-2/16Z 99023 1 year 2015-12-11 ※ Remark; Support equipment Description Manufacturer Model Serial number Notebook computer DELL Lattitude D510 - Page : (6) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 4. Transmitter radiated spurious emissions and conducted spurious emissions 4.1. Test setup 4.1.1. Transmitter radiated spurious emissions The diagram below shows the test setup that is utilized to make the measurements for emission from 9kHz to 30MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ emissions. Page : (7) of (37) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. MOVON CORPORATION Report Number: MOV-15-RF-I004 The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 40 ㎓ emissions. 4.2. Limit According to §15.247(d), in any 100 ㎑ bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 ㏈ below that in the 100 ㎑ bandwidth within the band that contains the highest level of the desired power, based in either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph(b)(3) of this section, the attenuation required under this paragraph shall be 30 ㏈ instead of 20 ㏈. Attenuation below the general limits specified in section §15.209(a) is not required. In addition, radiated emission which in the restricted band, as define in section §15.209(a), must also comply the radiated emission limits specified in section §15.209(a) (see section §15.205(c)) According to §15.209(a), Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field stren…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30㎒ Photo of radiated spurious emission at 30㎒ ~ 1 000㎒ Photo of radiated spurious emission at above 1 000㎒ Photo of Conducted emission at below 30㎒
