AXATR-423-A2CM-42

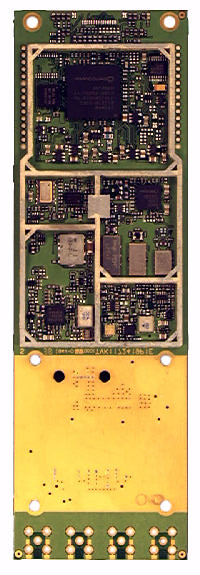

Exhibit 8: OEM Interface Manual 12/12/01 11:51 AM©2001 Ericsson Inc.Page 1 of 16 CM-42 OEM INTERFACE MANUAL Exhibit 8: OEM Interface Manual 12/12/01 11:51 AM©2001 Ericsson Inc.Page 2 of 16 CONTENTS – OEM INTERFACE MANUAL 1. CM-42 TRANSCEIVER MODULE OUTLINE DRAWING ........................................................ 3 1.1.MECHANICAL.............................................................................................................................3 1.2.ELECTRICAL..............................................................................................................................4 1.2.1.ELECTRICAL PERFORMANCE...............................................................................................4 1.2.2.MOBILE STATION POWER CLASS.........................................................................................5 1.3.POWER CONSUMPTION..............................................................................................................5 2. ABSOLUTE MAXIMUM RATINGS ............................................................................................. 6 3. SAFETY & FCC REQUIREMENTS ............................................................................................. 7 3.1.WARNING: FCC RF EXPOSURE REQUIREMENTS.....................................................................7 3.2.MODULE OPERATION................................................................................................................7 3.3.OEM LABELING........................................................................................................................7 3.4.POSTED FACILITIES...................................................................................................................7 3.5.ELECTRONIC DEVICES...............................................................................................................7 3.6.BLASTING AREAS.......................................................................................................................8 3.7.POTENTIALLY EXPLOSIVE ATMOSPHERES...............................................................................8 3.8.VEHICLES...................................................................................................................................8 3.9.FOR VEHICLES EQUIPPED WITH AN AIRBAG.............................................................................8 3.10.RESPONSIBLE USE.....................................................................................................................8 4. TECHNICAL SPECIFICATIONS ............................................................................................... 12 4.1.INTERFACE CONNECTIONS......................................................................................................13 4.1.1.40-PIN INTERFACE CONNECTIONS.....................................................................................13 4.1.2.RF INTERFACE CONNECTOR..............................................................................................13 4.1.3.DETAILED SIGNAL DESCRIPTIONS.....................................................................................14 4.1.4.SYSTEM CONNECTOR CMOS INTERFACE LEVELS.............................................................14 4.1.5.SYSTEM CONNECTOR.......................................................................................................14 4.1.6.OVERVIEW.......................................................................................................................14 Exhibit 8: OEM Interface Manual 12/12/01 11:51 AM©2001 Ericsson Inc.Page 3 of 16 1. CM-42 Transceiver Module Outline Drawing 1.1. Mechanical The CM-42 module has no mechanical elements other that the main PCB assembly. All critical electronic components are shielded using sheet metal lids and LCP frames to prevent internal/external electromagnetic interference from degrading the module’s performance and to prevent the module from interfering with other nearby devices. The following figure shows the outline drawing for the module. The module is plugged into the fixed mating connector and secured with eight screws to the standoff components. Exhibit 8: OEM Interface Manual 12/12/01 11:51 AM©2001 Ericsson Inc.Page 4 of 16 1.2. Electrical The diagram below shows an overview of the electrical interface between the CM-42 module and a typical application. CM-42 Electrical Interface Customer Application HW Voltage Regulator Control Processor Voice & Data Processing üEcho Cancelling üNoise Cancelling üAudio Power AMP üData Conversion DTE Power External Audio Interface Antenna User Interface 8 Power & GND Serial Interface Wake Analog Audio Interface 10 1 3 14 4 Optional Simm Device (5) Reserved (9) CM-42 Module PCM Audio Interface 1.2.1. Electrical Performance Electrical performance parameters are valid only when the terminating impedance at the output of the antenna connector exhibits a VSWR of less than 2:1 for all phase angles in the frequency band of operation. High VSWR loads at the antenna connector adversely affect current consumption, linearity, and power efficiency of the module and may prevent operation or cause internal damage. The RF performance of the CM-42 fully meets the following specifications: • IS-2000 CDMA Cellular mode – Per TIA/EIA-98 specification • IS-553 AMPS Cellular mode – Per IS-19 specification Exhibit 8: OEM Interface Manual 12/12/01 11:51 AM©2001 Ericsson Inc.Page 5 of 16 1.2.2. Mobile Station Power Class The CM-42 is able to operate in several modes and different output power levels. Applications may require output power levels similar to those in a handheld cellular phone or higher levels commonly required when in rural areas. The table below shows the nominal output power levels of the CM42. (Effective Radiated Power, assuming a maximum antenna system gain of 1 dBi (2.5 dBi antenna gain with 1.5 dB cable loss)). Mobile Station Power Level (dBW) 01234567 Class I, AMPS 62-2-6-10-14-1…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 December 31, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: AXATR-423-A2 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Best Regards, Melissa Carter [email protected] Rhein Tech Laboratories, Inc.

©2001 Sony Ericsson Mobile Communications Inc. Environmental Evaluation of RF Exposure for the CM-42 Module ©2001 Sony Ericsson Mobile Communications Inc. TABLE OF CONTENTS 1.Introduction.........................................................................................................................................3 1.1.Purpose of the Report.......................................................................................................................3 1.2.Description of the CM42 Device........................................................................................................3 2.Classification of Device / Applicability of Rules................................................................................3 2.1.Mobile devices..................................................................................................................................3 2.2.Excludability from routine environmental evaluation..........................................................................4 2.3.Applicable limits for exposure to radio frequency exposure................................................................4 3.Maximum Exposure Analysis..............................................................................................................5 3.1Maximum exposure...........................................................................................................................5 3.2Class 1 Operation – AMPS Mode.................................................................................................5 4.Typical exposure analysis..................................................................................................................5 4.1.Typical Exposure - Telematics applications.......................................................................................5 4.2Class 1 Operation – AMPS Mode.................................................................................................5 5.Conclusions.........................................................................................................................................6 ©2001 Sony Ericsson Mobile Communications Inc. 1. Introduction 1.1.Purpose of the Report This technical report is a detailed environmental evaluation of the radio frequency exposure expected from use of the CM42 transmitter. The following analysis demonstrates that the CM42 device is in compliance with the requirements for maximum permissible exposure (MPE) to radiofrequency exposure as defined in the FCC Rules, 47 CFR 2.1091, as amended. 1.2.Description of the CM42 Device The CM42 Transceiver has been designed as an OEM module for use by various OEM integrators. For all applications, the radiating antenna is not provided with this product and must be supplied by the customer. All calculations related to MPE are made using antenna gain guidelines provided in customer documentation such as the CM42 OEM Interface Manual. The module has three functional modes of operation: (1) AMPS mode - Class 1 device (2) CDMA mode – Band class 0 (cellular band), Class III device (3) CMDA mode – Band class 1 (PCS band), Class II device In the cellular band (824 to 849 MHz), the transmitter section delivers up to 3 watts continuous output power in AMPS mode of operation. In CDMA mode, in both the cellular and PCS bands, the module delivers less than 1 Watt. This transceiver is designed primarily for vehicular telematics applications where the unit is located within the application and an external antenna, connected to the module through a length of coaxial cable, is located elsewhere on the vehicle. 2. Classification of Device / Applicability of Rules 2.1.Mobile devices The CM42 module is properly defined as a mobile device per 47 CFR 2.1091 (b), which states that “mobile devices are defined as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between radiating antennas and the body of the user or nearby persons.” For most applications of the CM42, there is typically a separation distance of greater than 23 centimeters. The discussion below will demonstrate that the maximum likely exposures in these applications are significantly below the maximums permitted. However, whenever possible, the transmitter should be installed in such a manner as to make it unlikely that a human body can be maintained in close proximity (i.e. less than 23 centimeters) to the radiating antenna. A statement to this effect is included in the manual supplied to the Original-Equipment-Manufacturers (OEMs) developing applications using this device (CM42 OEM Interface Manual). This statement should make it clear that Ericsson does not mean to imply that proximities of less than 23 centimeters are unsafe. Rather, maintaining a separation of at least 23 centimeters simply ensures that the analysis below is valid and that the margins with respect to the maximum permissible exposures that are demonstrated below are maintained. ©2001 Sony Ericsson Mobile Communications Inc. 2.2.Excludability from routine environmental evaluation 47 CFR 2.1091 (c) states that “mobile devices that operate in the Cellular Radiotelephone Service...are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if...their effective radiated power (ERP) is 1.5 watts or more.” For Class 1 operation, the CM42 transceiver is rated at 3 Watts of output power in AMPS mode. The module is shipped without an antenna so the actual ERP in the field will vary somewhat with different antennas and different applications. The User’s Manual supplied to customers specifies the use of an antenna with maximum system gain of 1dBi (2.5dBi antenna gain and 1.5dB cable loss). Since the AMPS mode is continuous operation, maximum exposure calculations must be used to determine a minimum separation distance. Since the antenna is cust…

Text truncated - open the document above for the full version.

Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 – 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 © Rhein Tech Laboratories, Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 & 24 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Applicant Information Sony Ericsson Mobile Communications (USA, Inc.) 7001 Development Drive P.O. Box 13969 Research Triangle Park, NC 27709 USA Phone: 919-472-1697 (Pierre Chery) FCC Classification: PCB – Licensed Base Station for Part 24 PCE – Part 24 Licensed Portable Transmitter held to ear PCF – Part 24 Licensed Portable Transmitter held to face PCT – Part 24 Licensed Portable Transmitter held to body FCC Rule Part(s): Part 22: Public Mobile Services Subpart E – Paging and Radiotelephone Services Subpart F – Rural Radiotelephone Services Subpart G – Air-Ground Radiotelephone Services Subpart H – Cellular Radiotelephone Services Subpart I – Offshore Radiotelephone Services Part 24: Personal Communications Services Subpart D – Narrowband PCS Subpart E – Broadband PCS Industry Canada Standard: RSS-118: Land and Subscriber Stations: Voice, Data and Tone Modulated, Angle Modulation Radiotelephone Transmitters and Receivers Operating in the Cellular Mobile Bands 824-849 MHz and 869-894 MHz RSS-128: 800 MHz Dual-Mode TDMA Cellular Telephones RSS-129: 800 MHz Dual Mode CDMA Cellular Telephones FCC ID: AXATR-423-A2 Max. RF Output Power: 2.773 W AMPS 0.200 W CDMA Equipment Type: AMPS, CDMA Frequency Tolerance: 2.5 ppm Tx Frequency Range: 824 - 849 MHz; 1850 -1910 Emission Designator: 1M23F9W; 40K0F1D, 40K0F8W Rx Frequency Range: 869 - 894 MHz; 1930 -1990 MHz Date of Test Report: December 18, 2001 Model(s): CM-42 We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, FCC Part 22, FCC Part 24, Industry Canada RSS-129, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: December 18, 2001 Typed/Printed Name: Bruno Clavier Position: Vice President of Operations (NVLAP Signatory) Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Accredited by the National Voluntary Accreditation Program for the specific scope of accreditation under Lab Code 200061-0. Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 - 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 Page 2 of 69 © Rhein Tech Laboratories, Inc. TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 4 1.1 SCOPE .......................................................................................................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................................................... 4 1.3 RELATED SUBMITAL(S)/GRANT(S) ....................................................................................................................... 4 2 EQUIPMENT INFORMATION .......................................................................................................................................... 5 2.1 APPLICANT AND EQUIPMENT INFORMATION ................................................................................................... 5 2.2 JUSTIFICATION .......................................................................................................................................................... 5 2.3 EXERCISING THE EUT .............................................................................................................................................. 5 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 7 3 NECESSARY BANDWIDTH AND EMISSION BANDWIDTH - § 2.202 ....................................................................... 9 4 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) ............................................................................................ 10 5 RF POWER OUTPUT - §2.1046 ........................................................................................................................................ 11 5.1 POWER OUTPUT TEST PROCEDURES ................................................................................................................. 11 5.1.1 ANSI/TIA/EIA-603-1992, SECTION 2.2.1 TEST PROCEDURE............................................................................................... 11 5.1.2 MEASUREMENTS REQUIRED: RF POWER OUTPUT - §2.1046 .......................................................................................... 11 5.1.3 EFFECTIVE RADIATED POWER LIMITS - §22.913............................................................................................................... 11 5.2 POWER AND ANTENNA HEIGHT LIMITS - §24.232 ........................................................................................... 12 5.3 RF POWER OUTPUT TEST EQUIPMENT ..........................................................................................................…

Text truncated - open the document above for the full version.

Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 – 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 © Rhein Tech Laboratories, Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 & 24 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Applicant Information Sony Ericsson Mobile Communications (USA, Inc.) 7001 Development Drive P.O. Box 13969 Research Triangle Park, NC 27709 USA Phone: 919-472-1697 (Pierre Chery) FCC Classification: PCB – Licensed Base Station for Part 24 PCE – Part 24 Licensed Portable Transmitter held to ear PCF – Part 24 Licensed Portable Transmitter held to face PCT – Part 24 Licensed Portable Transmitter held to body FCC Rule Part(s): Part 22: Public Mobile Services Subpart E – Paging and Radiotelephone Services Subpart F – Rural Radiotelephone Services Subpart G – Air-Ground Radiotelephone Services Subpart H – Cellular Radiotelephone Services Subpart I – Offshore Radiotelephone Services Part 24: Personal Communications Services Subpart D – Narrowband PCS Subpart E – Broadband PCS Industry Canada Standard: RSS-118: Land and Subscriber Stations: Voice, Data and Tone Modulated, Angle Modulation Radiotelephone Transmitters and Receivers Operating in the Cellular Mobile Bands 824-849 MHz and 869-894 MHz RSS-128: 800 MHz Dual-Mode TDMA Cellular Telephones RSS-129: 800 MHz Dual Mode CDMA Cellular Telephones FCC ID: AXATR-423-A2 Max. RF Output Power: 2.773 W AMPS 0.296 W CDMA Equipment Type: AMPS, CDMA Frequency Tolerance: 2.5 ppm Tx Frequency Range: 824 - 849 MHz; 1850 -1910 Emission Designator: 1M23F9W; 40K0F1D, 40K0F8W Rx Frequency Range: 869 - 894 MHz; 1930 -1990 MHz Date of Test Report: January 22, 2002 Model(s): CM-42 We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, FCC Part 22, FCC Part 24, Industry Canada RSS-129, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: December 18, 2001 Typed/Printed Name: Bruno Clavier Position: Vice President of Operations (NVLAP Signatory) Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Accredited by the National Voluntary Accreditation Program for the specific scope of accreditation under Lab Code 200061-0. Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 - 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 Page 2 of 69 © Rhein Tech Laboratories, Inc. TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 4 1.1 SCOPE .......................................................................................................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................................................... 4 1.3 RELATED SUBMITAL(S)/GRANT(S) ....................................................................................................................... 4 2 EQUIPMENT INFORMATION .......................................................................................................................................... 5 2.1 APPLICANT AND EQUIPMENT INFORMATION ................................................................................................... 5 2.2 JUSTIFICATION .......................................................................................................................................................... 5 2.3 EXERCISING THE EUT .............................................................................................................................................. 5 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 7 3 NECESSARY BANDWIDTH AND EMISSION BANDWIDTH - § 2.202 ....................................................................... 9 4 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) ............................................................................................ 10 5 RF POWER OUTPUT - §2.1046 ........................................................................................................................................ 11 5.1 POWER OUTPUT TEST PROCEDURES ................................................................................................................. 11 5.1.1 ANSI/TIA/EIA-603-1992, SECTION 2.2.1 TEST PROCEDURE............................................................................................... 11 5.1.2 MEASUREMENTS REQUIRED: RF POWER OUTPUT - §2.1046 .......................................................................................... 11 5.1.3 EFFECTIVE RADIATED POWER LIMITS - §22.913............................................................................................................... 11 5.2 POWER AND ANTENNA HEIGHT LIMITS - §24.232 ........................................................................................... 12 5.3 RF POWER OUTPUT TEST EQUIPMENT ...........................................................................................................…

Text truncated - open the document above for the full version.

Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 – 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 © Rhein Tech Laboratories, Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 & 24 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Applicant Information Sony Ericsson Mobile Communications (USA, Inc.) 7001 Development Drive P.O. Box 13969 Research Triangle Park, NC 27709 USA Phone: 919-472-1697 (Pierre Chery) FCC Classification: PCB – Licensed Base Station for Part 24 PCE – Part 24 Licensed Portable Transmitter held to ear PCF – Part 24 Licensed Portable Transmitter held to face PCT – Part 24 Licensed Portable Transmitter held to body FCC Rule Part(s): Part 22: Public Mobile Services Subpart E – Paging and Radiotelephone Services Subpart F – Rural Radiotelephone Services Subpart G – Air-Ground Radiotelephone Services Subpart H – Cellular Radiotelephone Services Subpart I – Offshore Radiotelephone Services Part 24: Personal Communications Services Subpart D – Narrowband PCS Subpart E – Broadband PCS Industry Canada Standard: RSS-118: Land and Subscriber Stations: Voice, Data and Tone Modulated, Angle Modulation Radiotelephone Transmitters and Receivers Operating in the Cellular Mobile Bands 824-849 MHz and 869-894 MHz RSS-128: 800 MHz Dual-Mode TDMA Cellular Telephones RSS-129: 800 MHz Dual Mode CDMA Cellular Telephones FCC ID: AXATR-423-A2 Max. RF Output Power: 2.773 W AMPS 0.296 W CDMA Equipment Type: AMPS, CDMA Frequency Tolerance: 2.5 ppm Tx Frequency Range: 824 - 849 MHz; 1850 -1910 Emission Designator: 1M23F9W; 40K0F1D, 40K0F8W Rx Frequency Range: 869 - 894 MHz; 1930 -1990 MHz Date of Test Report: January 22, 2002 Model(s): CM-42 We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, FCC Part 22, FCC Part 24, Industry Canada RSS-129, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: December 18, 2001 Typed/Printed Name: Bruno Clavier Position: Vice President of Operations (NVLAP Signatory) Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Accredited by the National Voluntary Accreditation Program for the specific scope of accreditation under Lab Code 200061-0. Exhibit 1 360 Herndon Parkway 2001324 / PO 0070020947 Suite 1400 December 4 - 7, 2001 Herndon, VA 20170 FCC Part 22 and Part 24 Certification & http://www.rheintech.com Industry Canada RSS-129 Page 2 of 69 © Rhein Tech Laboratories, Inc. TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 4 1.1 SCOPE .......................................................................................................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................................................... 4 1.3 RELATED SUBMITAL(S)/GRANT(S) ....................................................................................................................... 4 2 EQUIPMENT INFORMATION .......................................................................................................................................... 5 2.1 APPLICANT AND EQUIPMENT INFORMATION ................................................................................................... 5 2.2 JUSTIFICATION .......................................................................................................................................................... 5 2.3 EXERCISING THE EUT .............................................................................................................................................. 5 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 7 3 NECESSARY BANDWIDTH AND EMISSION BANDWIDTH - § 2.202 ....................................................................... 9 4 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) ............................................................................................ 10 5 RF POWER OUTPUT - §2.1046 ........................................................................................................................................ 11 5.1 POWER OUTPUT TEST PROCEDURES ...............................................................................…
