AXE-EX800Bluetoth Speaker

Fail to pair Set your 1 IBOMB Thunder Ball 1 Audio cable 1 USB cable 1 User manual Change function mode Shor press of "M" Button is switching mode between TF card ,AUX and Bluetooth. When your call coming, please plus PLAY/ PAUSE button to pick up your phone . Playing music with a 3.5mm Cable PAIRING MODE Switch to the "ON" Posting ,LED Light indicatior light will flash blue indicating that the Ibomb Thunder Ball is in pairing mode. TURN ON/OFF PLAY Turn on Bluetooth on your device and search the “IBOMB EX800”, Select it to connect. Device only works with Micro SD cards up to 32GB. The IBOMB Thunder Ball will “beep”; indicating that it has successfully paired with you device Make sure the device is in pairing mode and the blue light is flashing. Please reset (on/off)the power switch again. Web: WWW.I-BOMB.COM If you are prompted to enter a password to complete pairing,enter”0000” Play / Pause Next song Volume up Embedded microphone for handsfree conversation. what’s in the box? Your Eyes Won’t Believe Your Ears Huge Sound! IBOMB Thunder Ball EX800 IBOMB Thunder Ball SHORT PRESS LONG PRESS M EX800 Change play music mode (Bluetooth/TF card/Wired) Previous song Volume down FCC ID:AXE-EX800 Bluetooth speaker Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Aug.21, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: AXE-EX800 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN SYGAMA TECHNOLOGY CO., LTD Contact person: Helen Zhong Title: General manager

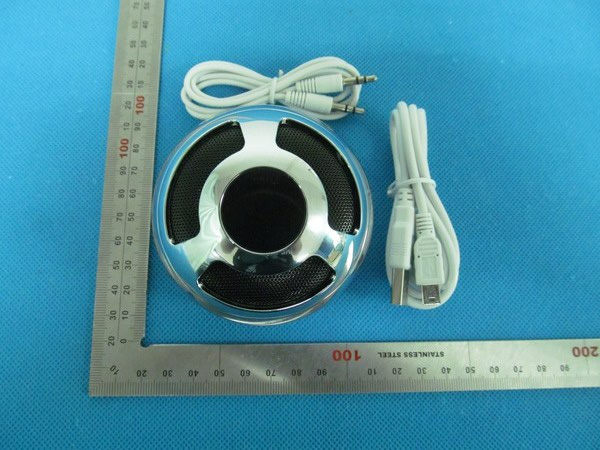

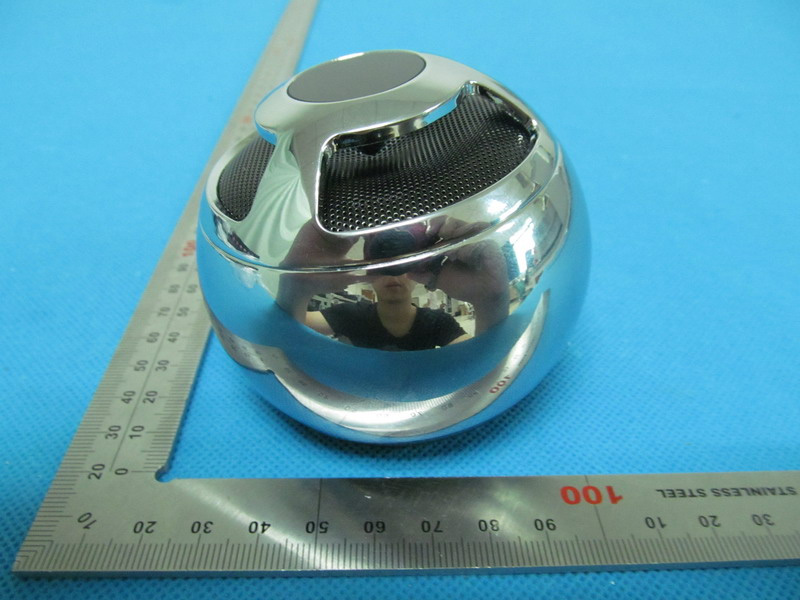

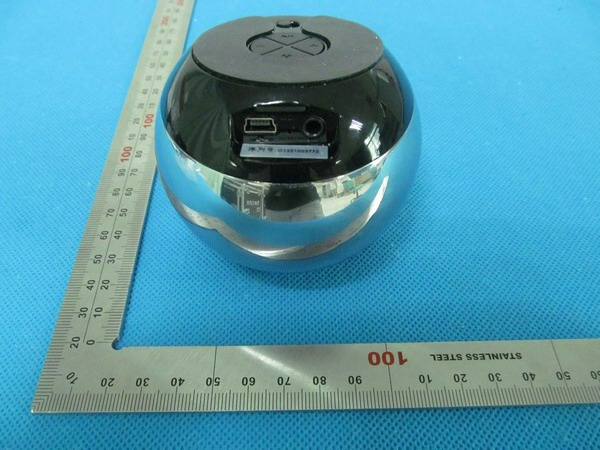

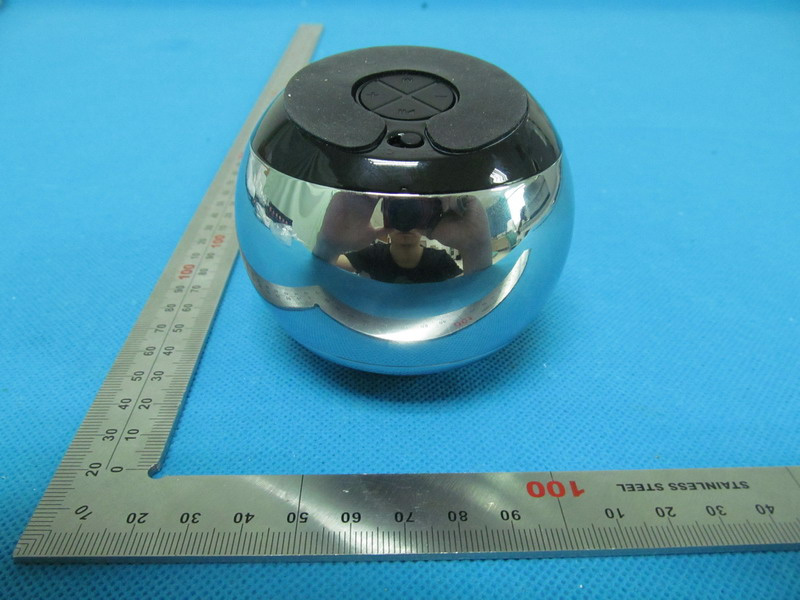

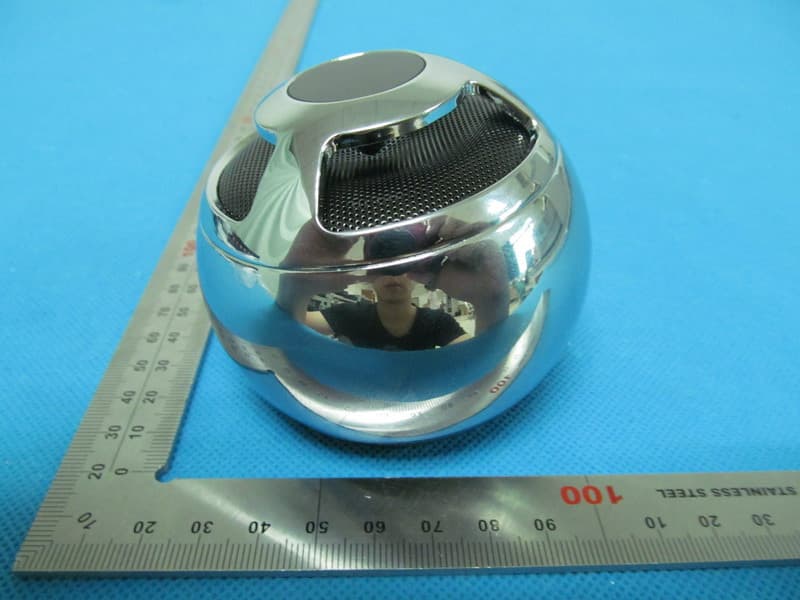

EX800 External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth speaker Model: EX800 Brand Name: N/A FCC ID:AXE-EX800 DIGB002

EX800 Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 BT Antenna

OPERATIONAL DESCRIPTION The EUT is “Bluetooth speaker” designed as a “Communication Device”. It is designed by way of utilizing the FHSS technology to achieve the system operation. A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power 0.63dBm(Max) Bluetooth Version V2.1 with EDR Modulation GFSK, π /4-DQPSK, 8DPSK Number of channels 79 Hardware Version N/A Software Version N/A Antenna Designation Integrated Antenna Antenna Gain 0dBi Power Supply DC3.7V by Battery Note: The EUT can be operated during charging via USB port (adaptor or PC connection),the USB port is for charging only.
