AXG-RF2RPARemote Control Spread Spectrum Transceiver

Konishi Mokei Co., Ltd.
Remote Control Spread Spectrum Transceiver - FCC ID AXG-RF2RPA - Konishi Mokei Co., Ltd.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Oct 27, 2014
Application Purpose
Original Equipment
Date of Application
Oct 27, 2014
Equipment Note
Remote Control Spread Spectrum Transceiver
Frequency Range
2404.00000000 - 2479.00000000
Company
Konishi Mokei Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

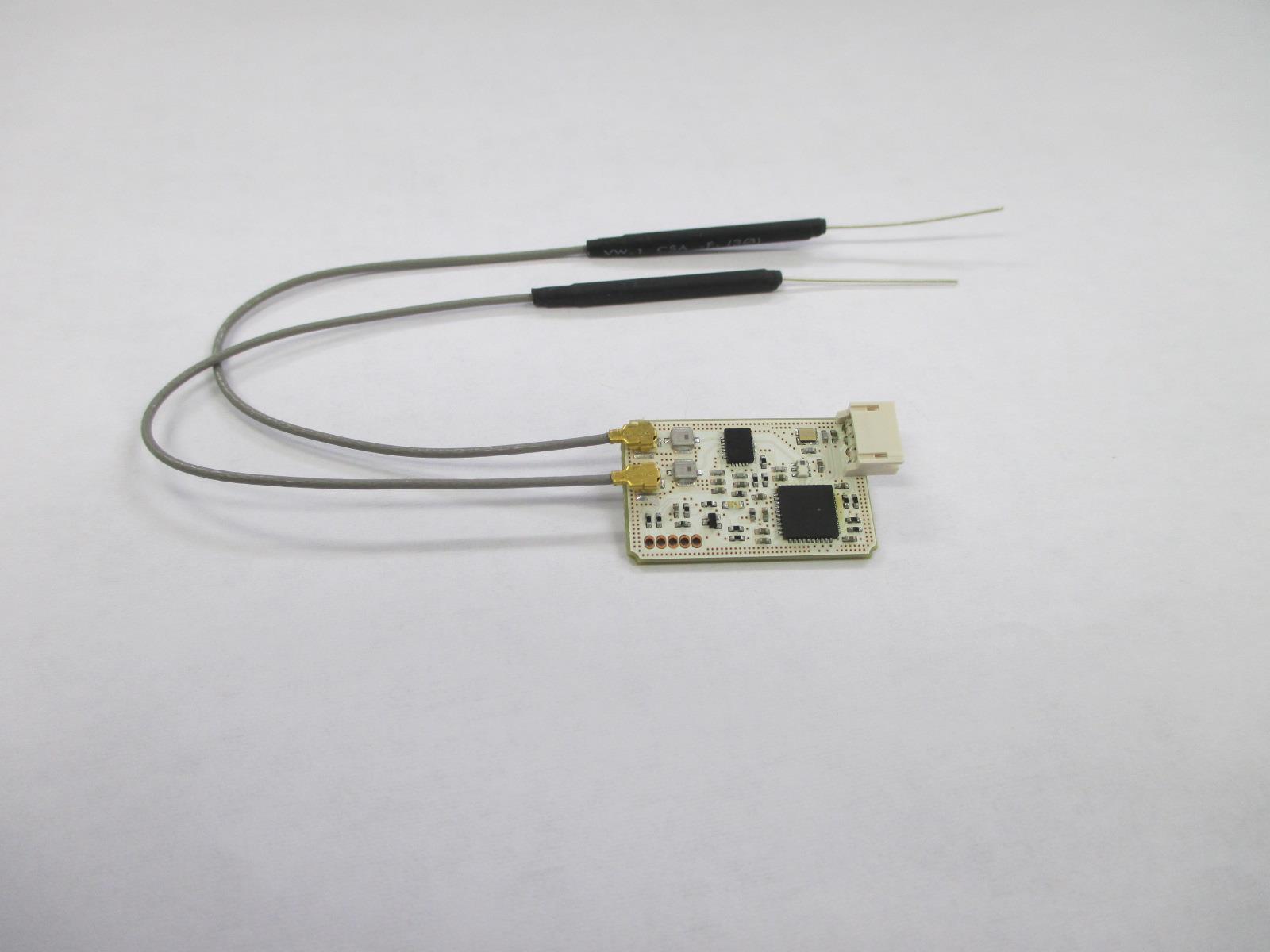

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Information Insertion (ship to U.S.A. only) Insertion (ship to U.S.A. & Canada)

Users Manual

Package Printing (Front Side) Package Printing (Back Side) User Manual Information Insertion (ship to U.S.A. only) Insertion (ship to U.S.A. & Canada) User Manual

External Photos

Top Side View Bottom Side View Label Location

ID Label/Location Info

Label material: polyester film, 3M #7880 The FCC ID label is permanently affixed on the device with an acrylic type adhesive. Sample Label

Internal Photos

Top Side Bottom Side

RF Exposure Info

FCC ID: AXG-RF2RPA MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 6 0Y1409031808.AXG 9/08-9/15/2014 Telemetry Radio Control System © 2014 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 Applicant Name: Date of Testing: Japan Remote Control Co., Ltd. 9/08-9/15/2014 2-12, Chome, Eiwa Test Site/Location: Higashi Osaka PCTEST Lab, Columbia, MD, USA Osaka 577-0809, Test Report Serial No.: Japan 0Y1409031808.AXG FCC ID: AXG-RF2RPA APPLICANT: Japan Remote Control Co., Ltd. EUT Type: Telemetry Radio Control System FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) FCC ID: AXG-RF2RPA MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 6 0Y1409031808.AXG 9/08-9/15/2014 Telemetry Radio Control System © 2014 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................... 3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW ..................................................................................................... 4 1.4 PROCEDURE ........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 5 2.0 CONCLUSION .................................................................................................................................. 6 FCC ID: AXG-RF2RPA MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 6 0Y1409031808.AXG 9/08-9/15/2014 Telemetry Radio Control System © 2014 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Japan Remote Control Co., Ltd. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Japan Remote Control Telemetry Radio Control System is a device containing 2.4GHz frequency band hopping module. For this MPE evaluation, the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. EUT: Grantee: Japan Remote Control Co., Ltd. FCC ID: AXG-RF2RPA Antenna(s): Coaxial Antenna Model: N/A Gain (dBi): 2.0 FCC ID: AXG-RF2RPA MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 4 of 6 0Y1409031808.AXG 9/08-9/15/2014 Telemetry Radio Control System © 2014 PCTEST Engineering Laboratory, Inc. REV 3.2MPE 7/27/2012 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if…
