AXG-RG611BRadio Control Receiver

Micro controller PIC24FJ64GA002 LDORegulator 3.3v to Servo Motor 1ch BATT. 4.8V 2.4GHz OQPSK Modulator/Demodulator FH Spread Spectrum 32MHz Matching circuit CC2520 SPI Coax RG611B BLOCK DIAGRAM Sensor IN (Temp.) (Speed.) (etc.) 2ch 3ch 4ch antenna 5ch 6ch RF test terminal 2.4GHz RF Chipset Block (cc2520)

INTERTEK TESTING SERVICE Report No.: 13090470HKG-001 FCC ID: AXG-RG611B Equipment Photographs Model : AXG-RG611B (External)

Label Artwork Label size: 18 x 15mm

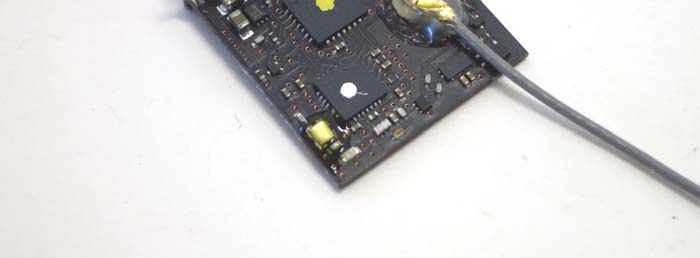

INTERTEK TESTING SERVICE Report No.: 13090470HKG-001 FCC ID: AXG-RG611B Equipment Photographs Model : AXG-RG611B (Internal)

Technical Description: The Equipment Under Test (EUT) is a plug and play replaceable 2.4GHz RF transceiver module for the remote control helicopter or plane. The EUT operates at frequency range from 2404MHz to 2479MHz with 3MHz channel spacing. The 2.4GHz RF module is powered by a 4.8V rechargeable battery pack. The EUT has a one set battery/data input pin and six sets signal pins which are connect with battery pack with sensor and connect with servo motor respectively. After switch on the EUT and paired up with the corresponding controller (transceiver), the servo motor of EUT can be controlled to run in different speed. Also, the information of temperature can be detected by sensor, then the EUT can collect data and send them back to the corresponding controller. 2.4GHz RF transceiver Module: Modulation Type: OQPSK Frequency Range: 2404MHz - 2479MHz, 3MHz channel spacing, 26 channels Antenna Type: Integral, External (wire Antenna) Antenna Gain: 2.14dBi Nominal rated field strength: 85.2BμV/m at 3m Maximum allowed field strength of production tolerance: +/-5dB 2.4GHz RF module: i) IC3 acts as the 2.4GHz RF transceiver. ii) The 32MHz crystal (XTAL1) provides system clock for CC2520 (IC3) iii) U3 acts as hybrid Baluns iv) IC1 acts as MCU v) IC2 acts as voltage regulator vi) IC4 & IC5 acts SPDT switch vii) IC6 acts as a power amplifier viii) U2 acts as Band pass filiter ix) U1 acts as MOSFET

Analysis Report Report No.: 13090470HKG-001 The Equipment Under Test (EUT) is a portable plug and play replaceable 2.4GHz RF transceiver module for the remote control helicopter or plane. The EUT operates at frequency range from 2404MHz to 2479MHz with 3MHz channel spacing. The 2.4GHz RF module is powered by a 4.8V rechargeable battery pack. The EUT has a one set battery/data input pin and six sets signal pins which are connect with battery pack with sensor and connect with servo motor respectively. After switch on the EUT and paired up with the corresponding controller (transceiver), the servo motor of EUT can be controlled to run in different speed. Also, the information of temperature can be detected by sensor, then the EUT can collect data and send them back to the corresponding controller. Antenna Type: External integral antenna Antenna Gain: 2.14dBi Nominal rated field strength: 85.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 90.2dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.314mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.194mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.479) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

PGD1/EMUD1/AN2/C2IN-/RP0/CN4/RB0 1 PGC1/EMUC1/AN3/C2IN+/RP1/CN5/RB1 2 AN4/C1IN-/RP2/SDA2/CN6/RB2 3 AN5/C1IN+/RP3/SCL2/CN7/RB3 4 VSS 5 OSCI/CLKI/CN30/RA2 6 OSCO/CLKO/CN29/PMA0/RA3 7 SOSCI/RP4/PMBE/CN1/RB4 8 SOSCO/T1CK/CN0/PMA1/RA4 9 VDD 10 PGD3/EMUD3/RP5/SDA1(2)/CN27/PMD7/RB5 11 PGC3/EMUC3/RP6/SCL1(2)/CN24/PMD6/RB6 12 RP7/INT0/CN23/PMD5/RB7 13 TCK/RP8/SCL1/CN22/PMD4/RB8 14 TDO/RP9/SDA1/CN21/PMD3/RB9 15 DISVREG 16 VCAP/VDDCORE 17 PGD2/EMUD2/TDI/RP10/CN16/PMD2/RB10 18 PGC2/EMUC2/TMS/RP11/CN15/PMD1/RB11 19 AN12/RP12/CN14/PMD0/RB12 20 AN11/RP13/CN13/PMRD/RB13 21 AN10/CVREF/RTCC/RP14/CN12/PMWR/RB14 22 AN9/RP15/CN11/PMCS1/RB15 23 VSS 24 VDD 25 #MCLR 26 AN0/VREF+/CN2/RA0 27 AN1/VREF-/CN3/RA1 28 DIEPAD 29 2 1 3 4 5 GND 4 1 1 GND 2 3 3 SO 1 SI 2 CSN 3 GPIO5 4 GPIO4 5 GPIO3 6 GPIO2 7 DVDD 8 GPIO1 9 GPIO0 10 AVDD5 11 XOSC32M_Q2 12 XOSC32M_Q1 13 AVDD3 14 NC 15 AVDD2 16 RF_P 17 NC 18 RF_N 19 AVDD1 20 NC 21 AVDD4 22 RBIAS 23 AVDD_GUARD 24 RESETN 25 VREG_EN 26 DCOUPL 27 SCLK 28 GND 29 UB 1 BN 6 BP 4 3 25 2 1 3 2 1 3 2 1 3 2 1 3 2 1 3 VIN 1 NC 2 GND 5 NC 4 VOUT 3 2 1 3 2 1 3 NC 1 RFIN 2 NC 3 NC 4 RFOUT 5 VDD 6 GND 7 OUTPUT1 1 GND 2 OUTPUT2 3 VCONT2 4 INPUT 5 VCONT1 6 OUTPUT1 1 GND 2 OUTPUT2 3 VCONT2 4 INPUT 5 VCONT1 6 1 32 INPUT 1 GND 3 OUTPUT 2 GND 4

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13090470HKG-001 Japan Remote Control Co., Ltd. Application For Certification (Original Grant) (FCC ID: AXG-RG611B) Transceiver Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Lead Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: April 2, 2014 INTERTEK TESTING SERVICES Report No.: 13090470HKG-001 FCC ID: AXG-RG611B i GENERAL INFORMATION Japan Remote Control Co., Ltd. BRAND NAME: JR, MODEL: RG611B FCC ID: AXG-RG611B Grantee: Japan Remote Control Co., Ltd. Grantee Address: 2-12, 2 Chome, Eiwa, Higashiosaka, Osaka 577-0809, Japan. Contact Person: Hiroki Fushimi Tel: +816-6732 0202 Fax: +816-6724 0515 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: JR Model: RG611B Type of EUT: Transceiver Description of EUT: Radio Control Receiver Serial Number: N/A FCC ID: AXG-RG611B Date of Sample Submitted: September 12, 2013 Date of Test: September 12, 2013 to September 26, 2013 Report No.: 13090470HKG-001 Report Date: April 2, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13090470HKG-001 FCC ID: AXG-RG611B ii SUMMARY OF TEST RESULT Japan Remote Control Co., Ltd. BRAND NAME: JR, MODEL: RG611B FCC ID: AXG-RG611B TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13090470HKG-001 FCC ID: AXG-RG611B iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results ........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 4.0 Equipment Photographs ................................................................................ 9 5.0 Product Labelling........................................................................................... 9 6.0 Technical Specifications ................................................................................ 9 7.0 Instruction Manual ......................................................................................... 9 8.0 Miscellaneous Information.......................................................................... 10 8.1 Measured Bandwidth .................................................................................. 10 8.2 Discussion of Pulse Desensitization ............................................................ 13 8.3 Calculation of Average Factor ..................................................................... 13 8.4 Em…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13090470HKG-001 FCC ID: AXG-RG611B Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : RG611B Radiated Emission Job: 13090470HKG-001 Model: RG611B A INTERTEK TESTING SERVICE Report No: 13090470HKG-001 FCC ID: AXG-RG611B Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : RG611B Radiated Emission Job: 13090470HKG-001 Model: RG611B B
