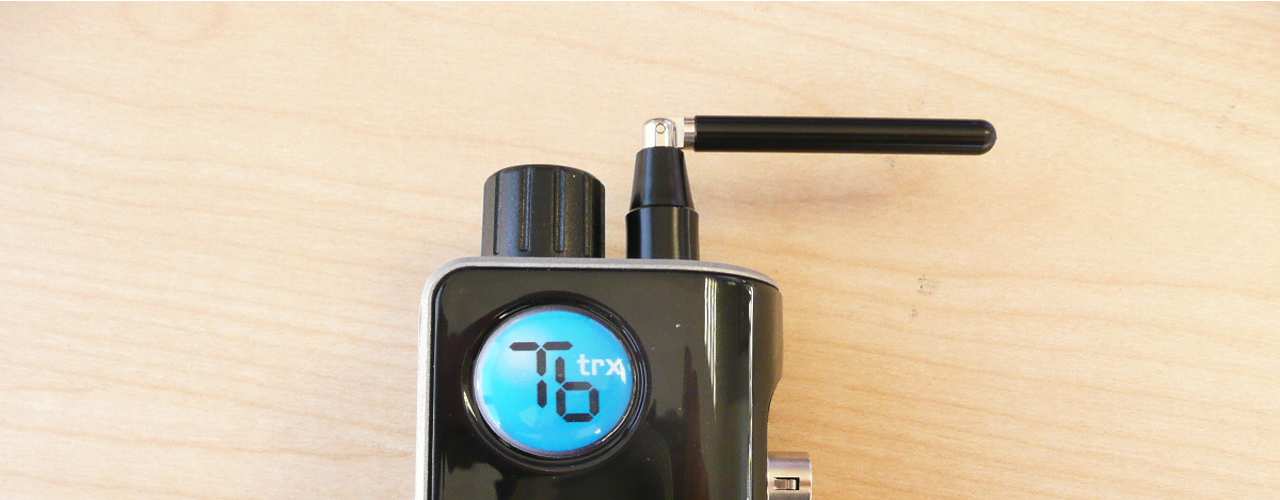

AYV-TCB05Timecode Buddy mini trx

quickstart guide Buddy :mini trx Timecode ® Welcome to Timecode Buddy. Here we give you a quick tour of your new Timecode Buddy: system, guiding you through its key features so you can get up and running straight away. What’s covered? The basics to getting started with: • Timecode Buddy: mini trx Your timecode revolution starts here... Timecode Buddy: mini trx manual page : 2 Copyright Notice All rights reserved. No part of this publication may be reproduced without the expressed written permission of Timecode Systems Ltd. Timecode Systems Ltd shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse or abuse of this product or unauthorised modifications, repairs, or alterations to this product, or failure to strictly comply with Timecode Systems Ltd operating and installation instructions. The ‘Timecode Buddy’ logo is a registered trademark. The ‘Timecode Buddy: app’ logo is a registered trademark. The invention of the Timecode Buddy: system has a US Patent Pending. A guided tour of your highly accurate timecode, TV sync generator and multi-channel digital timecode transceiver. Control The Timecode Buddy: mini trx settings are accessed and controlled using the control knob and LCD display. 1.Halo lightpipe Glows either blue, green or red. • Blue flash – T/C free running • Green flash – T/C locked • Red flash – Warning messages Buddy :mini trx Timecode ® Timecode Buddy: mini trx manual page : 3 2.Antenna For the digital transceiver module 3. LCD backlit display Shows the unit’s status and settings. 4. Control knob Allows one finger navigation through menus. Antenna Control knob Halo lightpipe LCD display Timecode Buddy: mini trx manual page : 4 1. T/C in / out SMPTE Timecode OUT, BNC socket (LINE/LOW/MIC LEVEL) SMPTE Timecode IN, BNC socket (0.5V to 5V p/p) 2. TV Sync out TV Sync OUT, BNC socket (1V p/p) 3. Power input Hirose HR10a power socket Power input 9-24 volt and micro USB 5 volt Power input 9-24v TV sync OUT T/C in/out Attach Securely fit your Timecode Buddy: mini trx to a camera using the coldshoe adaptor. This can be inserted into a Timecode Buddy: bracket or directly onto a camera coldshoe mount. Timecode Buddy: mini trx manual page : 5 Turning the knob on the top panel clockwise takes you to the information screens: 1. T/C + USER BITS 2. TV SYNC TYPE 3. POWER STATUS (external PSU or internal Li Polymer battery) 4. Firmware version and Serial number 5. Jam Timecode** **For Jam Timecode option the unit needs to be in INTERNAL GENERATOR mode. Press the button whilst on ‘Jam Timecode’ screen. Choose to Jam via RF or BNC. If a valid T/C source is available the unit displays ‘Jamming LTC’, then either ‘Timecode Jammed’ or ‘Jam failed, no signal’. Button basics The top button makes it easy to navigate the menu options. From an information screen... Press the knob to go directly to the menu for the corresponding feature. From the default display... Press the knob to enter the menu for: 1. Timecode mode 2. Int generator 3. RF Settings 4. Backlight 5. System settings 6. Exit Timecode Buddy: mini trx manual page : 6 Customise On-screen menus allow you to easily customise the settings of the Timecode Buddy: mini trx to meet the exact needs of your shoot. The default display shows (on time-out also): T/C + FPS + MODE + RF CHANNEL + SIGNAL STRENGTH More on menus Each menu allows further customisation of your Timecode Buddy: mini trx. Timecode mode. Choose from three settings: • Int Gen. Activates the highly accurate internal generator. From here you can set your own T/C, user bits and FPS settings. You can also jam from an external RF or BNC T/C source. • Ext RF (cont). Constantly jam syncs the internal generator from the received T/C via Buddy DataLink. If Buddy loses signal of received T/C, the T/C output continues using the internal generator. • Ext BNC. Constantly jam syncs the internal generator from the received T/C via the BNC I/P socket . If Buddy loses signal of received T/C, the T/C output freezes immediately. Internal generator. Choose from: • Set timecode. Turn to set flashing digits, press to enter, repeat for each pair. • Set user bits. Turn to set flashing digits, press to enter, repeat for each pair. • Set FPS. Set to 23.98, 24, 25, 29.976, 29.976DF, 30 or 30DF. RF settings. From here select: • Channel no. 1 to 14 • RF TX On/Off. When in Internal or BNC modes the Timecode Buddy: mini trx can transmit SMPTE timecode data via Buddy DataLink to any other Timecode Buddy: wifi master or mini: trx listening on the same channel. • Rx Ubits On/Off. When Off the User Bits are derived from the unit itself, not the incoming LTC Timecode Buddy: mini trx manual page : 7 Backlight. • Always ON • Timed ON • Always OFF System settings. Gives you access to: • Set TV sync type. Set to OFF, PAL, NTSC, 720p, 720px2, 1080i, 1080p,1080px2 (x2 double frame rate). Non-standard TC Sync standards and FPS combinations will be automatically rejected. • Set TV sync level. Set to standard o/p level for 1 camera and HIGH o/p level for dual load (BNC splitter on 3D camera rigs) • Set LTC output level. Set to LINE Level (normal), LOW level and MIC level. • Set country area CE/FCC/ARIB • Restore defaults. To remove any customisation. • BuddyLink ID. For future networking features. • Display. Adjust brightness from 0-100% and flip upside down for left/right handed use. Update firmware via a PC: Visit www.timecodebuddy.com/support and click on the link for ‘mini trx Firmware’. Follow the detailed online instructions to update your Timecode Buddy: mini trx using the micro USB port. Timecode Buddy: mini trx manual page : 8 Timecode Buddy: mini trx manual page : 9 Detailed specifications Timecode Buddy: mini trx Product features External dimensions: 29.8mm x 87mm x 110mm LCD display: two line, 16 character, blue variable brightness backlit display. Antenna ‘halo’ lightpipe: tri-colour LE…
