AYV-TCB11TSC11 Modular RF Board

S1C Manual page : 2 System One Controller (S1C) S1C Manual page : 3 manual Welcome to Timecode Systems modular S1C PCB. Here we give you a quick tour of this super accurate LTC & Genlock generator, with integrated sub GHz Transceiver and 2.4GHz 802.11b/g WiFi. This will guide you through its key features so you can get up and running straight away. Your timecode revolution starts here... Copyright Notice All rights reserved. No part of this publication may be reproduced without the expressed written permission of Timecode Systems Ltd. Timecode Systems Ltd shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse or abuse of this product or unauthorised modifications, repairs, or alterations to this product, or failure to strictly comply with Timecode Systems Ltd operating and installation instructions. This product is registered.as UK Patent Pending and US Patent Pending S1C Manual page : 4 :S1C A guided tour of your highly accurate timecode, genlock generator and multi-channel digital timecode transceiver with integrated WiFi Timecode Mode. Choose from three settings: • INT GEN. Activates the highly accurate internal generator. From here you can set your own T/C, user bits and FPS settings. • EXT RF (Cont). Constantly jam syncs the internal generator from the received T/C via Buddy DataLink. If Buddy loses signal of received T/C, the T/C output continues using the internal generator. • EXT LTC. Constantly jam syncs the internal generator from the received T/C via the BNC I/P socket or LEMO 5 socket. If Buddy loses signal of received T/C, the T/C output freezes immediately. RF Settings. From here select: • Channel no. 1 to 14 • RF TX On/Off. When in Internal or BNC modes the Timecode can transmit its SMPTE timecode data via Buddy DataLink to any other Timecode Buddy listening on the same channel. • RX UBits On/Off. When On the unit will display and output the UserBits received via RF. If Off the unit will display and output its own UserBits set. S1C Manual page : 5 WiFi. Unlocks WiFi enabled features including wireless streaming of timecode to the Timecode Buddy: app System settings. Gives you access to: • TV sync type. Set to OFF, PAL, NTSC, 720p, 720px2, 1080i (PSF), 1080p,1080px2 (x2 double frame rate). Non-standard TC Sync standards and FPS combinations will be automatically rejected. • TV sync level. Set to Std O/P Level for single 75ohm load or High O/P Level for dual 37.5ohm load (2 cameras on T-Piece) • Restore defaults. To remove any customisation. S1C Manual page : 6 Detailed specifications S1C Technical specification Timecode generator accuracy: 0.1 ppm TCXO reference oscillator (less than one half frame drift a day). Zero ppm when RF locked. Supported FPS modes: 23.976, 24, 25, 29.97, 30, 29.97DF, 30DF. Output sync modes: PAL, NTSC, 720p, 720p double frame, 1080i(PSF), 1080p, 1080p double frame. Output video sync: 0.6V pp / 75 ohm and 0.6V pp /37.5 ohm for ‘High Level/ Dual load’ WiFi: 2.4 GHz IEEE std. 802.11b/g, SoftAP and Infrastructure modes, DHCP Server, Web server. S1C Manual page : 7 Frequencies S1C RF transceiver frequencies 1 USA/AU/NZ 915.050 MHz 2 USA/AU/NZ 915.150 MHz 3 USA/AU/NZ 915.250 MHz 4 USA/AU/NZ 915.350 MHz 5 USA/AU/NZ 915.450 MHz 6 USA/AU/NZ 915.550 MHz 7 USA/AU/NZ 915.650 MHz 8 USA/AU/NZ 918.050 MHz 9 USA/AU/NZ 918.150 MHz 10 USA/AU/NZ 918.250 MHz 11 USA/AU/NZ 918.350 MHz 12 USA/AU/NZ 918.450 MHz 13 USA/AU/NZ 918.550 MHz 14 USA/AU/NZ 918.650 MHz S1C Manual page : 8 INDUSTRY CANADA STATEMENTS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter 10427A-TCB11 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Name / Model Gain Impedance Taoglas/TG.09.0113 2.0dBi 50 ohm FCC WARNING STATMENTS • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This radio transmitter AYV-TCB11 has been approved by Industry FCC operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Name / Model Gain Impedance Taoglas/TG.09.0113 2.0dBi 50 ohm S1C Manual page : 9 OEM Responsibilities The Product name he…

Text truncated - open the document above for the full version.

INDUSTRY CANADA STATEMENTS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter 10427A-TCB11 and AYV-TCB11(TCS11) has been approved by Industry Canada & FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Name / Model Gain Impedance Taoglas/TG.09.0113 2.0dBi 50 ohm FCC Warning Statement:  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment OEM Responsibilities The TCS11 Module has been certified for integration into products only by OEM integrators under the following conditions: 1. The antenna(s) must be installed such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and all persons at all times. 2. The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-location with another transmitter), then Industry Canada and FCC certification is no longer considered valid and the IC & FCC Certification Numbers cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Industry Canada authorization. End Product Labeling The TCS11 Module is labeled with its own IC and FCC Certification Numbers. If the Certification Numbers are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the following: “Contains Transmitter Module IC:10427A-TCB11 Contains Transmitter Module FCC ID:AYV-TCB11 or “Contains IC: 10427A-TCB11 “Contains FCC ID: AYV-TCB11 The OEM of the TCS11 Module must only use the approved antenna(s) listed above, which have been certified with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user’s manual of the end product. The user’s manual for the end product must include the following information in a prominent location: “To comply with Industry Canada and FCC RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.”

TRL 51F047 iss04 LETTER OF AGENCY 16 October 2014 TRaC Global Ltd. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours faithfully Timecode Systems Ltd Paul Scurrell

TRL 51F050 iss04 REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 16 October 2014 TRaC GLOBAL LTD. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: AYV-TCB11 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Timecode Systems Ltd.  Block diagrams  Technical Description  Schematics  Bill of materials The application contains technical information which Timecode Systems Ltd deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Timecode Systems Ltd Paul Scurrell TRL 51F050 iss04

TRL 51F050 iss04 DECLARATION STATEMENT OF FHSS PSEUDO RANDOM HOP SEQUENCE FOR ISM 915 TO 928MHZ TRANSMITTER 26 February 2015 TRaC GLOBAL LTD. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: AYV-TCB11 To Whom It May Concern: Please be advised that our FHSS randomly chooses 50 channels from a total of 64 channels, at 100KHz spacing based from 915.800MHz. We hop every 40mS, therefore cycle every 2 seconds. Thank you for your attention to this matter. Yours faithfully Timecode Systems Ltd Paul Scurrell

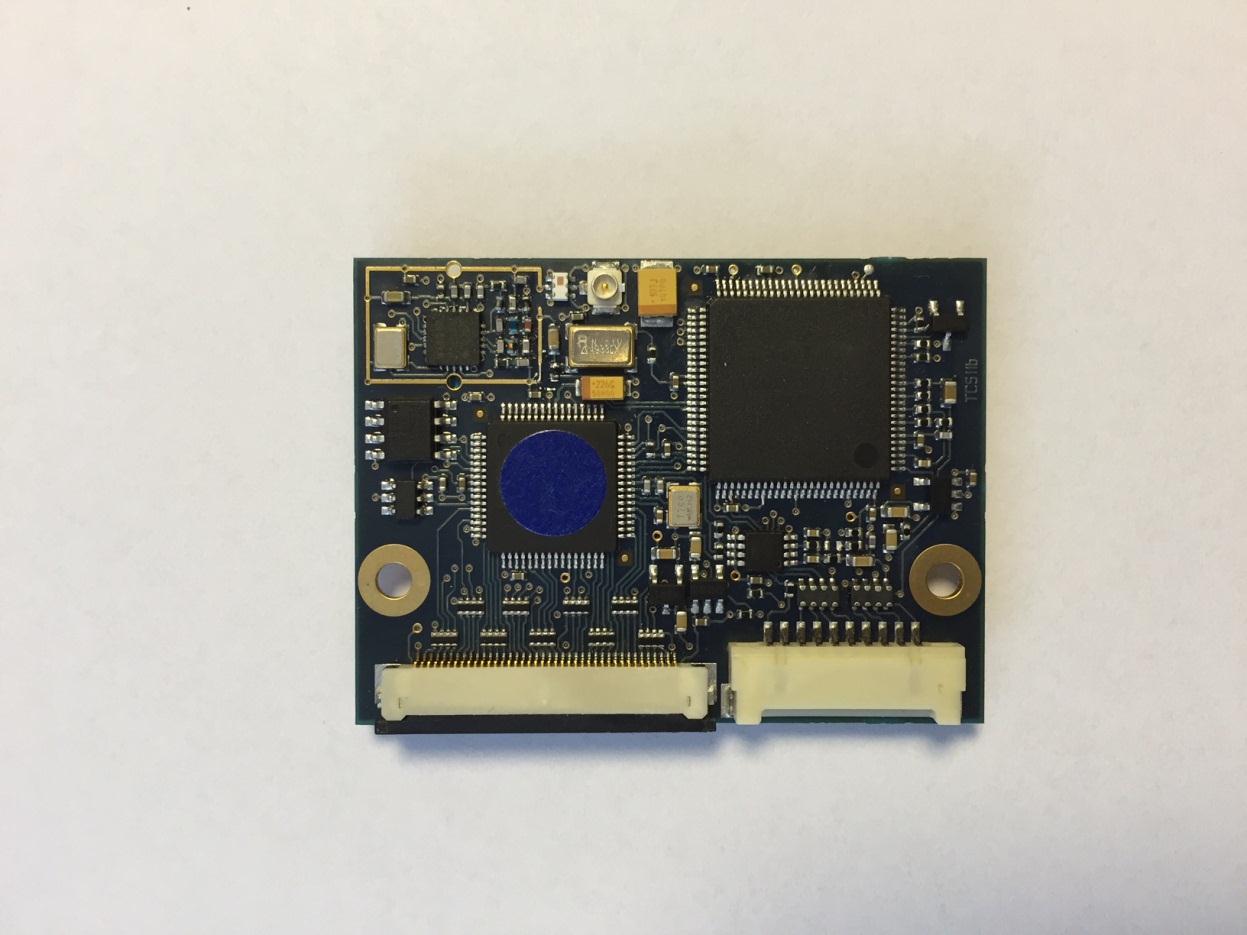

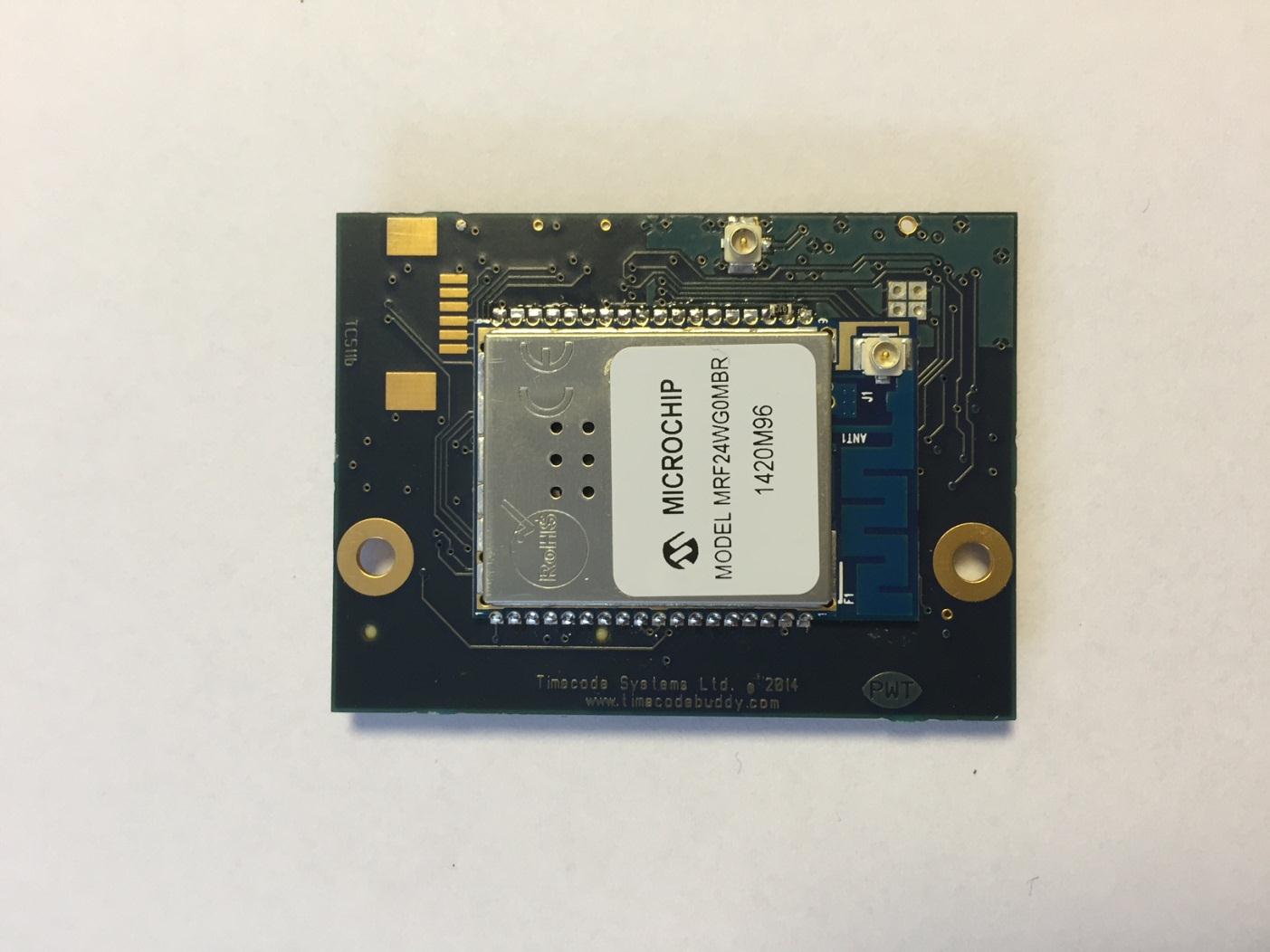

TCS11 Board Front (with RF Sheilding) TCS11 Board Front (without RF Sheilding) Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear F FCC ID STICKER Timecode Systems Limited – Modular Approval TCS11 PCB

TRL 51F050 iss04 DECLARATION EXTERNAL MONOPOLE ANTENNA TG.09.0113 26 February 2015 TRaC GLOBAL LTD. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: AYV-TCB11 To Whom It May Concern: Please be advised that the External monopole TG.09.0113 antenna to SMA connector will not be detachable. The antenna will be ‘super glued’ into the SMA connector before shipping. Thank you for your attention to this matter. Yours faithfully Timecode Systems Ltd Paul Scurrell

TCS11 Board Front (with RF Sheilding) TCS11 Board Front (without RF Sheilding) Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear F FCC ID STICKER Timecode Systems Limited – Modular Approval TCS11 PCB

TCS11 Board Front (with RF Sheilding) TCS11 Board Front (without RF Sheilding) Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear Timecode Systems Limited – Modular Approval TCS11 PCB TCS11 Board Rear F FCC ID STICKER Timecode Systems Limited – Modular Approval TCS11 PCB

TRA-020136-00

TRaC Global Test Report: TRA-020136-00-47-00B Appendix L: SAR Exclusion & MPE Calculation 900MHz FHSS Operation KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. In the frequency range below 100 MHz to 6 GHz and test separation distance of ≤ 50mm, the SAR Test Exclusion Threshold will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold = Step 1 + Step 2 Step 1 NT = [ (MP/TSD A) * √ fGHz ] NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (inc tune up) TSD A = Min Test separation Distance or 50mm (whichever is lower) = 5mm (in this case) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. = [(NT x TSD A) / √ fGHz] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * 10} Where: TSDB = Min Test separation Distance (mm) = 50 Note: Step 2 is not required here as the TSD A is less than 50mm. Operating Frequency 915.8 MHz SARET = [(3.0 x 5) / √0.9158] SARET = 15.67mW Operating Frequency 922.1 MHz SARET = [(3.0 x 5) / √0.9221] SARET = 15.62 mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 915.8 8.13 15.67 Not Required 922.1 7.26 15.62 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required.

A RADIO TEST REPORT FOR TIMECODE SYSTEMS LTD ON RF TIMECODE BUDDY BOARD DOCUMENT NO. TRA-020136-00-47-00B TRaC Wireless Test Report : TRA-020136-00-47-00B Applicant : Timecode Systems Ltd Apparatus : RF Timecode Buddy Board Specification(s) : CFR47 Part 15.247& RSS-210 Annex 8 FCCID : AYV-TCB11 Certification Number : 10427A-TCB11 Purpose of Test : Certification Authorised by : : Radio Product Manager Issue Date : 27 th January 2015 Authorised Copy Number : PDF Total number of pages : 111 TRaC Global Test Report: TRA-020136-00-47-00B Contents Section 1: Introduction 5 1.1 General 5 1.2 Tests Requested By 6 1.3 Manufacturer 6 1.4 Apparatus Assessed 6 1.5 Test Result Summary 7 1.6 Notes Relating To The Assessment 8 1.7 Deviations from Test Standards 8 Section 2: Measurement Uncertainty 9 2.1 Measurement Uncertainty Values 9 Section 3: Modifications 11 3.1 Modifications Performed During Assessment 11 Section 4 General Test Procedures 12 4.1 Radiated Test Setup and Procedures 12 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 13 4.3 Antenna Port Conducted Emissions 13 4.4 Power Supply Variation 14 4.5 Thermal Variation 14 4.6 Time Domain Measurements 14 Appendix A: Formal Emission Test Results 2.4GHz Wi-Fi Operation 15 A1 6 dB Bandwidth 16 A2 Transmitter Peak Output Power 18 A3 Transmitter Power Spectral Density 20 A4 RF Antenna Conducted Spurious Emissions 22 A5 Radiated Electric Field Emissions 24 A6 Antenna Gain 28 A7 Unintentional Radiated Electric Field Emissions - 15.109 29 Appendix B: Supporting Graphical Data 2.4GHz Wi-Fi Operation 31 Appendix C: Formal Emission Test Results 900MHz FHSS Operation 52 C1 Transmitter Peak Output Power 53 C2 RF Antenna Conducted Spurious Emissions 54 C3 Radiated Electric Field Emissions 56 C4 20 dB Bandwidth and Carrier Frequency Separation 60 C5 Hopping frequencies 61 C6 Channel Occupancy 62 C7 Antenna Gain 63 C8 Unintentional Radiated Electric Field Emissions 64 Appendix D: Supporting Graphical Data 900MHz FHSS Operation 67 Appendix E: Formal Emission Test Results Multi Transmitter Operation 81 E1 Power Line Conducted Emissions 82 E2 RF Antenna Conducted Spurious Emissions 84 E3 Radiated Electric Field Emissions 86 Appendix F: Supporting Graphical Data Multi Transmitter Operation 87 3 TRaC Global Test Report: TRA-020136-00-47-00B Appendix G: Additional Test and Sample Details 95 Appendix H: Additional Information 101 Appendix I: Calculation of the duty cycle correction factor 102 Appendix J: Photographs and Figures 103 Appendix K: SAR Exclusion & MPE Calculation 2.4 GHz Wi-Fi Operation 107 Appendix L: SAR Exclusion & MPE Calculation 900MHz FHSS Operation 109 4 TRaC Global Test Report: TRA-020136-00-47-00B Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed at: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: A TOSIF Report author: D WINSTANLEY This report must not be reproduced except in full without prior written permission from TRaC Global. 5 TRaC Global Test Report: TRA-020136-00-47-00B 1.2 Tests Requested By This testing in this report was requested by : Timecode Systems Ltd 9 Mill House Elgar Business Centre Hallow Worcester GB WR2 6NJ 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 17 th November and 3 rd December 2014: RF Timecode Buddy Board RF Transceiver Module utilising FHSS in the 902MHz to 928 MHz and 2.4GHz 802.11 b/g WiFi. 6 TRaC Global Test Report: TRA-020136-00-47-00B 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result RSS-210 Issue 8 December 2010 Title 47 of the CFR: Part 15 Subpart C; Radiated spurious emissions (Restricted bands) Annex 8, A8.5 15.247 (d) 15.209 ANSI C63.10:2009 Pass Conducted spurious emissions (Non-restricted bands) Annex 8.A4(4) 15.247(d) ANSI C63.10:2009 Pass AC Power conducted emissions RSS-Gen Issue 4 Annex 8.8 15.207 ANSI C63.10:2009 Pass Occupied Bandwidth Channel Spacing Annex 8.A8.2a 15.247(a)(1)(i) 15.247(a)(2) ANSI C63.10:2009 Pass Conducted Carrier Power Annex 8.A4(4). 15.247(b) ANSI C63.10:2009 Pass Power Spectral Density Annex 8.A8.2b 15.247(d) ANSI C63.10:2009 Pass Hopping Frequencies Annex 8, A8.1(c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Channel Occupancy Annex 8, A8.1(c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions RSS-Gen Issue 4 Annex 7.1 Title 47 of the CFR: Part 15 Subpart B; 15.109 ANSI C63.10:2009 Pass RF Safety RSS-102 Title 47 of the CFR : Part 15 Subpart C; 15.247(b)(5) - Pass Digital Modulation - Title 47 of the CFR: Part 15 Subpart C; 15.403 - Pass Abbreviations used in the above table: Mod : Modification RSS : Radio Standards Specification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 7 TRaC Global Test Report: TRA-020136-00-47-00B 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt…
