B2K-4399024AEmbedded RFID Read/Write System

4399024A set up manual 4399024A are attached printer base unit according to the following figure. Function of 4399024A is next page. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 4399024A Printer base unit EP toner cartridge set area A ep toner cartridge is equipped with RF-ID TAG. If ep toner cartridge is set to a printer, communication of RF-ID TAG and a RFID read writer module (4399024A) will be attained. The function of this system is the following. -Management of the existence detection and toner residual quantity of a ep toner cartridge RF-ID TAG EP toner cartridge

Oki Data Corporation. RFID Read/Write System (Model: 4399024A) External photos Front view Rear view 1 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4399024A) Front Side view Rear Side view 2 / 6

4399024A 4399024A 4399024A

N21300A N21301A N21300A 6.5A 4399024A 4399024A N21301A 6.5A 4399024A 4399024A

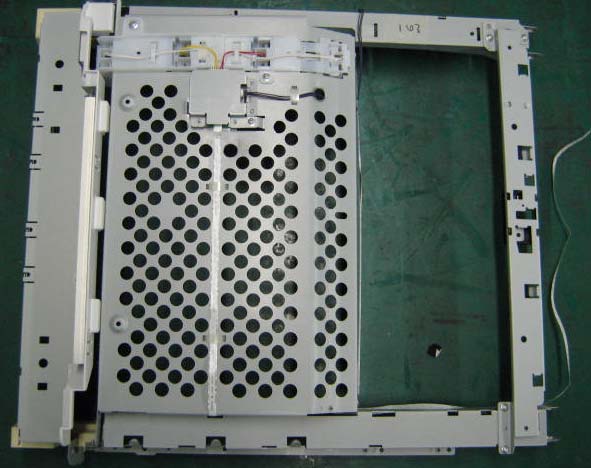

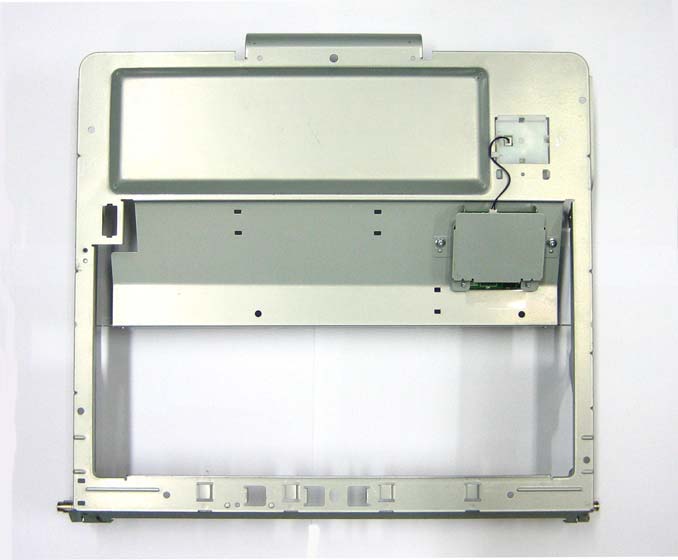

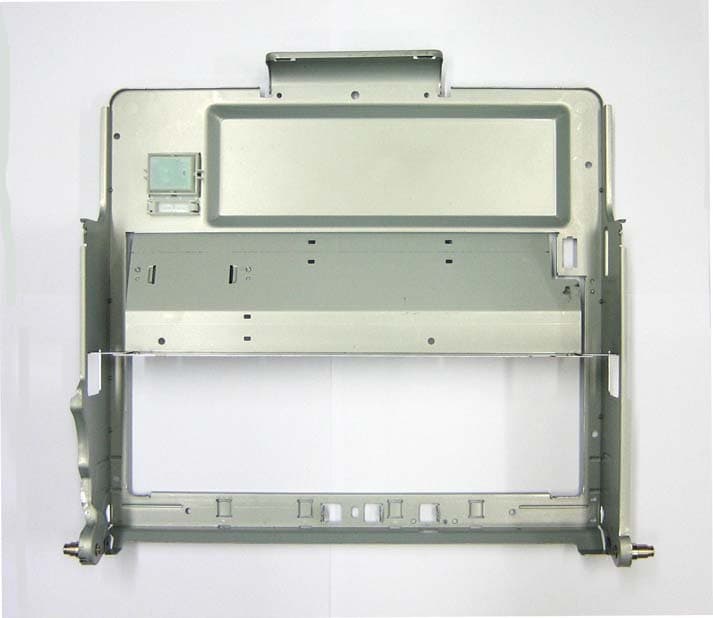

Oki Data Corporation. RFID Read/Write System (Model: 4399024A) Internal photos Inside view of Internal Circuit with antennas <Front> Inside view of Internal Circuit with antennas <Rear> 3 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4399024A) Inside view of Internal circuit <Front> Inside view of Internal circuit <Rear> 4 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4399024A) Front view of antenna Rear view of antenna 5 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4399024A) Rear view of core Front view of core 6 / 6

Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 1 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F EMISSION -- TEST REPORT TEST REPORT No.: TR1-10607F Date of Issue: September 7, 2010 KIND OF EQUIPMENT: Embedded RFID Read/Write System MODEL: 4399024A APPLICANT: Oki Data Corporation FCC ID: B2K-4399024A TEST STANDARD(S): FCC Part 15 Subpart C, Section 15.225 TEST RESULT: Complied The above equipment has been tested by EMC Kashima Corporation, and found compliance with the requirements of the above standards. The test result only responds to the tested sample. This test report shall not be reproduced except in full, without the written approval of EMC Kashima Corporation. The report must not be used to claim products endorsement by the accreditation or authorization body. The engineers of EMC Kashima Corporation were not involved in modification for the tested sample. TESTED DATE(S): July 28-29, 2010 TESTED BY: Hiromitsu Tanabe APPROVED BY: Ken'ichi Suda Director EMC Kashima Corporation 1614 Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL: +81-478-82-0963, FAX: +81-478-82-3373 TESTING CERTIFICATE 1266.01 EMC Kashima Corporation 1614 Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL: +81-478-82-0963, FAX: +81-478-82-3373 Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 2 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F TABLE OF CONTENTS Page 1 General Information 3 2 Summary of Test Result 4 3 Equipment Under Test (EUT) 5 4 Test Configuration 6 5 Test Facilities 9 6 Measurement Uncertainty 9 7 Test Conditions 10 8 Test Data 15 8.1 Conducted Emissions (Mains) 150 kHz - 30 MHz 15 8.2 Radiated Emissions 9 kHz - 30 MHz 16 8.3 Radiated Emissions 30 MHz - 1000 MHz 18 8.4 Frequency stability 19 8.5 20dB Bandwidth 20 9 The Photos of Test-Setup 21 REVISION HISTORY Rev. Issue Date Revision Description Effect Page Revised By 00 Initial Issue All Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 3 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 1 GENERAL INFORMATION 1.1 APPLICANT Oki Data Corporation 1.2 ADDRESS 3-1, Futaba-cho, Takasaki-shi, Gunma-ken 370-8585, Japan 1.3 MANUFACTURER Oki Data Corporation 1.4 KIND OF EQUIPMENT Embedded RFID Read/Write System 1.5 MODEL 4399024A 1.6 POWER RATING DC 5V 0.2W 1.7 TESTING VOLTAGE DC 5V (AC120V, 60Hz for Printer) 1.8 CONDITION OF EUT Prototype 1.9 OPERATING FREQUENCY 13.56MHz 1.10 TYPE OF MODURATION ASK 1.11 OPERATING TEMPERATUR 10 °C to 32 °C 1.12 TEST STANDARD(S) FCC Part 15 Subpart C, Section 15.225 1.13 TEST METHOD(S) ANSI C63.4: 2003 1.14 TESTED DATE(S) July 28-29, 2010 1.15 REMARK(S) Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 4 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 2 SUMMARY OF TEST RESULT 2.1 Test Result FCC Part 15 Section Test Item Worst margin Condition Result 15.203 Antenna requirement - - Pass Note1 15.207 Conducted emissions 9kHz - 30MHz 17.9dB at 3.1747MHz - Pass 15.225(a)(b)(c) Radiated emissions 9kHz - 30MHz 91.1dB at 13.56MHz Radiated Pass 15.225(d) Radiated emissions 9kHz - 30MHz 48.0dB at 27.12MHz Radiated Pass 15.225(d) 15.209 Radiated emissions 30MHz - 1GHz 13.2dB at 339.00MHz Radiated Pass 15.225(e) Frequency stability 0.0005% Conducted Pass 15.215(c) 20dB Bandwidth 6.14kHz Conducted Pass Note 1: Users cannot replace the antenna since it is attached to the inside of the printer. Note 2: “Pass” is only based on the measurement data and it does not include the measurement uncertainty. Accordingly, the statement below is applied to the test result. - It is possible to determine compliance at a level of confidence of 95% in case that the margin is not less than the measurement uncertainty in the Laboratory. - It is not possible to determine compliance at a level of confidence of 95% in case that the margin is less than the measurement uncertainty in the Laboratory. However, the measured result indicates that the product tested complies with the specification limit. Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 5 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 3 EQUIPMENT UNDER TEST 3.1 Description of The EUT The RFID equipment we'll make an application is built in a printer and is used for checking remaining amount of the toner. 3.2 Operation - mode of The EUT The equipment under test was operated during the measurement under following conditions: - Transmitting and Receiving mode (with Passive Tag) Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 6 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 4 TEST CONFIGURATION 4.1 EUT(s) and Peripheral(s) Equipment Name Model Serial No. Company FCC ID A RFID Module (EUT) 4399024A 1 (for Conducted Emissions) 2 (for Other Emissions) Oki Data Corporation B2K-4399024A B Antenna Unit (EUT) - - Oki Data Corporation B2K-4399024A C Tag (EUT) - - Oki Data Corporation B2K-4399024A D Micro-Computer for Test None None Oki Data Corporation N/A E DC Power Supply PAL 35-10 CE001899 KIKUSUI N/A F Printer N31194A 1 Oki Data Corporation DoC* *Note: Declaration of Conformity N/A: Not Applicable 4.2 Cable(s) Used Cable Name Length Shielded Model Company Remarks 1 Antenna 0.07 m no 43171502YS 2 Signal 0.6 m no -- 3 DC Power (EUT) 4.0 m no -- 4 AC Power (DC Power Supply) 3.0 m no -- 5 A…

Text truncated - open the document above for the full version.

Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 21 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 9 THE PHOTOS OF TEST-SETUP 9.1 Conducted Emissions 150 kHz - 30 MHz Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 22 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 9.2 Radiated Emissions 9 kHz - 1000 MHz Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 23 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F Radiated Emissions 9 kHz - 30 MHz (Antenna polarization: Horizontal setup) Test Report No.: TR1-10607F Model: 4399024A FCC ID: B2K-4399024A EMC Kashima Corporation Page 24 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373, http://www.emc-kashima.co.jp Ver.8.7F 9.3 Frequency Stability
