B2K-4465872AEmbedded RFID Read/Write System

4465872A set up manual 4465872A are attached printer base unit according to the following figure. Function of 4465872A is next page. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 4465872A Toner cartridges and image drum units set area Printer base unit A toner cartridge and image drum unit are equipped with RF-ID TAG. If toner cartridges and image drum units are set to a printer, communication of RF-ID TAG and a RFID read writer module (4465872A) will be attained. The function of this system is the following. -Management of the existence detection and toner residual quantity of a toner cartridge and image drum unit Toner cartridge RF-ID TAG × 2 Image drum unit

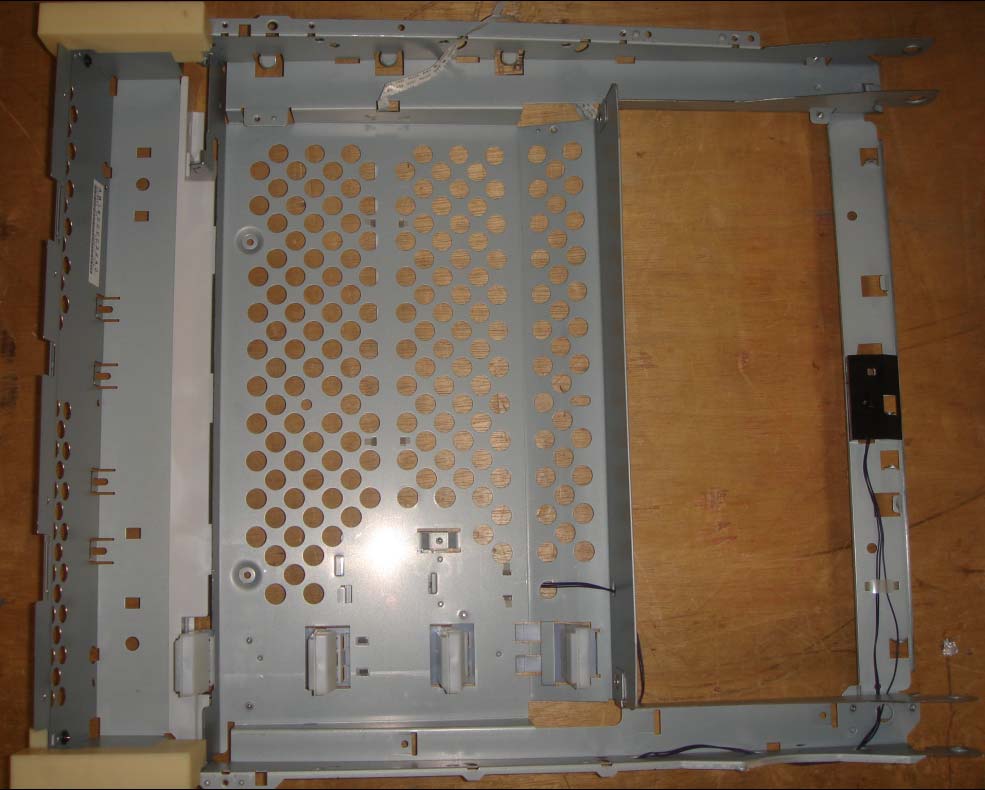

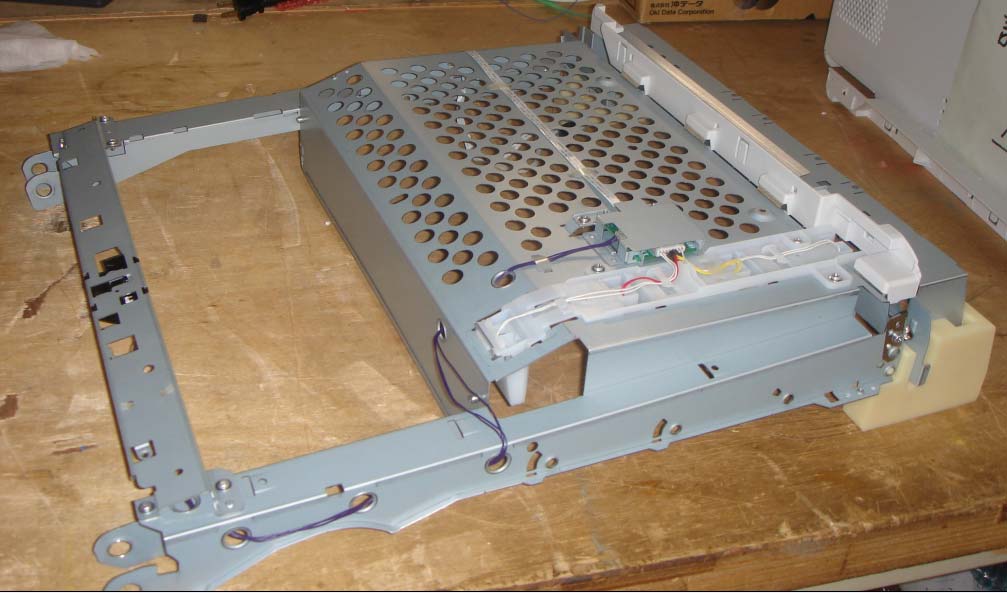

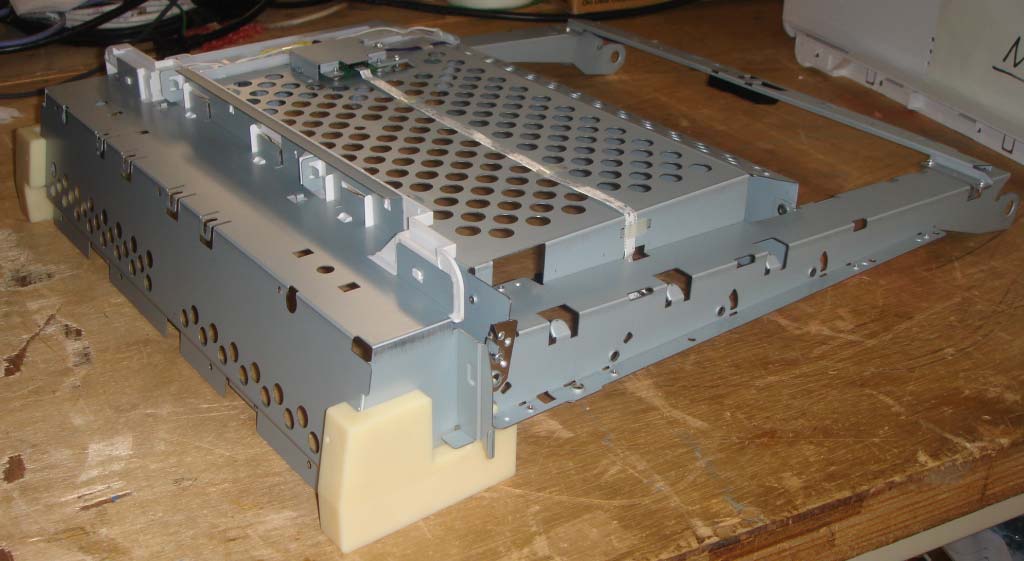

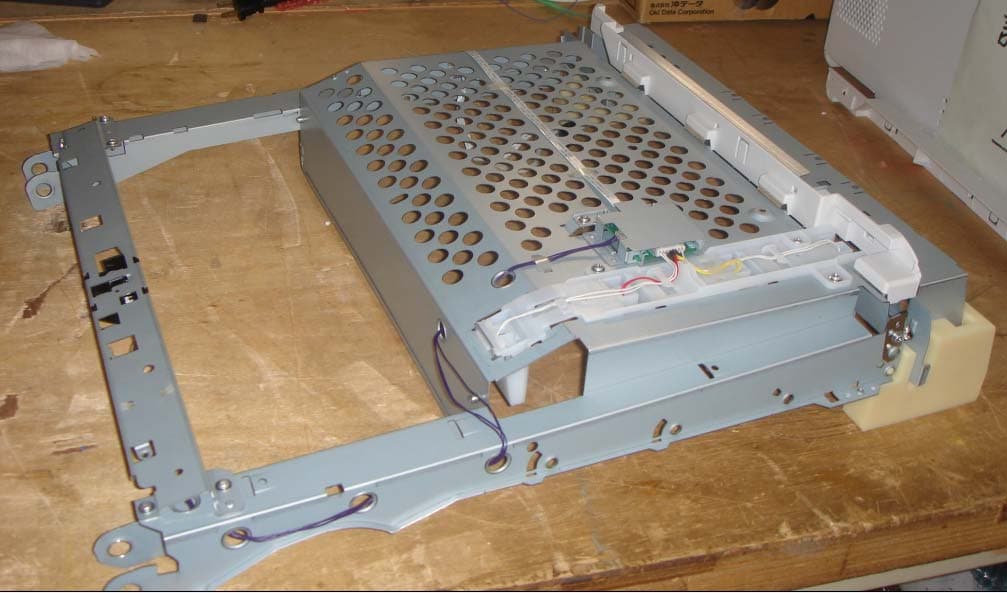

Oki Data Corporation. RFID Read/Write System (Model: 4465872A) External photos Front view Rear view 1 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4465872A) Front Side view Rear Side view 2 / 6

4465872A 4465872A

4465872A

Oki Data Corporation. RFID Read/Write System (Model: 4465872A) Internal photos Inside view of Internal Circuit with antennas <Front> Inside view of Internal Circuit with antennas <Rear> 3 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4465872A) Inside view of Internal circuit <Front> Inside view of Internal circuit <Rear> 4 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4465872A) Front view of antenna Rear view of antenna 5 / 6 Oki Data Corporation. RFID Read/Write System (Model: 4465872A) Rear view of core Front view of core 6 / 6

Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 1 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F EMISSION -- TEST REPORT TEST REPORT No.: TR10-12134F (Rev.01) Date of Issue: February 27, 2012 KIND OF EQUIPMENT: Embedded RFID Read/Write System MODEL: 4465872A APPLICANT: Oki Data Corporation FCC ID: B2K-4465872A TEST STANDARD(S): FCC Part 15 Subpart C, Section 15.225 TEST RESULT: Complied The above equipment has been tested by EMC Kashima Corporation, and found compliance with the requirements of the above standards. The test result only responds to the tested sample. This test report shall not be reproduced except in full, without the written approval of EMC Kashima Corporation. The report must not be used to claim products endorsement by the accreditation or authorization body. The engineers of EMC Kashima Corporation were not involved in modification for the tested sample. TESTED DATE(S): January 31, February 1, 2012, June 22, 2011 TEST ENGINEER(S): Kazuhiro Ando Tadashi Kuroda Manager Assistant Manager APPROVED BY: Ken'ichi Suda Director EMC Kashima Corporation 1614 Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan TEL: +81-478-82-0963, FAX: +81-478-82-3373 TESTING CERTIFICATE 1266.01 Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 2 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F TABLE OF CONTENTS Page 1 General Information 3 2 Summary of Test Result 4 3 Equipment Under Test (EUT) 5 4 Test Configuration 6 5 Test Facilities 9 6 Measurement Uncertainty 9 7 Test Conditions 10 8 Test Data 15 8.1 Conducted Emissions (Mains) 150 kHz - 30 MHz 15 8.2 Radiated Emissions 9 kHz - 30 MHz 16 8.3 Radiated Emissions 30 MHz - 1000 MHz 18 8.4 Frequency stability 19 8.5 20dB Bandwidth 20 9 The Photos of Test-Setup 21 REVISION HISTORY Rev. Issue Date Revision Description Effect Page Revised By 00 February 14, 2012 Initial Issue All 01 February 27, 2012 Modifications to Section 8.2 Page 16-17 N. Tadokoro Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 3 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 1 GENERAL INFORMATION 1.1 APPLICANT Oki Data Corporation 1.2 ADDRESS 3-1, Futaba-cho, Takasaki-shi, Gunma-ken 370-8585, Japan 1.3 MANUFACTURER Oki Data Corporation 1.4 KIND OF EQUIPMENT Embedded RFID Read/Write System 1.5 MODEL 4465872A 1.6 POWER RATING DC 5V 0.2W 1.7 TESTING VOLTAGE DC 5V (AC120V, 60Hz for Printer) 1.8 CONDITION OF EUT Pre-Production 1.9 OPERATING FREQUENCY 13.56MHz 1.10 TYPE OF MODURATION ASK 1.11 OPERATING TEMPERATUR 10 °C to 32 °C 1.12 TEST STANDARD(S) FCC Part 15 Subpart C, Section 15.225 1.13 TEST METHOD(S) ANSI C63.4: 2003 1.14 TESTED DATE(S) January 31, February 1, 2012, June 22, 2011 1.15 REMARK(S) The EUT is based on the model 4465871A (FCC ID: B2K-4465871A) and the difference between them is only their antenna cable. The PCB of the EUT remains unchanged from the model 4465871A. Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 4 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 2 SUMMARY OF TEST RESULT 2.1 Test Result FCC Part 15 Section Test Item Worst margin Condition Result 15.203 Antenna requirement - - Pass Note1 15.207 Conducted emissions 9kHz - 30MHz 29.0dB at 13.5600MHz - Pass 15.225(a)(b)(c) Radiated emissions 9kHz - 30MHz 77.4dB at 13.5600MHz Radiated Pass 15.225(d) Radiated emissions 9kHz - 30MHz 45.9dB at 27.1200MHz Radiated Pass 15.225(d) 15.209 Radiated emissions 30MHz - 1GHz 6.5dB at 461.03MHz Radiated Pass 15.225(e) Frequency stability 0.0004% Conducted Pass 15.215(c) 20dB Bandwidth 6.90kHz Radiated Pass Note 1: Users cannot replace the antenna since it is attached to the inside of the printer. Note 2: “Pass” is only based on the measurement data and it does not include the measurement uncertainty. Accordingly, the statement below is applied to the test result. - It is possible to determine compliance at a level of confidence of 95% in case that the margin is not less than the measurement uncertainty in the Laboratory. - It is not possible to determine compliance at a level of confidence of 95% in case that the margin is less than the measurement uncertainty in the Laboratory. However, the measured result indicates that the product tested complies with the specification limit. Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 5 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 3 EQUIPMENT UNDER TEST 3.1 Description of The EUT The RFID equipment we'll make an application is built in a printer and is used for checking remaining amount of the toner. 3.2 Operation - mode of The EUT The equipment under test was operated during the measurement under following conditions: - Transmitting and Receiving mode (with Passive Tag) Test Report No.: TR10-12134F (Rev.01) Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 6 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 4 TEST CONFIGURATION 4.1 EUT(s) and Peripheral(s) Equipment Name Model Serial No. Company FCC ID A RFID Module (EUT) 4465872A 1 (for Conducted Emissions) 2 (for Frequency Stability) 3 (for Other Emissions) Oki Data Corporation B2K-4465872A B - E Antenna Unit (EUT) - - Oki Data Corporation B2K-4465872A F - M Tag (EUT) - - Oki Data Corporation B2K-4465872A N Micro-Computer for Test (Support equipment) None None Oki Data Corporation N/A O DC Power Supply GSV3000 60646742 DIAMOND ANTENNA N/A P Printer N35103A BETA100025A0 Oki Data Corporation DoC* *Note: Declaration of Conformity N/A: Not Applicable 4.2 Cable(s) Used Cable Name Length Shi…

Text truncated - open the document above for the full version.

Test Report No.: TR10-12134F Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 21 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 9 THE PHOTOS OF TEST-SETUP 9.1 Conducted Emissions 150 kHz - 30 MHz Test Report No.: TR10-12134F Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 22 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 9.2 Radiated Emissions 9 kHz - 1000 MHz Test Report No.: TR10-12134F Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 23 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F Radiated Emissions 9 kHz - 30 MHz (Antenna polarization: Horizontal setup) Test Report No.: TR10-12134F Model: 4465872A FCC ID: B2K-4465872A EMC Kashima Corporation Page 24 of 24 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan http://www.emc-kashima.co.jp Ver.8.8F 9.3 Frequency Stability
