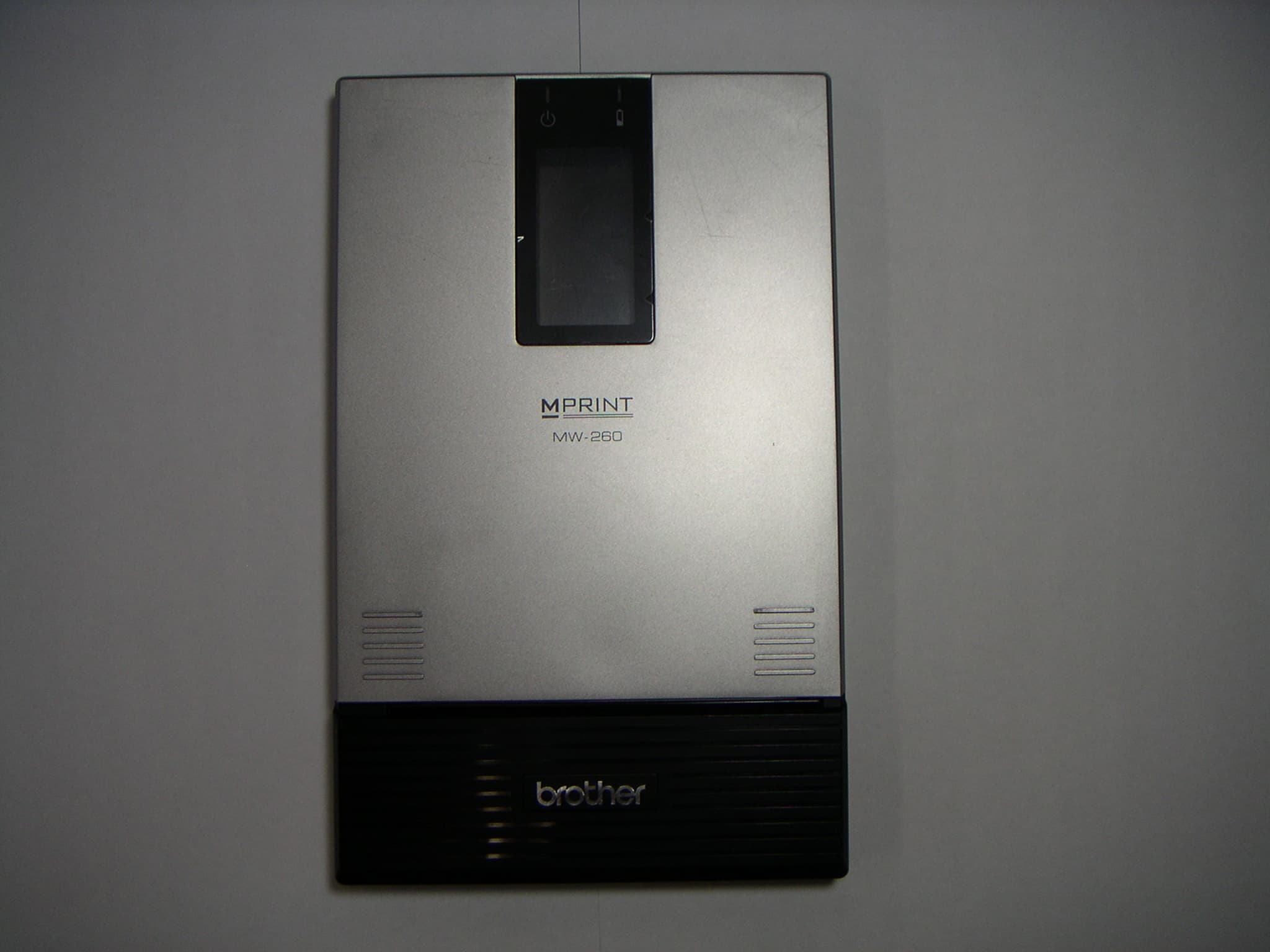

zBefore using this printer, be sure to read this User’s Guide. zWe suggest that you keep this manual in a handy place for future reference. User’s Guide General Description Operating Procedures Appendix, etc. MW-260 Mobile Printer Introduction i Thank you for purchasing the MPrint MW-260 (hereafter referred to as “the printer”). This monochrome thermal mobile printer is ultra-portable and can be connected to a Pocket PC (PDA running Pocket PC) or a computer to make quick printouts. This User’s Guide contains operating precautions and instruc- tions. Before using this printer, be sure to read this manual for information on its correct operation. In addition, we suggest that you keep this manual in a handy place for future reference. Introduction MW-260 Quick Guide (English) 1 Federal Communications Commission (FCC) Declaration of Conformity (For USA Only) Responsible Party:Brother International Corporation 100 Somerset Corporate Boulevard Bridgewater, NJ 08807-0911 USA TEL : (908) 704-1700 declares that the product Product Name : Brother MPrint MW-260 Model Number : MW-260 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio / TV technician for help. -Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to operate the equipment. FCC WARNING -This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. MW-260 Quick Guide (English) 2 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS . The contents of this manual are subject to change without notice. The contents of this manual may not be duplicated or reproduced, partially or in full, without permission. Please note that we assume no responsibility for damages arising from earthquakes, fire, other disasters, actions of third parties, the user's intentional or negligent operation, misuse or operation under other special conditions. Please note that we assume no responsibility for damage (such as losses, loss of business profits, lost profits, business disruptions or a lost means of communication) that may result from the use or inability to use this printer. If this printer should be defective due to faulty manufacturing, we shall replace it during the warranty period. We assume no responsibility for damages that may result from incorrect operation of this printer by connecting incompatible equipment or using incompatible software. Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation in the United States and other countries. The Bluetooth ® word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by Brother Industries, Ltd. under license. This product contains IrFront of ACCESS CO., LTD. Copyright (C) 1996-2006 ACCESS CO., LTD. ACCESS and IrFront are trademarks or registered trademarks of ACCESS CO., LTD. in Japan and other countries. All other software and product names mentioned are trade- marks or registered trademarks of their respective companies. MW-260 Quick Guide (English) 3 1) What is Bluetooth? Bluetooth is a type of short-range wireless technology that provides wireless connectivity to users of computers and PDAs equipped with Bluetooth. 2) Precautions for using Bluetooth Wireless connections are used in a wide range of fields. Therefore, in order to prevent malfunctions with the following, Bluetooth should be turned off. • Hospitals • Aircraft • Gasoline/Petrol stations • Fire alarms 3) For better transmission Bluetooth connectivity varies greatly according to its operating environment. If a good connection cannot be achieved, try connecting again. Connections are difficult to achieve in the following locations. • Near electronic equipment • Near broadcasting stations or wireless base stations • Near wireless LAN (IEEE802.11) 4) Other features of Bluetooth technology • Equipment using Bluetooth technology may require a few seconds until the Bluetooth function can be used after it is turned on. This length of time differs depending on the equipment. (This unit requires a maximum of 8 seconds.) Precautions v Precautions indicated as shown below contain important safety information and should be strictly observed. If the printer malfunctions, immediately stop using it, and then contact the sales representative where it was purchased. The meanings for marks used in this manual are described below. Precautions Danger Failure to accurately observe instructions ma…

Text truncated - open the document above for the full version.

Motor Driver IrDA Module Flash memory Bluetooth Module SDRAM CPU USB connector DC connector Bluetooth Antenna Main SW Battery connector Motor Li-ion Battery

Gain (with cable loss correction) Ceramic antenna YCE-5207 test data (030123) Application : For Bluetooth Antenna model : YCE-5207 Measurement institution : Yokowo No.3 radio measuring site Condition : Completed sample Date : 2003/01/23 Antenna matching : Parallel 0.75pF Measured by : I.Tuzuku Correction of cable loss : 0.7dB f=2400MHz Peak Gain Avg. Gain Tx H & V Avg. Each freq. Avg. [dBi] [dBi] [dBi] [dBi] Horizontal -7.25 -11.51 Vertical -5.40 -10.43 Horizontal -5.94 -11.24 Vertical -2.48 -8.37 Horizontal 0.65 -5.29 Vertical -6.26 -10.98 f=2442MHz VSWR Peak Gain Avg. Gain Tx H & V Avg. Each freq. Avg. [dBi] [dBi] [dBi] [dBi] Horizontal -6.67 -11.27 Vertical -4.33 -9.29 Horizontal -5.16 -11.00 Vertical -2.45 -8.33 Horizontal 0.77 -4.84 Vertical -7.65 -12.59 f=2484MHz Peak Gain Avg. Gain Tx H & V Avg. Each freq. Avg. [dBi] [dBi] [dBi] [dBi] Horizontal -5.35 -10.60 Vertical -4.12 -8.56 Horizontal -5.07 -10.75 Vertical -1.69 -7.83 Horizontal -0.90 -5.73 Vertical -7.13 -12.53 1112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Personal Communication Antenna TEL +81 274-62-2127 FAX +81 274-62-2031 dBidBidBi -7.4-8.8 X-Y plane all average (all frequency) Y-Z plane all average (all frequency)Z-X plane all average (all frequency) All plane & all frequency average -10.1 -9.4 dBi Plane Tx Y-Z -9.5 -8.7 Z-X -7.2 X-Y -10.2 -8.8 Z-X -7.9 X-Y -9.5 Y-Z -9.0 Z-X -7.3 Plane Tx -10.9 Y-Z -9.6 -9.0 Plane Tx X-Y Ceramic antenna YCE-5207 test data (030123) Measurement condition Field pattern X-Y plane Antenna coordinated 1112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Personal Communication Antenna TEL +81 274-62-2127 FAX +81 274-62-2031 2.5m 4m DUT Tx:W ridged horn Antenna X Y X Y Z -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ① -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ② -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ③ -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ④ Line No. Frequency[MHz] MEMO MAX.[dBm] MAX. Gain[dBi] AVG. Gain[dBi] 1 ① 2400.00 Tx-H -20.35 -7.95 -12.21 2 ① 2400.00 Tx-V -18.50 -6.10 -11.13 3 ② 2442.00 Tx-H -19.50 -7.37 -11.97 4 ② 2442.00 Tx-V -17.16 -5.03 -9.99 5 ③ 2484.00 Tx-H -18.56 -6.05 -11.30 6 ③ 2484.00 Tx-V -17.33 -4.82 -9.26 ブラザ ー 工業 030123 - 025 .ant I.Tuzuku03年01月23日XB YCE-5207 X-Y All AVG.All MAX. AVG. -10.85[dBi]-6.08[dBi] Ceramic antenna YCE-5207 test data (030123) Field pattern Z-Y plane Field pattern Z-X plane 1112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Personal Communication Antenna TEL +81 274-62-2127 FAX +81 274-62-2031 -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ① -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ② -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ③ -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ④ Line No. Frequency[MHz] MEMO MAX.[dBm] MAX. Gain[dBi] AVG. Gain[dBi] 1 ① 2400.00 Tx-H -19.04 -6.64 -11.94 2 ① 2400.00 Tx-V -15.58 -3.18 -9.07 3 ② 2442.00 Tx-H -17.99 -5.86 -11.77 4 ② 2442.00 Tx-V -15.28 -3.15 -9.03 5 ③ 2484.00 Tx-H -18.28 -5.77 -11.45 6 ③ 2484.00 Tx-V -14.90 -2.39 -8.53 ブラザ ー 工業 030123 - 027 .ant I.Tuzuku03年01月23日XB YCE-5207 Y-Z All AVG.All MAX. AVG. -10.06[dBi]-4.20[dBi] Y Z X Z -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ① -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ② -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ③ -55.0-45.0-35.0-25.0-15.0 -5.0 [Deg] 0 180 -90 90 ④ Line No. Frequency[MHz] MEMO MAX.[dBm] MAX. Gain[dBi] AVG. Gain[dBi] 1 ① 2400.00 Tx-H -12.45 -0.05 -5.99 2 ① 2400.00 Tx-V -19.36 -6.96 -11.68 3 ② 2442.00 Tx-H -12.06 0.07 -5.54 4 ② 2442.00 Tx-V -19.78 -7.65 -12.59 5 ③ 2484.00 Tx-H -14.11 -1.60 -6.43 6 ③ 2484.00 Tx-V -20.34 -7.83 -13.23 ブラザ ー 工業 030123 - 029 .ant I.Tuzuku03年01月23日XB YCE-5207 Z-X All AVG.All MAX. AVG. -8.10[dBi]-2.69[dBi]

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 Equipment MW-260 Manufacturer Brother Industries, Ltd. where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: -0.08 (dBm) Maximum peak output power at antenna input terminal: 0.981747943 (mW) Antenna gain(typical): 9.8 (dBi) Maximum antenna gain: 9.54992586 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2441 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.00245043 (mW/cm^2) Power density at prediction frequency: 0.001865 (mW/cm^2) Maximum allowable antenna gain: 37.10332762 (dBi) Margin of Compliance: 27.30332762 2 4 R PG S π =
