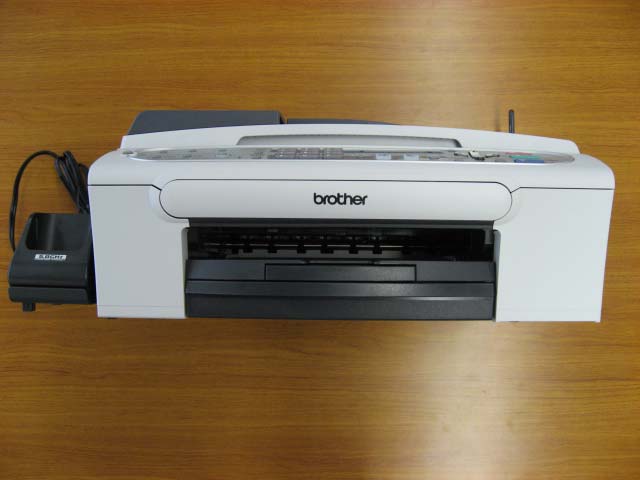

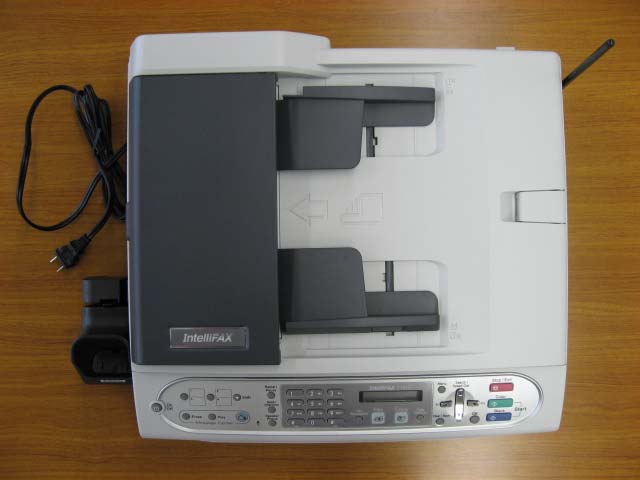

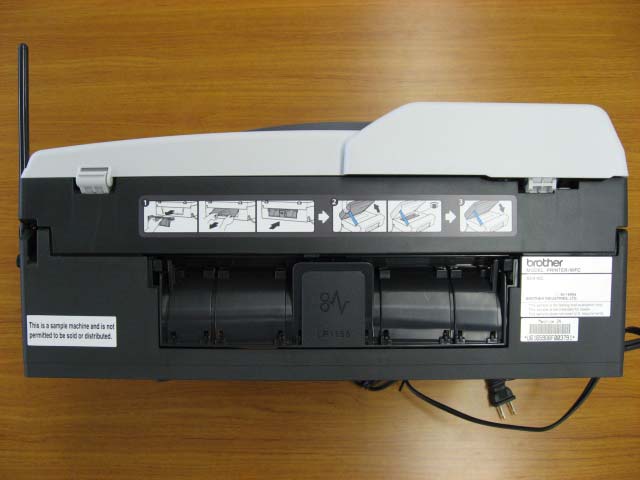

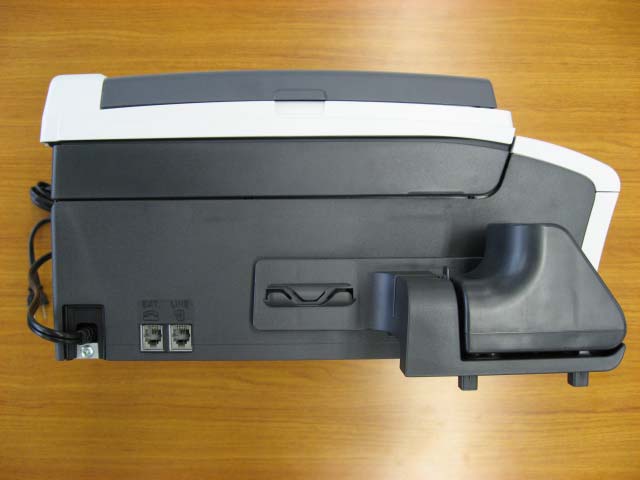

External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 Top Bottom External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 Front Back External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 Side 1 Side 2

Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 Over View 1/4λdipole antenna Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 Wire antenna RF Module Top (with cover) Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 RF Module Bottom RF Module (cover off) 1 Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-2580C) FCC ID: B3Q8CAA20 RF Module (cover off) 2

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: BROTHER INDUSTRIES LTD. Type of Equipment : Fascimille Machine Model No. : FAX-2580C FCC ID: B3Q8CAA20 BROTHER INDUSTRIES LTD. declares that Model : FAX-2580C ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FAX-2580C“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 65.46 mW (Maximum peak output power) G = 1.05 Numerical Antenna gain; equal 0.20 dBi r =20.0 cm For: FAX-2580CS = 0.01364 mW/cm 2 No. : 26KE0022-HO-C RF Exposure / SAR Statement

Test report No. : 26KE0022-HO-C Page : 15 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/07/26 23:44:31 Company: BROTHER INDUSTRIES, LTD.Report No.:26KE0022-HO Kind of EUT : Facsimile machinePower:AC 120V/ 60Hz Model No. : FAX-2580C Temp./Humi.:26 deg.C / 58% Serial No. : 0001 Operator:Yutaka Yoshida Mode / Remarks : Tx ch1(5725.809328MHz) LIMIT : FCC15C §15.207 (QP）/ RSS-Gen FCC15C §15.207 (AV）/ RSS-Gen CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA N :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA L :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26KE0022-HO-C Page : 16 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/07/26 23:52:23 Company: BROTHER INDUSTRIES, LTD.Report No.:26KE0022-HO Kind of EUT : Facsimile machinePower:AC 120V/ 60Hz Model No. : FAX-2580C Temp./Humi.:26 deg.C / 58% Serial No. : 0001 Operator:Yutaka Yoshida Mode / Remarks : Tx ch71(5788.240269MHz) LIMIT : FCC15C §15.207 (QP）/ RSS-Gen FCC15C §15.207 (AV）/ RSS-Gen CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA N :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA L :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26KE0022-HO-C Page : 17 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/07/26 23:52:23 Company: BROTHER INDUSTRIES, LTD.Report No.:26KE0022-HO Kind of EUT : Facsimile machinePower:AC 120V/ 60Hz Model No. : FAX-2580C Temp./Humi.:26 deg.C / 58% Serial No. : 0001 Operator:Yutaka Yoshida Mode / Remarks : Tx ch71(5788.240269MHz) LIMIT : FCC15C §15.207 (QP）/ RSS-Gen FCC15C §15.207 (AV）/ RSS-Gen CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << QP/AV DATA L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 _ Frequency _ Reading Level _ Reading Level _ Corr. _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Comment _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ Comment _ [MHz] _ [dBuV] _ [dBuV] _ [dB] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ Comment _ 0.15000 _ 55.2 _ 26.4 _ 0.1 _ 55.3 _ 26.5 _ 66.0 _ 56.0 _ 10.7 _ 29.5 _ L _ 0.15000 _ 54.9 _ 25.9 _ 0.1 _ 55.0 _ 26.0 _ 66.0 _ 56.0 _ 11.0 _ 30.0 _ N _ 0.18236 _ 51.9 _ 38.2 _ 0.1 _ 52.0 _ 38.3 _ 64.4 _ 54.4 _ 12.4 _ 16.1 _ N _ 0.19095 _ 51.1 _ 31.6 _ 0.1 _ 51.2 _ 31.7 _ 64.0 _ 54.0 _ 12.8 _ 22.3 _ L _ 0.22783 _ 47.7 _ 39.5 _ 0.1 _ 47.8 _ 39.6 _ 62.5 _ 52.5 _ 14.7 _ 12.9 _ L _ 0.22832 _ 47.5 _ 38.1 _ 0.1 _ 47.6 _ 38.2 _ 62.5 _ 52.5 _ 14.9 _ 14.3 _ N _ 0.27225 _ 44.3 _ 35.9 _ 0.1 _ 44.4 _ 36.0 _ 61.0 _ 51.0 _ 16.6 _ 15.0 _ N _ 0.27058 _ 44.4 _ 37.4 _ 0.1 _ 44.5 _ 37.5 _ 61.1 _ 51.1 _ 16.6 _ 13.6 _ L _ 0.49824 _ 37.4 _ 33.3 _ 0.1 _ 37.5 _ 33.4 _ 56.0 _ 46.0 _ 18.5 _ 12.6 _ N _ 0.49465 _ 42.4 _ 40.3 _ 0.1 _ 42.5 _ 40.4 _ 56.1 _ 46.1 _ 13.6 _ 5.7 _ L _ 8.24923 _ 38.2 _ 27.2 _ 0.5 _ 38.7 _ 27.7 _ 60.0 _ 50.0 _ 21.3 _ 22.3 _ L _ 8.28870 _ 36.6 _ 24.9 _ 0.6 _ 37.2 _ 25.5 _ 60.0 _ 50.0 _ 22.8 _ 24.5 _ N _ 24.19233 _ 29.0 _ 28.2 _ 1.0 _ 30.0 _ 29.2 _ 60.0 _ 50.0 _ 30.0 _ 20.8 _ N _ 24.19261 _ 29.1 _ 28.8 _ 1.0 _ 30.1 _ 29.8 _ 60.0 _ 50.0 _ 29.9 _ 20.2 _ L Test report No. : 26KE0022-HO-C Page : 18 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/07/26 23:59:19 Company: BROTHER INDUSTRIES, LTD.Report No.:26KE0022-HO Kind of EUT : Facsimile machinePower:AC 120V/ 60Hz Model No. : FAX-2580C Temp./Humi.:26 deg.C / 58% Serial No. : 0001 Operator:Yutaka Yoshida Mode / Remarks : Tx ch139(5848.889420MHz) LIMIT : FCC15C §15.207 (QP）/ RSS-Gen FCC15C §15.207 (AV）/ RSS-Gen CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA N :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA L :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26KE0022-HO-C Page : 19 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) …

Text truncated - open the document above for the full version.

Test report No. : 26KE0022-HO-C Page : 1 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) RADIO TEST REPORT Test Report No. : 26KE0022-HO-C Applicant : BROTHER INDUSTRIES, LTD. Type of Equipment : Facsimile Machine Model No. : FAX-2580C FCC ID : B3Q8CAA20 Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247: 2006 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ _____________________________ Yutaka Yoshida EMC Services Takumi Shimada EMC Services Approved by : _____________________________ Hironobu Shimoji Group Leader of EMC Services July 21 to 27, 2006 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://ulapex.jp/emc/nvlap.htm Test report No. : 26KE0022-HO-C Page : 2 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ........................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)....................................................................................................... 3 SECTION 3: Test specification, procedures & results........................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................................................ 7 SECTION 5: Conducted Emission........................................................................................................................ 9 SECTION 6: Spurious Emission......................................................................................................................... 10 SECTION 7: Bandwidth ...................................................................................................................................... 11 SECTION 8: Maximum Peak Output Power .................................................................................................... 11 SECTION 9: Carrier Frequency Separation ..................................................................................................... 11 SECTION 10: Number of Hopping Frequency ................................................................................................. 11 SECTION 11: Dwell time .................................................................................................................................... 11 APPENDIX 1: Photographs of test setup ........................................................................................................... 12 Conducted Emission ............................................................................................................................................12 Spurious Emission (Radiated) ............................................................................................................................13 Worst Case Antenna Position ( 0deg.:Horizontal / 90deg.:Vertical)...............................................................14 APPENDIX 2: Data of EMI test........................................................................................................................... 15 Conducted Emission ............................................................................................................................................15 Carrier Frequency Separation ...........................................................................................................................19 20dB Bandwidth ..................................................................................................................................................21 Number of Hopping Frequency..........................................................................................................................23 Dwell time.............................................................................................................................................................25 Maximum Peak Output Power...........................................................................................................................27 Radiated Spurious Emission ...............................................................................................................................28 Conducted Spurious Emission............................................................................................................................34 APPENDIX 3: Test Instruments .......................................................................................................................... 41 Test report No. : 26KE0022-HO-C Page : 3 of 41 Issued date : August 11, 2006 FCC ID : B3Q8CAA20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name BROTHER INDUSTRIES,LTD. Brand name brother Address 1-1-1, Kawagishi, Mizuho-ku, Nagoya 467-8562, Japan Telephone Number +81-52-824-2348 Facsimile Number +81-52-824-2734 Contact …
