B3Q8XAB07Spread Spectrum Transmitter

USER’S GUIDE MFC-3360C FAX-1860C FAX-1960C If you need to call Customer Service Please complete the following information for future reference: Model Number: MFC-3360C, FAX-1860C and FAX-1960C (USA only) (Circle your model number) Serial Number: 1 Date of Purchase: Place of Purchase: 1 The serial number is on the back of the unit. Retain this User's Guide with your sales receipt as a permanent record of your purchase, in the event of theft, fire or warranty service. Register your product on-line at http://www.brother.com/registration/ By registering your product with Brother, you will be recorded as the original owner of the product. Your registration with Brother: „may serve as confirmation of the purchase date of your product should you lose your receipt; „may support an insurance claim by you in the event of product loss covered by insurance; and, „will help us notify you of enhancements to your product and special offers. The most convenient and efficient way to register your new product is on- line at http://www.brother.com/registration/ © 2006 Brother Industries, Ltd. i Brother numbers IMPORTANT For technical help, you must call the country where you bought the machine. Calls must be made from within that country. Register your product By registering your product with Brother International Corporation, you will be recorded as the original owner of the product. Your registration with Brother: „may serve as confirmation of the purchase date of your product should you lose your receipt; „may support an insurance claim by you in the event of product loss covered by insurance; and, „will help us notify you of enhancements to your product and special offers. Please complete and fax the Brother Warranty Registration And Test Sheet or, for your convenience and most efficient way to register your new product, register on-line at http://www.brother.com/registration/ FAQs (frequently asked questions) The Brother Solutions Center is our one-stop resource for all your Fax Machine/Multi-Function Center needs. You can download the latest software documents and utilities, read FAQs and troubleshooting tips, and learn how to get the most from your Brother product. http://solutions.brother.com Note • You can check here for Brother driver updates. • To keep your machine performance up to date, check here for the latest firmware upgrade (for Windows ® only). ii For Customer Service Service Center Locator (USA only) For the location of a Brother authorized service center, call 1-800-284-4357. Service Center Locations (Canada only) For the location of a Brother authorized service center, call 1-877-BROTHER. Brother fax back system (USA only) Brother has installed an easy-to-use fax back system, so you can get instant answers to common technical questions and product information for all Brother products. This system is available 24 hours a day, 7 days a week. You can use the system to receive faxed instructions and an Index of fax back subjects. In USA:1-800-284-4329 (voice) 1-901-379-1215 (fax) 1-800-284-3238 (TTY service for the hearing-impaired) In Canada:1-877-BROTHER (voice) (514) 685-4898 (fax) In USA only:1-800-521-2846 iii Ordering accessories and supplies For best quality results use only genuine Brother accessories, which are available at most Brother retailers. If you cannot find the accessory you need and you have a Visa, MasterCard, Discover, or American Express credit card, you can order accessories directly from Brother. (In the USA, you can visit us online for a complete selection of the Brother accessories and supplies that are available for purchase.) 1 Available in the USA and from November 2006 in Canada. In USA:1-888-879-3232 (voice) 1-800-947-1445 (fax) http://www.brothermall.com In Canada:1-877-BROTHER (voice) DescriptionItem Ink Cartridge Standard <black>LC51BK (Prints approx. 500 pages) Ink Cartridge <yellow>LC51Y (Prints approx. 400 pages) Ink Cartridge <cyan> (blue)LC51C (Prints approx. 400 pages) Ink Cartridge <magenta> (red)LC51M (Prints approx. 400 pages) Premium Glossy Photo Paper (Letter size / 20 sheets) (4"X6" size / 20 sheets) BP61GLL 1 BP61GLP 1 Matte Inkjet Paper (Letter size / 25 sheets) BP60ML (USA only) Inkjet Plain Paper (Letter size / 250 sheets) BP60PL (USA only) Telephone Line CordLG3077001 (USA only) Telephone HandsetLF3800004 (USA only) Handset Curled CordLG 3768004 (USA only) Cordless HandsetBCL-D10 (FAX-1960 only) Battery of cordless handsetBCL-BT10 (FAX-1960 only) User's GuideLP3293001 (English for USA and Canada) LP3293002 (French for Canada) iv Notice - Disclaimer of Warranties (USA and Canada) BROTHER'S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS (COLLECTIVELY BROTHER'S LICENSOR) MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE SOFTWARE. BROTHER'S LICENSOR(S) DOES NOT WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES IN THE USA AND SOME PROVINCES IN CANADA. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN NO EVENT WILL BROTHER'S LICENSOR(S) BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE EVEN IF BROTHER'S LICENSOR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES IN THE USA AND SOME PROVINCES IN CANADA DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. IN ANY EVENT BROTHER'S LICENSOR'S LIABILITY TO YOU FOR ACTUAL DAMAGES FROM ANY CAUSE WHATSOE…

Text truncated - open the document above for the full version.

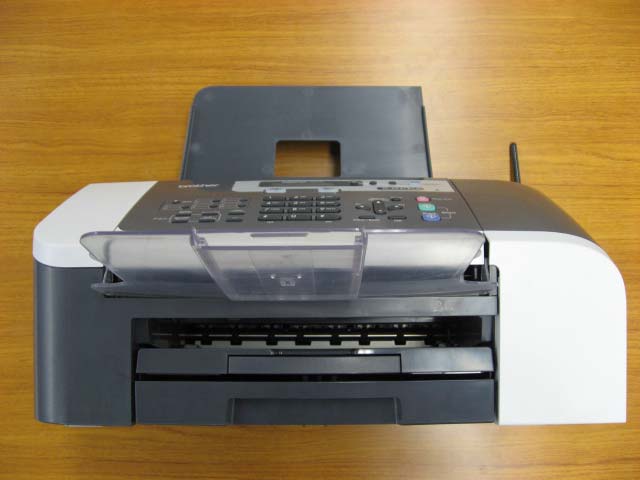

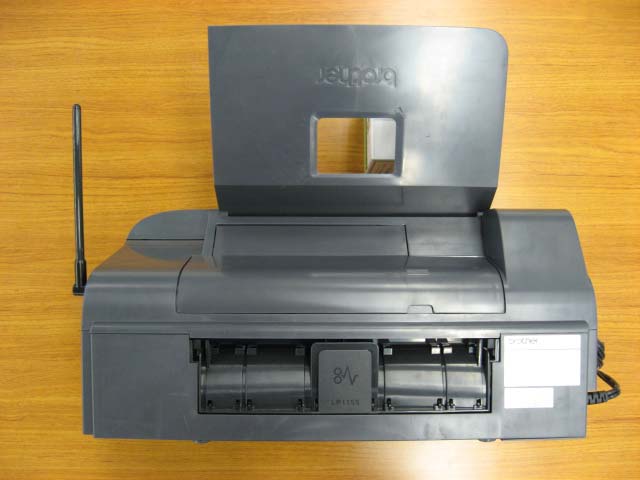

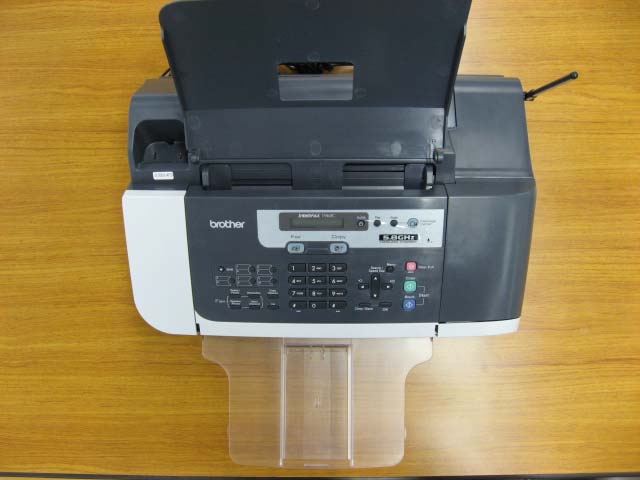

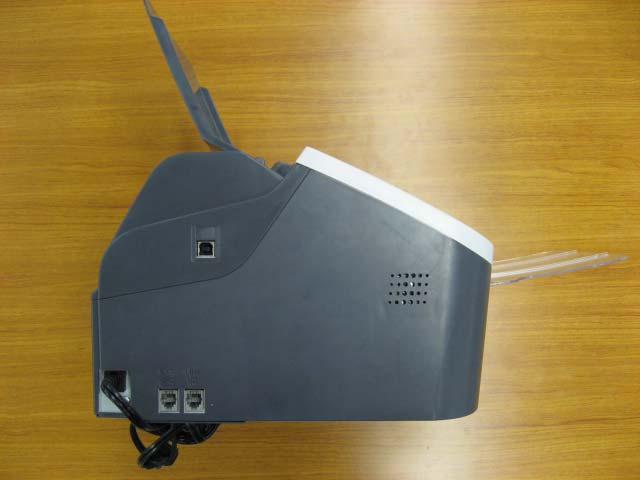

External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 Top Bottom External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 Front Back External Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 Side 1 Side 2

Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 Over View 1/4λdipole antenna Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 Wire antenna RF Module Top (with cover) Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 RF Module Bottom RF Module (cover off) 1 Internal Photo BROTHER INDUSTRIES,LTD. Facsimile Machine (Model: FAX-1960C) FCC ID: B3Q8XAB07 RF Module (cover off) 2

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: BROTHER INDUSTRIES, LTD. Type of Equipment : Fascimile Machine Model No. : FAX-1960C FCC ID: B3Q8XAB07 BROTHER INDUSTRIES, LTD. declares that Model No. : FAX-1960C ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “FAX-1960C“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 54.45 mW (Maximum peak output power) G = 1.29 Numerical Antenna gain; equal 1.10 dBi r =20.0 cm For: FAX-1960CS = 0.01396 mW/cm 2 No. : 26KE0022-HO-E RF Exposure / SAR Statement

Test report No. : 26KE0022-HO-E Page : 2 of 47 Issued date : August 21, 2006 FCC ID : B3Q8XAB07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Conducted Emission......................................................................................................... 9 SECTION 6: Spurious Emission.......................................................................................................... 10 SECTION 7: Bandwidth ....................................................................................................................... 11 SECTION 8: Maximum Peak Output Power ..................................................................................... 11 SECTION 9: Carrier Frequency Separation ...................................................................................... 11 SECTION 10: Number of Hopping Frequency .................................................................................. 11 SECTION 11: Dwell time ..................................................................................................................... 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Conducted Emission(Without Digital Cordless Handset Charging) .............................................. 12 Conducted Emission (With Digital Cordless Handset Charging) .................................................. 13 Spurious Emission (Radiated) ........................................................................................................... 14 Worst Case Antenna Position (180 deg.: Horizontal: / 90 deg.: Vertical)...................................... 15 APPENDIX 2: Data of EMI test............................................................................................................ 16 Conducted Emission ........................................................................................................................... 16 Carrier Frequency Separation........................................................................................................... 24 20dB Bandwidth.................................................................................................................................. 26 Number of Hopping Frequency ......................................................................................................... 28 Dwell time ............................................................................................................................................ 30 Maximum Peak Output Power .......................................................................................................... 32 Radiated Spurious Emission .............................................................................................................. 33 Conducted Spurious Emission ........................................................................................................... 39 APPENDIX 3: Test instruments ........................................................................................................... 46 Test report No. : 26KE0022-HO-E Page : 3 of 47 Issued date : August 21, 2006 FCC ID : B3Q8XAB07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name BROTHER INDUSTRIES,LTD. Brand name brother Address 1-1-1, Kawagishi, Mizuho-ku, Nagoya 467-8562, Japan Telephone Number +81-52-824-2348 Facsimile Number +81-52-824-2734 Contact Person Katsuhiro Sato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment Facsimile Machine Model No. FAX-1960C Serial No. 0001, 0002 Rating AC100-120V Country of Manufacture China Receipt Date of Sample July 18, 2006 Condition of EUT Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. 2.2 Product Description 2.2.1 General Information Feature of EUT EUT is a composite device with the function of FAX, Scanner, Copy, Printer, and cordless phone. Operation Clock 13.824MHz 2.2.2 Radio Specification Equipment Type Transceiver Frequency band Low Channel = 5725.809328 MHz High Channel = 5848.889420 MHz Bandwidth & Channel spacing Bandwidth: 1MHz Channel spacing: 891.871kHz Type of Modulation FHSS Antenna Type 1/4 lambda dipole antenna (Installed outside) *1) Wire antenna (Installed inside) Antenna Connector Type N/A Antenna Gain 1.1 dBi(Max) : 1/4 lambda dipole antenna *1) 2.6 dBi(Max) : Wire antenna Power Supply (inner/to RF Module) DC +3.3V Method of Frequency Generation Synthesizer *1) This antenna is used in priority to another antenna for this EUT system. Test report No. : 26KE0022-HO-E Page : 4 of 47 Issued date : August 21, 2006 FCC ID : B3Q8XAB07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2006 Section 15.247 Operation within the bands…
