T77H228 USB Wi-Fi Module USER MANUAL Project Name USB Wi-Fi Module Revision 00 Foxconn project code T77H228 Content 1. INTRODUCTION .......................................................................................................... 3 2. WIFI ALLIANCE CONFORMANCE ............................................................................. 4 3. HARDWARE SPECIFICATION.................................................................................... 5 4. PRODUCT REQUIREMENTS ...................................................................................... 5 5. INTERFACE OF CONNECTOR ................................................................................... 6 6. NOTICE ........................................................................................................................ 7 1. Introduction The T77H228.00 802.11b/g/n module provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This module is based on Broadcom BCM4319GKUBG P20 solution which is with integrated 2.4GHz IEEE802.11 b/g/n (MAC/baseband/radio), power amplifiers (PA), and power management unit (PMU). 1.1 Scope The wireless LAN is compliant to IEEE 802.11b and IEEE 802.11g and IEEE 802.11n standard. The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps. The data rate of 802.11g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps. The data rate of 802.11n is up to 65Mbps and fallback rates of 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps for HT20. And also provide 13.5, 27, 40.5, 54, 81, 108, 121.5, 135Mbps for HT40. 1.2 Function • RoHS and Green Compliant. • 1X1 IEEE802.11b/g/n based on Broadcom 4319 solution. • USB 2.0 Interface, High and Full Speeds supported. • Module is powered by the host with a 3.3V +/- 10% supply. • Two on-board PCB antennas. • DPDT switch for antenna diversity. 2. WIFI ALLIANCE CONFORMANCE The Module is certified by the Wi-Fi Alliance. The Module and standard PC driver passes the Wi-Fi System Interoperability Test Plan including the following: A. IEEE 802.11-2007 Standard for LAN/MAN Specific requirements Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications B. IEEE P802.11n-2009 Standard for Information Technology Telecommunications and information exchange between systems - Local and metropolitan area networks – Specific requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications Amendment 5: Enhancements for Higher Throughput C. Supported security: • WPA TM and WPA2 TM (Personal) support for powerful encryption and authentication • AES and TKIP acceleration hardware for faster data encryption • Secure Easy setup for simple Wi-Fi setup and WPA2/WPA security configuration 3. Hardware Specification 4. Product Requirements 4.1 Hardware Requirements Form factor 30 mm x30mm module with 6-pin W.T.B connector Host Interface USB2.0 interface PCB 4-layer design Antenna connector RF switch connector 4.2 Hardware Architecture The T77H228 802.11b/g/n module is based on Broadcom BCM4319 solution which is with integrated 2.4GHz IEEE802.11 b/g/n (MAC/baseband/radio), power amplifiers (PA), and power management unit (PMU).This module is powered from the host (3.3V) and interfaces to the host with USB 2.0 signals and with two on-board antennas for diversity and one on-board 30 MHz XTAL. The functional block diagram is shown as below. 5. Interface of connector Manufacturer Part number: S6B-PH-SM4-TB (LF) (SN) Pin Pin Name I/O Note 1 WL_REG_ON I Used by PMU to enable/disable power the internal regulators. 2 VDD3_3V USB power supply 3 DP I/O USB port data plus 4 DN I/O USB port data minus 5 GND 6 GND S1 GND S2 GND 6. Windows XP Wireless Utility and install Remark: The module is for printer, it is used in the Linux OS, so this Windows driver is just for reference. To install the USB driver files, complete below steps: 1, copy the USB driver files and save them to a directory on a local PC running windows XP. 2, Connect the device under test to a USB port on the local PC. Windows launches the found new hardware wizard. 3, choose install from a list or specific location (advanced), and then click next. 4, choose Don’t search, I will choose the driver to install, and then click Next. 5, Browse to the directory where the driver files are stored, and then click ok. 6, in the hardware installation confirmation window that appears clicks continue Anyway to continue the installation process. 7, when the driver installation process completes successfully, click Finish to close the wizard. 8, under Network adapters in Device Manager, make sure Broadcom 802.11n wireless USB adapter 43xx is listed. FCC Notice : Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to…

Text truncated - open the document above for the full version.

FCC ID: B3QT77H228 Report No.: RF991123E03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch December 28, 2010 Dear Application Examiner, BROTHER INDUSTRIES, LTD, device: a Wireless LAN module, FCC ID: B3QT77H228, would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4319. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM4319. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: B3QT77H228 Report No.: RF991123E03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

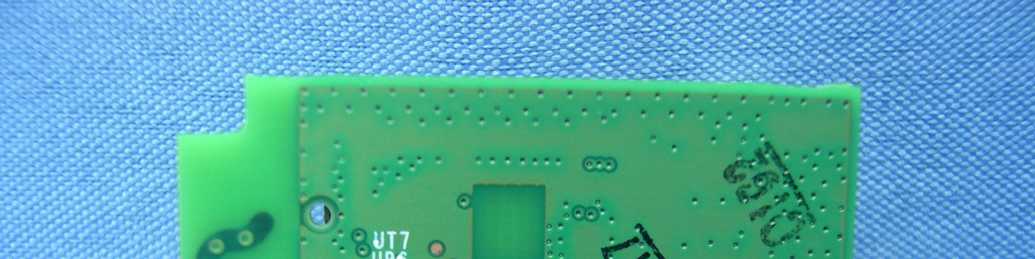

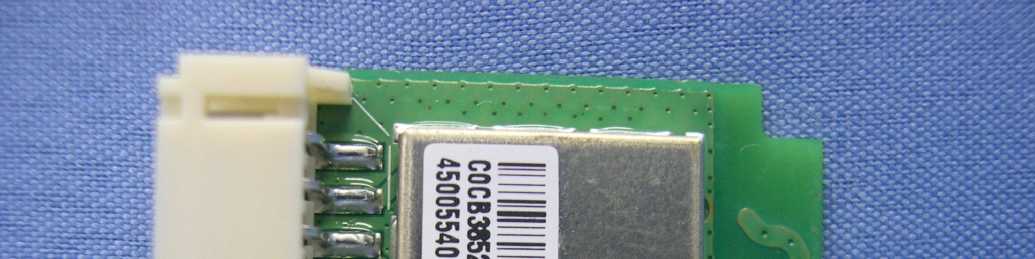

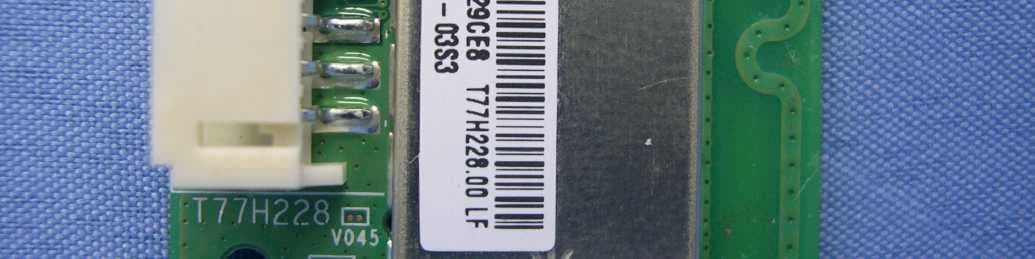

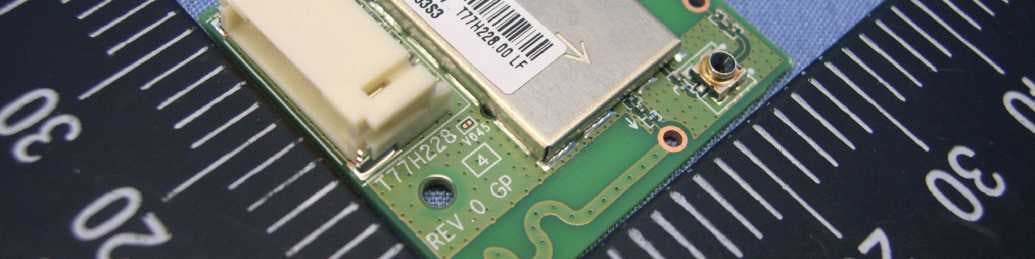

Page 1 CONSTRUCTION PHOTOS OF EUT With connector Page 2 Page 3 Without connector Page 4

(Fig. 1) FCC ID: B3QT77H228 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT With connector Without connector

FCC ID: B3QT77H228 Report No.: RF991123E03 Operational Description This device is an USB Wireless LAN module, which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3V±10%dc from the host equipment. The antennas are PCB antenna with MURATA / 8430-2610RB3 antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA991123E03 Report Format Version 4.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA991123E03 MODEL NO.: T77H228 FCC ID: B3QT77H228 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: BROTHER INDUSTRIES, LTD. ADDRESS: 15-1, Naeshiro-cho,Mizuho-ku,Nagoya, Aichi,Japan. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991123E03 Report Format Version 4.0.0. 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Dec. 27, 2010 Report No.: SA991123E03 Report Format Version 4.0.0. 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.1 2.53 20 0.115 1.00 ---END---
