B4S-XC30AWireless Color Camera

Trim to crop marks Trim to crop marks Trim to crop marks OWNER’S MANUAL PLEASE KEEP FOR FUTURE REFERENCE XCAM2 ™ AND WIDEEYE ™ INDOOR/OUTDOOR WIRELESS CAMERA SYSTEM Turn on the video receiver. Make sure the power switch on the video receiver is set to “ON.” Turn on your TV. Turn on your TV and select its video input. Use the Video or Select buttons on your TV remote control, or try channel 0 and then Channel Down. The camera’s picture should appear. Once the camera and receiver are in place, adjust their antennas so that they face each other. The side of the camera’s antenna with the dot on it should face the side of the receiver’s antenna marked with four squares. Adjust the positions to improve the picture on your TV. Fine tune the antennas. Options Mounting the Camera You can attach your camera to a wall using the supplied screws. Basic Camera Setup, cont.Basic Camera Setup, cont. 56 Trim to crop marks Trim to crop marks Trim to crop marks Fold Fold Fold Fold Congratulations! You have purchased X10’s most popular wireless camera system. Your XCam2 or Wide Eye is a powerful and versatile video solution. Your camera uses X10’s 900 Megahertz wireless technology to transmit live video through walls to a television up to 100 feet away. It’s also designed so that you can combine multiple cameras to provide comprehensive coverage of your home or business. This owner’s manual will take you through setting up and using the camera. The world of wireless video is waiting for you! X10 Wireless Technology, Inc. Limited One Year Warranty X10.com, a division of X10 Wireless Technology, Inc. (X10) warrants X10 products to be free from defective material and workmanship for a period of one (1) year from the original date of purchase at retail. X10 agrees to repair or replace, at its sole discretion, a defective X10 product if returned to X10 within the warranty period and with proof of purchase. If service is required under this warranty: Call 1-800-442-5065, visit www.x10.com, or e-mail [email protected]. For help or more information on setup, please visit: www.x10.com/support X10.com, a division of X10 Wireless Technology, Inc. 400 Forge Way, Rockaway, NJ 07866 9M XCam2-3/11 2 Trim to crop marks Trim to crop marks Your camera is ready to go out of the box! Follow these steps for a quick setup of your new Camera system. You should have: a camera and its power supply; a wireless video receiver and its power supply; and a video cable. Basic Camera Setup Connect the camera to power. Plug the camera’s power supply into a standard wall outlet. Plug the other end into the camera. Remove the protective cover from the camera’s lens. Connect the wireless video receiver to power. Put your video receiver in a convenient place near or on your TV. Plug its power supply into a standard wall outlet and the other end into the video receiver. Basic Camera Setup, cont. Connect the video receiver to your TV. Connect the video cable into the video-out jack on the video receiver and into the video-in jack on your TV. Recording with a VCR You can confi gure your XCam2 camera so that you can record its video signal on your VCR. It’s easy: 1. Make sure your VCR is connected to play back on your TV. 2. Set up your camera according to the instructions in steps 1 thru 7. 3. Connect the video cable from the video receiver into the Video In jack on your VCR. With the camera connected to the VCR, you will be able record surveillance video while watching on your TV. Check your VCR owner’s manual if you aren’t sure how to select the camera as the video source. Options, cont. Multi-Camera Systems How does it work? XCam2 cameras are designed so that you can use more than one camera together with one wireless video receiver. You select different cameras using a remote control. The cameras should be set in groups of four, i.e., A1, A2, A3, and A4, or A5, A6, A7, and A8. You change the setting by turning the dials on the camera’s power supply. Ensure all of your cameras are set to the same Housecode, e.g. A. Setting Up Multiple Cameras 1. Get together the parts of your multi-camera system: the cameras and power supplies, video receiver and power supply, video cable, transceiver module, and camera remote control. 2. Set up your fi rst camera and your video receiver according to the instructions in steps 1 thru 7. 3. Plug in the transceiver module and extend the antenna. 4. Remove the battery cover and put four AAA batteries into the remote. Make sure to match the batteries to the + and – marks inside the battery case. 34 78 Trim to crop marks Trim to crop marks Trim to crop marks Fold Fold Fold Fold Trim to crop marks Unpack these items. 5. Press 1 Off on the remote control to turn the fi rst camera off. 6. Set the dials on the second camera’s power supply to A and 2. 7. Connect the second camera to power. A picture will appear on your TV. 8. Press 1 On to switch to camera 1 and then 2 On to switch back to camera 2. Multi-Camera Systems, cont. Repeat steps 6 through 8 for each additional camera, changing the Unit Code as appropriate. For each extra camera, set the Unit Code (number) dial to the next number. For example, your third camera will be set to ‘3,’ your fourth camera set to ‘4’ and so on. Set all cameras to A. Cameras 1-4 on and off. Next/Previous camera. Write camera names here. Set House Code the same as cameras. Switching Cameras with the Remote To switch from one camera to another with the remote control, simply press the On button for that camera. For example, press 2 On to switch from the current camera to camera 2. When you do that, the current camera switches off and camera 2 switches on, displaying its picture. Note: If you have 8 cameras set up, before turning on a camera in group 1-4, turn off any cameras in group 5-8, and vice versa. Scanning Between Cameras with the Remote If you select a camera with the remote, you can then use the scan buttons to cycle through cameras 1 through 4. First select a camera using its On …

Text truncated - open the document above for the full version.

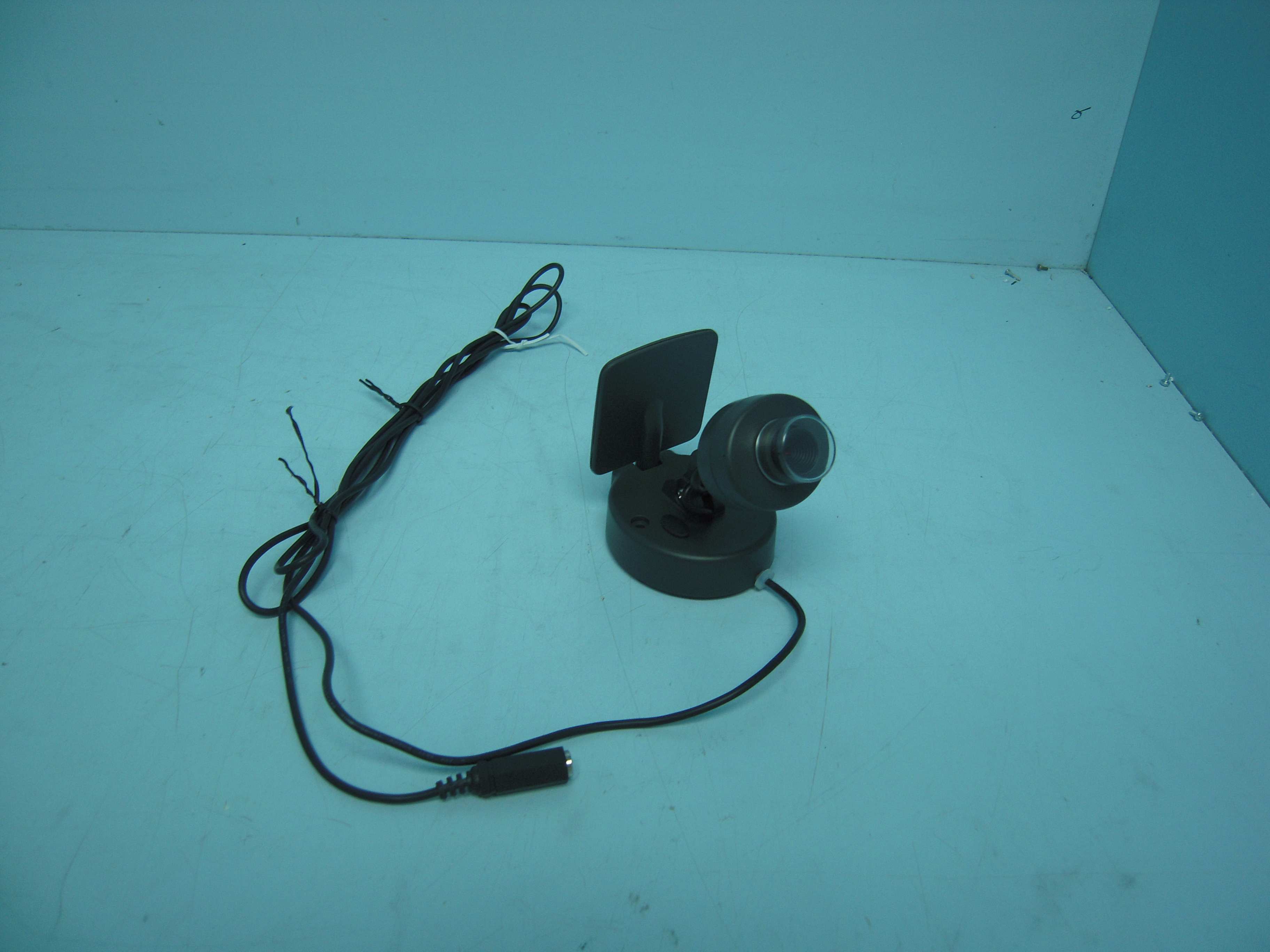

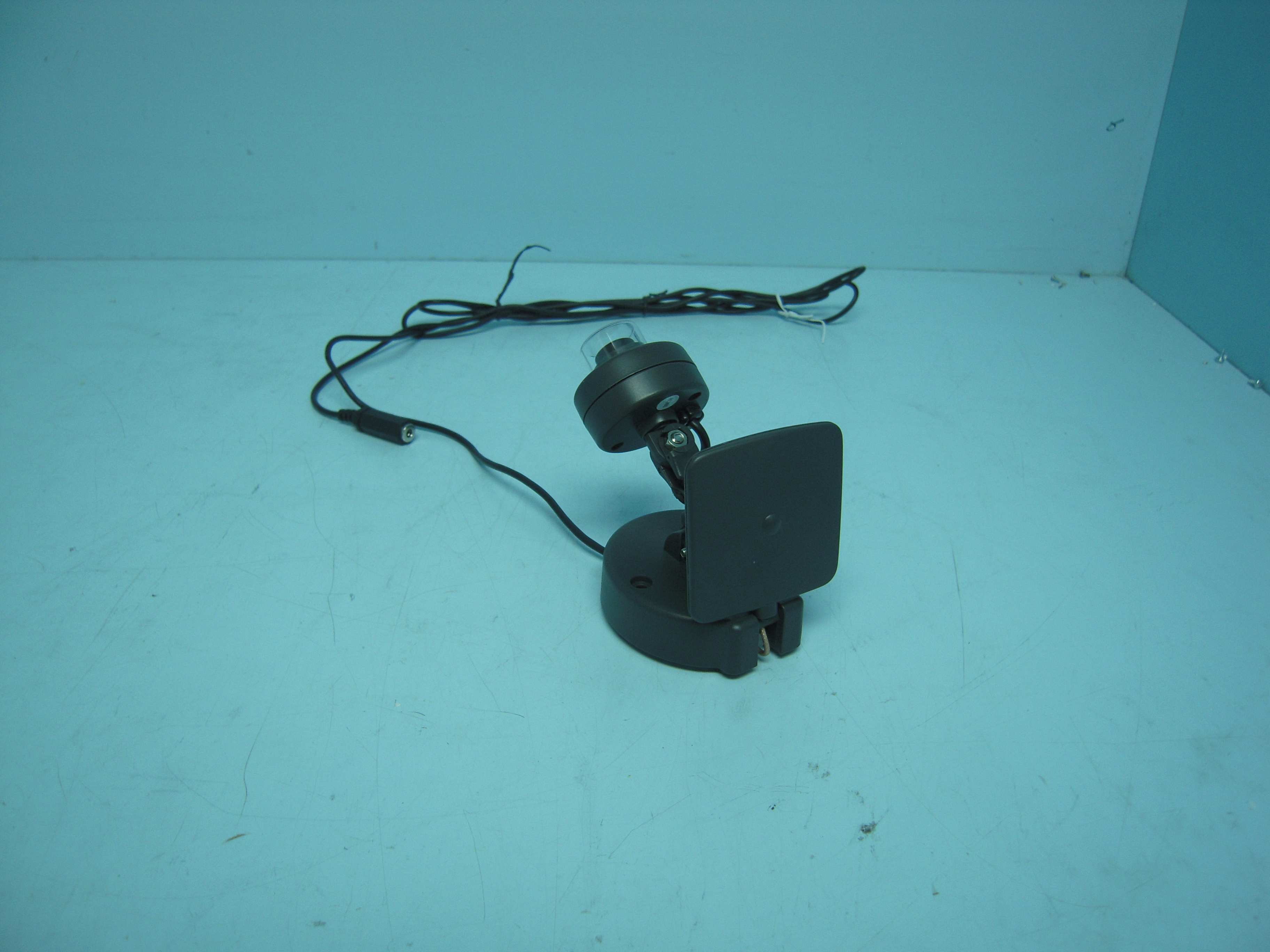

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT BOTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

XC30A – 900MHz camera Circuit Description XC30A is a 900MHz camera which converts video and audio to 900MHz RF signal. The modulation is FM. Here below are the list of major components and functions.  900MHz Transmitter module: a single chip which include 900MHz band FM modulator for video & audio signals and with reference crystal 8MHz. The fundamental frequency is 921MHz, single channel, channel bandwidth is 18MHz and modulation is FM.  CMOS camera module: a single chip 1/4” lens video camera which provide a NTSC composite video output and with reference crystal 14.318MHz  Antenna : dipole antenna ~ 81mm .

LKDesQtyUomAlt_partRef 0900MHZ WIDE ANGLE XCAM20 1OWNER'S MANUAL1EA 1GIFT BOX LABEL,XX31A1EA 1SHPG CTN BARCODE,XX31A0.056EA 1GIFTBOX X10-COM,YELLOW1EA 11-P CORR PAPER(30X28.5)CM0.028EA 12P CORR PAPER 45X32CM0.056EA 12P SHPG CTN0.028EA 1COVER1EA 1BUBBLE BAG1EA 1BUBBLE BAG 5.5"X8"1EA 1POLYBAG-SELF SEAL 2"X3.5"1EA 1WOOD SCREW M3.5X35 PD/NI2EA 1900M O/D CAM.WIDE ANGLE1EA 2LABEL-DATE CODE (WHITE)1EA 2SCREW RUBBER RING,ID2.3MM2EA 2RUBBER O-RING ID=361EA 2RUBBER O-RING ID=151EA 2DISK BOTT.1EA 2HINGE1EA 2SWITCH COVER1EA 2BRACKET1EA 2RUBBER RING, SHORE 'A'-301EA 2HINGE (GREY)1EA 2DISK TOP1EA 2CABLE TIE (696-40379) UL1EA 2STRAIN RELIEF BUSHING1EA 2TOP CABINET1EA 2BOTTOM CABINET (GREY)1EA 2BOTTOM COVER1EA 2TOP COVER1EA 2ANTENNA LABEL1EA 2RATING LABEL,XC31A1EA 2TUBE-HS 1.5MM BLACK0.065M 2TUBE-PVC 4.72MM TR0.008M 2FOAM2EA 2CABLE BUSH (CLEAR)1EA 2RUBBER MIC HOLDER1EA 2POWER CABLE BUSH (CLEAR)1EA 2ARON ALPHA ADHESIVE #2010.02GM 2HOT MELT GLUE,HE-38A1GM 2M/C SCREW M3X12 PM1EA 2M/C SCREW M4X10 PM1EA 2SCREW-PA M2.3X8 HEAD=M2.62EA 2SCREW-PA M2.3X7 HEAD=M2.62EA 2SCREW-PPTT M2.6X10 MS/ZP1EA 2M2.5 E-RING1EA 2NUT M31EA 2STANDARD M4 NUT1EA 2CONNECTOR1EA 2CAMERA ASSY1EA 73ELECTRET MIC (6X2.7MM)1EA 23LENS DW30421EA 23LENS HOLDER1EA 73WIRE UL1571 #30 BLACK0.025M 73WIRE UL1571 #30 WHITE0.028M 23SCREW-PPTT M2X6 MS/NIP2EA 23CAMERA SPRING WIRE D=0.61EA 23PCB ASSY1EA 54PCB1EA 74CAP-E 22U 20% 16V1EAC1 74CAP-E 4U7 20% 50V1EAC2 54CAP-MCC 100N 2 Y5V06037EAC3,5,7-9,19,20 54CAP-MCC 1U 2 Y5V 08051EAC17 54CAP-MCC 33P 5% NPO 06032EAC10,11 54CAP-MCC 47N 10% X7R 0603 1EAC18 54CRYSTAL 14.31818MHZ SMD1EAY1 74TUBE-HS 1.5MM BLACK0.035M 54TRS-NPN 2N3904 SMD2EAQ1-2 74REGULATOR1EAU1 54CAMERA SENSOR1EAU2 54RES-TFC 10R 5% 1/10W 06032EAR1,X1 54RES-TFC 100R 5% 1/10W06031EAR23 54RES-TFC 1M 5% 1/10W 06032EAR14,26 54RES-TFC 12K 5% 1/10W 06032EAR24,27 54RES-TFC 120K 5% 1/10W06031EAR28 54RES-TFC 220R 5% 1/10W06031EAR25 54RES-TFC 2K2 5% 1/10W 06031EAR29 54RES-TFC 75R 5% 1/10W 06031EAR11 2PCB ASSY 900M TX MODULE1EA 53PCB1EA 53CAP-MCC 10P 5% COG 04023EAC01,02,07 53CAP-MCC 100PF 5% COG 04027EAC05/6/8,10,65/6,69 53CAP-MCC 1NF 10% X7R 04024EAC25,49,67,68 53CAP-MCC 10N 10% X7R 04021EAC18 53CAP-MCC 1U 10% X7R 040210EA C22/4,26-29,31,40B,43/6 53CAP-MCC 10U 2 Y5V 08054EAC11,13,23,42 53CAP-MCC 1P5 .25P COG 04021EAC47 53CAP-MCC 18P 5% COG 04022EAC32,36 53CAP-MCC 20P 5% COG 04021EAC34 53CAP-MCC 2U2 2 Y5V 06032EAC19,35 53CAP-MCC 33P 5% COG 04022EAC44-45 53CAP-MCC 3N3 10% X7R 06032EAC14,30A 53CAP-MCC 3P3 .25P COG 04021EAC41 53CAP-MCC 47P 5% COG 04021EAC16 53CAP-MCC 470N 10% X7R 04023EAC37-39 53CAP-MCC 4U7 10% X7R 06033EAC21,40,48 53CAP-MCC 56P 5% COG 04021EAC33 53CAP-MCC 5P6 .25P COG 04021EAC20 53CAP-MCC 6P .25P COG 04021EAC12 53CAP-MCC 680P 5% COG 04021EAC15 53CAP-MCC 82P 5% COG 04021EAC17 53CAP-MCC 820P 10% X7R 04022EAC03-04 73CRYSTAL 8MHZ HC-49/S1EAY1 73FERRITE BEAD BLM21P2215G1EAR12 73900M Filter1EAF1 7310 WAY PIN HEADER 2.54MM1EAP2 53INDUCTOR 10NH 10% 04021EAL5 53 INDUCTOR 15NH 10% 04021EAL3 53INDUCTOR 3N9H 5% 0402 SMD1EAL4 53INDUCTOR 820NH 10%0603SMD2EAL1-2 53900M TX1EAU1 53RES-TFC 0R 5% 1/16W 04024EAR08,20,41,50 53RES-TFC 10R 5% 04021EAR26 53RES 1K 5% 1/16W 04023EAR05,16,35 53RES-TFC 100K 5% 1/16W04023EAR25,33,37 53RES-TFC 1K2 5% 1/16W 04021EAR06 53RES-TFC 15K 5% 1/16W 04024EAR03,27-29 53RES-TFC 200R 5% 1/16W04021EAR15 53RES-TFC 20K 5% 1/16W 04022EAR19,31A 53RES-TFC 3K3 5% 1/16W 04022EAR13,30A 53RES-TFC 4K7 5% 1/16W 04021EAR22 53RES-TFC 47K 5% 1/16W 04021EAR38 53RES-TFC 51R 5% 1/16W 04021EAR23 53RES-TFC 510R 5% 1/16W04021EAR32 53RES-TFC 5K1 5% 1/16W 04022EAR01-02 53RES-TFC 51K 5% 1/16W 04022EAR24,34 53RES-TFC 510K 5% 1/16W04021EAR21 53RES-TFC 560R 5% 1/16W04021EAR04 53RES-TFC 560K 5% 1/16W04021EAR14 53RES-TFC 750R 5% 1/16W04022EAR18,36 53RES-TFC 82R 5% 1/16W 04021EAR07 73METAL BOX (A)1EA 2PCB ASSY, MAIN1EA 53PCB1EA 13CAP-E 100U 20% 10V, 5X112EAC6,211 13CAP-E 220U 20% 10V2EAC112,113 13CAP-E 220U 20% 25V2EAC110,111 13CAP-E 470U 20% 25V1EAC114 53CAP-MCC 100N 10% X7R 06037EAC80/1,100-3,701 53CAP-MCC 1U 2 Y5V 06032EACY,201 53CAP-MCC 2U2 2 Y5V 06035EAC51,52,200,201,206 53CAP-MCC 4U7 2 Y5V 06031EAC700 13FERRITE BEAD BLM21P2215G6EAR54-56,R100,L100,200 13LDO REGULATOR1EAU200B 53IC EM78P153S OTP-ROM SMD1EAU1 13DIODE RECTIFIER IN49373EAD100,200,201 53RES-TFC 0R 5% 1/10W 06032EAC9,700 53RES-TFC 22K 5% 1/10W 06035EAR82-84,87,88 2ANTENNA PCB ASSY1EA 43PCB ANT 900M1EA 43COAXIAL RG178B/U 160MM1EA 2CABLE ASSY (BLACK)1EA 2CABLE ASSY-FEMALE,BLACK1EA 6

STC Test Report Date : 2011-05-04 Page 1 of 19 No. : HM166541 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (XLT001): X 10 (USA) Inc. 620 Naches Ave SW, Building A, Renton, WA 98057, Manufacturer: X-10 Electronics (Shenzhen) Co., Ltd. Together Rich Industrial Park B, Sanwei Industrial District, Xixiang Town, Baoan Country, Shengzhen, China Description of Sample(s): Submitted sample(s) said to be Product: Wireless Color Camera Brand Name: X10 Model Number: XC30A FCC ID: B4S-XC30A Date Sample(s) Received: 2011-04-12 Date Tested: 2011-04-19 to 2011-04-21 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional product name and models details, see page 4. Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-05-04 Page 2 of 19 No. : HM166541 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 19 Content Page 2 of 19 1.0 General Details 1.1 Test Laboratory Page 3 of 19 1.2 Applicant Details Page 3 of 19 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 4 of 19 Description of EUT operation 1.4 Date of Order Page 4 of 19 1.5 Submitted Sample Page 4 of 19 1.6 Test Duration Page 4 of 19 1.7 Country of Origin Page 4 of 19 2.0 Technical Details 2.1 Investigations Requested Page 5 of 19 2.2 Test Standards and Results Summary Page 5 of 19 3.0 Test Results 3.1 Radiated Emission Page 6-15 of 19 Appendix A List of Measurement Equipment Page 16 of 19 Appendix B Photographs Page 17-19 of 19 STC Test Report Date : 2011-05-04 Page 3 of 19 No. : HM166541 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant X 10 (USA) Inc. 620 Naches Ave SW, Building A, Renton, WA 98057, Manufacturer X-10 Electronics (Shenzhen) Co., Ltd. Together Rich Industrial Park B, Sanwei Industrial District, Xixiang Town, Baoan Country, Shengzhen, China STC Test Report Date : 2011-05-04 Page 4 of 19 No. : HM166541 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Product: Wireless Color Camera Additional Product Name(s): Wireless Color WideEye Camera, Wireless B/W Camera, Wireless B/W WideEye Camera Manufacturer: X-10 Electronics (Shenzhen) Co., Ltd. Together Rich Industrial Park B, Sanwei Industrial District, Xixiang Town, Baoan Country, Shengzhen, China Brand Name: X10 Model Number: XC30A Additional Model Number(s): XC31A, XC32A, XC33A Input Voltage: 117Va.c. The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Two pins (Live / Neutral) only adaptor, Model Number: XM20A, Input: 120Va.c. 60Hz 3W, Output: 9Vd.c. 120mA 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an X 10 (USA) Inc. Wireless Color Camera. XC30A is a 900MHz camera which converts video and audio to 900MHz RF signal. The modulation is FM. 1.4 Date of Order 2011-04-12 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2011-04-19 to 2011-04-21 1.7 Country of Origin China STC Test Report Date : 2011-05-04 Page 5 of 19 No. : HM166541 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 Regulations and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fun…

Text truncated - open the document above for the full version.

Measurement of Radiated Emission Test Set Up Measurement of Conducted Emission Test Set Up
