B54RT320911Aviation Communications Transceiver

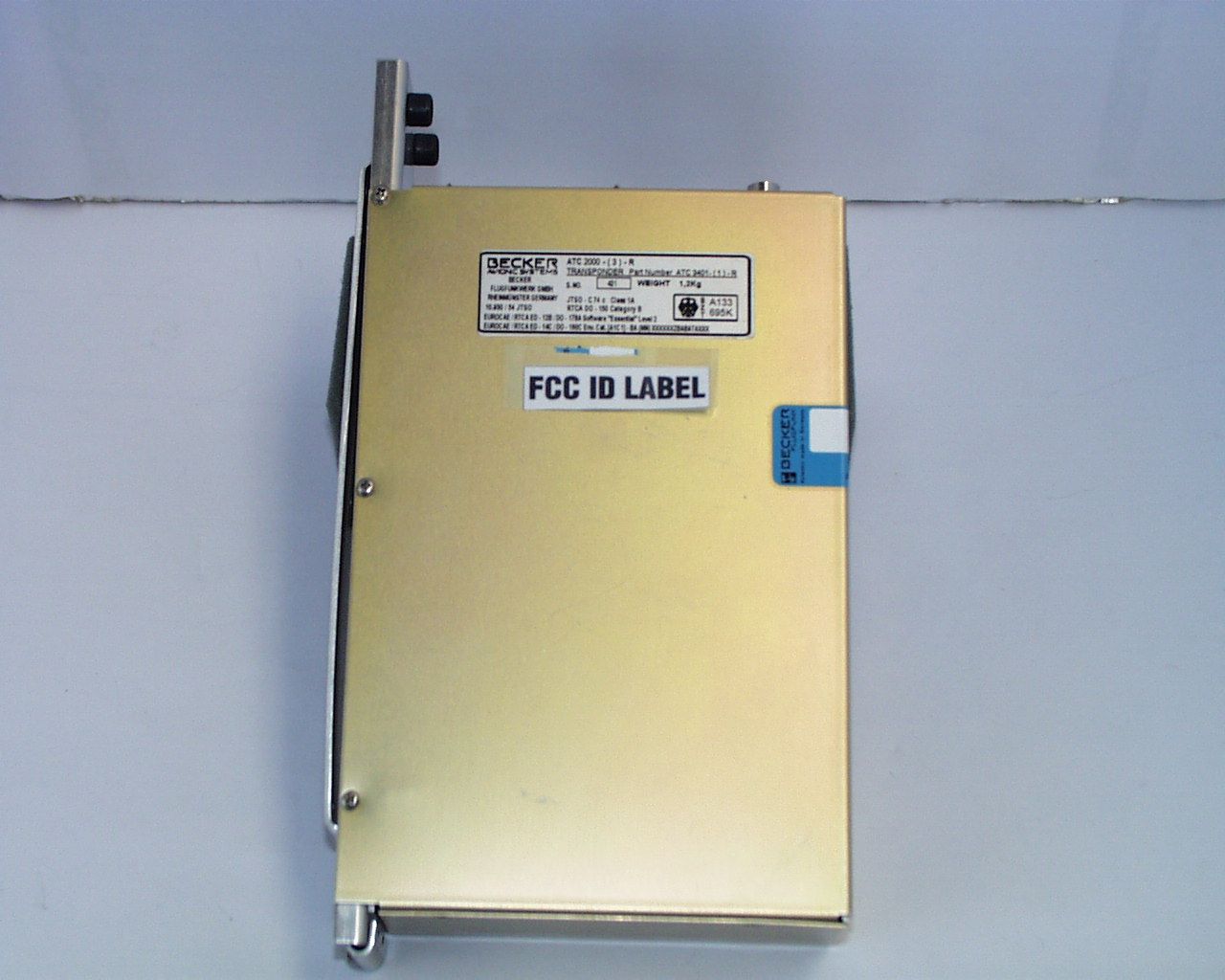

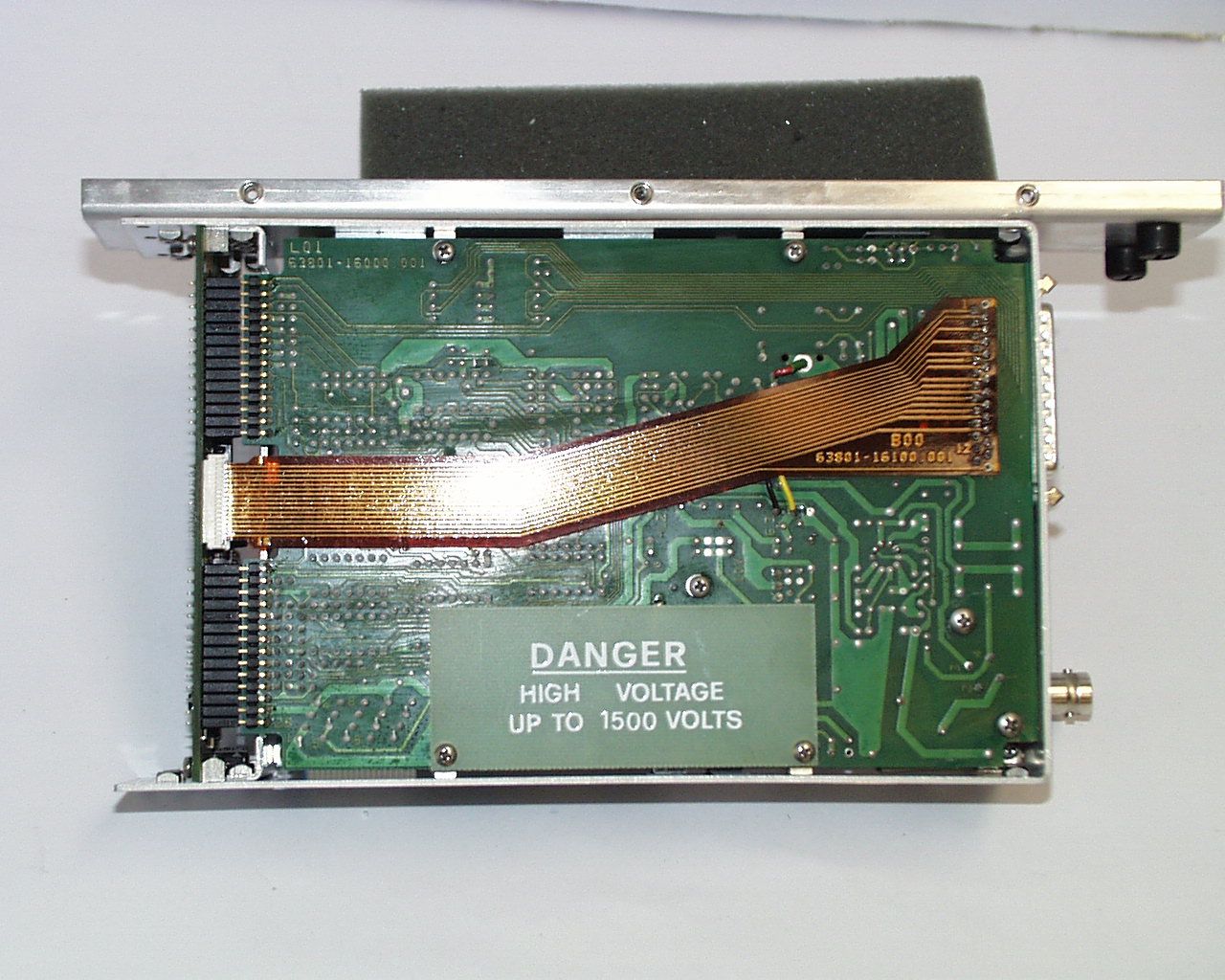

Transponder ATC 3401 from Serial No. 2001 upwards INSTALLATION AND OPERATION Becker Flugfunkwerk GmbH Baden Airpark Postfach 34 76549 Hügelsheim Tel. 07229 / 3050 Fax 07229 / 305217 34-50-07 July 15/97 DV 63803.03 © 1997 by Becker Flugfunkwerk GmbH All rights reserved LIST OF EFFECTIVE PAGES SUBJECTPAGEDATESUBJECTPAGEDATE Title Page 1July 15/97 List of Effective Page 1July 15/97 Table of Contents 1July 15/97 Introduction 1July 15/97 General DescriptionI-IJuly 15/97 1-1July 15/97 1-2July 15/97 1-3July 15/97 1-4July 15/97 1-5July 15/97 1-6July 15/97 InstallationII-IJuly 15/97 2-1July 15/97 2-2July 15/97 2-3July 15/97 2-4July 15/97 2-5July 15/97 2-6July 15/97 2-7July 15/97 2-8July 15/97 2-9July 15/97 2-10July 15/97 2-11July 15/97 2-12July 15/97 2-13July 15/97 2-14July 15/97 OperationIII-IJuly 15/97 3-1July 15/97 3-2July 15/97 3-3July 15/97 3-4July 15/97 3-5July 15/97 3-6July 15/97 3-7July 15/97 3-8Blank INSTALLATION AND OPERATION ATC 3401 LEP Seite 1 34-50-07 July 15/97 TABLE OF CONTENTS Page INTRODUCTION 1 GENERAL DESCRIPTION 1-1 INSTALLATION 2-1 OPERATION 3-1 INSTALLATION AND OPERATION ATC 3401 TOC Page 1 34-50-07 July 15/97 INTRODUCTION 1.General This component maintenance manual describes the BECKER transponder ATC 3401 from serial No. 2001 upwards. 2.Manufacturing The transponder ATC 3401 is manufactured and product supported by : Becker Flugfunkwerk GmbH Baden Airpark P.O. Box 34 76549 Hügelsheim Germany Telephone:0 72 29 - 305 - 0 Telex:78 12 71 Telefax:0 72 29 - 305 - 217 3. Layout of manual The manual is divided into three sections. Section 1 contains the general descripti- on of the transponder and gives the technical data. Section 2 describes the instal- lation instructions and Section 3 the operation of the unit. INSTALLATION AND OPERATION ATC 3401 INTRO Page 1 34-50-07 July 15/97 Table of contents GENERAL DESCRIPTIONPage 1.Application1-1 2.General description1-1 3.Technical data1-2 4.System approvals1-6 5.Available models1-6 6.Accessories (not contained in the scope of delivery)1-6 INSTALLATION AND OPERATION ATC 3401 Page I-I 34-50-07 July 15/97 GENERAL DESCRIPTION 1.Application The ATC 3401 transponder is the airborne component of the ATCRBS (Air Traffic Control Radar Beacon System). It operates on the secondary radar principle and enables the particular ground stations to locate, identify and track aircraft for the purposes of air traffic control. The transponder can also be used to transmit special information to the air traffic controllers (ATC) at the same time. 2. General description A.The ATC 3401 transponder is constructed as a single module unit designed for installation in the instrument panel or control panel of an aircraft. The dimensions correspond to the ARINC standard for control panels and it is secured in place by means of four DZUS fasteners. B.All controls are located on the front panel of the unit. The unit connector for connecting the aircraft wiring and the antenna socket are fitted on the back of the transponder. C.The control panel contains the electrical modules, processor board and display board. D.The electronic equipment of the transceiver consists of the encoder/power supply module, the receiver/decoder module and the transmitter tube. The receiver/decoder module can be swung out for servicing, thus making all the components of the transponder readily accessible. The transmitter tube is bolted to the side of the unit frame. E.The transponder is ready to operate within 30 seconds of switch on. During this period the display test is performed and the transmitter tube is warmed up and stabilized. F.The following modes are possible with the transponder : (1) Standby mode (SBY) (2)ON mode (mode A) where a code set on the transponder is transmitted back in response to interrogation from a ground station. (3)ALT mode (mode C) where in addition to the facility in mode A the encoded aircraft altitude is also transmitted, provided a coding altimeter is connected to the transponder. (4)Indication of flight level (altitude/100) if a coding altimeter is connected to the transponder. INSTALLATION AND OPERATION ATC 3401 Page 1-1 34-50-07 July 15/97 (5)Additional identification information whereby the ident button of the trans- ponder is pressed on instructions from the air traffic controller. The iden- tification pulse (SPI pulse) transmitted in this case enables immediate identification of the aircraft on the controller’s radar screen, by means of an additional marking on the object display. (6)Test function by pressing the TEST push-button in which all digits flash in the displays and the reply lamp comes on. 3. Technical data A.General data Supply voltage10.0 V - 32.2 V DC Current consumption1.5 A at 14 V (without panel lighting)0.8 A at 28 V - in standby mode0.5 A at 14 V 0.3 A at 28 V Panel lightingtyp. 480 mA at 14 V typ. 240 mA at 28 V typ. 1.5 A at 5 V Warm-up timeapprox. 30 s Fuse protection2 A medium-blow Operating temperature range- 20° C bis + 55° C (short-time + 70° C) Altitude max.35 000 ft. EUROCAE/RTCA ED-14C/ DO-160C Cat. A1 C1 (no altitude limitation in pressurized aircrafts) VibrationEUROCAE/RTCA ED-14C/ DO-160C Cat. M+N (rigid mounted in all aircrafts without limitations) Environmental conditionsEUROCAE/RTCA ED-14C/DO-160C Env. Cat. [A1C1]-BA(MN)XXXXXX ZBABATAXXX Weight1.2 kg Mechanical dimensions Front panel47.5 x 146 mm (H x W) Case depth217 mm above antenna socket Test and assembly standardsJTSO-C74c Class 1A RTCA DO-150 Cat. B. (cat. A conversion possible) INSTALLATION AND OPERATION ATC 3401 Page 1-2 34-50-07 July 15/97 B.Receiver data Modesmode A mode A+C Receive frequency1030 MHz ± 0.2 MHz Sensitivity- 72 dBm (on 90 % reply rate) Selectivity± 15 MHz > 40 dB ± 25 MHz > 60 dB Dynamic range≥ 50 dB Bandwidth± 3 MHz < 3 dB Side lobe suppression3-pulse method C.Transmitter data Transmit frequency1090 MHz ± 3 MHz Power output250 W min. at the antenna socket Reply limitationeffective as from 1200 replies/s Output impedance50 Ω Reply code (mode A)…

Text truncated - open the document above for the full version.

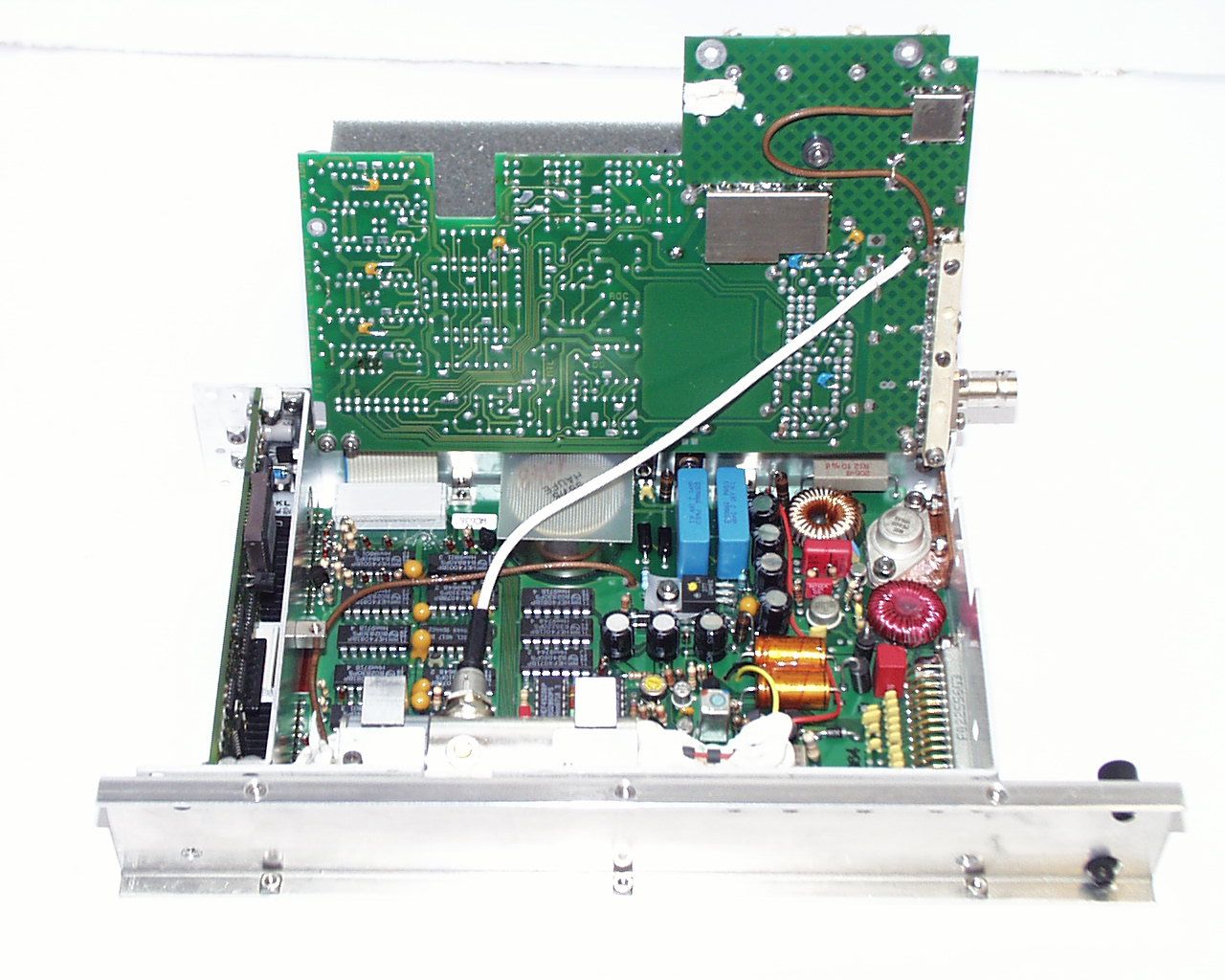

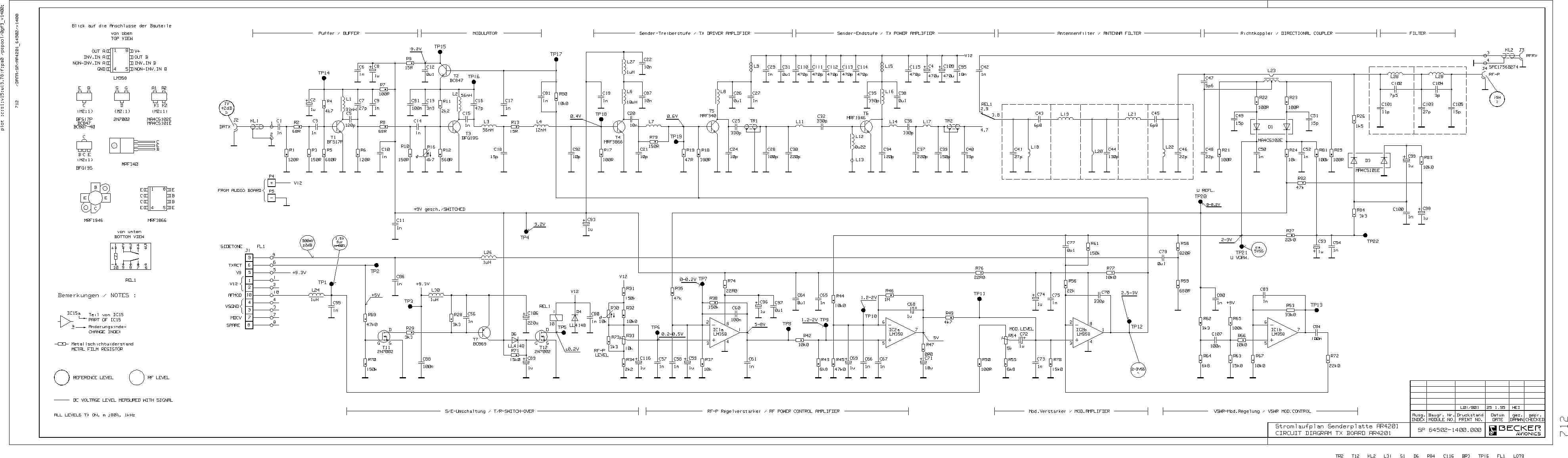

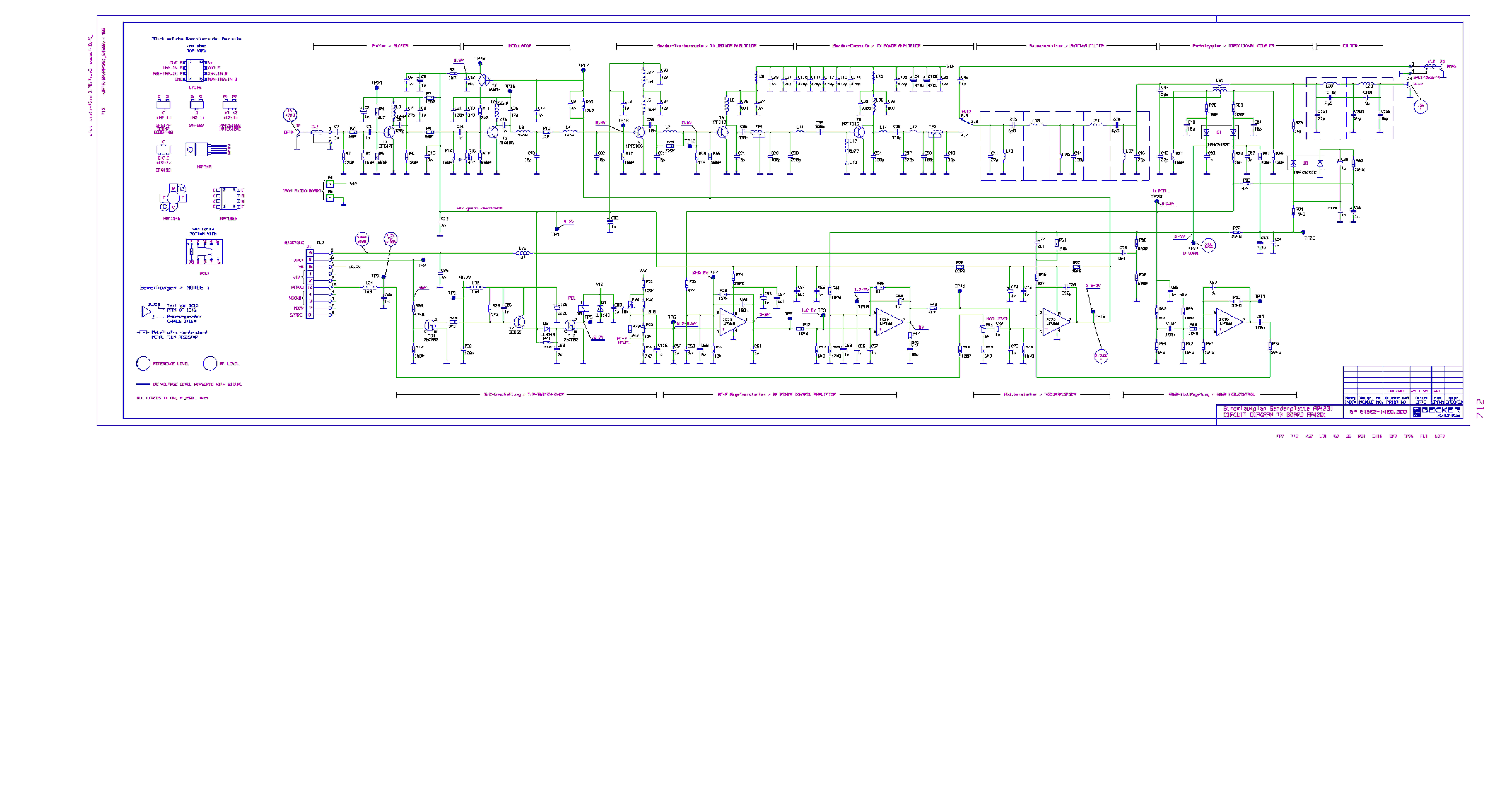

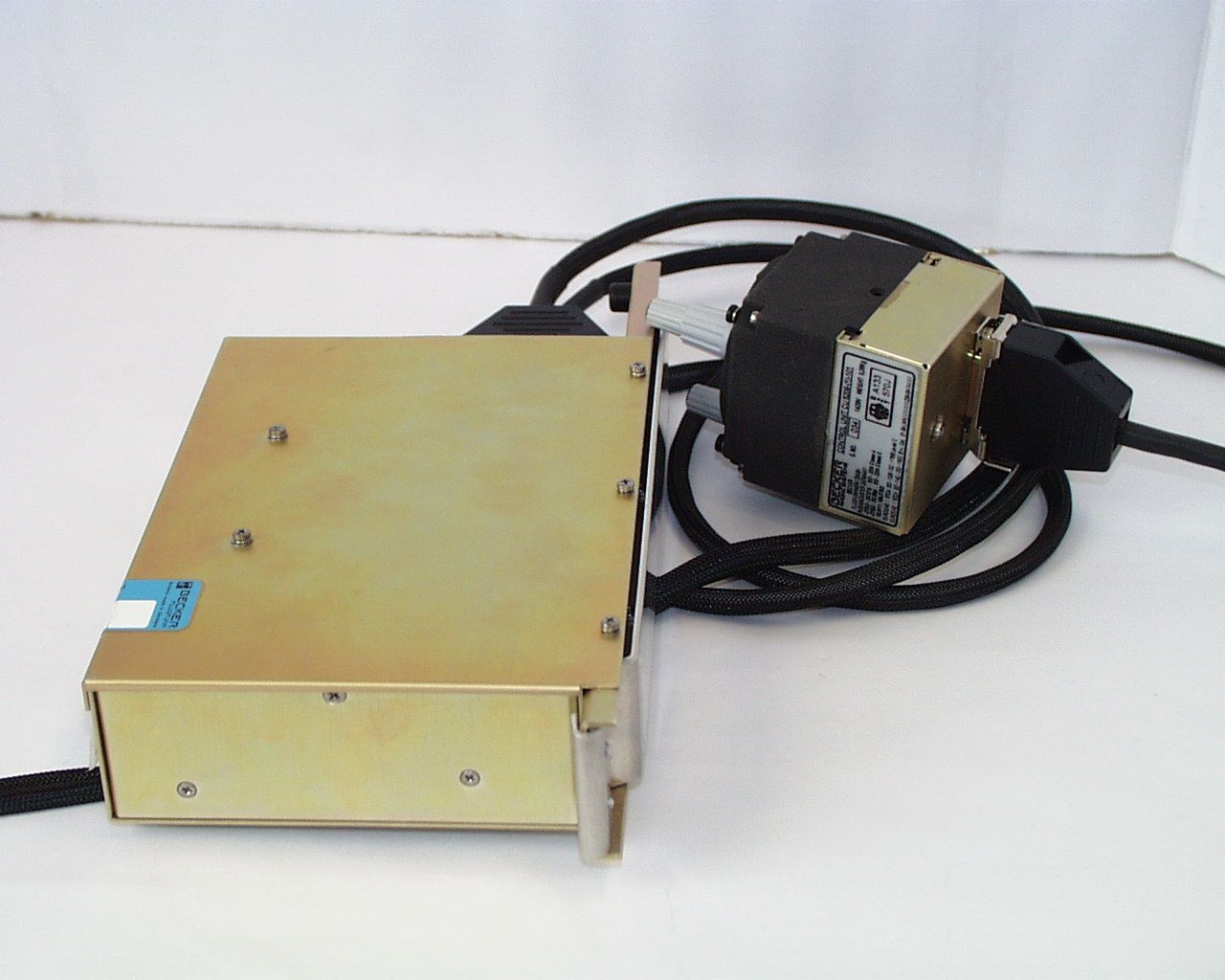

Installation and Operation ManualDV 60602.03 Issue1August 1997 BECKER FLUGFUNKWERK GMBH • Baden Airpark • P.O. Box 34 D-76549 Huegelsheim • Telephone 07229 / 305-0 VHF Transceiver RT 3209 - ( ) FIRST ISSUE AND CHANGES Issue . . . . . 1 . . . . . August 1997 LIST OF EFFECTIVE PAGES Page No.:Date :Page No.:Date : Title 1 -I - 1-II 1-1 - 1-10 2-I - 2-II 2-1 - 2-8 08/97 08/97 08/97 08/97 08/97 © by Becker Flugfunkwerk All rights reserved Table of contents Section IGENERAL DESCRIPTIONSeite 1.1Introduction1-1 1.2Purpose of equipment1-1 1.3General description1-2 1.4Variants survey1-3 1.5Technical data1-3 1.5.1Power supply 1-3 1.6General data 1-4 1.6.1Dimensions Weight, Fuse1-4 1.6.2Receiver data 1-5 1.6.3Transmitter data 1-6 1.7Software1-7 1.8Approval and Regulations1-7 1.9Environmental Qualification Form1-8 1.10Scope of delivery1-9 1.11Accessories1-9 RT 3209 - ( ) DV 60602.03/.04 Issue 08/97Page 1-I Blank RT 3209 - ( ) Page 1-IIDV 60602.03/.04 Issue 08/97 Section IGENERAL DESCRIPTION 1.1Introduction The following manual describes the VHF transmit/receiver RT 3209 - ( ). The manuals DV 60602.03 ("Installation and Operation") and DV 60602.04 (Maintenance and Repair") contain the following section : SectionDV 60602.03DV 60602.04 1General InformationXX 2InstallationXX 3OperationXX 4Theory of operationX 5Maintenance and RepairX 6Illustrated Parts ListX 7Modification and ChangesX 8Circuit Diagramsx 1.2Purpose of equipment This remote-control VHF-transceiver RT 3209 - ( ) is controlled by a CU 5209 - ( ) control unit (or equal). The transceiver enables voice communication on 760 channels in the 118.000 MHz to 136.975 MHz range with a channel spacing of 25 kHz. It complies with the requirements of ICAO Annex 10 valid from 01.01.1995. RT 3209 - ( ) DV 60602.03/04 Issue 08/97Page 1-1 1.3General description The transceiver is designed for installation in the avionics compartment. The following are mounted on the connector end. The equipment connector for connecting to the aircraft system. The antenna socket for connecting the antenna. The electronic system of the unit consists of the following circuit boards, which are connected to each other by connectors. l 1. Audio board l 2 Connector board l 3. Receiver board l 4 Transmitter board l 5. Processor board The processor board is secured to the front panel by three bolts. The microcontroller as well as the necessary storage and peripheral components are located on the processor board. The VHF transceiver is fitted with a single superheterodyne receiver. A squelch (muting) circuit suppresses transmitters or disturbances below a certain field strength. The switching threshold can be set. The squelch function can also be switched off. The transmitter is designed to be wideband over the 118.000 MHz to 136.975 MHz range. The sidetone is automatically switched to the headphone output during transmission. The oscillator frequency of the receiver and the transmitting frequency of the transmitter are generated by a VCO (voltage controlled oscillator). This is monitored by a digital frequency evaluation circuit. This digital frequency processing operates in conjunction with a microprocessor. The microphone inputs are designed for parallel both dynamic and standard microphones. The inputs are connected to a dynamic volume compressor which keeps the modulation voltage constant over a wide input voltage range. Aircraft internal communication is possible in the IC (intercom) mode. Activation is by means of an external IC button (or switch) which is to be connected to the equipment connector. The AF auxiliary input enables AF signal switching of auxiliary units in the aircraft. The switched AF signals can, however, only be monitored in the reception mode. RT 3209 - ( ) Page 1-2DV 60602.03/04 Issue 08/97 Special functions The transceiver contains some special functions which can be set in the service mode in conjuntion with the control unit CU 5209 - ( ). l The squelch sensitivity, IC, sidetone and audio external input volume l The frequency setting can be inhibited. The transceiver then operates only on the frequencies stored in the storage channels. l The storage of frequencies in the storage channels can be inhibited. l Access to the service mode can be interlocked with a 4-digit password. 1.4Variants survey Type designationPart No.:Transmitter outputPower supply voltage RT 3209 - (11) 60602-0000.000 0505.668-910≥ 6,5W ≥ 10W 13,75V 27,5 V 1.5Technical data 1.5.1Power supply Nominal supply voltage13.75 V.d.c. Supply voltage range12.4 V to 15.1 V Emergency operation (10.0 V)Good intercom or Nominal supply voltage27.5 V.d.c. Supply voltage range24.8 V to 30.3 V Emergency operation (20.0 V)Good intercom Power consumption Standby" reception mode≤ 100 mA Reception mode≤ 530 mA Transmission mode≤ 2.5 A RT 3209 - ( ) DV 60602.03/04 Issue 08/97Page 1-3 1.6General data Frequency range118.000 MHz to 136.975 MHz Number of channels760 Channel spacing25 kHz Storage temperature range-55°C to +85°C Operating temperature range as per EUROCAE/RTCA ED-14C/DO-160C-20°C to +55°C short-time +70°C Operating altitude as per EUROCAE/RTCA ED-14C/DO-160C50 000 ft Vibration as per EUROCAE/RTCA ED-14C/DO-160CCat. NM Humidity as per EUROCAE/RTCA ED-14C/DO-160CCat. A/ +50°C: 95%, 48 h 1.6.1Dimensions Weight, Fuse Front panel139 mm x 50 mm Depth of transceiver with mounting plate253 mm Weight1,2 kg Fuse internal4 A automatic cut-out RT 3209 - ( ) Page 1-4DV 60602.03/04 Issue 08/97 1.6.2Receiver data Type of receiverSingle superhetrodyne receiver Sensitivity≤ 5 μV EMF for 6 dB = SINAD (mod. 1000 Hz/30%) IF bandwidth≥ ± 8 kHz at 6 dB attenuation Selectivity≥ 40 dB at ± 17 kHz ≥ 60 dB at ± 25 kHz SquelchCan be adjusted and switched off AGC characteristic for 5 μV to 100 mV EMF≤ 6 dB Distortion m = 85%≤ 15% Audio frequency response≤ 6 dB 350 Hz to 2500 Hz relative to 1000 Hz≥ 18 dB at 4000 Hz Intermediate frequency21.4 MHz Rated output for speaker operation at 13.75 V nominal operatingvoltage ≥ 3 W into …

Text truncated - open the document above for the full version.

July 19, 1999 FAA Spectrum Engineering Division 800 Independence Avenue SW Washington, DC 20591 Re: Notification of application for Certification pursuant to Title 47 Part 87.147 Dear Sirs: Pusuant to Code of Federal Regulation Title 47 Part 87.147, this letter is to inform you that Becker Flungfunkwerk GMBH ( Becker Avionics Systems) will be applying for a Grant of Certification for the following equipment. Should you require any further information, please contact Kluas Jaegel of Becker Avionics System. Applicant:Becker Flungfunkwerk GMBH Becker Avionic Systems Baden Airpark – Gebaude B 108 Postfach 34 – D-76549 Hugelsheim Tel +49(0)7229/305-0 Fax +49(0)7229/305-217 Equipment:FCC ID: B54RT320911 FCC Rules:Parts 2 and 87 Equipment Description: Airborne communications transceiver operating in the frequency band of 118.00 to 136.975 MHz. Emission Type:8K00A3E Rated Power:15 Watts Manufacturer Id:RT 3209-(11) Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

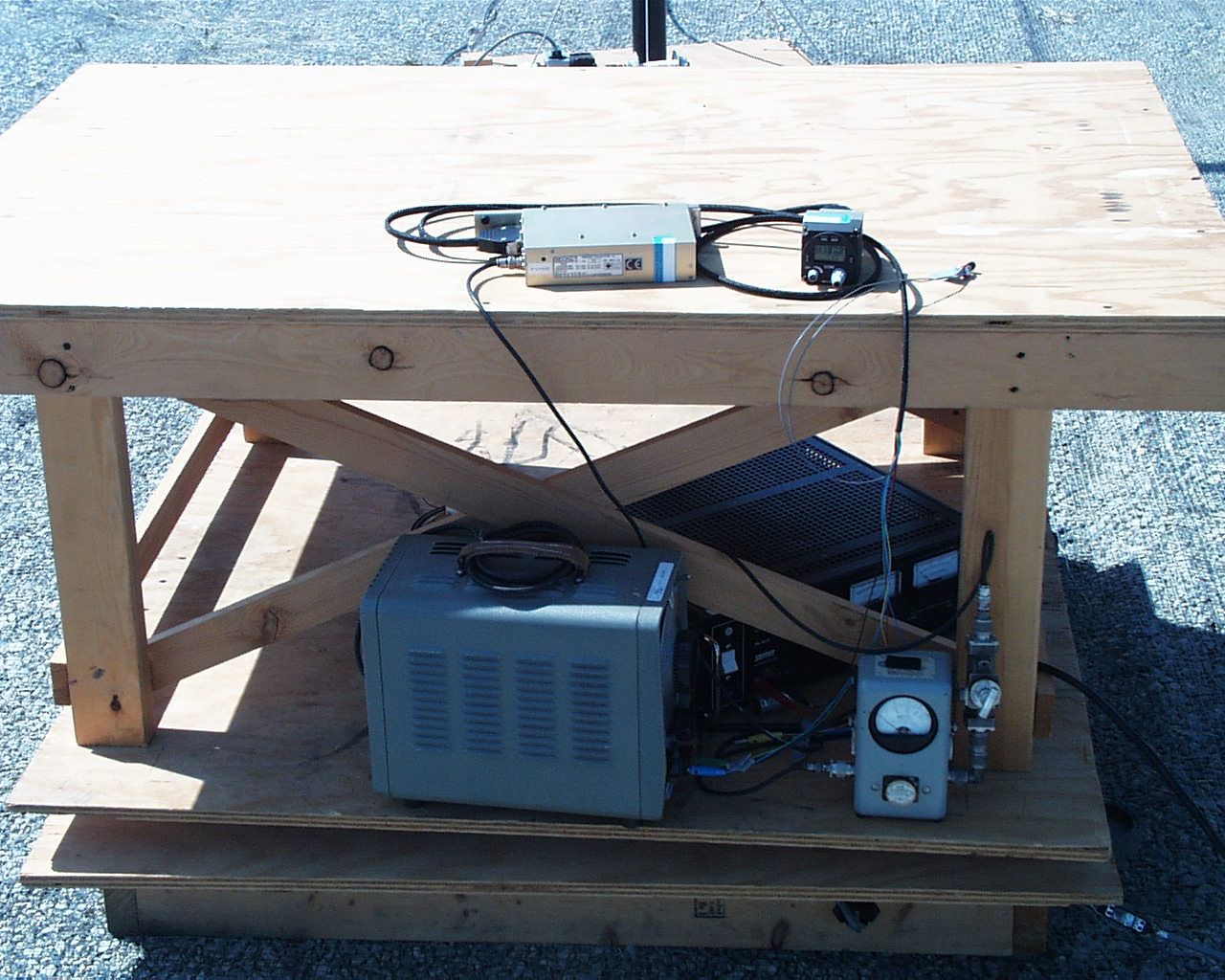

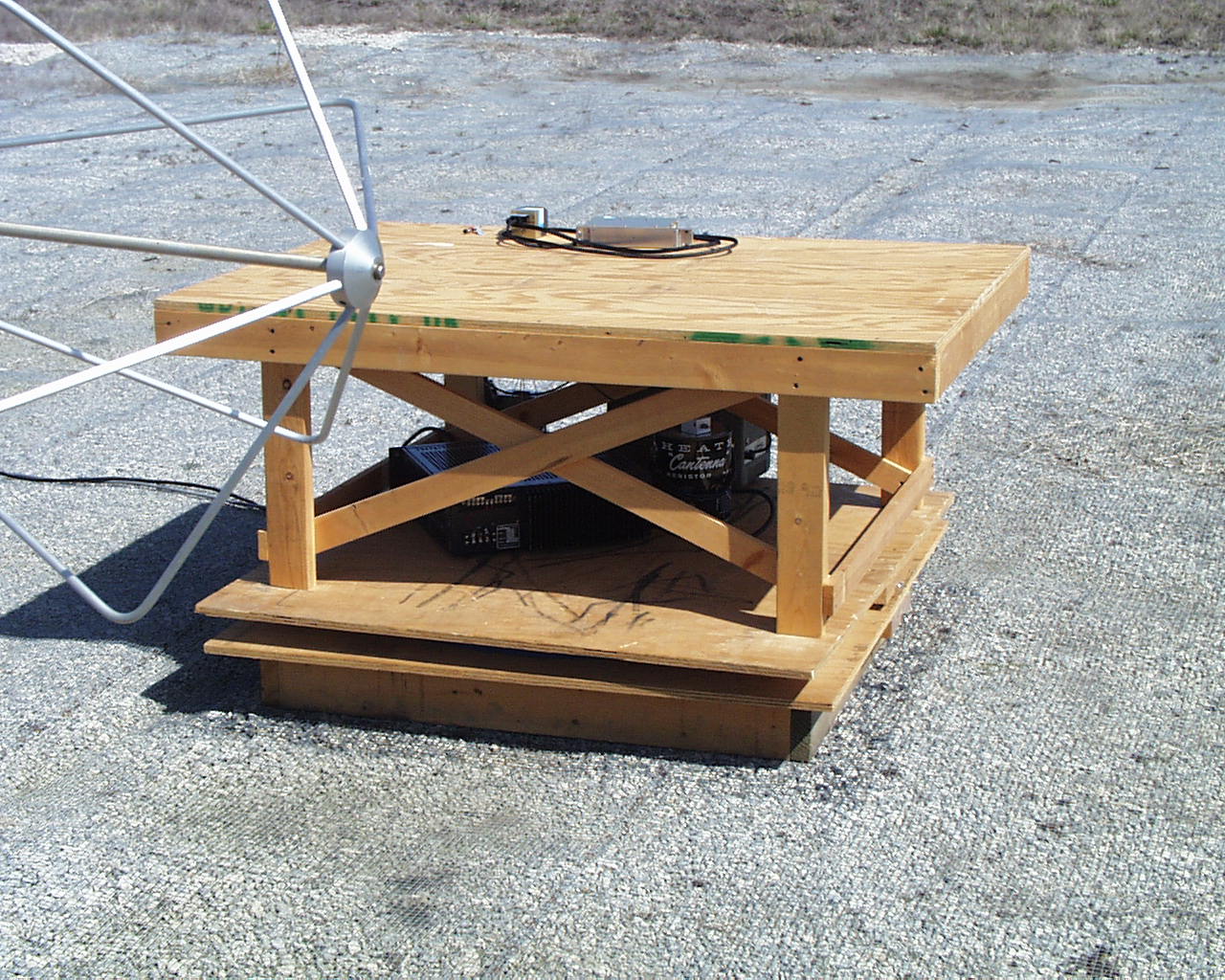

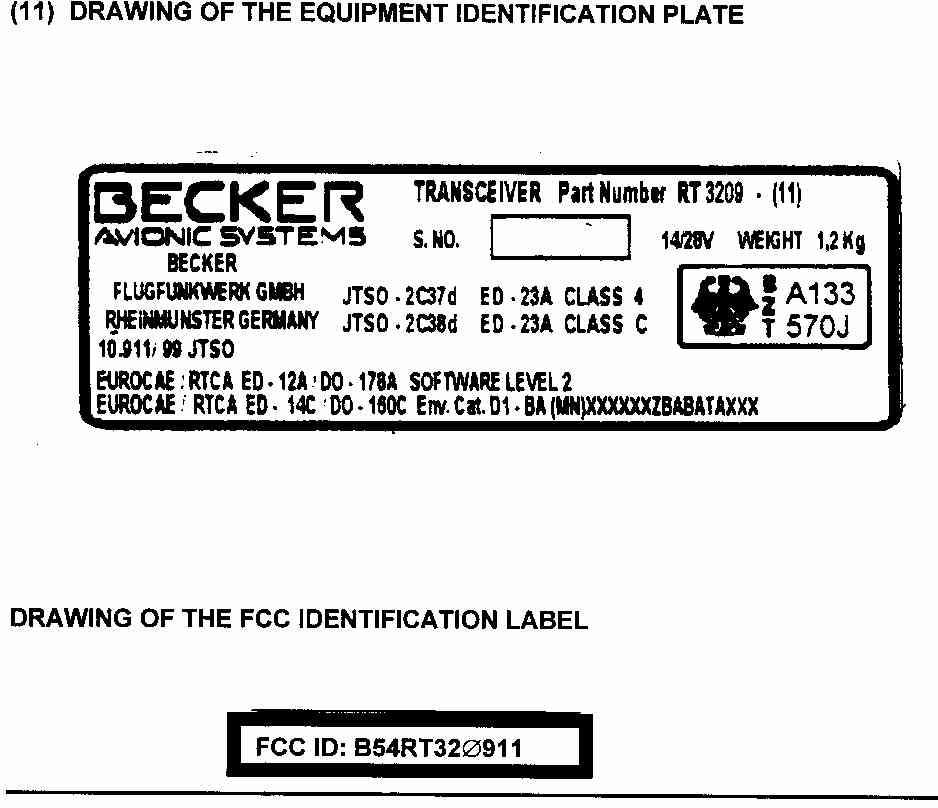

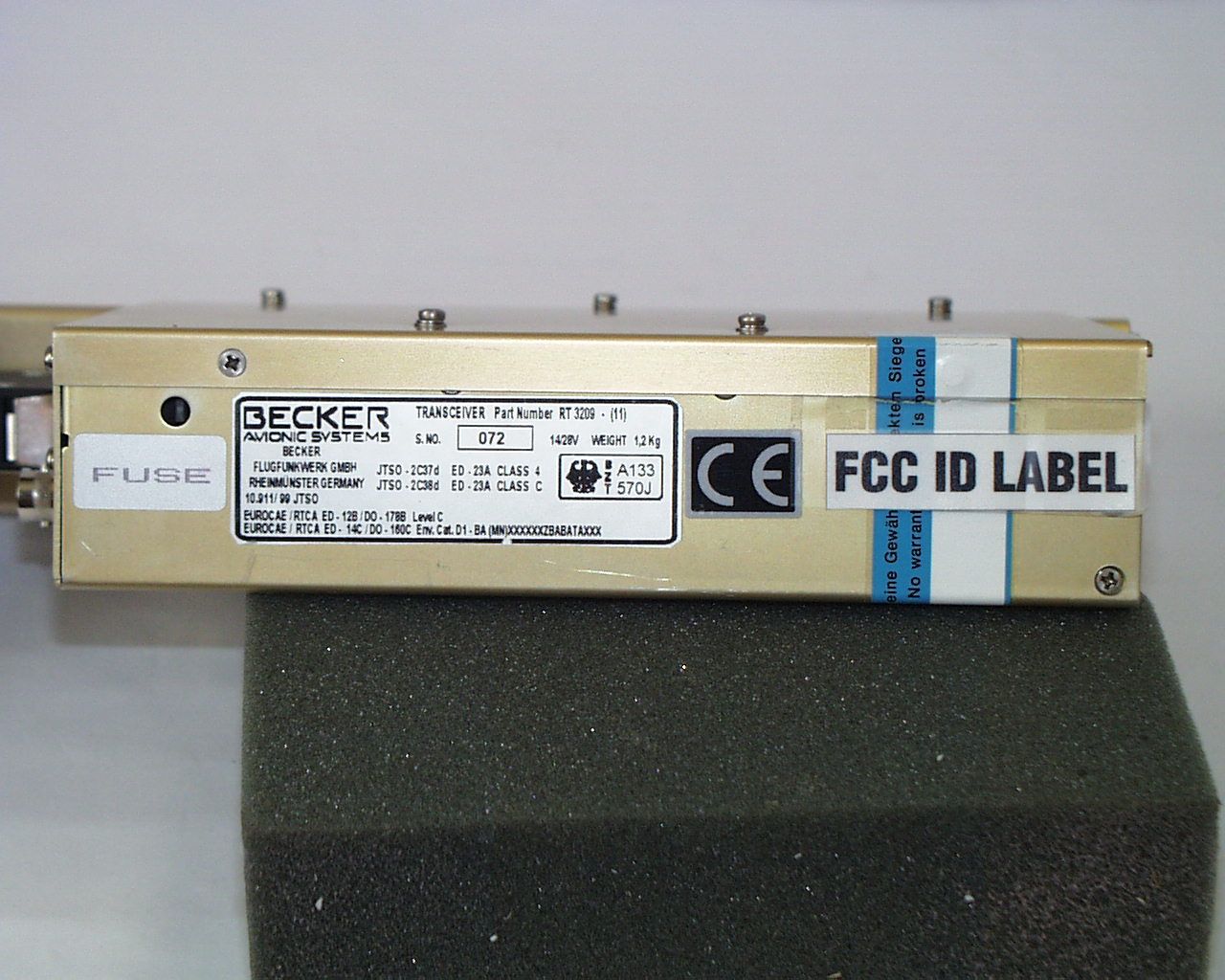

TEST REPORT for APPLICATION of CERTIFICATION For BECKER FLUGFUNKWERK GMBH Baden Airpark Building B108 D77836 Rheinmuenster Germany Contact Person Klaus Jaegel MODELS: RT3209-(11) FREQUENCY: 118.0-136.975 MHz FCC ID: B54RT320911 Test Date: March 24, 1999 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.BECKER FLUNGFUNKWERK GMBH 4405 West 259 th TerraceMODEL: RT3209-(11) Louisburg, KS 66053Test #:990324FCC ID#: B54RT320911 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 87Page 2 of 29 Certification\BECKERRT3209a.doc 6/23/98 TABLE OF CONTENTS FORWARD:3 LIST OF TEST EQUIPMENT3 2.1033(C)APPLICATION FOR CERTIFICATION4 2.1046RF POWER OUTPUT7 Measurements Required:7 Test Arrangement:7 Results:8 2.1047MODULATION CHARACTERISTICS10 Measurements Required:10 Test Arrangement:10 Results:10 2.1049OCCUPIED BANDWIDTH12 Measurements Required:12 Test Arrangement:12 Results:12 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS13 Measurements Required:13 Test Arrangement:13 Results:14 2.1053FIELD STRENGTH OF SPURIOUS RADIATION15 Measurements Required:15 Test Arrangement:15 Results:17 2.1055FREQUENCY STABILITY18 Measurements Required:18 Test Arrangement:19 Results:20 APPENDIX21 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.BECKER FLUNGFUNKWERK GMBH 4405 West 259 th TerraceMODEL: RT3209-(11) Louisburg, KS 66053Test #:990324FCC ID#: B54RT320911 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 87Page 3 of 29 Certification\BECKERRT3209a.doc 6/23/98 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 1998, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, Part 87, Subchapter D, Paragraphs 87.131 through 87.147, and FCC document FCC98-58, the following is submitted: Equipment Tested: EquipmentModel/Part# FCC ID# EUTRT 3209-(11)B54RT320911 Two models were tested with the worst case data shown in this report. The electronics are similar with the exception that one unit has a remote mounted control and display assembly. The other unit is wholly self-contained. The test results in this report relate only to the items tested. List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.BECKER FLUNGFUNKWERK GMBH 4405 West 259 th TerraceMODEL: RT3209-(11) Louisburg, KS 66053Test #:990324FCC ID#: B54RT320911 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 87Page 4 of 29 Certification\BECKERRT3209a.doc 6/23/98 HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBWAVG. BW DETECTOR FUNCTION 9 kHz30 kHzPeak/Quasi Peak RADIATED EMISSIONS (30 - 1000 MHz): RBWAVG. BW DETECTOR FUNCTION 120 kHz300 kHzPeak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 - 40 GHz): RBWAVG. BW DETECTOR FUNCTION 1 MHz1 MHzPeak/Average ANTENNA CONDUCTED EMISSIONS: RBWAVG. BW DETECTOR FUNCTION 120 kHz300 kHzPeak 2.1033(c)Application for Certification (1)Manufacturer:BECKER FLUGFUNKWERK GMBH Baden Airpark Building B108 D77836 Rheinmuenster Germany (2)FCC Identification:Model:RT3209-(11) FCC I.D.: B54RT320911 (3)Refer to Exhibit for Installation and Operating Manuals: (4)Emission Type:8K00A3E (5)Frequency Range:118.0 - 136.975 MHz, Adjustable in 25 kHz steps. NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.BECKER FLUNGFUNKWERK GMBH 4405 West 259 th TerraceMODEL: RT3209-(11) Louisburg, KS 66053Test #:990324FCC ID#: B54RT320911 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 87Page 5 of 29 Certification\BECKERRT3209a.doc 6/23/98 (6)Operating Power Level: 14 Watts (7)Max P o :15 Watts (8)Power into final amplifier: 46.7 Watts (27.5V @ 1.7A). (9)Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Description of the Circuitry and Devices Provided for Determining and Stabilizing Frequency: The complete set of schematic diagrams for the Transceiver RT3209-(11) is part of the equipment manual. AR4201 RX Board NumberType Function T1BC857Lock-Detect Switch T9BC857VCO Switch T10SST310Voltage Controlled Oscillator T11BF996Buffer Amplifier T12BF996Buffer Amplifier T13BFR92Buffer Amplifier IC1TL431IDAdjustable Voltage Reference IC2MB1504LPFSynthesizer Q1Crystal6.400 MHz Processor Board NumberType Function IC1MC33164D-5Power Supply Supervisor IC268HC705B16Microprocessor The transmitter is designed to be wideband over the 118.000 MHz to 136.975 MHz range. The oscillator frequency of the receiver and the transmitting frequency of the transmitter are generated by VCO(voltage controlled oscillator) T10. This VCO is part of the digital frequency synthesizer IC2 that is controlled by microprocessor IC2 located on the processor board. Crystal Q1(6.400 MHz) determines the reference frequency. NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.BECKER FLUNGFUNKWERK GMBH 4405 West 259 th TerraceMODEL: RT3209-(11) Louisburg, KS 66053Test #:990324FCC ID#: B54RT320911 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 87Page 6 of 29 Certification\BECKERRT3209a.doc 6/23/98 The channel frequency is displayed by means of a liquid crystal display on the control unit. The operating frequency is to be selected using the MHz and kHz frequency selector switches. The MHz rotary switch engages at 1 MHz steps and the kHz rotary switch at 25 kHz steps. Description of the Circuits and Devices Used for Suppression of Spurious Radiation…

Text truncated - open the document above for the full version.
