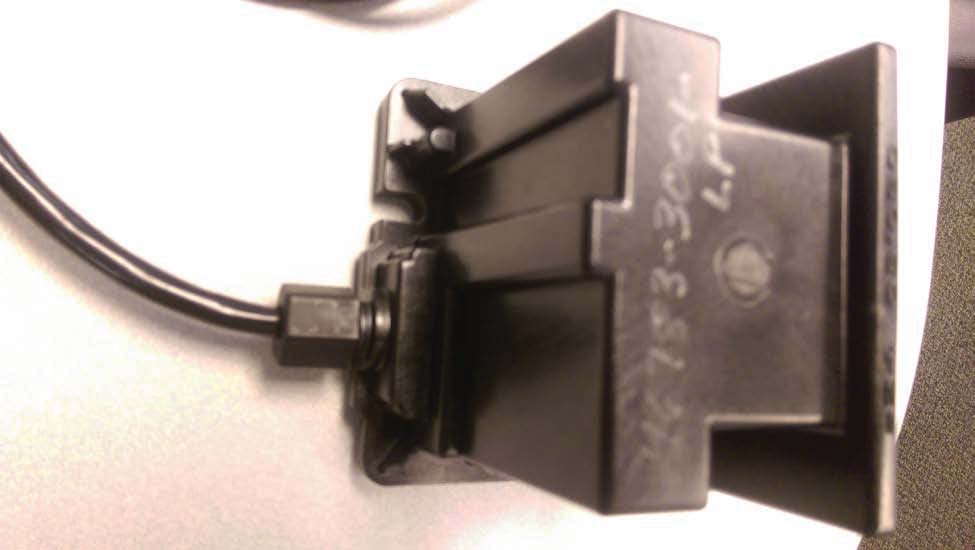

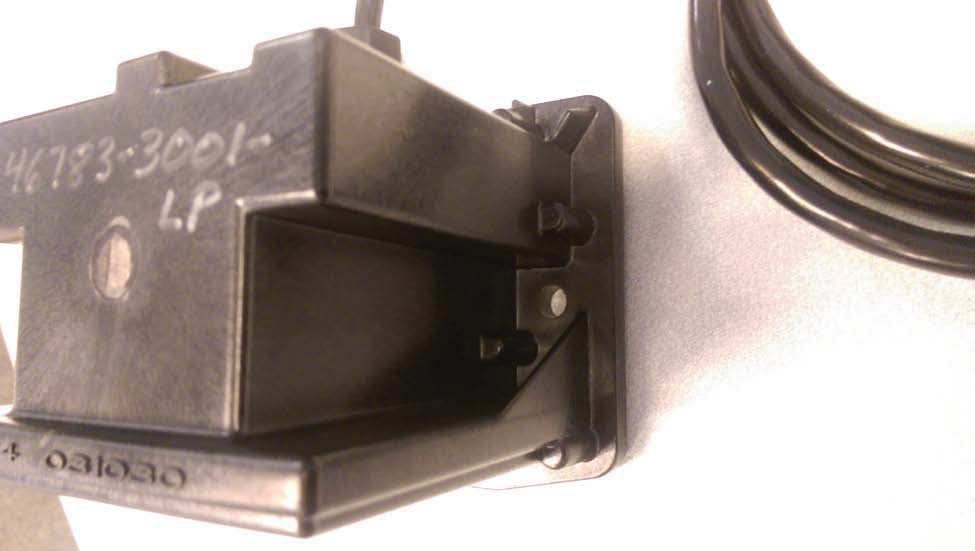

B7JDJCRVSIIIRadar Velocity Sensor

INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 1 RADAR III SENSOR COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna – Increase the separation between the equipment and receiver – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected – Consult the dealer or an experienced radio/TV technician for help DISCLAIMER DICKEY-john reserves the right to make engineering refinements or procedural changes that may not be reflected in this manual. Material included in this manual is for informational purposes and is subject to change without notice. INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 2 INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 3 RADAR III SENSOR IMPORTANT: Changes or modifications to the RVS ground speed sensor not expressly approved by DICKEY-john Corporation could void the user’s authority to operate the equipment. The RVS III Radar Sensor is a streamlined sensor that views ground surface for accurate ground speed detection. High-tech planar array provides velocity measurement with velocity errors of less than or equal to 1-3% after infield calibration. MOUNTING BRACKET KITS Several mounting options are available with the RVS III Radar. Two bracket kits are available that meet most application requirements. • A standard pipe mounting plate for use when the implement already has a 3/4” diameter pipe mount in a suitable location, and • A mounting pipe kit to be used in combination with the standard pipe mounting plate. NOTE: 2006 models of the Vibration Isolation Mount hardware kit use 1/4” hardware (kit 467830781) RVS III RADAR SENSOR KIT 1. RVS III Radar Sensor 2. Installation Instruction 3. Vibration Isolation Mount Hardware Kit – Isolation Mounts (3) – 6 mm Nuts (6) – 6 mm Flat Lockwashers (6) – 6 mm Split Ring Lockwashers (6) INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 4 RVS III MOUNTING BRACKET KIT 1. Mounting Bracket 2. U-Bolts 1 1/8” x 2” x 1/4 - 20 (2) 3. 1/4” Split Ring Lock Washers (4) 4. 1/4 - 20 Nuts (4) RVS III “L” PIPE MOUNTING BRACKET KIT 1. “L” Pipe Mounting Bracket 2. 3/8 - 16 x 1 1/2” Bolts (2) 3. 3/8 Split Ring Lock Washers (2) 4. 3/8 Nuts (2) 24V RVS III ADAPTER CABLE ASSEMBLY INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 5 MOUNTING SELECT A MOUNTING LOCATION 1. Park the vehicle on level ground. This is necessary in order to install the radar at the proper angle with respect to the ground. Refer to Figure 1 for illustration. NOTE: Rear facing orientation is the preferred mount for more physical protection of the radar, however, there can be instances where the radar orientation must face forward. Figure 1 Proper Radar Placement NOTE: The radar must have an unobstructed cone-shaped view of the ground. If a vehicle tire, hose, or liquid line is within the cone-shaped area, erroneous readings can result. 2. The following list describes some of the precautions that must be followed when selecting a mounting location. – The face of the radar must have an unobstructed view of the ground. The area that must remain unobstructed is cone-shaped from the face of the radar to the ground, as illustrated in Figure 2. The pattern of the radar signal on the ground is oval-shaped due to the installation angle. The size of the oval pattern is dependent on the radar height above ground. Figure 2 Unobstructed Mounting Location 35° Rear of tractor INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 6 Following is the pattern size for the indicated height. RADAR HEIGHTPATTERN SIZE (OVAL) 18 inches18.8 x 12.7 inches 24 inches24.17 x 17.2 inches 48 inches31.0 x 25.6 inches – Fluids must not drip on radar face area. – Ensure that radar is away from all heat sources. – The radar face housing must not touch the vehicle. – Keep radar away from stubble and debris. – It is recommended that the radar be installed facing the rear of the vehicle. – The radar mounting location can have a minimal amount of vibration; however, excessive vibration can cause erroneous MPH readings with the vehicle stationary. NOTE: The most critical dimensions are the placement of the three Radar III sensor mounting holes. These holes can be ovaled out if they are not drilled in the exact location. IMPORTANT: Operational vibration limits (with isolation mounts) are 0.75 grms from 200 Hz - 350 Hz and 3 grms from 351 Hz - 2000 Hz. Figure 3 Radar Placement Mounting Bracket Sensor 2 to 4 Feet above Ground INSTALLATION INSTRUCTIONS DJRVS III Radar Velocity Sensor 11001-1419D-201510 7 PIPE MOUNTING BRACKET KIT The Pipe Mounting Bracket Kit consists of a mounting plate and two U-bolts with lock washers and nuts. This kit is used to install the Radar on the “L” pipe mounting bracket per Figure 4. If the pipe mounting bracket is already installed, proceed to step 3; otherwise continue as follows. Figure 4 Typical Pipe Mounting Locations 1. Select a location (on the inside of the main frame, when possible) to install the radar “L” pipe mounting bracket. If possible, select a location where two existing bolts can be used and …
