B92IDP6XXMobile Earth Station Satellite Terminal
SkyWave Mobile Communications Inc.
Click to zoom
Application Details
- Equipment Class
- TNB - Licensed Non-Broadcast Station Transmitter
- Date of Grant
- Apr 15, 2012
- Application Purpose
- Original Equipment
- Date of Application
- Apr 12, 2012
- Equipment Note
- Mobile Earth Station Satellite Terminal
- Frequency Range
- 1626.50000000 - 1660.50000000
- Country
- Canada
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
IDP 600 Terminal Series Hardware Guide T200, Version 02 The electronic version of this document allows you to use the built-in Hyperlinks and bookmarks when using Adobe Reader Β© SkyWave Mobile Communications Inc. IDP 600 Terminal Series - Hardware Guide T200, Version 02 ii Β© SkyWave Proprietary Legal Notice This documentation is owned by SkyWave Mobile Communications Inc. (SkyWave) and protected by applicable copyright laws and international treaty provisions. Other copyrighted names used are the property of their respective owners. Therefore, you must treat this documentation like any other copyrighted material. You may not make the documentation, or copies thereof, available in any manner or form, or use, copy or transfer any part, to anyone outside your company. If you received this documentation by electronic transmission or download, by installation or use of the documentation, you acknowledge that you have read and understand this license agreement and agree to be bound by its terms and conditions. This documentation is provided on an as-is basis without any warranty of any kind. You assume the entire risk as to the results or performance of the software. Under no circumstance shall SkyWave be held liable for any direct, indirect, consequential, or incidental damages arising from the use or inability to use the software or documentation. All trademarks or registered trademarks are the property of their respective owners. INMARSAT, the Inmarsat logo and IsatData Pro are trademarks of Inmarsat used under license by SkyWave. Inmarsat is not responsible for the operation and regulatory compliance of the products and services referred to in this document that connect to the Inmarsat system. SkyWave reserves the right to make changes to products and or specifications without notice. From www.SkyWave.com login, and follow the link to the downloads section. The complete Software and Documentation License Agreement is distributed as a part of the IDP Developer Toolkit. Contact Information SkyWave Mobile Communications Inc. Online: ο· Website www.SkyWave.com Online Documentation: ο· Login at support.skywave.com and follow the link to the downloads section Customer Support by Email: ο· [email protected] Customer Support by Telephone: ο· +1.613.836.2222 IDP 600 Terminal Series - Hardware Guide Β© SkyWave Proprietary iii T200, Version 02 TABLE OF CONTENTS Legal Notice .................................................................................................................................... ii Contact Information ...................................................................................................................... ii List of Figures ................................................................................................................................ v List of Tables ................................................................................................................................. vi Preface .......................................................................................................................................... vii What's New? ............................................................................................................................... vii Purpose ....................................................................................................................................... vii Audience ..................................................................................................................................... vii Notation ...................................................................................................................................... vii Reference .................................................................................................................................... vii Safety Disclaimer ....................................................................................................................... viii Safety Precautions...................................................................................................................... viii Installation Warning .................................................................................................................. viii Limited Liability ........................................................................................................................ viii Warranty ...................................................................................................................................... ix User Serviceable Parts ................................................................................................................. ix 1 Product Overview ............................................................................................................... 1 1.1 Overview of the Messaging System ................................................................................... 1 1.2 Terminals ............................................................................................................................ 2 1.3 Terminal Key Features and Benefits .................................................................................. 4 1.4 Pass-Through Mode ........................................................................................................... 5 1.5 Operating Modes ................................................................................................................ 5 2 Compliance .......................................................................................................................... 7 3 Specifications ....................................................................................................................... 9 3.1 Connector ........................................................................................................................... 9 3.1.1 Connector Pin-out .......................................................β¦
Text truncated - open the document above for the full version.
External Photos
SkyWave Mobile Communications Inc. 1145 Innovation Drive, Suite 288, Ottawa, Ontario, Canada, K2K 3G8 Tel: +1 613 836-4844 Fax: +1 613 836-1088 IDP-6XX Technical Description External Pictures (IC) SkyWave File: COMP078-I-011 REVISION VERSION 1 VERSION 2 DATE Nov 28,2011 Dec 14,2011 APPROVALS TITLE SIGNATURE DATE Doug Reveler VP Product Management IsatData Pro The information contained herein is proprietary to SkyWave Mobile Communications Inc., and is not to be used or reproduced without permission. IDP-6XX Technical Description β External Pictures SkyWave Mobile Communications Inc Confidential i Table of Contents 1. Introduction .................................................................................................................... 1 2. Revision History ............................................................................................................ 1 3. Product Overview........................................................................................................... 1 3.1. IDP-680 .................................................................................................................. 1 3.2. IDP-690 .................................................................................................................. 2 IDP-6XX Technical Description β External Pictures SkyWave Mobile Communications Inc Confidential 1 1. Introduction The following document contains external product pictures required for Industry Canada approval of the IDP-680 and IDP-690 terminals. The IC number for this submission is 3745A-IDP6XX 2. Revision History Author Version Comment DR 1.0 Initial version sent to Nemko for comments 2.0 Update IC number. Move label pictures to another document 3. Product Overview The IDP-680 and IDP-690 are a satellite terminals that provide service for Inmarsatβs IsatData Pro. Both terminals are a one piece terminal with integrated application processor, satellite modem, antenna and GPS. Both terminals are available with a side or bottom entry connector. The IDP-680 and IDP-690 terminals are identical except that they use different passive antenna structures. The IDP-680 uses a low profile patch antenna. The IDP-690 uses a lower elevation gain quadrifilar helix antenna. 3.1. IDP-680 Figure 3-1 and Figure 3-2 contain pictures of an IDP-680 with side and bottom entry connectors. IDP-6XX Technical Description SkyWave Mobile Communications Inc Figure Figure 3.2. IDP-690 Figure 2.3 and Figure 2.4 contain pictures of an connectors. 6XX Technical Description β External Pictures Wave Mobile Communications Inc Confidential Figure 3-1 IDP-680 Side Connector Figure 3-2 IDP-680 Bottom Connector Figure 2.4 contain pictures of an IDP-690 with side and bottom entry 2 690 with side and bottom entry IDP-6XX Technical Description SkyWave Mobile Communications Inc Figure 2 Figure 2 6XX Technical Description β External Pictures Wave Mobile Communications Inc Confidential Figure 2-3 IDP-680 Side Connector Figure 2-4 IDP-690 Bottom Connector 3
ID Label/Location Info
SkyWave Mobile Communications Inc. 1145 Innovation Drive, Suite 288, Ottawa, Ontario, Canada, K2K 3G8 Tel: +1 613 836-4844 Fax: +1 613 836-1088 IDP-6XX Technical Description Label Pictures (IC) SkyWave File: COMP078-I-013 REVISION VERSION 1 VERSION2 DATE Dec 14,2012 April 11,2012 APPROVALS TITLE SIGNATURE DATE Doug Reveler VP Product Management IsatData Pro The information contained herein is proprietary to SkyWave Mobile Communications Inc., and is not to be used or reproduced without permission. IDP-6XX Label Pictures SkyWave Mobile Communications Inc Confidential i Table of Contents 1. Introduction .................................................................................................................... 1 2. Revision History ............................................................................................................ 1 3. Labels ............................................................................................................................. 1 3.1. Labels ..................................................................................................................... 1 3.2. IDP-690 .................................................................................................................. 2 IDP-6XX Label Pictures SkyWave Mobile Communications Inc Confidential 1 1. Introduction The following document contains pictures of labels as required for Industry Canada approval and FCC certification of the IDP-680 and IDP-690 terminals. The IC number for this submission is 3745A-IDP6XX The FCC number for this submission is B92IDP6XX. 2. Revision History Author Version Comment DR 1.0 Initial version sent to Nemko for comments. New document as Nemko request label pictures in a separate document 2.0 Add FCC ID 3. Labels The label is located on the bottom of the terminal 3.1. Labels Figure 3-1 contains pictures of an IDP-680 label. IDP-6XX Label Pictures SkyWave Mobile Communications Inc Confidential 2 Figure 3-1 IDP-680 Label 3.2. IDP-690 Figure 3-2 contain pictures of an IDP-690 label. IDP-6XX Label Pictures SkyWave Mobile Communications Inc Confidential 3 Figure 3-2 IDP-690 Label

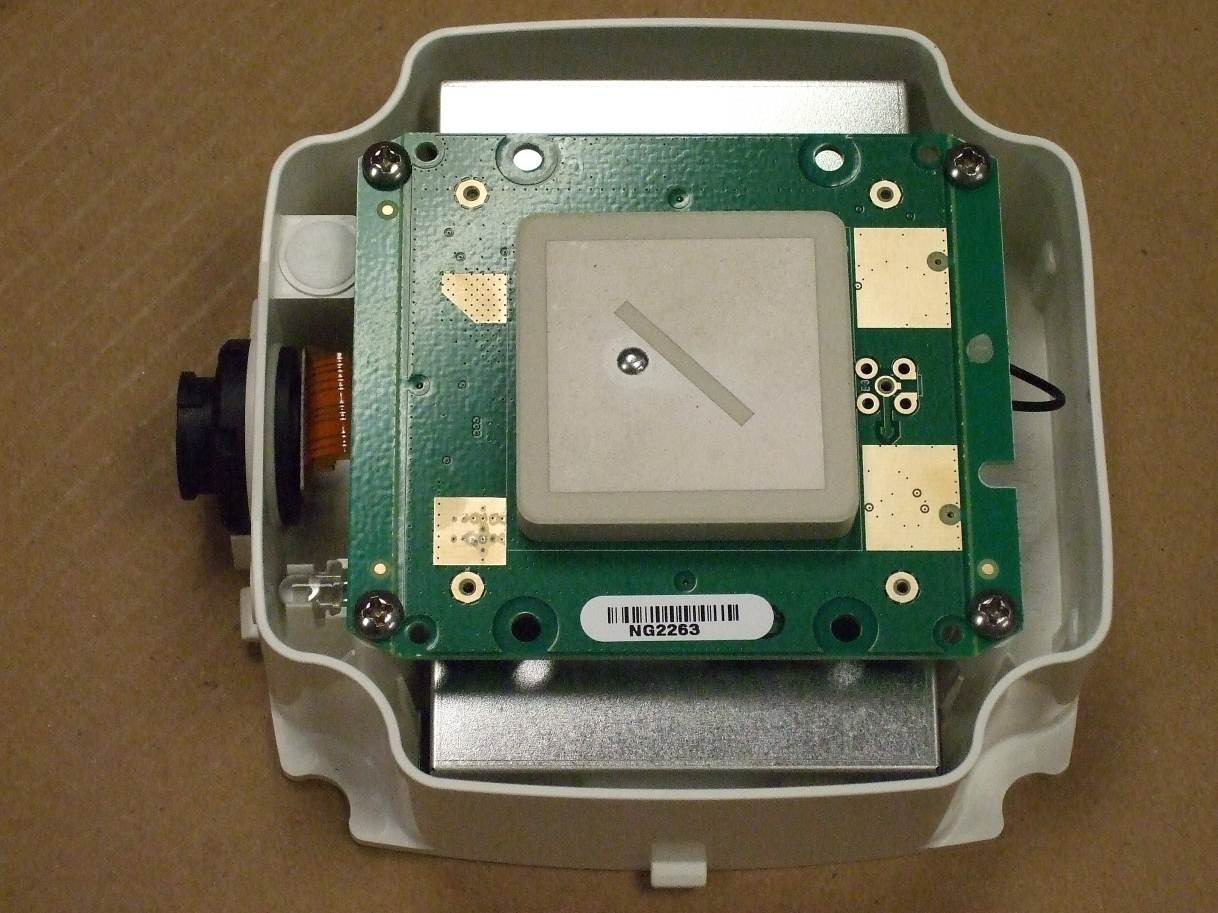

Internal Photos
SkyWave Mobile Communications Inc. 1145 Innovation Drive, Suite 288, Ottawa, Ontario, Canada, K2K 3G8 Tel: +1 613 836-4844 Fax: +1 613 836-1088 IDP-6XX Technical Description Internal Pictures (IC) SkyWave File: COMP078-I-010 REVISION VERSION 1 VERSION2 DATE Nov 28,2011 Dec 14,2011 APPROVALS TITLE SIGNATURE DATE Doug Reveler VP Product Management IsatData Pro The information contained herein is proprietary to SkyWave Mobile Communications Inc., and is not to be used or reproduced without permission. IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential i Table of Contents 1. Introduction .................................................................................................................... 1 2. Revision History ............................................................................................................ 1 3. IDP-680 Internal Pictures ............................................................................................... 2 3.1. Assembly pictures .................................................................................................. 2 3.2. Circuit Card Pictures .............................................................................................. 3 IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 1 1. Introduction The following document contains internal product pictures required for Industry Canada approval of the IDP-680 and IDP-690 terminals. The IC number for this submission is 3745A-IDP6XX 2. Revision History Author Version Comment DR 1.0 Initial version sent to Nemko for comments. 2 Fix IC number. Label pictures moved to another document IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 2 3. IDP-680 Internal Pictures The following section contains internal pictures of the IDP-680. The internal pictures for the side and bottom connector versions are the same. As per the pictures, in both cases a flex circuit is used to allow the connector to exit on the side or bottom of the terminal. 3.1. Assembly pictures The following section contains internal pictures of the IDP-680 assembly. Figure 3-1 IDP-680 Inside View, Antenna Top IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 3 Figure 3-2 IDP-680 Inside View Antenna Bottom 3.2. Circuit Card Pictures The IDP-680 contains three printed circuit cards β’ Antenna Card β’ Modem Card β’ Application Card The following section contains pictures of the top and bottom views of these three printed circuit assemblies, with their internal shields removed. IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 4 Figure 3-3 IDP-680 Modem Card - Top and Bottom View ( no shields) IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 5 Figure 3-4 Application Card Top and Bottom View ( Shields Removed) IDP-6XX Technical Description β Internal Pictures SkyWave Mobile Communications Inc Confidential 6 Figure 3-5 IDP-680 Antenna Card β Top and Bottom View
Parts List/Tune Up Info

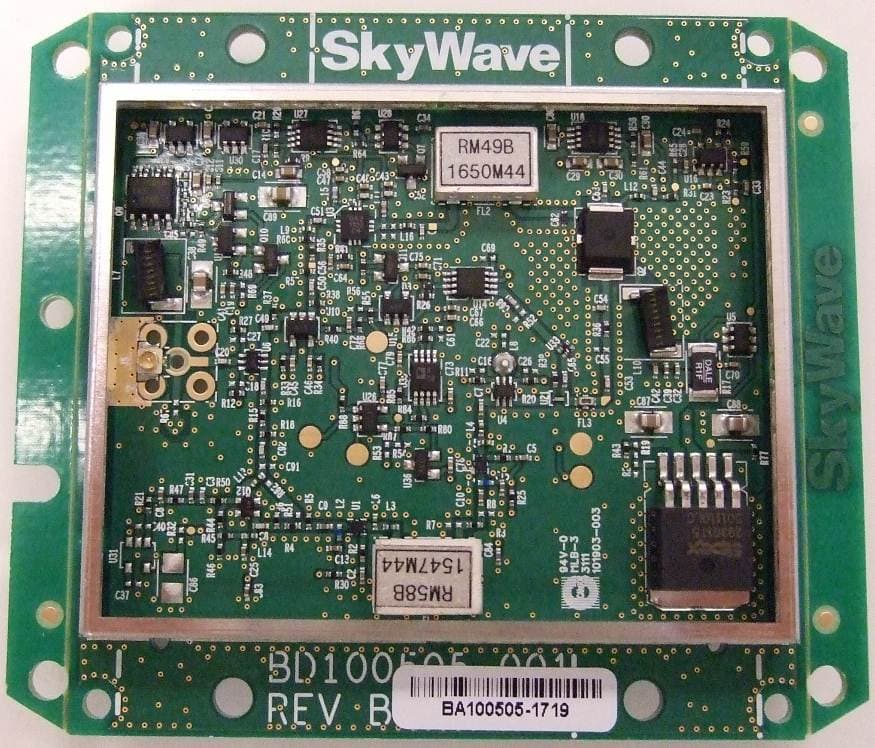

Item Number: BA100505-001 Item Rev: ( D ) EC-1081 Item Descri p tion: CCA ANTENNA BOARD Level Part Type Find Num Number Rev Description 0 Assembly - Circuit Card (BA) BA100505-001 (D) EC-1081 CCA ANTENNA BOARD 1 COTS - Component (VARIOUS) 0 20000276 MC-1005 CAP CER X7R 10n0 10% 50V 0402 1 COTS - Component (VARIOUS) 0 20000332 MC-1005 CAP CER C0G 100p 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000355 MC-1005 CAP CER C0G 1n00 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000414 MC-1005 CAP CER C0G 470p 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000415 MC-1005 CAP CER X7R 15n0 10% 16V 0402 1 COTS - Component (VARIOUS) 0 20000478 MC-1005 CAP CER C0G 3p90 +/-0.1pF 50V 0402 1 COTS - Component (VARIOUS) 0 20000481 MC-1005 CAP CER C0G 1p00 +/-0.1pF 50V 0402 1 COTS - Component (VARIOUS) 0 20000513 MC-1005 CAP CER C0G 27p0 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000542 MC-1005 CAP CER X7R 1u00 10% 16V 0603 1 COTS - Component (VARIOUS) 0 20000544 MC-1005 CAP CER X7R 100n 10% 16V 0402 1 COTS - Component (VARIOUS) 0 20000552 MC-1005 CAP CER X7R 10u0 10% 10V 0805 1 COTS - Component (VARIOUS) 0 20000586 MC-1005 CAP CER C0G 1p60 +/-0.1pF 50V 0402 1 COTS - Component (VARIOUS) 0 21000415 MC-1005 RES FILM 820R 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000454 MC-1005 RES FILM 20K0 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 25000208 MC-1005 CONN JACK IPX STR Au 1PIN SkyWave BOM 1 COTS - Component (VARIOUS) 0 35000014 MC-1005 ELE FLTR LOWPASS 1990MH z 0 . 7dB 1.6x0.8mm 1 COTS - Component (VARIOUS) 0 43000080 MC-1005 TRANSISTOR MOSFET N - CH 50V 200 m A 20VGS 10 β¦ @2.75V SOT23 1 COTS - Component (VARIOUS) 0 43000092 MC-1005 XSTR P-CH MOSFET 40V 8.2A 2.5W SO8 1 COTS - Component (VARIOUS) 0 CAP000518 MC-1005 CAP CER C0G RF 5p60 +/-0.1pF 25V 0402 1 COTS - Component (VARIOUS) 0 CAP001352 MC-1049 CAP CER X5R 2.2uF 10% 10V 0603 SMT 1 COTS - Component (VARIOUS) 0 CAP001508 MC-1005 CAP 3p00 +/-0.1pF 50V C0G 0402 1 COTS - Component (VARIOUS) 0 CAP001511 MC-1005 CAP 150p 2% 50V COG 0402 1 COTS - Component (VARIOUS) 0 DIO001375 MC-1005 DIO SCHOTTKY 30V 100 m A 200 m W SOD923 SMT 1 COTS - Component (VARIOUS) 0 DIO001503 MC-1005 DIO PIN QUAD 15V 100MA SOT235 1 COTS - Component (VARIOUS) 0 ELE001509 MC-1005 ELE FLTR BP 1518 - 1576MH z IL = 2 . 6dB 2W 11.0X3.70MM 1 COTS - Component (VARIOUS) 0 ELE001510 MC-1005 ELE FLTR BP 1626 - 1675MH z IL = 2 . 8dB 2W 11.0X3.70MM 1 COTS - Component (VARIOUS) 0 HYB001500 MC-1005 HYB COUPLER 21dB 1626-1661MHz 0.25dB 1 COTS - Component (VARIOUS) 0 IND000092 MC-1005 IND SPRING 35n5 5% 4A 1 COTS - Component (VARIOUS) 0 IND000384 MC-1052 IND CER 3n90 +/-0.3nH 300mA 0402 1 COTS - Component (VARIOUS) 0 IND000385 MC-1052 IND CER 6n80 5% 300mA 0402 1 COTS - Component (VARIOUS) 0 IND000386 MC-1005 IND CER 22n0 5% 300mA 0402 1 COTS - Component (VARIOUS) 0 IND000482 MC-1005 IND CER 10n0 5% 300mA 0402 1 COTS - Component (VARIOUS) 0 IND001515 MC-1005 IND 2n20 Β±0.3nH 300mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001516 MC-1005 IND 18n0 5% 300mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001517 MC-1005 IND 15n0 2% 560mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001518 MC-1005 IND 27n0 5% 300mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001520 MC-1005 IND 2n9 Β±0.1nH 750mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001521 MC-1029 IND 3n6 Β±0.3nH 300mA RF 0402 1 COTS - Component (VARIOUS) 0 IND001522 MC-1029 IND 2n0 Β±2% 1040mA RF 0402 1 COTS - Component (VARIOUS) 0 INT000079 MC-1005 IC LOW VOLTAGE DETECTOR 3 . 6V + / - 2% SOT23 1 COTS - Component (VARIOUS) 0 INT000238 MC-1005 IC RF SWI SPDT L-BAND GaAs 500-2500MHz 1 COTS - Component (VARIOUS) 0 INT000498 MC-1005 IC RF SWI SPDT L/S-BAND GaAs 0.05-3.0GHz 1 COTS - Component (VARIOUS) 0 INT001531 MC-1005 IC LOW NOISE AMPLIFIER 900 - 3500 MHz 17.9dB 0.97dB 6-UDFN 1 COTS - Component (VARIOUS) 0 INT001531 MC-1005 IC LOW NOISE AMPLIFIER 900 - 3500 MHz 17.9dB 0.97dB 6-UDFN 1 COTS - Component (VARIOUS) 0 INT001534 MC-1005 IC LOGIC LDO REGULATOR LINEAR IN = 0 - 6 . 5V OUT=3V 2% 200mA TSOT23-5 1 COTS - Component (VARIOUS) 0 INT001534 MC-1005 IC LOGIC LDO REGULATOR LINEAR IN = 0 - 6 . 5V OUT=3V 2% 200mA TSOT23-5 1 COTS - Component (VARIOUS) 0 INT001541 MC-1005 IC POWER AMP 1 . 88 - 1 . 93GH z G = 36dB 0 . 5W 12 - LEAD PQFN 1 COTS - Component (VARIOUS) 0 INT001542 MC-1005 IC LINEAR CURRENT - SENSE AMP 1 . 8MH z G=+20V/V 28V SOT236 1 COTS - Component (VARIOUS) 0 INT001544 MC-1005 IC LINEAR OP - AMP 3MHz R - R I/O SINGLE SOT235 1 COTS - Component (VARIOUS) 0 INT001545 MC-1005 Vi n= 2 . 7 - 5 . 5V V ou t =- 1 . 5 t o- 5 . 2 V 10 m A MSOP - 8 CHARGE PUMP 1 COTS - Component (VARIOUS) 0 INT001546 MC-1005 VOLTAGE REFERENCE PROGRAMMABLE SHUNT Vin=6V Vout=6V 1.6mA SOT235 1 COTS - Component (VARIOUS) 0 INT001547 MC-1005 IC VOLTAGE REGULATOR LINEAR ADJUSTABLE 2% 500mA MSOP-8 1 COTS - Component (VARIOUS) 0 INT001548 MC-1005 IC SUPERVISOR RESET 5 . 5V 1 . 8% OD ACTIVE HIGH SOT236 1 COTS - Component (VARIOUS) 0 INT001549 MC-1005 IC VOLTAGE REGULATOR LINEAR Vi n= 1 . 5 - 6 . 0V Vout=1.3V 2% 200mA SOT235 1 COTS - Component (VARIOUS) 0 INT001550 MC-1005 IC VOLTAGE REGULATOR LINEAR Vi n= 16V max Vout=5V 2% 3A TO263-5 1 COTS - Component (VARIOUS) 0 INT001552 MC-1005 INT ATTENUATOR PCB 10dB 0 . 5dB 2 . 5GH z 0.04W 0404 1 COTS - Component (VARIOUS) 0 INT001553 MC-1005 IC LINEAR RF - DETECTING CONTROLLER 0 . 1 - 2.5GHz +15dBm 6V MSOP-8 1 COTS - Component (VARIOUS) 0 INT001554 MC-1005 IC SENSOR TEMPERATURE - 40Β°C/ + 125Β°C Β± 2Β°C Vout SOT23 1 COTS - Component (VARIOUS) 0 INT001555 MC-1005 IC LINEAR OP-AMP 3Mhz R-R I/O DUAL MSOP-8 1 COTS - Component (VARIOUS) 0 RES000395 MC-1005 RES THICK FILM 0R 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000406 MC-1005 RES FILM 10K0 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000424 MC-1005 RES FILM 49R9 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000425 MC-1046 RES 17R4 1% 1/16W THICK FILM 0402 1 COTS - Component (VARIOUS) 0 RES000489 MC-1005 RES FILM 100K 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000500 MC-1005 RES FILM 200R 1% 1β¦
Text truncated - open the document above for the full version.
Parts List/Tune Up Info
Item Number: BA100502-001 Item Rev: B EC-1069 Item Descri p tion: CCA APPLICATION CARD Level Part Type Find Num Number Rev Description 0 Assembly - Circuit Card (BA) BA100502-001 B EC-1069 CCA APPLICATION CARD 1 COTS - Capacitor (CAP) 0 CAP000323 MC-1034 CAP 100n 10% 50V X7R 0603 1 COTS - Component (VARIOUS) 0 20000276 MC-1005 CAP CER X7R 10n0 10% 50V 0402 1 COTS - Component (VARIOUS) 0 20000337 MC-1005 CAP CER C0G 220p 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000345 MC-1029 CAP CER X5R 47u0 20% 6.3V 1206 1 COTS - Component (VARIOUS) 0 20000355 MC-1005 CAP CER C0G 1n00 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000368 MC-1005 CAP CER C0G 10p0 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000389 MC-1005 CAP CER C0G 330p 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000501 MC-1005 CAP CER C0G 100p 5% 50V 0402 1 COTS - Component (VARIOUS) 0 20000542 MC-1005 CAP CER X7R 1u00 10% 16V 0603 1 COTS - Component (VARIOUS) 0 20000544 MC-1005 CAP CER X7R 100n 10% 16V 0402 1 COTS - Component (VARIOUS) 0 20000550 MC-1005 CAP CER X7R 10u0 20% 50V 2220 1 COTS - Component (VARIOUS) 0 20000551 MC-1005 CAP CER X7R 10u0 10% 16V 1206 1 COTS - Component (VARIOUS) 0 20000555 MC-1005 CAP CER X7R 1u00 10% 100V 1206 1 COTS - Component (VARIOUS) 0 20000566 MC-1005 CAP TANT 47u0 20% 16V 7343 1 COTS - Component (VARIOUS) 0 21000313 MC-1005 RES FILM 470R 5% 1/16W 0402 SkyWave BOM 1 COTS - Component (VARIOUS) 0 21000314 MC-1005 RES FILM 1K00 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000316 MC-1005 RES FILM 10K0 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000366 MC-1005 RES FILM 1M00 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000382 MC-1005 RES FILM 61K9 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000387 MC-1005 RES FILM 33R0 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000389 MC-1005 RES FILM 510K 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000407 MC-1005 RES FILM 100K 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000412 MC-1005 RES FILM 249K 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000419 MC-1005 RES FILM 100R 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000454 MC-1005 RES FILM 20K0 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000535 MC-1005 RES 200k 5% 1/18W THICK FILM 0805 1 COTS - Component (VARIOUS) 0 21000539 MC-1005 RES FILM 7M50 5% 1/8W 0805 1 COTS - Component (VARIOUS) 0 21000540 MC-1005 RES FILM 200K 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000566 MC-1005 RES FILM 470R 5% 1/4W 1206 1 COTS - Component (VARIOUS) 0 21000570 MC-1005 RES FILM 1R00 5% 1/8W 0805 1 COTS - Component (VARIOUS) 0 21000599 MC-1005 RES FILM 24K3 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 21000617 MC-1005 RES FILM 33K2 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 23000073 MC-1005 DIO SWITCH DUAL 70V 215mA 200mW SC70 1 COTS - Component (VARIOUS) 0 23000104 MC-1005 DIO SCHOTTKY 40V 3A SMB 1 COTS - Component (VARIOUS) 0 30000016 MC-1005 IC LGC TTL NAND QUAD 2 - IN SiG a t e CMOS 1 . 2 - 3.6V TSSOP14 1 COTS - Component (VARIOUS) 0 31000061 MC-1005 IC MEMORY RAM 8Mbit 512Kx16 45ns BGA-48 1 COTS - Component (VARIOUS) 0 40000047 MC-1005 PROTDEV FUSE 32V 5A 0603 1 COTS - Component (VARIOUS) 0 42000019 MC-1005 IC XCVR RS - 485/RS4 - 22 1TX 1RX 250kb ps 3 - 3.6V SOIC8 1 COTS - Component (VARIOUS) 0 43000054 MC-1005 XSTR P - CH MOSFET PWR 20V 3 . 7A 1 . 3W SOT23 1 COTS - Component (VARIOUS) 0 43000070 MC-1005 XSTR PNP 45V 100mA SOT23 1 COTS - Component (VARIOUS) 0 43000071 MC-1005 XSTR NPN 45V 100mA SOT23 1 COTS - Component (VARIOUS) 0 43000080 MC-1005 TRANSISTOR MOSFET N - CH 50V 200 m A 20VGS 10 β¦ @2.75V SOT23 1 COTS - Component (VARIOUS) 0 43000092 MC-1005 XSTR P-CH MOSFET 40V 8.2A 2.5W SO8 1 COTS - Component (VARIOUS) 0 CAP000518 MC-1005 CAP CER C0G RF 5p60 +/-0.1pF 25V 0402 1 COTS - Component (VARIOUS) 0 CAP001005 MC-1005 CAP CER X5R 1u00 10% 6.3V 0402 1 COTS - Component (VARIOUS) 0 CON001518 MC-1013 CONN HEADER 2x10 MALE 2mm SMT 1 COTS - Component (VARIOUS) 0 DIO001367 MC-1005 DIO RECTIFIER 200V 1.0A POWERDI123 1 COTS - Component (VARIOUS) 0 DIO001375 MC-1005 DIO SCHOTTKY 30V 100 m A 200 m W SOD923 SMT 1 COTS - Component (VARIOUS) 0 FET001360 MC-1005 XSTR N - CH FET DMOS 250V 360 m A 1 . 6W SOT - 89 1 COTS - Component (VARIOUS) 0 FET001369 MC-1027 XSTR P - CH MOSFET 150V 2 . 2A 2 . 5W SOIC - 8 SMT 1 COTS - Component (VARIOUS) 0 FET001370 MC-1005 XSTR N - CH MOSFET 20V 4 . 2A 1 . 25W SOT23 - 3 SMT 1 COTS - Component (VARIOUS) 0 IND001519 MC-1013 INDUCTOR 33ΞΌH 20% 1.8A POWER 1 COTS - Component (VARIOUS) 0 INT000405 MC-1005 IC XCVR RS - 232 1TX 1RX 0 . 25Mb ps 3 - 5 . 5V SSOP16 1 COTS - Component (VARIOUS) 0 INT001506 MC-1005 IC , VREG , IN = 3 - 50V , OUT = 2 - 12V , 200 m A , HSOP- 6 1 COTS - Component (VARIOUS) 0 INT001511 MC-1005 IC VREG LDO IN = 2 . 6 - 12V OUT = 3V 500 m A TSSOP8 1 COTS - Component (VARIOUS) 0 INT001512 MC-1005 IC MCU ARM Cortex M3 36MHz 2-3.6V LQFP144 1 COTS - Component (VARIOUS) 0 INT001513 MC-1005 IC FLASH 32Mb Serial 2.7-3.6V SOIC8 (0.209) 1 COTS - Component (VARIOUS) 0 INT001530 MC-1005 IC REGULATOR IN = 4 . 5V - 35V OUT = 1 . 24 - 35V 4A MSOP-8 1 COTS - Component (VARIOUS) 0 INT001533 MC-1005 IC LOGIC OR 2 INPUT SINGLE SC-70-5 1 COTS - Component (VARIOUS) 0 INT001536 MC-1005 IC VOLTAGE REFERENCE SHUNT OUT = 2 . 5V 5% 2mA SOT23-3 1 COTS - Component (VARIOUS) 0 INT001539 MC-1005 IC SUPERVISOR RESET 3V 2% OD ACTIVE LOW SC-82AB 1 COTS - Component (VARIOUS) 0 INT001539 MC-1005 IC SUPERVISOR RESET 3V 2% OD ACTIVE LOW SC-82AB 1 COTS - Component (VARIOUS) 0 INT001540 MC-1005 IC SUPERVISOR RESET 2 . 5V P - P ACTIVE LOW SOT23-5 1 COTS - Component (VARIOUS) 0 RES000158 MC-1029 RES FILM 0000 1/8W 0805 1 COTS - Component (VARIOUS) 0 RES000395 MC-1005 RES THICK FILM 0R 5% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000406 MC-1005 RES FILM 10K0 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000452 MC-1014 RES FILM 10R0 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES000489 MC-1005 RES FILM 100K 1% 1/16W 0402 1 COTS - Component (VARIOUS) 0 RES001201 MC-1013 RES FILM 12R1 1% 1/16W 0402 1 COβ¦
Text truncated - open the document above for the full version.
Parts List/Tune Up Info
Item Number: SA901058-001 Item Rev: Introductor y Item Descri p tion: A PPLICATIONS BOARD AND FLEX Level Part Type Find Num Number Rev 0 Assembly - Mfg Sub-Assembly (SA) SA901058-001 Introductory 1 Drawing - Variant 0 SA901058-000 Introductory 1 Assembly - Circuit Card (BA) 1 BA100502-001 B EC-1069 1 Assembly - Circuit Card (BA) 2 BA100516-001 A EC-1060 1 COTS - Diode: Light Emitting (LED) 3 DIO001504 MC-1005 1 Part - Mechanical (MD) 4 MD701023-002 Introductory Created B y : Vadim Volinski Create Time: 2011-07-12 01:13:17 PM EST SkyWave BOM Description Mfr.Name Mfr.Part Number Mfr.Part Lifecycle Phase Preferred Status RoHS Qty UOM APPLICATIONS BOARD AND FLEX ASSEMBLYAPPLICATIONS BOARD AND FLEX ASSEMBLY 0 CCA APPLICATION CARD 1ea CCA IDP APPLICATION FLEX HARNESS 1ea DIO LED RED Vf=2.1V T1 ΒΎ LITE-ON LTL2V3EUJS Active Preferred Compliant 1 ea MAT LBL 2D MATRIX IDP APPLICATION A - SERIES 1ea Reference Designators
Parts List/Tune Up Info
Item Number: SA901007-001 Item Rev: ( B ) EC-1073 Item Descri p tion: LOW ELEVATION ANTENNA Level Part Type Find Num Number Rev 0 Finished Good Product - Sales-Assembly (SA) SA901007-001 (B) EC-1073 1 Drawing - Variant 0 SA901007-000 01 EC-1008 1 Assembly - Circuit Card (BA) 1 BA100505-001 C EC-1075 1 Finished Good Product - Sales-Assembly (SA) 2 SA901008-001 A EC-1059 1 Part - Printed Circuit Board (BD) 3 BD100506-001 A EC-1029 1 Part - Mechanical (MD) 4 MD701009 A EC-1059 1 Part - Mechanical (MD) 5 MD701010 A EC-1059 1 Part - Mechanical (MD) 6 MD701004 01 MC-1020 1 COTS - Component (VARIOUS) 7 MAT100004 MC-1048 1 Part - Mechanical (MD) 8 MD701023-003 Introductory 1 COTS - Component (VARIOUS) 9 20000513 MC-1005 1 COTS - Component (VARIOUS) 10 IND100002 MC-1067 Created B y : Vadim Volinski Create Time: 2011-07-12 12:58:17 PM EST SkyWave BOM Description Mfr.Name Mfr.Part Number Mfr.Part Lifecycle Phase Preferred Status RoHS Qty LOW ELEVATION ANTENNA UNPACKAGED SUBASSEMBLYLOW ELEVATION ANTENNA UNPACKAGED SUBASSEMBLY 0 CCA ANTENNA BOARD 1 QFH ANTENNA ASSEMBLY 1 PCB QFH INTERFACE CARD 1 QFH MONOPOLE CP PRECISION INC MD701009 Active Preferred Compliant 4 FEED PIN QFH INTERFACE CARD CP PRECISION INC MD701010 Active Preferred Compliant 1 ADHESIVE PCB QFH INTERFACE CARD TAPE INNOVATIONS MD701004 Active Preferred Compliant 1 MATL ADH JET MELT WHITE 2in 3M 62-3748-9830-2 Active Preferred Compliant 5 MAT LBL 2D MATRIX IDP ANTENNA N-SERIES 1 CAP CER C0G 27p0 5% 50V 0402 MULTIPLE OPEN Active Preferred Compliant 1 IND 8n2 Β±5% 300mA RF 0402 MURATA LQG15HN8N2J02D Active Preferred Compliant 1 UOM Reference Designators eaeaeaeaeaea g eaea C22 ea L8
Parts List/Tune Up Info
1 of 6 29-Jun-2011 10:55:43 AM EST Part:Rev:Desc: Find Num Part Number Revision Description Mfr. Name Mfr. Part Number Preference RoHS Qty UOM Reference Designators 0 SC100500-000 B EC-1057 SCH MODEM CARD 0 (DWG1) 0 BA100500-000 B EC-1057 CCA MODEM CARD (DWG) 0 (DWG2) 0 RW550022 A EC-1057 IDP MODEM REWORK INSTRUCTIONS 1 (DWG3) 0 BD100500-001 A EC-1020 PCB MODEM CARD 1 ea (PCB1) 0 28000182 MC-1005 ELE FLTR FER BEAD EMI 220 OHM +/-25% 100MHz 300mA 0402 MURATA BLM15AG221SN1D Preferred Compliant 3 ea B10,B601,B900 0 FER100002 MC-1028 FERRITE BEAD EMI 10 OHM@100MHz 300mA DCRES 200 mOHM 0402 MURATA BLM15BA100SN1D Preferred Compliant 2 ea B17,B18 0 28000136 MC-1005 FER BEAD 1K 25% 250 mA DCR=1R1 0402 MURATA BLM15HG102SN1D Preferred Compliant 26 ea B2,B3,B4,B5,B6,B8,B9,B11,B 16,B22,B23,B24,B550,B570,B600,B650,B700,B701,B702,B703,B 704,B705,B800,B801,B802,B901 0 FER100003 MC-1028 FERRITE BEAD EMI 10 OHM@100MHz 500mA DCRES 250 mOHM 0603 MURATA BLM18BA100SN1D Preferred Compliant 2 ea B20,B21 0 28000181 MC-1005 ELE FLTR FER BEAD EMI 470 OHM +/-25% 100MHz 200mA 0402 MURATA BLM15BD471SN1D Prefβ¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Doug Reveler(VP Product Management)
Technical Contact
SkyWave Mobile Communications IncDoug Reveler
[email protected]1 613 836-6288
750 Palladium Drive, Suite 368 Β· Ottawa Β· Canada
Non-Technical Contact
SkyWave Mobile Communications IncDoug Reveler
[email protected]1 613 836-6288
Test Firm
Nemko Canada IncStuart Beck
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 25 | 1.63 GHz - 1.66 GHz | 2.495 W | 8K06G1D | 3.0900000000 ppm |
Other Applications from SkyWave Mobile Communications Inc.

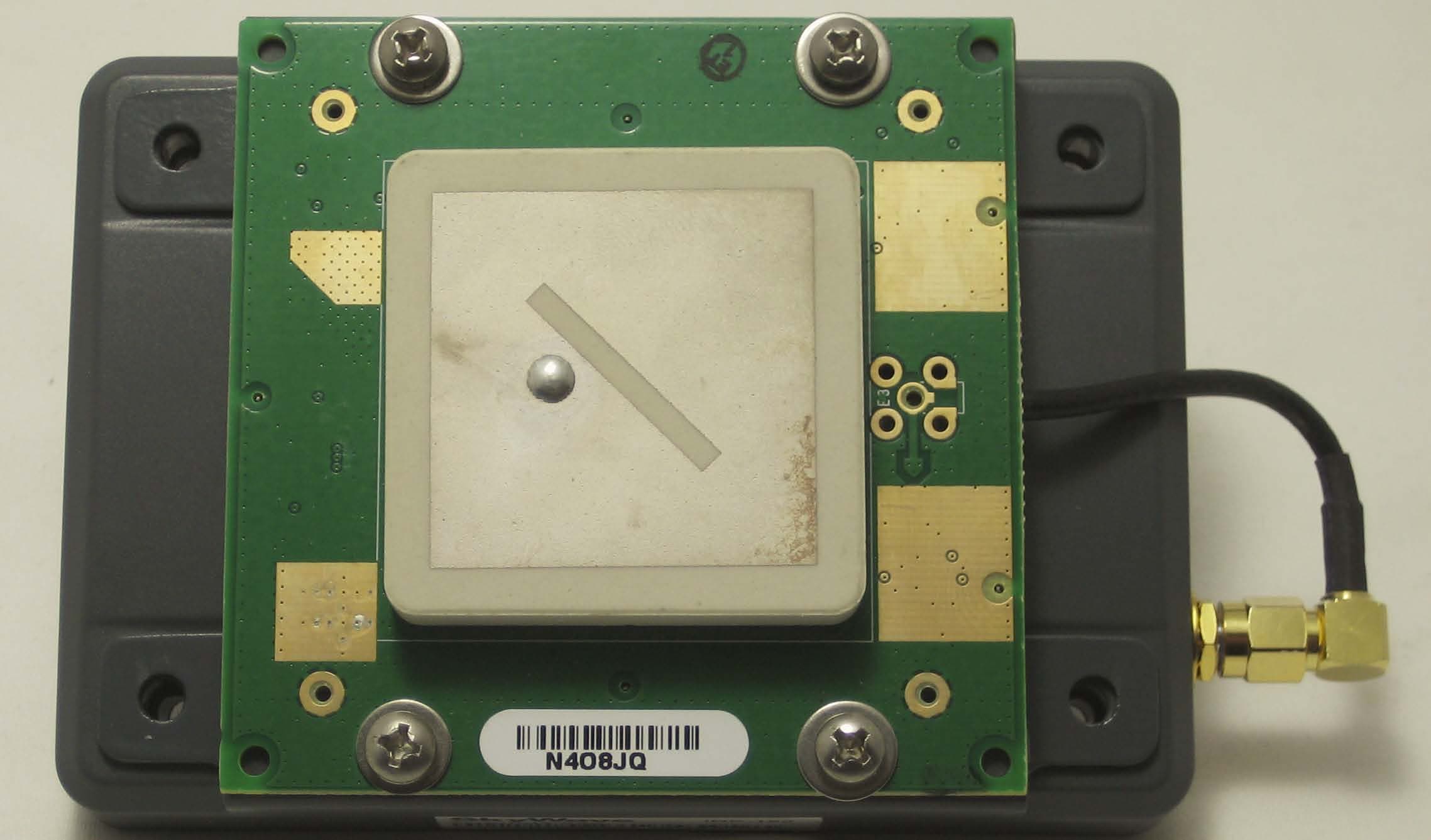

B92IDP1XX
