44X0039A Quick Start Guide HyperX Cloud MIX Buds 2 Overview A E F G H J L M N B I K D C Charging contacts IR Proximity sensor Microphones Touch sensor A B C D Charging case E Charging case status LED Charging case button USB-C port Low latency USB dongle F G H I USB dongle Status LED J USB dongle button Extension adapter Ear tips (large, small) USB-C to USB-A cable K L M N To charge the earbuds, place them in the charging case and close the lid. If the charging case is not connected to a power source, the charging case status LED will show which earbuds are charging. Charging It is recommended that the earbuds and charging case be fully charged before rst use. CHARGING CASE STATUS LED EARBUDS CHARGING Breathing Green61% - 100% Breathing Yellow21% - 60% Breathing Red< 20% To charge the charging case, connect a power source to the USB-C port on the bottom of the case. The charging case status LED will ash the current battery level. The LED will then breath to indicate the charging status until turning solid, indicating a full charge. Once fully charged, if the charging case’s lid is opened or the button is pushed, the LED will turn o. CHARGING CASE STATUS LED CHARGING CASE BATTERY LEVEL Solid Green100% (Charging Case = 100%) Breathing Green61% - 100% (Charging Case < 100%) Solid Yellow21% - 60% Solid Red6% to 20% Blinking Red< 5% To power o the earbuds, return them to the charging case and close the lid. The case LED will turn o. 1. With the earbuds inserted, open the lid of the charging case. 2. Press and hold the charging case button for 3 seconds. The charging case status LED will begin ashing blue. 3. On your Bluetooth® enabled device, search for and connect to HyperX Cloud MIX Buds 2. Once connected, the charging case status LED will turn solid blue and fade o, returning to the battery level indication. Powering on and off the Earbuds Pairing the Earbuds To power on the earbuds, open the charging case. The charging case status LED will show the battery level of the earbuds. CHARGING CASE STATUS LED EARBUD BATTERY LEVEL Breathing Green61% - 100% Breathing Yellow21% - 60% Breathing Red< 20% 1. Connect the low latency USB adapter to your mobile device, PC, or video game console. The USB adapter status LED will begin ashing white. When not being used with a mobile device, it is recommended that the included extension adapter and USB-C to USB-A cables be used. 2. When the earbuds are powered on, they will automatically connect to the USB adapter, and the USB adapter status LED will breathe white. Cloud MIX Buds 2 will prioritize connecting to the USB adapter and will automatically switch from Bluetooth® if the low latency connection becomes available. To manually switch connections between the low latency adapter and Bluetooth®, long-press the USB adapter button. Connecting the Low Latency USB Adapter The following media controls are available when using Bluetooth® or the low latency USB dongle: SINGLE TAPDOUBLE TAP Play/PauseSkip Track DOUBLE TAPDOUBLE TAP Previous Track Left: Toggle ANC/Ambient Mode Right: Activate Voice Assistant The following phone controls are available when using Bluetooth®: Note: Touch control functionality can vary between devices and apps STATUS Receiving Call TRIPLE TAP X LONG TAP X In Call SINGLE TAP Answer Call Toggle Mute/Unmute DOUBLE TAP Reject Call End CallXLeft: Toggle ANC/Ambient Mode MODE ANC (Power-On Default) LONG TAP BT: ANC ON: 5.5 hours/ANC OFF: 7 hours Low Latency Adapter: ANC ON: 4 hours/ANC OFF: 5 hours FUNCTION Enables hybrid active noise cancellation to greatly reduce background noise. Ambient Mode BT: 7 hours Low Latency Adapter: 5 hours Uses the earbuds’ microphones to allow hearing external sound. Charging Audio and Noise Control Modes Muting the Microphones When Using the Low Latency USB Adapter Press the USB adapter button to mute/unmute the low latency USB adapter’s microphone audio. The USB adapter status LED will breathe red when the microphone audio is muted. Checking the Charging Case Battery Level Press the charging case button to check the charging case’s battery level, indicated by a blink and hold of the case’s status LED. CHARGING CASE STATUS LED CHARGING CASE BATTERY LEVEL Solid Green61% - 100% Solid Yellow21% - 60% Solid Red< 20% Blinking Red< 5% To customize sound, controls, and other settings, please download the HyperX NGENUITY Mobile application from iOS App Store or Android Google Play. HyperX NGENUITY Mobile Contact the HyperX support team or see the user manual at : hyperx.com/support WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time. Questions or Setup Issues?      FRANÇAIS Aperçu A - Contacts de chargement B - Capteur de proximité IR C - Microphones D - Détecteur tactile E - Étui de chargement Chargement de la batterie Il est recommandé de charger complètement les écouteurs et l’étui de chargement avant la première utilisation. Pour charger les écouteurs, les placer dans l’étui de chargement et fermer le couvercle. Si l’étui de chargement n’est pas raccordé à une source d’alimentation, la LED d’état de l’étui de chargement indiquera que les écouteurs sont en cours de chargement. Pour charger l’étui de chargement, brancher une source d’alimentation au port USB-C situé sur la partie inférieure de l’étui. La LED d’état de l’étui de chargement clignote pour indiquer le niveau actuel de la batterie. La LED émet des impulsions pour indiquer l’état de chargement jusqu’à ce qu’elle s’allume de manière xe, ce qui conrme un chargement complet. Une fois que le chargement est complet, si le couvercle de l’étui de chargement est ouvert ou si le bouton est enfoncé, la LED s’éteint. Mise sous tension et hors tension des écouteurs Pour mettre les écouteurs sous tension, ouvrir l’étui de chargement. La LED d’état de l’étui de chargement indique le niveau de batterie des écouteurs. F - LED d’état Étui de chargement …

Text truncated - open the document above for the full version.

Date: 2023-08-29 FCC ID: B94-CEB006L To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing HP Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing HP Inc.certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division Applicant / Designated U.S Agent Company Name: HP Inc. Grantee Code: B94 FRN: 0025126541 Contact Name: Richard P. Tarsio Street Address: 3390 East Harmony Road City/Province/Zip: Fort Collins Colorado 80528 United States Telephone No: +1 970 898 8713 Email: [email protected] This letter is to confirm that the Applicant has designated itself as the U.S Agent for service of process as required by §2.911(d)(7). The Applicant further acknowledges acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant / U.S. Agent Signature: Vanessa Tsai Date: 2023-09-19 Signed by (printed name):

Date: 2023-08-29 FCC ID: B94-CEB006L To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Date: 2023-08-29 FCC ID: B94-CEB006L To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 2024/03/05 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Date: 2023-08-29 FCC ID: B94-CEB006L AUTHORIZATION LETTER To Whom It May Concern: HP Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on HP Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

HP Inc. 3390 E Harmony Rd Fort Collins, CO 80528 USA Authorization on Behalf of HP Inc. for the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P. Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (“HP”) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as an authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Vanessa Tsai Title: Product Compliance Engineer Address: HP Inc. No. 1-5, Lixing 1 st Road, East District Hsinchu City, HSZ Taiwan Telephone: +886 932285270 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer Worldwide Technical Regulations HP Inc. (A) 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 (T) +1 970 898 8713 (E) [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer HP Inc. Date: 29 June 2021

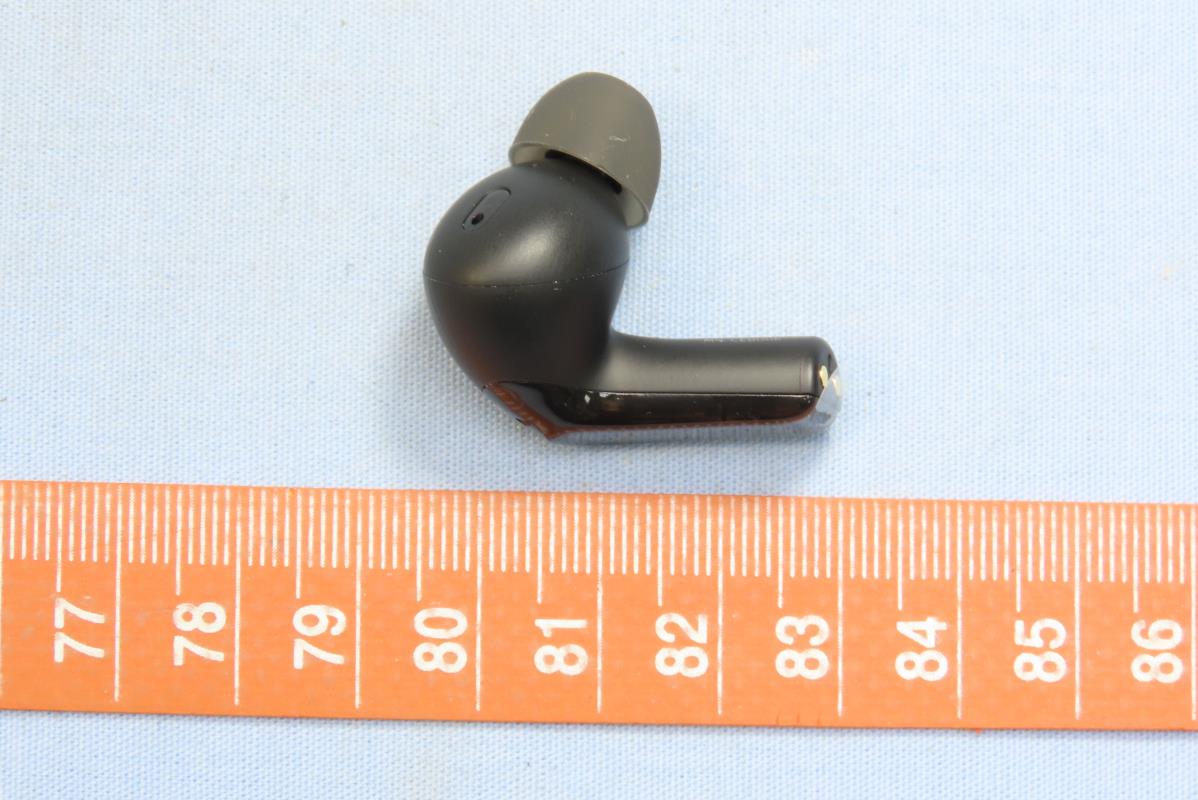

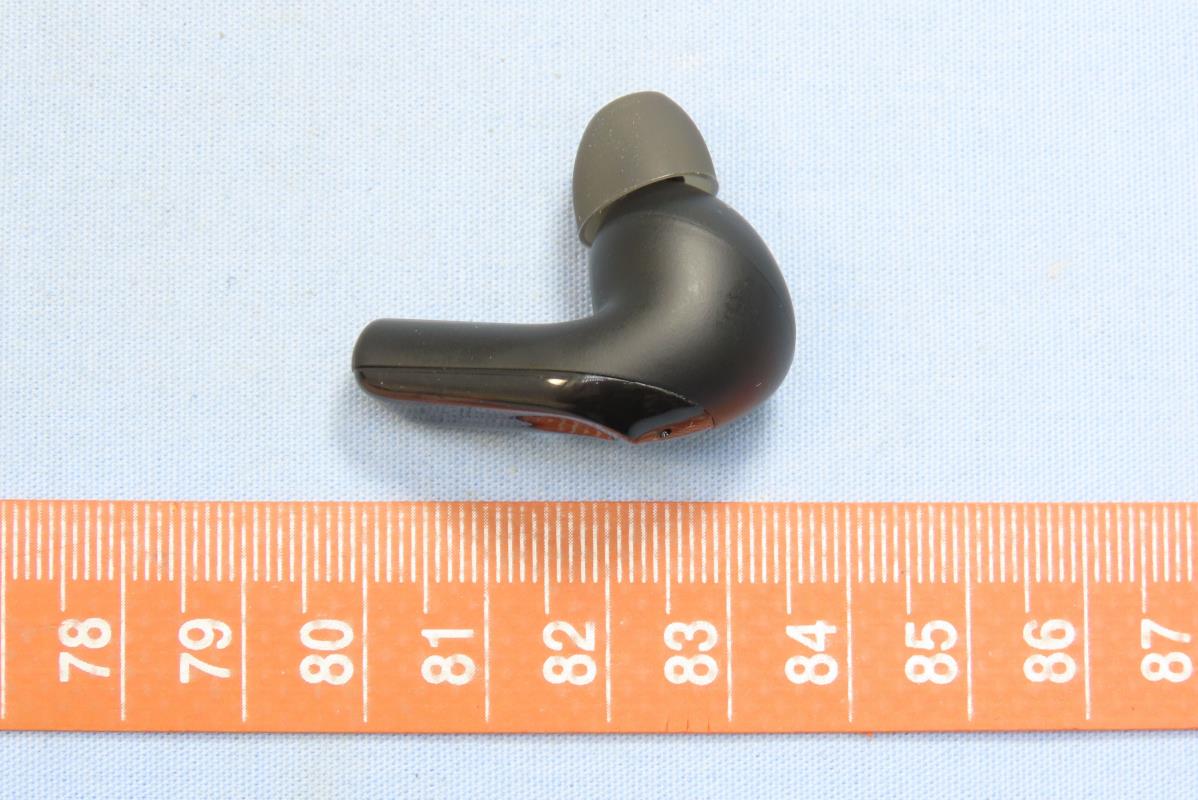

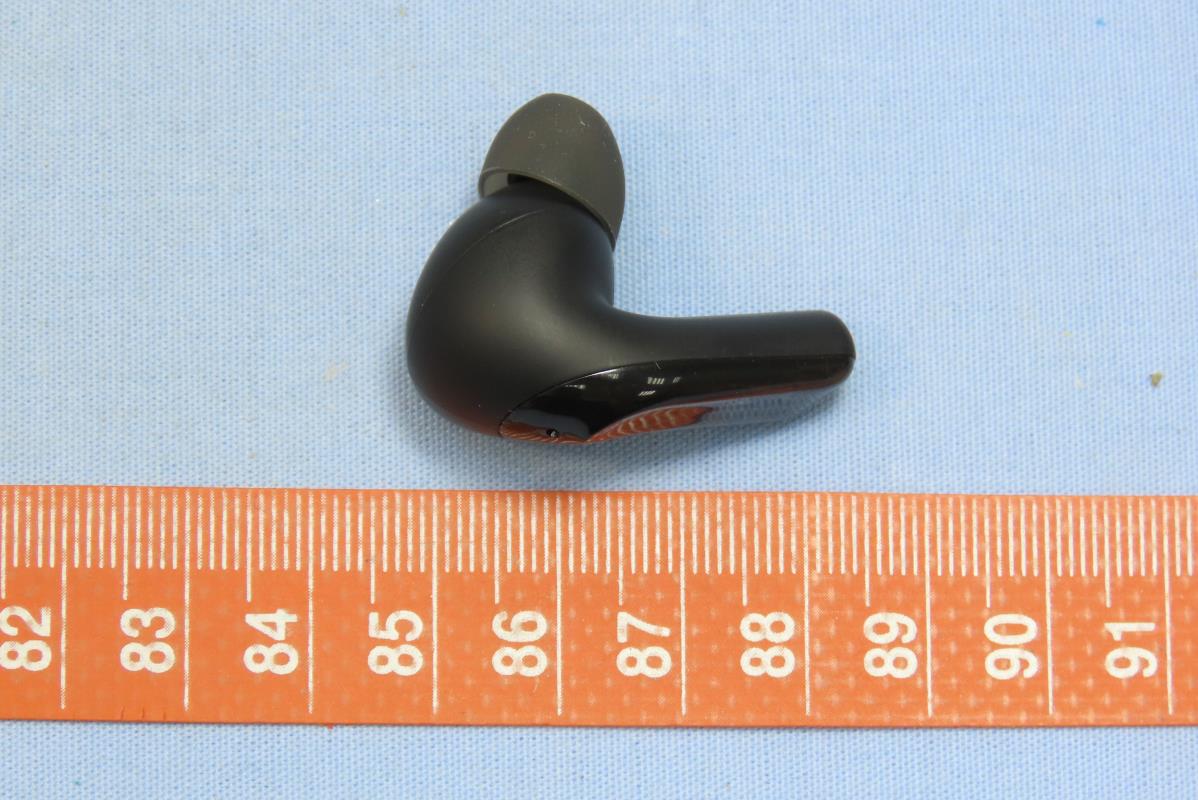

Reference No.: BDMD-WTW-P23040679-1_EXT 1 of 18 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CEB006 Reference No.: BDMD-WTW-P23040679-1_EXT 2 of 18 Right Earbud Reference No.: BDMD-WTW-P23040679-1_EXT 3 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 4 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 5 of 18 Left Earbud Reference No.: BDMD-WTW-P23040679-1_EXT 6 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 7 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 8 of 18 Charging Case (Brand: HYPERX / Model: H07010000063) Reference No.: BDMD-WTW-P23040679-1_EXT 9 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 10 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 11 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 12 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 13 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 14 of 18 Reference No.: BDMD-WTW-P23040679-1_EXT 15 of 18 Wireless Dongle (Brand: HYPERX / Model: CEB006WD) Reference No.: BDMD-WTW-P23040679-1_EXT 16 of 18 Desktop Extender (base) (Brand: HYPERX / Model: F03010000757) Reference No.: BDMD-WTW-P23040679-1_EXT 17 of 18 USB Cable (Brand: SIYOTO / Model: R07010000156) Reference No.: BDMD-WTW-P23040679-1_EXT 18 of 18

Label and label location In the user manual: The small size, design and shape of the earbud does not permit permanent regulatory markings on the surface. FCC ID is placed in the user manual and on device packaging.

Reference No.: BDMD-WTW-P23040679-1_INT 1 of 15 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CEB006 Right Earbud BT Antenna Reference No.: BDMD-WTW-P23040679-1_INT 2 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 3 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 4 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 5 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 6 of 15 Left Earbud BT Antenna Reference No.: BDMD-WTW-P23040679-1_INT 7 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 8 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 9 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 10 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 11 of 15 Charging Case (Brand: HYPERX / Model: H07010000063) Reference No.: BDMD-WTW-P23040679-1_INT 12 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 13 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 14 of 15 Reference No.: BDMD-WTW-P23040679-1_INT 15 of 15

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 24 Report No. : SFBDMD-WTW-P23040679 R1 Issued Date : Aug. 29, 2023 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 SAR Test Report Report No. : SFBDMD-WTW-P23040679 R1 Applicant : HP Inc. Address : 3390 East Harmony Road, Fort Collins, Colorado United States 80528 Product : Wireless Earbuds FCC ID : B94-CEB006L Brand : HYPERX Model No. : CEB006 FCC Rule Part CFR §2.1093 Standards : IEEE Std 1528:2013 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 447498 D01 v06 Sample Received Date : Apr. 28, 2023 Date of Testing : May 18, 2023 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 24 Report No. : SFBDMD-WTW-P23040679 R1 Issued Date : Aug. 29, 2023 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ............................................................................................................................................................. 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................. 8 3.2.4 Phantoms ......................................................................................................................................................... 8 3.2.5 Device Holder .................................................................................................................................................. 9 3.2.6 System Validation Dipoles ............................................................................................................................. 10 3.2.7 Power Source ................................................................................................................................................ 10 3.2.8 Tissue Simulating Liquids .............................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure .........................…

Text truncated - open the document above for the full version.

Plots of System Verification Appendix A. Plots of System Verification The plots for system verification are shown as follows. Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Plots of System Verification Measurement Report S01 System Check_H2450_230518 Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Dipole 10.0 x 10.0 x 300.0 Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat 2450.0 7.18 1.80 37.4 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1988 H06T27N5 , 2023-May-18 EX3DV4 - SN7778, 2022-12-06 DAE4 Sn1761, 2022-12-08 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 48.0 x 96.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 12.0 x 12.0 5.0 x 5.0 x 5.0 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05-18 2023-05-18 psSAR1g [W/kg] 2.55 2.58 psSAR10g [W/kg] 1.23 1.21 Power Drift [dB] -0.01 -0.01 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Plots of Measurement Appendix B. Plots of Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination are shown as follows. Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Plots of Measurement Measurement Report P01 BT_BDR_Front Face_0mm_Ch0_Sample Left Earbud Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type BEMI-WTW-P23040655 15.0 x 30.0 x 22.0 EUT Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, Front Face, 0.00 ISM 2.4 GHz Band Bluetooth, 10032-CAA 2402.0, 0 7.18 1.77 37.5 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1988 H06T27N5 , 2023-May-18 EX3DV4 - SN7778, 2022-12-06 DAE4 Sn1761, 2022-12-08 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 72.0 x 48.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 12.0 x 12.0 5.0 x 5.0 x 5.0 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05-18 2023-05-18 psSAR1g [W/kg] 0.256 0.399 psSAR10g [W/kg] 0.110 0.130 Power Drift [dB] -0.03 0.02 M2/M1 [%] 64.9 Dist 3dB Peak [mm] 3.8 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Appendix Z. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report No.: SFBDMD-WTW-P23040679 R1 Cancels and replaces the report no. : SFBDMD-WTW-P23040679 dated on Jun. 20, 2023 Report…

Text truncated - open the document above for the full version.

South Star Technology Hong Kong CO., LTD Antenna Test Report P. 2 Directory 一、Authentication requirement information 二、Test Equipment & Conditions 三、Name of test equipment calibration table and test software 四、Darkroom image and axis definition 五、Earphone antenna matching_ RF end 六、Passive data of R earbud antenna (CEB006R) 七、Passive data of L earbud antenna (CEB006L) 八、Passive data of Dongle antenna (CEB006WD) 九、OTA data P. 3 一、 Authentication requirement information A. Electrical Characteristics Frequency 2402MHz~2480MHz VSWR ANT-R ANT-L Dongle <2 <2 <4.5 Impedance50 Ohm PolarizationLinear Peak Gain ANT-R -3.2dBi Peak Gain ANT-L -1.54dBi Peak Gain Dongle 0.1dBi Antenna typePIFA B. Material & Mechanical Characteristics Material of RadiatorFPC Black C. Information about the antenna manufacturer Test date: 2023.3.18 Name of Tester: Jian He Name of antenna factory： South Star Technology Hong Kong CO., LTD Antenna factory address： No.3 Nanfang 1st Rd. ChiGang Community, HuMen Town, Dongguan City, Guangdong Province, China. P.4 二、Test Equipment & Conditions 1、Antenna standing wave measuring instrument： The VSWR was tested using an Agilent E5063A connected to the mechanism in the free space state. 2、Test environment and method of antenna efficiency and gain： 3D Chamber Test System P.5 三、Name of test equipment calibration table and test software 1、Test equipment : E5063A CALIBRATION DATE: 2022/4/13 VAILD DATE OF CALIBRATION : 2023/4/12 Test equipment : E5071C： CALIBRATION DATE: 2022/4/13 VAILD DATE OF CALIBRATION : 2023/4/12 2、Test software name： OTAtester P. 6 四、 Darkroom image and axis definition Y Z X Definition of darkroom coordinate axis: H-plane: XY axis E1-plane: XZ axis E2-plane: YZ axis 测试设备(Test Equipment & Conditions) 1. 网络分析仪 NetWork Analyzers: Keysight E5071C 2. 综合测试仪 Comprehensive tester： CMW500 、MT8000A、MT8862A 3. 3D暗室测试系统 3D Chamber Test System: P.8 S11_SWR（R） 六、Passive data of R antenna P. 9 Efficiency, gain, and directional pattern（R）Right Earbud-Model : CEB006 Eff. And Gain Directional graph Peak Gain:-3.2dBi FreqEffiPeak Gain (MHz)(%)(dBi) 240216.89-4.4 241016.97-4.06 242017.19-4.16 243017.27-4.18 244017.38-4.13 245017.61-3.79 246017.69-3.48 247017.92-3.2 248016.94-3.51 2402~2480MHz The maximum gain value frequency point in the range is 2470MHz Intermediate channel 2450MHz P. 10 S11_SWR（L） 七、Passive data of L antenna P. 11 Eff. And Gain Peak Gain:-1.54dBi FreqEffiPeak Gain (MHz)(%)(dBi) 240218.2-1.83 241018.35-1.86 242018.36-2.07 243019.12-2.07 244018.69-1.72 245018.76-1.54 246018.63-1.58 247018.26-1.92 248018.23-2.25 avg.18.51-1.87 Efficiency, gain, and directional pattern（L）Left Earbud-Model : CEB006 2402~2480MHz The maximum gain value frequency point in the range is 2450MHz Intermediate channel 2450MHz Directional graph P.12 S11_SWR（Dongle） Base with data cable 八、Passive data of Dongle antenna P.13 P. 14 Eff. And Gain Peak Gain:0.1dBi FreqEffiGain (MHz)(%)(dBi) 240224.090.1 241025.29-0.63 242024.99-1.27 243023.34-1.39 244026.81-1.04 245031.17-0.61 246031.43-0.79 247029.71-1.26 248029.27-1.64 Efficiency, gain, and directional pattern（Dongle）Model: CEB006WD 2402~2480MHz The maximum gain value frequency point in the range is 2402MHz Intermediate channel 2450MHz Directional graph P. 15 九、OTA data OTA data of headphone antenna OTA data of Dongle antenna

Report No.: RFBDMD-WTW-P23040679-1 R1 Page No. 1 / 46 Report Format Version: 7.1.0 Cancels and replaces the report no. : RFBDMD-WTW-P23040679-1 dated on Jun. 20, 2023 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.: RFBDMD-WTW-P23040679-1 R1 FCC ID: B94-CEB006L Product: Wireless Earbuds Brand: HYPERX Model No.: CEB006 Received Date: 2023/4/28 T…
