B94-CEB006WDWireless Dongle

HP Inc.
Wireless Dongle - FCC ID B94-CEB006WD - HP Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 20, 2023
Application Purpose
Original Equipment
Date of Application
Sep 19, 2023
Equipment Note
Wireless Dongle
Frequency Range
2404.00000000 - 2478.00000000
Company
HP Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

44X0039A Quick Start Guide HyperX Cloud MIX Buds 2 Overview A E F G H J L M N B I K D C Charging contacts IR Proximity sensor Microphones Touch sensor A B C D Charging case E Charging case status LED Charging case button USB-C port Low latency USB dongle F G H I USB dongle Status LED J USB dongle button Extension adapter Ear tips (large, small) USB-C to USB-A cable K L M N To charge the earbuds, place them in the charging case and close the lid. If the charging case is not connected to a power source, the charging case status LED will show which earbuds are charging. Charging It is recommended that the earbuds and charging case be fully charged before rst use. CHARGING CASE STATUS LED EARBUDS CHARGING Breathing Green61% - 100% Breathing Yellow21% - 60% Breathing Red< 20% To charge the charging case, connect a power source to the USB-C port on the bottom of the case. The charging case status LED will ash the current battery level. The LED will then breath to indicate the charging status until turning solid, indicating a full charge. Once fully charged, if the charging case’s lid is opened or the button is pushed, the LED will turn o. CHARGING CASE STATUS LED CHARGING CASE BATTERY LEVEL Solid Green100% (Charging Case = 100%) Breathing Green61% - 100% (Charging Case < 100%) Solid Yellow21% - 60% Solid Red6% to 20% Blinking Red< 5% To power o the earbuds, return them to the charging case and close the lid. The case LED will turn o. 1. With the earbuds inserted, open the lid of the charging case. 2. Press and hold the charging case button for 3 seconds. The charging case status LED will begin ashing blue. 3. On your Bluetooth® enabled device, search for and connect to HyperX Cloud MIX Buds 2. Once connected, the charging case status LED will turn solid blue and fade o, returning to the battery level indication. Powering on and off the Earbuds Pairing the Earbuds To power on the earbuds, open the charging case. The charging case status LED will show the battery level of the earbuds. CHARGING CASE STATUS LED EARBUD BATTERY LEVEL Breathing Green61% - 100% Breathing Yellow21% - 60% Breathing Red< 20% 1. Connect the low latency USB adapter to your mobile device, PC, or video game console. The USB adapter status LED will begin ashing white. When not being used with a mobile device, it is recommended that the included extension adapter and USB-C to USB-A cables be used. 2. When the earbuds are powered on, they will automatically connect to the USB adapter, and the USB adapter status LED will breathe white. Cloud MIX Buds 2 will prioritize connecting to the USB adapter and will automatically switch from Bluetooth® if the low latency connection becomes available. To manually switch connections between the low latency adapter and Bluetooth®, long-press the USB adapter button. Connecting the Low Latency USB Adapter The following media controls are available when using Bluetooth® or the low latency USB dongle: SINGLE TAPDOUBLE TAP Play/PauseSkip Track DOUBLE TAPDOUBLE TAP Previous Track Left: Toggle ANC/Ambient Mode Right: Activate Voice Assistant The following phone controls are available when using Bluetooth®: Note: Touch control functionality can vary between devices and apps STATUS Receiving Call TRIPLE TAP X LONG TAP X In Call SINGLE TAP Answer Call Toggle Mute/Unmute DOUBLE TAP Reject Call End CallXLeft: Toggle ANC/Ambient Mode MODE ANC (Power-On Default) LONG TAP BT: ANC ON: 5.5 hours/ANC OFF: 7 hours Low Latency Adapter: ANC ON: 4 hours/ANC OFF: 5 hours FUNCTION Enables hybrid active noise cancellation to greatly reduce background noise. Ambient Mode BT: 7 hours Low Latency Adapter: 5 hours Uses the earbuds’ microphones to allow hearing external sound. Charging Audio and Noise Control Modes Muting the Microphones When Using the Low Latency USB Adapter Press the USB adapter button to mute/unmute the low latency USB adapter’s microphone audio. The USB adapter status LED will breathe red when the microphone audio is muted. Checking the Charging Case Battery Level Press the charging case button to check the charging case’s battery level, indicated by a blink and hold of the case’s status LED. CHARGING CASE STATUS LED CHARGING CASE BATTERY LEVEL Solid Green61% - 100% Solid Yellow21% - 60% Solid Red< 20% Blinking Red< 5% To customize sound, controls, and other settings, please download the HyperX NGENUITY Mobile application from iOS App Store or Android Google Play. HyperX NGENUITY Mobile Contact the HyperX support team or see the user manual at : hyperx.com/support WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time. Questions or Setup Issues?      FRANÇAIS Aperçu A - Contacts de chargement B - Capteur de proximitĂ© IR C - Microphones D - DĂ©tecteur tactile E - Étui de chargement Chargement de la batterie Il est recommandĂ© de charger complètement les Ă©couteurs et l’étui de chargement avant la première utilisation. Pour charger les Ă©couteurs, les placer dans l’étui de chargement et fermer le couvercle. Si l’étui de chargement n’est pas raccordĂ© Ă  une source d’alimentation, la LED d’état de l’étui de chargement indiquera que les Ă©couteurs sont en cours de chargement. Pour charger l’étui de chargement, brancher une source d’alimentation au port USB-C situĂ© sur la partie infĂ©rieure de l’étui. La LED d’état de l’étui de chargement clignote pour indiquer le niveau actuel de la batterie. La LED Ă©met des impulsions pour indiquer l’état de chargement jusqu’à ce qu’elle s’allume de manière xe, ce qui conrme un chargement complet. Une fois que le chargement est complet, si le couvercle de l’étui de chargement est ouvert ou si le bouton est enfoncĂ©, la LED s’éteint. Mise sous tension et hors tension des Ă©couteurs Pour mettre les Ă©couteurs sous tension, ouvrir l’étui de chargement. La LED d’état de l’étui de chargement indique le niveau de batterie des Ă©couteurs. F - LED d’état Étui de chargement …

Text truncated - open the document above for the full version.

Attestation Statements

Date: 2023-08-29 FCC ID: B94-CEB006WD To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing HP Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing HP Inc.certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Attestation Statements

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division Applicant / Designated U.S Agent Company Name: HP Inc. Grantee Code: B94 FRN: 0025126541 Contact Name: Richard P. Tarsio Street Address: 3390 East Harmony Road City/Province/Zip: Fort Collins Colorado 80528 United States Telephone No: +1 970 898 8713 Email: [email protected] This letter is to confirm that the Applicant has designated itself as the U.S Agent for service of process as required by §2.911(d)(7). The Applicant further acknowledges acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant / U.S. Agent Signature: Vanessa Tsai Date: 2023-09-19 Signed by (printed name):

Cover Letter(s)

Date: 2023-08-29 FCC ID: B94-CEB006WD To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Cover Letter(s)

Date: 2023-08-29 FCC ID: B94-CEB006WD To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 2024/03/05 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Cover Letter(s)

Date: 2023-08-29 FCC ID: B94-CEB006WD AUTHORIZATION LETTER To Whom It May Concern: HP Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on HP Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Cover Letter(s)

HP Inc. 3390 E Harmony Rd Fort Collins, CO 80528 USA Authorization on Behalf of HP Inc. for the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P. Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (“HP”) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as an authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Vanessa Tsai Title: Product Compliance Engineer Address: HP Inc. No. 1-5, Lixing 1 st Road, East District Hsinchu City, HSZ Taiwan Telephone: +886 932285270 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer Worldwide Technical Regulations HP Inc. (A) 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 (T) +1 970 898 8713 (E) [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer HP Inc. Date: 29 June 2021

External Photos

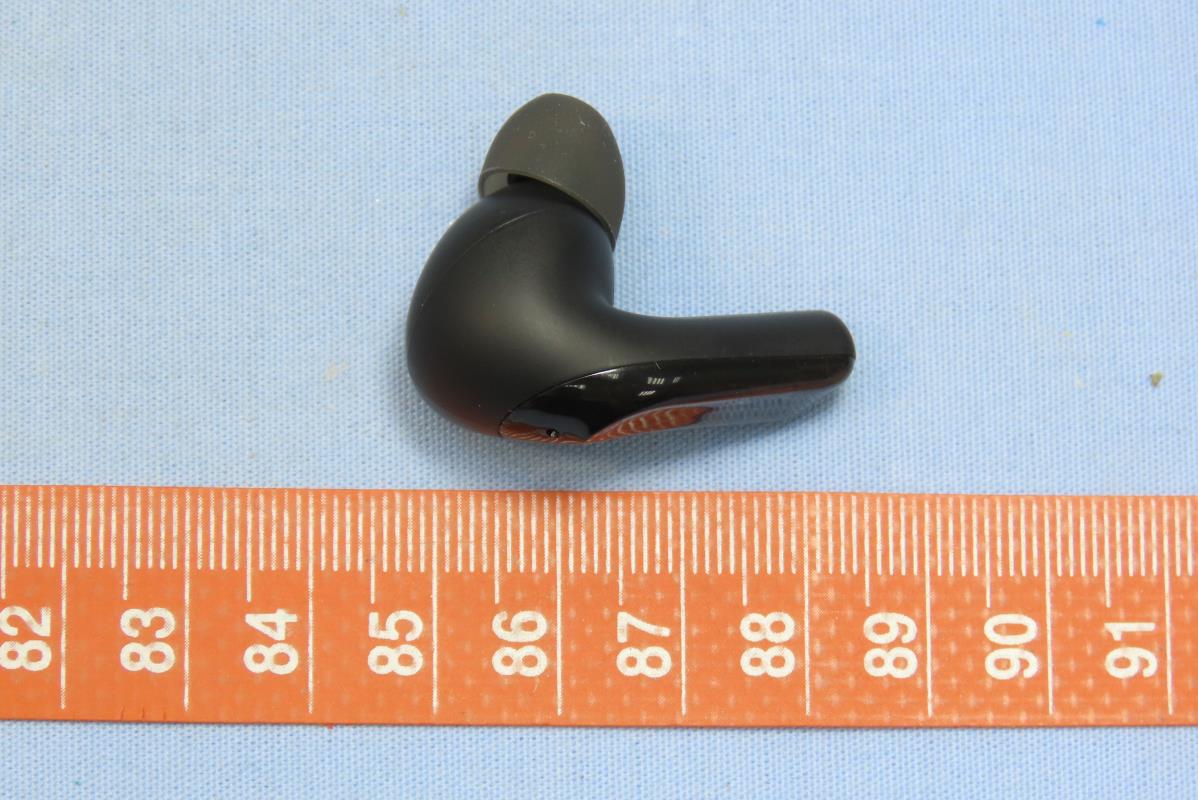

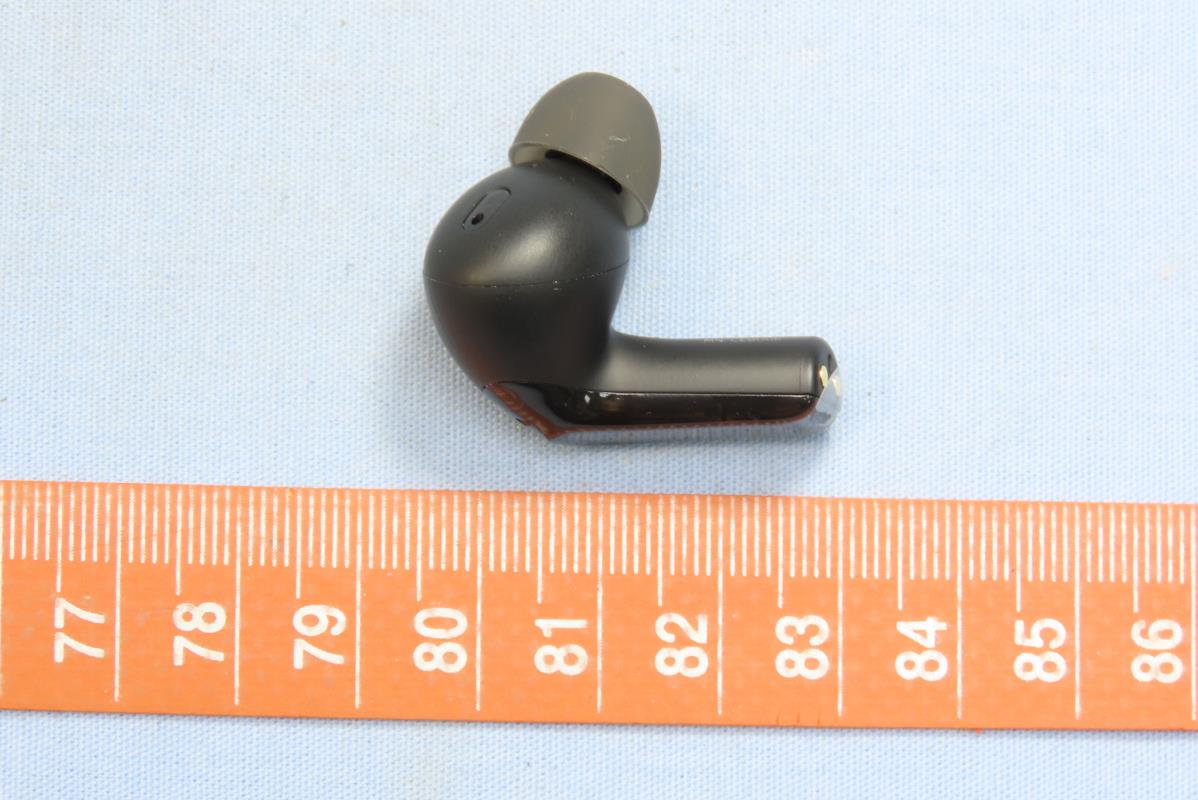

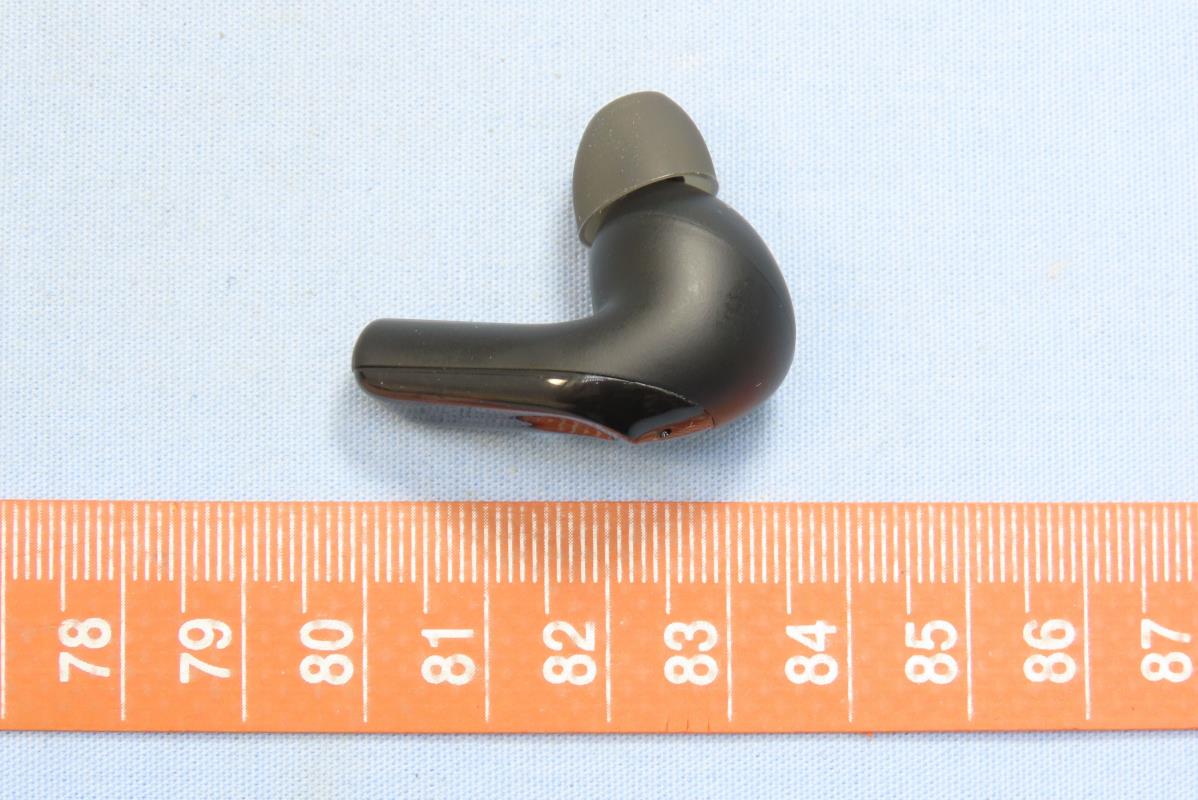

Reference No.: BDMD-WTW-P23040684-1_EXT 1 of 19 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CEB006WD Reference No.: BDMD-WTW-P23040684-1_EXT 2 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 3 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 4 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 5 of 19 Right Earbud (Brand: HYPERX / Model: CEB006) Reference No.: BDMD-WTW-P23040684-1_EXT 6 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 7 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 8 of 19 Left Earbud (Brand: HYPERX / Model: CEB006) Reference No.: BDMD-WTW-P23040684-1_EXT 9 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 10 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 11 of 19 Charging Case (Brand: HYPERX / Model: H07010000063) Reference No.: BDMD-WTW-P23040684-1_EXT 12 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 13 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 14 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 15 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 16 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 17 of 19 Reference No.: BDMD-WTW-P23040684-1_EXT 18 of 19 Desktop Extender (base) (Brand: HYPERX / Model: F03010000757) Reference No.: BDMD-WTW-P23040684-1_EXT 19 of 19 USB Cable (Brand: SIYOTO / Model: R07010000156)

ID Label/Location Info

Label and label location In the user manual: The small size, design and shape of the dongle does not permit permanent regulatory markings on the surface. FCC ID is placed in the user manual and on device packaging.

Internal Photos

Reference No.: BDMD-WTW-P23040684-1_INT 1 of 4 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CEB006WD Reference No.: BDMD-WTW-P23040684-1_INT 2 of 4 Reference No.: BDMD-WTW-P23040684-1_INT 3 of 4 BT Antenna Reference No.: BDMD-WTW-P23040684-1_INT 4 of 4

RF Exposure Info

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 24 Report No. : SFBDMD-WTW-P23040684 Issued Date : Aug. 10, 2023 SAR Test Report Report No. : SFBDMD-WTW-P23040684 Applicant : HP Inc. Address : 3390 East Harmony Road, Fort Collins, Colorado United States 80528 Product : Wireless Dongle FCC ID : B94-CEB006WD Brand : HYPERX Model No. : CEB006WD FCC Rule Part CFR §2.1093 Standards : IEEE Std 1528:2013 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 447498 D01 v06, KDB 447498 D02 v02r01 Sample Received Date : Apr. 28, 2023 Date of Testing : May 24, 2023 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 24 Report No. : SFBDMD-WTW-P23040684 Issued Date : Aug. 10, 2023 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ............................................................................................................................................................. 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................. 8 3.2.4 Phantoms ......................................................................................................................................................... 8 3.2.5 Device Holder .................................................................................................................................................. 9 3.2.6 System Validation Dipoles ............................................................................................................................. 10 3.2.7 Power Source ................................................................................................................................................ 10 3.2.8 Tissue Simulating Liquids .............................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area Scan and Zoom Scan Procedur…

Text truncated - open the document above for the full version.

RF Exposure Info

Plots of System Verification Appendix A. Plots of System Verification The plots for system verification are shown as follows. Report No.: SFBDMD-WTW-P23040684 Plots of System Verification Measurement Report S01 System Check_H2450_230524 Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Dipole 10.0 x 10.0 x 300.0 Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat 2450.0 8.26 1.84 41.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1987 H06T27N4 , 2023-May-24 EX3DV4 - SN3971, 2023-01-20 DAE4 Sn1277, 2023-01-24 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05-24 2023-05-24 psSAR1g [W/kg] 2.36 2.41 psSAR10g [W/kg] 1.14 1.13 Power Drift [dB] 0.01 -0.01 Report No.: SFBDMD-WTW-P23040684 Plots of Measurement Appendix B. Plots of Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination are shown as follows. Report No.: SFBDMD-WTW-P23040684 Plots of Measurement Measurement Report P01 BT_LE_Tip Mode_5mm_Ch19_Ant 0 Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Device 34.0 x 8.0 x 14.0 Dongle Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, Tip Mode, 5.00 ISM 2.4 GHz Band Bluetooth, 10670-AAA 2440.0, 19 8.26 1.83 41.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1987 H06T27N4 , 2023-May-24 EX3DV4 - SN3971, 2023-01-20 DAE4 Sn1277, 2023-01-24 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 48.0 x 72.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 12.0 x 12.0 5.0 x 5.0 x 5.0 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05-24 2023-05-24 psSAR1g [W/kg] 0.004 0.008 psSAR10g [W/kg] 0.002 0.005 Power Drift [dB] 0.16 -0.18 M2/M1 [%] 48.5 Dist 3dB Peak [mm] 8.5 Report No.: SFBDMD-WTW-P23040684 Appendix Z. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684 Report No.: SFBDMD-WTW-P23040684

Test Report

Report No.: RFBDMD-WTW-P23040684 Page No. 1 / 43 Report Format Version: 7.1.0 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.: RFBDMD-WTW-P23040684 FCC ID: B94-CEB006WD Product: Wireless Dongle Brand: HYPERX Model No.: CEB006WD Received Date: 2023/4/28 Test Date: 2023/5/13 ~ 2023/6/1 Issued Date: 2023/8/10 Applicant: HP Inc. Address: 3390 East Harmony Road, Fort Collins, Colorado United States 80528 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kewi Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 Approved by: , Date: 2023/8/10 Jeremy Lin / Project Engineer This test report consists of 43 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vera Huang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBDMD-WTW-P23040684 Page No. 2 / 43 Report Format Version: 7.1.0 Table of Contents Release Control Record ....................................................................................................................................................... 4 1 Certificate .................................................................................................................................................................... 5 2 Summary of Test Results .......................................................................................................................................... 6 2.1 Measurement Uncertainty ........................................................................................................................................ 6 2.2 Supplementary Information ...................................................................................................................................... 6 3 General Information ................................................................................................................................................... 7 3.1 General Description .................................................................................................................................................. 7 3.2 Antenna Description of EUT ..................................................................................................................................... 7 3.3 Channel List .............................................................................................................................................................. 8 3.4 Test Mode Applicability and Tested Channel Detail .................................................................................................. 9 3.5 Duty Cycle of Test Signal ........................................................................................................................................ 10 3.6 Test Program Used and Operation Descriptions .................................................................................................... 11 3.7 Connection Diagram of EUT and Peripheral Devices ............................................................................................ 11 3.8 Configuration of Peripheral Devices and Cable Connections ................................................................................ 11 4 Test Instruments ...................................................................................................................................................... 12 4.1 RF Output Power .................................................................................................................................................... 12 4.2 Power Spectral Density .......................................................................................................................................... 12 4.3 6 dB Bandwidth ...................................................................................................................................................... 12 4.4 Conduc…

Text truncated - open the document above for the full version.

Test Setup Photos

Reference No.: BDMD-WTW-P23040684_TSup 1 PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test Mode A Reference No.: BDMD-WTW-P23040684_TSup 2 Radiated Emission Test (Below 1GHz) Mode A Mode B Reference No.: BDMD-WTW-P23040684_TSup 3 Radiated Emission Test (Above 1GHz) Mode A

Test Setup Photos

Antenna test setup photos for model CEB006 and CEB006WD For CEB006: For CEB006WD:

Test Setup Photos

Photographs of EUT Setup and Antenna Location The photographs of EUT and setup for SAR testing are shown as follows. Report No.: SFBDMD-WTW-P23040684 <Tip Mode View> Dongle Vertical Back Vertical Front Horizontal Up Horizontal Down Report No.: SFBDMD-WTW-P23040684 <Horizontal Up View> Dongle Vertical Back Vertical Front Inport Tip Mode Report No.: SFBDMD-WTW-P23040684 Vertical Back of EUT Tested at 5 mm Horizontal Down of EUT Tested at 5 mmVertical Front of EUT Tested at 5 mm <Photographs of Body SAR Test Setup> Tip …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Richard P Tarsio(US Canada Technical Regulations)
[email protected]970-898-8713Fax: 000-000-0000

Test Firm

Bureau Veritas CPS(H.K.) Ltd., Taoyuan BranchLiu Ken
[email protected]+886-3-2600609Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz10.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is maximum conducted output power. The transmitter must not transmit simultaneously with any other transmitter, except in accordance with FCC multi-transmitter product procedures or as described in this filing. End-users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance. The highest reported SAR value for body exposure condition is &lt; 0.10 W/kg.
