B94-CMI002Wireless Headset

  44X0038A  Quick Start Guide HyperX Cloud Mini Wireless Gaming Headset Overview FRANÇAIS Présentation A - Casque de jeu B - Micro pivotant C - Port de chargement USB-C D - Bouton multifonction Bluetooth® Chargement de la batterie Le chargement complet des écouteurs et de l’étui de chargement est recommandé avant leur première utilisation. Le chargement complet du casque nécessite 2,5 heures lorsque sa batterie est faible. Conguration et utilisation du Bluetooth Bouton multifonction Bluetooth Bouton marche/arrêt Couplage Bluetooth 1. Lorsque le casque est allumé, maintenir le bouton multifonction Bluetooth enfoncé pendant 2 secondes. Le voyant LED clignote en bleu. 2. Sur le dispositif Bluetooth, rechercher et connecter le HyperX Cloud Mini. Lorsque le dispositif est associé, son voyant LED clignote en bleu une fois toutes les 5 secondes. Commandes Bouton multifonction Bluetooth Bouton marche/arrêt Branchement du câble 3,5 mm * Nécessite un câble audio 3,5 mm à quatre pôles (non fourni) Utilisation sur PC ou ordinateur portable * Nécessite une prise casque 3,5 mm avec connexion CTIA standard * Câble splitter pour PC (non fourni) * Câble audio 3,5 mm à quatre pôles (non fourni) Utilisation sur Xbox, PlayStation ou Nintendo Switch * Câble audio 3,5 mm à quatre pôles (non fourni) Utilisation sur appareil mobile * Nécessite une prise casque 3,5 mm avec connexion CTIA standard ou un adaptateur 3,5 mm compatible * Câble audio 3,5 mm à quatre pôles (non fourni) Microphone pivotant Questions ou problèmes de conguration ? Contacte l’équipe d’assistance HyperX via hyperx.com/support AVERTISSEMENT : l’exposition prolongée à des niveaux sonores élevés peut provoquer une détérioration irréversible de la capacité auditive. ITALIANO Descrizione generale A - Cue da gaming B - Microfono retrattile C - Porta USB-C con funzione di ricarica D - Pulsante multifunzione Bluetooth Ricarica È consigliabile ricaricare completamente gli auricolari e la custodia di ricarica prima del primo utilizzo. Per ricaricare completamente le cue quando la batteria è scarica occorrono circa 2,5 ore. Congurazione e utilizzo della funzione Bluetooth Pulsante multifunzione Bluetooth Pulsante di accensione Accoppiamento tramite Bluetooth 1. Con le cue accese, tieni premuto il pulsante multifunzione Bluetooth per 2 secondi. Il LED di stato emette una luce blu lampeggiante. 2. Sul dispositivo compatibile con Bluetooth, cerca HyperX Cloud Mini e avvia la connessione. Una volta stabilita la connessione, il LED di stato emette una luce blu lampeggiante ogni 5 secondi. Controlli a pulsante Pulsante multifunzione Bluetooth Pulsante di accensione Connessione tramite cavo con jack da 3,5 mm *Richiede un cavo audio a 4 poli con jack da 3,5 mm (non incluso) Uso con un PC o notebook *Richiede un jack da 3,5 mm per cue dotato di connettore CTIA standard *Cavo splitter per PC (non incluso) *Cavo audio a 4 poli con jack da 3,5 mm (non incluso) Uso con una console Xbox, PlayStation o Nintendo Switch *Cavo audio a 4 poli con jack da 3,5 mm (non incluso) Uso con un dispositivo mobile *Richiede un jack da 3,5 mm per cue dotato di connettore CTIA standard o un adattatore compatibile da 3,5 mm *Cavo audio a 4 poli con jack da 3,5 mm (non incluso) Microfono retrattile Domande o dubbi sulla congurazione? Contatta il team di supporto HyperX all'indirizzo hyperx.com/support AVVERTENZA: l'uso delle cue ad alto volume per periodi di tempo prolungati può causare danni permanenti all'udito. DEUTSCH Übersicht A - Gaming-Headset B - Abnehmbares Mikrofon C - USB-C-Ladeanschluss D - Bluetooth-Multifunktionstaste Laden Es wird empfohlen, dass die Ohrhörer und das Ladeetui vor der ersten Nutzung vollständig geladen sind. Das Headset braucht ca. 2,5 Stunden, um bei niedrigem Akkustand vollständig aufgeladen zu werden. Bluetooth-Einrichtung und -Verwendung Bluetooth Multifunktionstaste Netztaste Bluetooth koppeln 1. Halte bei eingeschaltetem Headset die Bluetooth Multifunktionstaste 2 Sekunden lang gedrückt. Die LED-Anzeige blinkt blau. 2. Suche auf deinem Gerät, auf dem Bluetooth aktiviert ist, HyperX Cloud Mini und verbinde dich damit. Wenn du verbunden bist, blinkt die LED-Anzeige alle fünf Sekunden blau. Tastensteuerungen Bluetooth Multifunktionstaste Netztaste Mit 3,5-mm-Kabel verbinden *Erfordert ein 4-poliges 3,5-mm-Audiokabel (nicht im Lieferumfang enthalten) Verwendung mit PC oder Notebook *Erfordert eine 3,5-mm-Headset-Buchse mit Standard-CTIA-Verbindung *PC-Verteilerkabel (nicht im Lieferumfang enthalten) *4-poliges 3,5-mm-Audiokabel (nicht im Lieferumfang enthalten) Verwendung mit Xbox, PlayStation oder Nintendo Switch *4-poliges 3,5-mm-Audiokabel (nicht im Lieferumfang enthalten) Verwendung mit mobilen Geräten *Erfordert eine 3,5-mm-Headset-Buchse mit Standard-CTIA-Verbindung oder einen kompatiblen 3,5-mm-Adapter *4-poliges 3,5-mm-Audiokabel (nicht in Lieferumfang enthalten) Abnehmbares Mikrofon Hast du Fragen oder Probleme bei der Einrichtung? Kontaktiere das HyperX Support-Team unter hyperx.com/support WARNHINWEIS: Durch das Hören mit einem Headset in hoher Lautstärke über einen längeren Zeitraum kann das Gehör dauerhaft geschädigt werden. POLSKI Opis urządzenia A - Zestaw słuchawkowy dla graczy B - Składany mikrofon C - Port USB-C do ładowania D - Przycisk wielofunkcyjny trybu Bluetooth Ładowanie Zaleca się, aby przed pierwszym użyciem słuchawki douszne i etui ładujące były w pełni naładowane. Pełne ładowanie zestawu słuchawkowego, rozpoczęte przy niskim poziomie energii, trwa około 2,5 godziny. Konguracja i używanie łączności Bluetooth Przycisk wielofunkcyjny trybu Bluetooth Przycisk zasilania Parowanie Bluetooth 1. Przy włączonym zestawie słuchawkowym naciśnij i przytrzymaj przez 2 sekundy przycisk wielofunkcyjny trybu Bluetooth. Wskaźnik LED zacznie migać kolorem niebieskim. 2. W urządzeniu obsługującym łączność Bluetooth wyszukaj HyperX Cloud Mini i nawiąż z nim połączenie. Po nawiązaniu połączenia wskaźnik LED będzie bły…

Text truncated - open the document above for the full version.

Date: 2023/08/29 FCC ID: B94-CMI002 IC: 466C-CMI002 To the attention of Federal Communications Commission Authorization and Evaluation Division Declaration letter for label requirement We use the printed sticker to include the product name and model name information on the label, this label can be visible on the surface of product, the end user can identity this product easily, as for the regulatory marking, since we have design considerations about the appearance of product, this information will be marked by laser etching and molding carving on interior of earcup. The earcup cover can be opened without any special tools. This tooling markings also meet the label requirements which its location will be on the product. The end user can identify the marking information by replacing the earcup, it can be easily installed and removed without any special tools. If you have any questions regarding the declaration, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Name: Vanessa Tsai Title: Product Compliance Engineer Tel: +886 932285270 E-mail: [email protected]

Date: 2023-08-24 FCC ID: B94-CMI002 To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing HP Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing HP Inc.certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division Applicant / Designated U.S Agent Company Name: HP Inc. Grantee Code: B94 FRN: 0025126541 Contact Name: Richard P. Tarsio Street Address: 3390 East Harmony Road City/Province/Zip: Fort Collins Colorado 80528 United States Telephone No: +1 970 898 8713 Email: [email protected] This letter is to confirm that the Applicant has designated itself as the U.S Agent for service of process as required by §2.911(d)(7). The Applicant further acknowledges acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant / U.S. Agent Signature: Vanessa Tsai Date: 2023-09-19 Signed by (printed name):

Date: 2023-08-24 FCC ID: B94-CMI002 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Date: 2023-08-24 FCC ID: B94-CMI002 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 2024/02/29 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

Date: 2023-08-24 FCC ID: B94-CMI002 AUTHORIZATION LETTER To Whom It May Concern: HP Inc. hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on HP Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Vanessa Tsai / Product Compliance Engineer HP Inc. Tel: +886 932285270 E-mail: [email protected]

HP Inc. 3390 E Harmony Rd Fort Collins, CO 80528 USA Authorization on Behalf of HP Inc. for the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P. Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (“HP”) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as an authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Vanessa Tsai Title: Product Compliance Engineer Address: HP Inc. No. 1-5, Lixing 1 st Road, East District Hsinchu City, HSZ Taiwan Telephone: +886 932285270 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer Worldwide Technical Regulations HP Inc. (A) 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 (T) +1 970 898 8713 (E) [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. Richard P. Tarsio US/Canada Technical Regulations & Standards Engineer HP Inc. Date: 29 June 2021

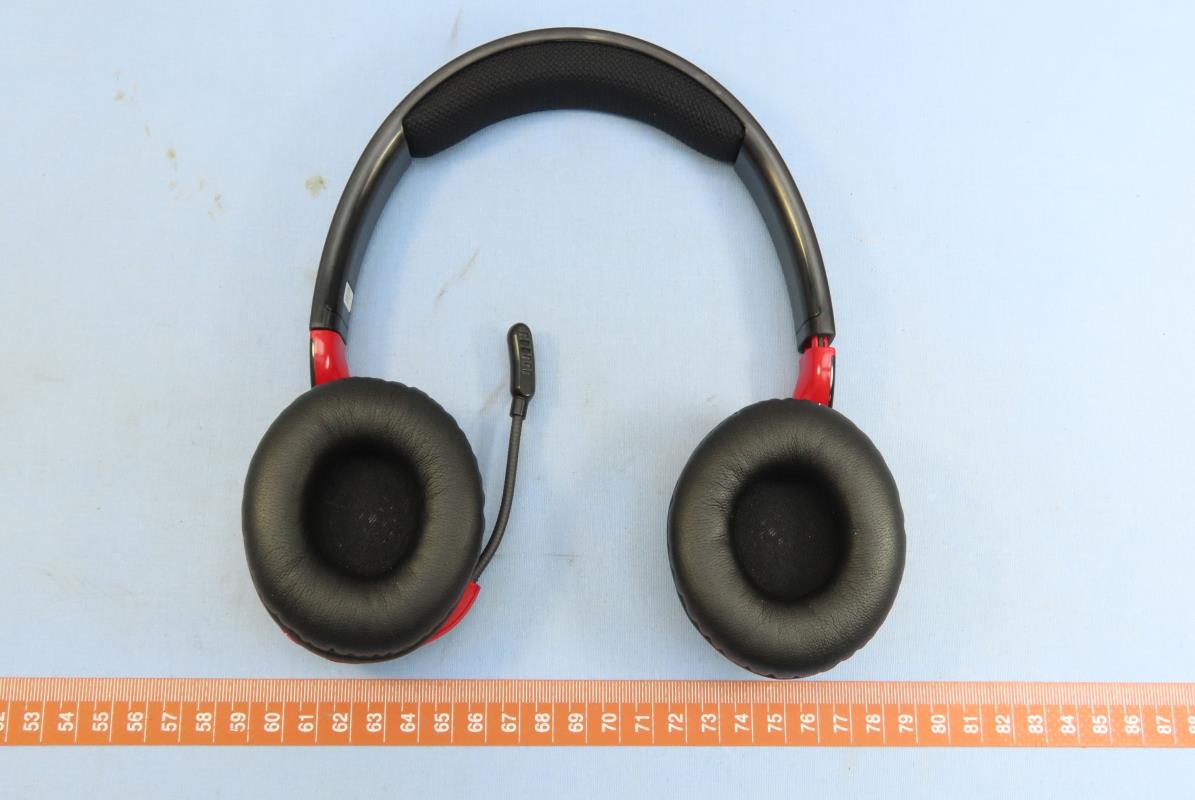

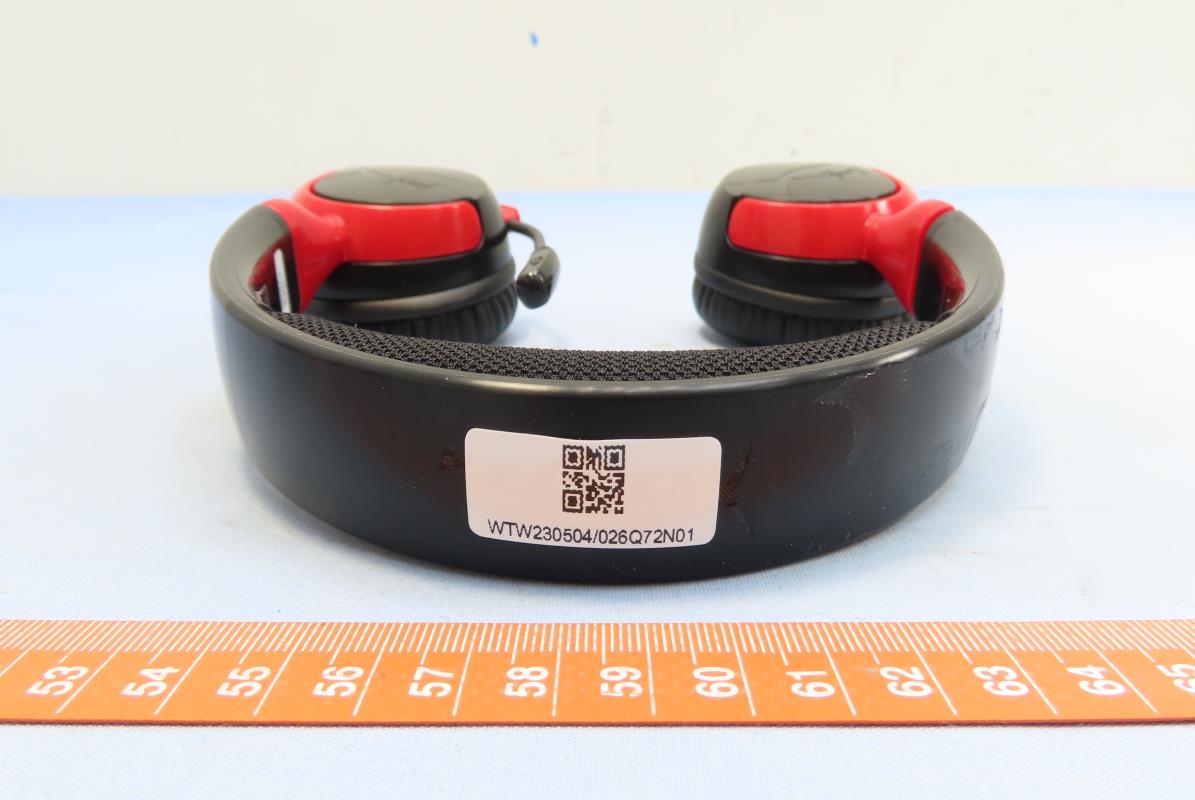

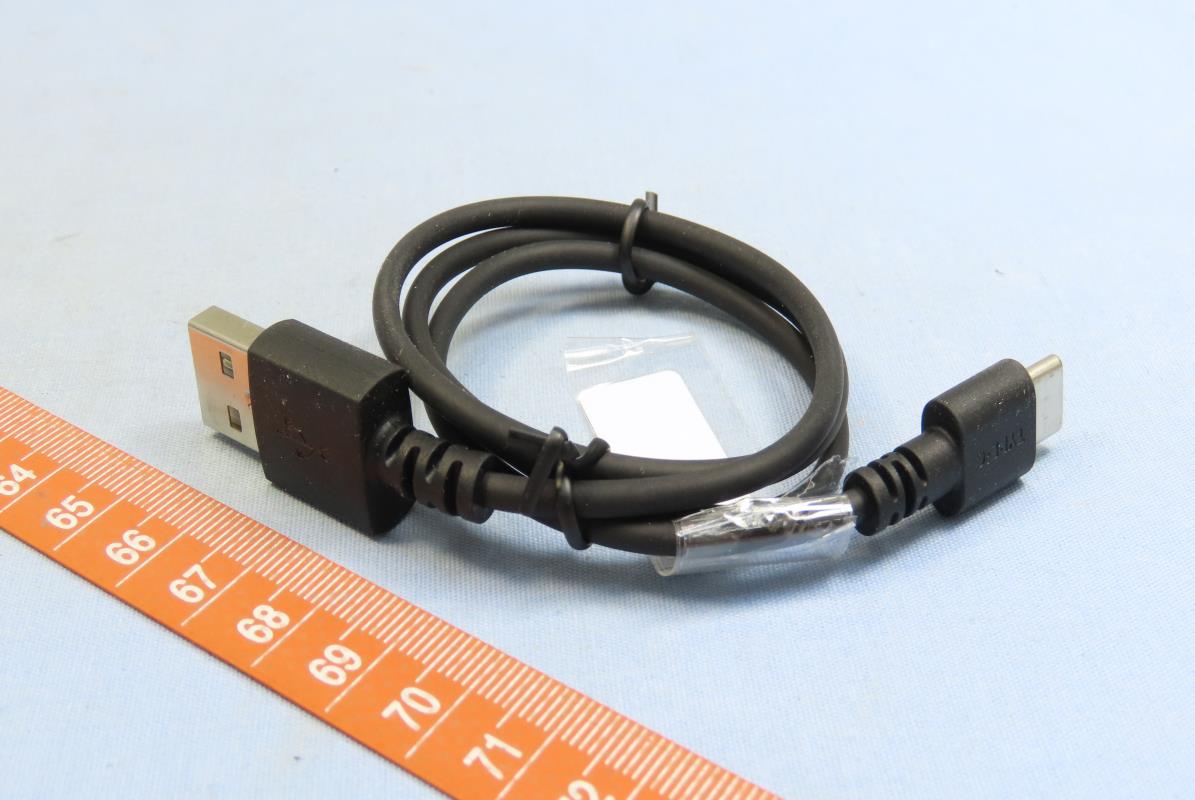

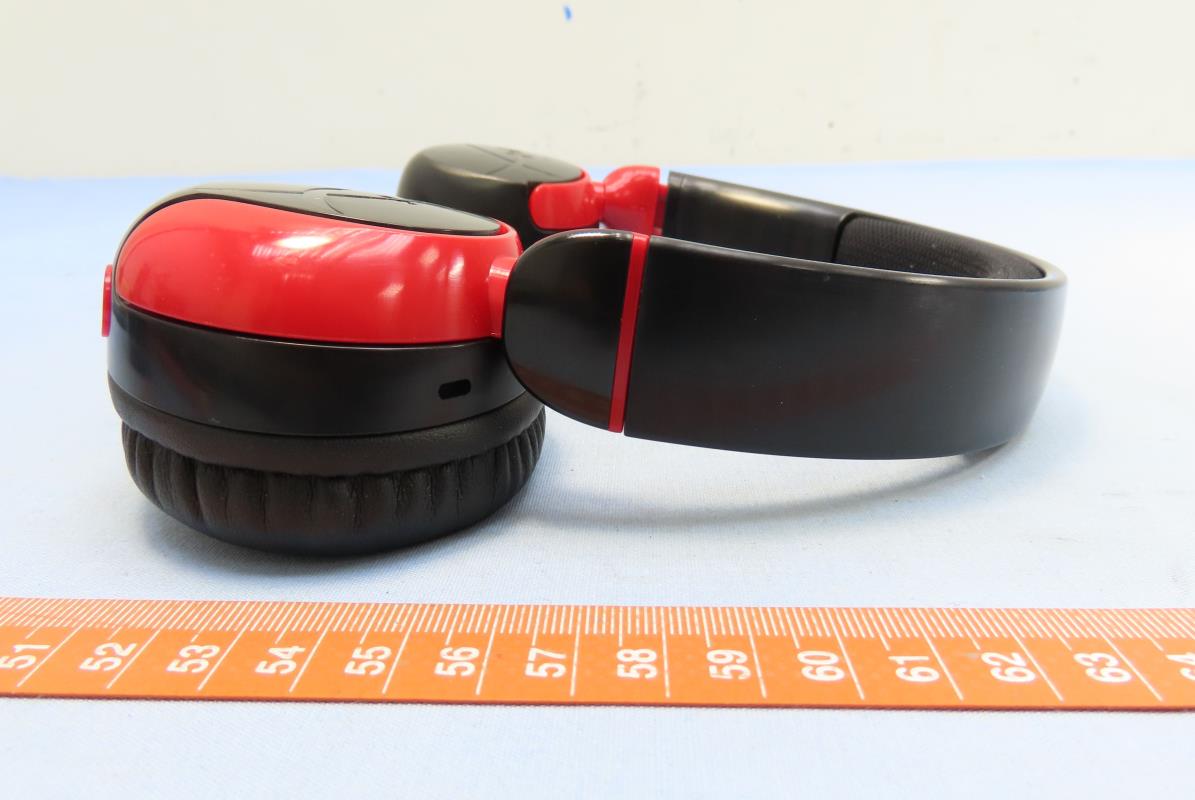

Reference No.: CICG-WTW-P23050200_EXT Page 1 of 8 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CMI002 Black Reference No.: CICG-WTW-P23050200_EXT Page 2 of 8 Reference No.: CICG-WTW-P23050200_EXT Page 3 of 8 Reference No.: CICG-WTW-P23050200_EXT Page 4 of 8 White Reference No.: CICG-WTW-P23050200_EXT Page 5 of 8 Reference No.: CICG-WTW-P23050200_EXT Page 6 of 8 Reference No.: CICG-WTW-P23050200_EXT Page 7 of 8 Reference No.: CICG-WTW-P23050200_EXT Page 8 of 8 USB Cable (Brand: TAKSTAR / Model: 9.06.47040.00318)

Label sample and label location

Reference No.: CICG-WTW-P23050200_INT Page 1 of 5 CONSTRUCTION PHOTOS OF EUT Brand: HYPERX / Model: CMI002 Reference No.: CICG-WTW-P23050200_INT Page 2 of 5 BT/BTLE Antenna Reference No.: CICG-WTW-P23050200_INT Page 3 of 5 Reference No.: CICG-WTW-P23050200_INT Page 4 of 5 Battery (Brand: Huizhou Everpower Technology Co., Ltd. / Model: HT452625) Reference No.: CICG-WTW-P23050200_INT Page 5 of 5

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 24 Report No. : SFCICG-WTW-P23050200 R1 Issued Date : Aug. 24, 2023 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 SAR Test Report Report No. : SFCICG-WTW-P23050200 R1 Applicant : HP Inc. Address : 3390 East Harmony Road, Fort Collins, Colorado United States 80528 Product : Wireless Headset FCC ID : B94-CMI002 Brand : HYPERX Model No. : CMI002 FCC Rule Part CFR §2.1093 Standards : IEEE STD 1528:2013 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 447498 D01 v06 Sample Received Date : May 08, 2023 Date of Testing : May 24, 2023 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Gina Liu / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 24 Report No. : SFCICG-WTW-P23050200 R1 Issued Date : Aug. 24, 2023 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ............................................................................................................................................................. 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................. 8 3.2.4 Phantoms ......................................................................................................................................................... 8 3.2.5 Device Holder .................................................................................................................................................. 9 3.2.6 System Validation Dipoles ............................................................................................................................. 10 3.2.7 Power Source ................................................................................................................................................ 10 3.2.8 Tissue Simulating Liquids .............................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure .............................…

Text truncated - open the document above for the full version.

Plots of System Verification Page No. : 1 of 2 Appendix A. Plots of System Verification The plots for system verification are shown as follows. Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Plots of System Verification Page No. : 2 of 2 . Measurement Report S01 System Check_H2450_230524 Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Dipole, 10.0 x 10.0 x 300.0 Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, , CW, 0-- 2450.000, 0 8.26 1.84 41.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1987 H06T27N4 , 2023-May-24 EX3DV4 – SN3971, 2023-01-20 DAE4 Sn1277, 2023-01-24 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 96.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 12.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05- 24 2023-05-24 psSAR1g [W/kg] 2.59 2.65 psSAR10g [W/kg] 1.19 1.26 Power Drift [dB] 0.00 0.00 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Plots of Measurement Page No. : 1 of 2 Appendix B. Plots of Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination are shown as follows. Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Plots of Measurement Page No. : 2 of 2 Measurement Report P01 BT_BR/EDR_Left Ear_0mm_Ch0 Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type CICG-WTW-P23050200, 65.0 x 65.0 x 22.0 Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, Left Ear 0.00 ISM 2.4 GHz Band Bluetooth, 10032-CAA 2402.0, 0 8.26 1.80 41.4 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 1987 H06T27N4 , 2023-May-24 EX3DV4 - SN3971, 2023-01-20 DAE4 Sn1277, 2023-01-24 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 96.0 x 96.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 12.0 x 12.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2023-05- 24 2023-05-24 psSAR1g [W/kg] 0.066 0.072 psSAR10g [W/kg] 0.030 0.035 Power Drift [dB] 0.17 -0.12 M2/M1 [%] 78.3 Dist 3dB Peak [mm] 9.1 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Appendix Z. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23050200 R1 Cancels and replaces the report no. : SFCICG-WTW-P23050200 dated on Jun. 20, 2023 Report No. : SFCICG-WTW-P23…

Text truncated - open the document above for the full version.

Antenna Test Report Antenna Information： a.Antenna type：PiFa onboard antenna b.Antenna specification：Onboard snake antenna c.Antenna manufacturer company： GUANGDONG TAKSTAR ELECTRONIC CO., LTD. Equipment 1. Equipment : Keysight E5063A Network Analyzer 2. Calibration Date: 2022/8/23 3. Test Date: 2023/05/10 4. Names of test personnel : Lugengyun 5. Names of test software： ETS-Lindgren EM- Quest 1.16 Test Chamber Headset Antenna： PiFi Antenna，Free space Passive AppleField graph，Antenna efficiency and gain PCB Antenna passive Free state Frequency point(MHz) Gain (dBi) Efficiency (%) Frequency(MHz) Gain (dBi) Efficiency (%) 2400 0.9740.10 2410 1.0741.40 2420 1.141.70 2430 1.1542.50 2440 1.2642.70 2450 1.4342.90 2460 1.5942.90 2470 1.4842.40 2480 1.2741.80 2490 1.0340.90 2500 0.7639.10 OTA free field PCB Antenna OTA free field ChannelTRP/TIS(dBm) BlueTh-0000-TX 6.28 BlueTh-0039-TX 7.44 BlueTh-0078-TX 7.46 BlueTh-0000-RX -93.49 BlueTh-0039-RX -92.53 BlueTh-0078-RX -92.22 PiFi Antenna， Apple Passive graph，Antenna efficiency and gain OTA free field PCB Antenna OTA headform ChannelTRP/TIS(dBm) BlueTh-0000-TX 4.62 BlueTh-0039-TX 5.28 BlueTh-0078-TX 5.26 BlueTh-0000-RX -91.30 BlueTh-0039-RX -90.84 BlueTh-0078-RX -90.65 PiFi Antenna，Active Apple Field graph，Antenna efficiency and gain Description of how measurements are made: Connect the coaxial cable from the PCBA antenna to the test equipment matching antenna size and circuit Test its antenna impedance parameters Antenna Passive Efficiency Gain Test Antenna passive 2D/3D pattern test Antenna active test (need to enter DUT mode) Antenna active 2D/3D pattern test Debugging the antenna matching circuit to make the Smith chart (impedance circle diagram) close to the 50 ohm point in the antenna operating frequency band Test antenna: standing wave ratio (VSWR≤3), return loss (Return loss≥6dB), antenna pattern (radiation pattern according to actual needs) Antenna efficiency (Effeciency≥35% (non-metallic environment) or 20% (metallic environment)), antenna gain (Gain according to actual needs) Check the antenna pattern to confirm the receiver strength enter DUT mode Check the antenna pattern to confirm the receiver strength

Report No.: RFCICG-WTW-P23050200-1 R1 Page No. 1 / 40 Report Format Version: 7.1.0 Cancels and replaces the report no. : RFCICG-WTW-P23050200-1 dated on Jun. 20, 2023 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.: RFCICG-WTW-P23050200-1 R1 FCC ID: B94-CMI002 Product: Wireless Headset Brand: HYPERX Model No.: CMI002 Received Date: 2023/5/8 Test Date: 2023/5/23 ~ 2023/6/6 Issued Date: 2023/8/24 Applicant: HP Inc. Address: 3390 East Harmony Road, Fort Collins, Colorado United States 80528 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kewi Shan Dist., Taoyuan City 33383, Taiwan Test Location (2): B2F., No.215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan FCC Registration / Designation Number: 788550 / TW0003 427177 / TW0011 Approved by: , Date: 2023/8/24 Jeremy Lin / Project Engineer This test report consists of 40 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Lena Wang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclu…

Text truncated - open the document above for the full version.
