B94DHDBC1101HP Wireless Speaker S6500

Regulatory notices This document provides country- and region-specific non-wireless and wireless regulatory notices and compliance information for your product. Some of these notices may not apply to your product. 이 문서에는 국가 및 지역별 유무선 규제사항 설명과 제품의 준수 정보가 있습니다. 이러한 정보 중 일부는 귀하의 제품에 적용되지 않을 수 있습니다. Federal Communications Commission notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increase the separation between the equipment and receiver. ■Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ■Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment. Cables To maintain compliance with FCC Rules and Regulations, connections to this device must be made with shielded cables having metallic RFI/EMI connector hoods. Declaration of Conformity for products marked with the FCC logo (United States only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2 conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. If you have questions about the product that are not related to this declaration, write to Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, TX 77269-2000 For questions regarding this FCC declaration, write to Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, TX 77269-2000 or call HP at 281-514-3333 To identify your product, refer to the part, series, or model number located on the product. Products with wireless LAN devices or HP Mobile Broadband Modules This device must not be co-located or operating in conjunction with any other antenna or transmitter. ÅWARNING: Exposure to Radio Frequency Radiation The radiated output power of this device is below the FCC/Industry Canada radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation of tablet PCs and notebook computers. During normal operation of tablet PCs and notebook computers with displays equal to or less than30.5 cm (12 inches): To avoid the possibility of exceeding the FCC/Industry Canada radio frequency exposure limits, human proximity to the antennas should not be less than 2.5 cm (1 inch). To identify the location of the wireless antennas, refer to the computer user guides included with your computer. During normal operation of notebook computers with displays greater than 30.5 cm (12 inches): To avoid the possibility of exceeding the FCC/Industry Canada radio frequency exposure limits, human proximity to the antennas should not be less than 20 cm (8 inches), including when the computer display is closed. To identify the location of the wireless antennas, refer to the computer user guides included with your computer. ÄCAUTION: When using IEEE 802.11a wireless LAN, this product is restricted to indoor use, due to its operation in the 5.15- to 5.25-GHz frequency range. FCC/Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High-power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65- to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device. The antennas for this device are not replaceable. Any attempt at user access will damage your computer. Brazil notice Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência em sistemas operando em caráter primário. Este equipamento atende aos limites da Taxa de Absorção Específica referente à exposição a campos elétricos, magnéticos e eletromagnéticos de frequência adotados pela ANATEL. Canada notices This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations CAN ICES-3(B)/NMB-3(B). If this device has WLAN or Bluetooth capability, the device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Avis Canadien Ce dispositif numérique de Classe B répond aux exigences de la réglementation du Canada relative aux équipements causant des interférences CAN ICES-3(B)/NMB-3(B). Si ce dispositif est doté de fonctionnalités de réseau sans fil ou Bluetooth, il est conforme aux normes d’exemption de licence RSS d’Industrie Canada. Son fonctionnement est assujetti aux deux conditions suivantes : 1) Ce dispositif ne doit causer aucune interférence dangereuse, et 2) ce dispositif doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un fonctionne…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 1501 Page Mill Road，Palo Alto，94304 California，United States Tel：281-927-3605 Confidentiality Letter Date: Jul-28-2015 Subject: Confidentiality Request for FCC ID: B94DHDBC1101 and IC ID:466X-DHDBC1101 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual Hewlett Packard Company_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, Peter S. Tevlin [email protected]

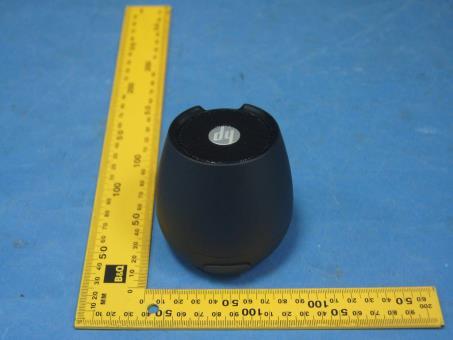

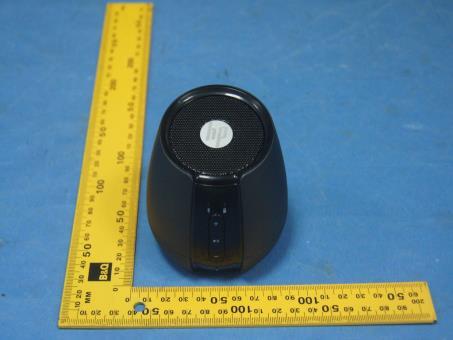

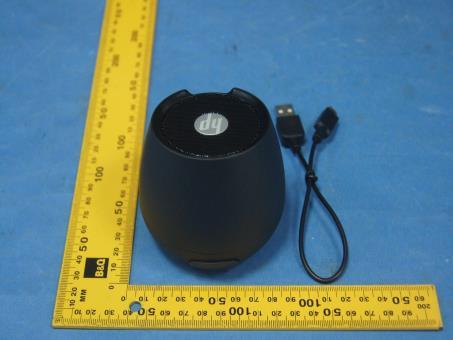

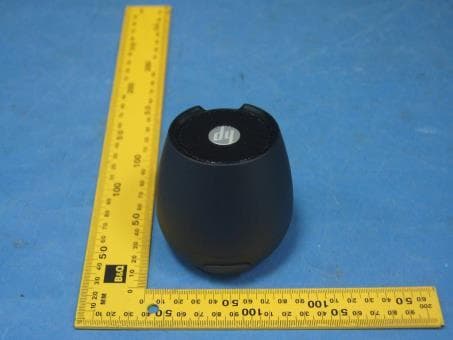

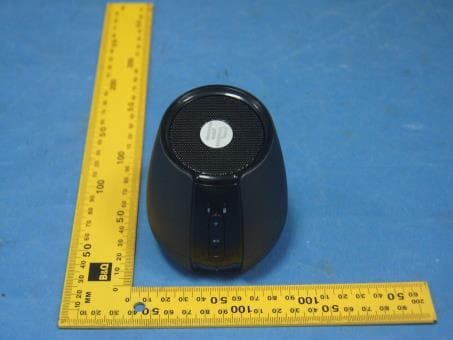

External Photos of EUT 1 | P a g e External Photos of EUT 2 | P a g e -The End-

White （ PMC 8400C）Black（ PMC 877C） 描述 (Despcription): 公差 (Tolerance): 发行日期 (Date): 版本 (Versions): 页码 (Sheet): 型号 (Model): 单位 (Units):MM BC1101 2015 723 A +0/-0.1mm 李振怀

Internal Photos of EUT 1 | P a g e Internal Photos of EUT 2 | P a g e Internal Photos of EUT 3 | P a g e Internal Photos of EUT 4 | P a g e -The End-

Produkte Products Prüfbericht - Nr.: Test Report No. 17051302 001 Seite 27 von 32 Page 27 of 32 6 Safety Human Exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : FCC KDB Publication 447498 v05r02 The minimum distance for the EUT is 5mm, since maximum peak output power of the transmitter is 0.91 mW <10 mW, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02

Produkte Products Prüfbericht - Nr.: T est Report No. 17051302 001 Seite 2 von 32 Page 2 of 32 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.4 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.5 20DB BANDWIDTH RESULT: Pass 5.1.6 CARRIER FREQUENCY SEPARATION RESULT: Pass 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.8 TIME OF OCCUPANCY RESULT: Pass 5.1.9 CONDUCTED EMISSIONS RESULT: Pass 5.1.10 RADIATED EMISSION RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: T est Report No. 17051302 001 Seite 3 von 32 Page 3 of 32 Contents 1 GENERAL REMARKS ....................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ....................................................................................... 5 2 TEST SITES ..................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS .......................................................... 6 2.3 TRACEABILITY ................................................................................................................. 7 2.4 CALIBRATION .................................................................................................................. 7 2.5 MEASUREMENT UNCERTAINTY ........................................................................................ 7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................ 7 2.7 STATUS OF FACILITY USED FOR TESTING ....................................................................... 7 3 GENERAL PRODUCT INFORMATION ................................................................................. 8 3.1 PRODUCT FUNCTION AND INTENDED USE ....................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS ..................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ............................................................................... 11 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ................................................ 11 3.5 SUBMITTED DOCUMENTS .............................................................................................. 11 4 TEST SET-UP AND OPERATION MODES ......................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION .................................................................. 12 4.2 TEST OPERATION AND TEST SOFTWARE ...................................................................... 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................. 12 4.5 TEST SETUP DIAGRAM .................................................................................................. 13 5 TEST RESULTS ............................................................................................................. 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .............................................................. 15 5.1.1 Antenna Requirement ........................................................................................................................... 15 5.1.2 Peak Conducted Output Power ........................................................................................................... 16 5.1.3 Conducted Spurious Emissions Measured in 100 kHz Bandwidth ................................................ 18 5.1.4 Radiated Spurious Emission ................................................................................................................ 19 5.1.5 20dB Bandwidth ..................................................................................................................................... 20 5.1.6 Carrier Frequency Separation ............................................................................................................. 21 5.1.7 Number of Hopping Frequency ........................................................................................................... 22 5.1.8 Time of Occupancy ............................................................................................................................... 23 5.1.9 Conducted Emissions ........................................................................................................................... 25 5.1.10 Radiated Emission ............................................................................................................................ 26 6 SAFETY HUMAN EXPOSURE .......................................................................................... 27 Produkte Products Prüfbericht - Nr.: T est Report No. 17051302 001 Seite 4 von 32 Page 4 of 32 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE .............................................................. 27 6.1.1 Electromagnetic Fields ......................................................................................................................... 27 7 PHOTOGRAPHS OF THE TEST SET-UP .......................................................................... 28 8 LIST OF TABLES ............................................................................................................ 32 9 LIST OF PHOTOGRAPHS ................................................................................................ 32 Produkte Products Prüfbericht - Nr.: T est Report No. 17051302 001 Seite 5 von 32 Page 5 of 32 1 General Remarks 1.1 Complementary Materials All attachments are integral …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17051302 001 Seite 28 von 32 Page 28 of 32 7 Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Spurious Emissions (9kHz - 30MHz) Photograph 2: Set-up for Radiated Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17051302 001 Seite 29 von 32 Page 29 of 32 Photograph 3: Set-up for Radiated Spurious Emissions (1GHz ~ 18GHz) Photograph 4: Set-up for Radiated Spurious Emissions (18GHz ~ 26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17051302 001 Seite 30 von 32 Page 30 of 32 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emission (Below 1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17051302 001 Seite 31 von 32 Page 31 of 32 Photograph 7: Set-up for Radiated Emission (Above 1GHz)
