Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, 94304 California, United States Tel: 858 655 5783 Date: November 17, 2014 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: B94HHC408M To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Leszek M. Langiewicz [email protected]

Date: November 19, 2014 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: B94HHC408M To Whom It May Concern: We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer portion of this composite filing. Sincerely yours, Chiahong Lin [email protected]

Authorization on Behalf of Hewlett-Packard Company For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, David P. Adams, am Canada/USA Technical Regulations Manager for Hewlett-Packard Company (“Hewlett-Packard”) and Applicant/Grantee Contact of Record for Hewlett-Packard together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Leszek Langiewicz Title: Regulatory Program Manager Address: Hewlett-Packard Company 16399 West Bernardo Drive San Diego, CA 92127 Telephone: +1 858 655 5783 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: David P. Adams Canada/USA Region Technical Regulations Manager Hewlett-Packard Company 1501 Page Mill Road, MS 1419 Palo Alto, CA 94304-1126 +1 650 258 7586 Telephone +1 650.362.6534 Fax [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Palo Alto, California, on the date indicated below my signature. ____________________________ Signature David P. Adams Canada/USA Technical Regulations Manager Hewlett-Packard Company ____June 24, 2013 ________________________ Date

Hewlett-PackardCompany 1501PageMillRd.. Palo Alto,CA94304USA Designation of Third Party Representative By Authorized Agent of Hewlett-Packard Company 1. I am an authorized agent and representative of Hewlett-Packard Company together with its subsidiaries and affiliates (collectively, “HP”), designated as such by David P. Adams as HP’s Applicant/Grantee Contact of Record for the FCC, pursuant to his Authorization as attached hereto. My name, address and contact information appear below. Any questions about the scope of this Designation of Third Party Representative should be directed to me. 2. Pursuant to this authority, I designate the third party identified below as HP’s agent for the matters and applications specified below, for the term specified below, unless earlier terminated by HP. a. Name, address and contact information: Jones Tsai Sporton International Inc. No. 52, Hwa Ya 1st Rd . Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. b. Matters and applications covered (product and/or model identification, FCC ID): Hewlett-Packard Regulatory Model Number FCC ID HSTNH-C408M B94HHC408M HSTNH-C408MC B94HHC408MC HSTNH-C412D B94HHC412D HSTNH-C412DC B94HHC412DC c. Term of designation, unless earlier terminated by HP: 10 year(s). 3. All invoices for FCC’s services should be sent as specified in paragraph 2a, above. Licenses and test reports generated for HP should be sent as specified in paragraph 2a but copied to the undersigned. No access should be granted to any HP file or project information except as necessary in connection with the matters and applications specified in paragraph 2b. All acts carried out and requests made by the third party representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as HP’s own. _______________________________ Signature Name: Leszek Langiewicz Title: Regulatory Program Manager Address: Hewlett-Packard Company 16399 West Bernardo Drive, San Diego, CA 92127 Telephone: +1 858 655 5783 E-mail: [email protected] 2014-09-03 Date FCCDELEGATION FOR SPORTON HSTNH-C4XXXX (D_M)

SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei‐Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Tel: 886‐3‐327‐3456 ; Fax: 886‐3‐328‐4978 Date: November 19, 2014 Authority to Act as Agent To whom it may concern, We, SPORTON INTERNATIONAL INC., hereby authorize Chiahong Lin in Compal Electronics Inc. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization is limited to product of as following: Hewlett‐Packard Regulatory Model Number FCC ID IC HSTNH‐C408M B94HHC408M 3905A‐HHC408M HSTNH‐C408MC B94HHC408MC 3905A‐HHC408MC HSTNH‐C412D B94HHC412D 3905A‐HHC412D HSTNH‐C412DC B94HHC412DC 3905A‐HHC412DC Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Jones Tsai [email protected]

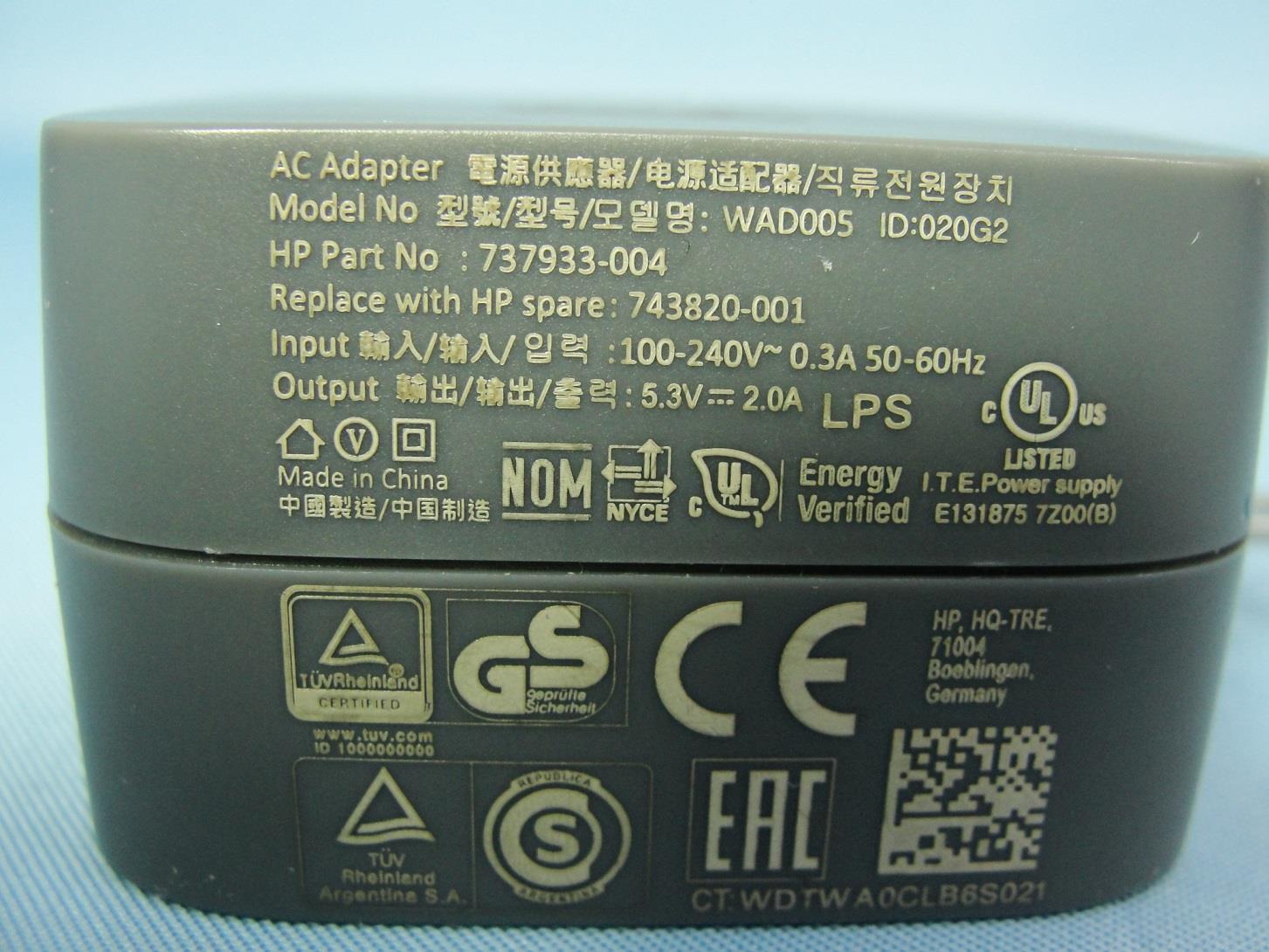

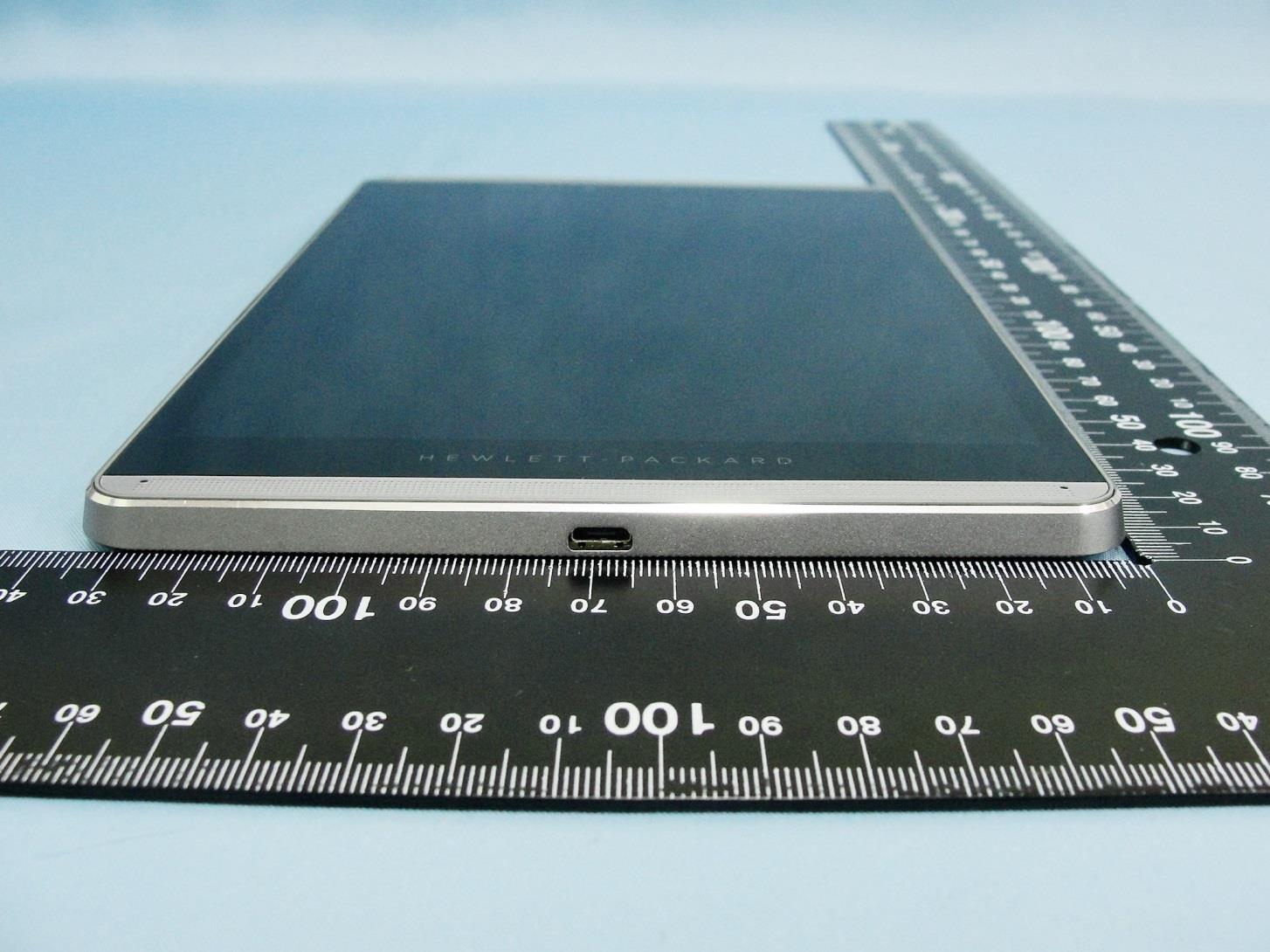

Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 1 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 2 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 3 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 4 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Specification of Accessory AC Adapter 1 Brand Name hp Model Name 8395-V001-1080 AC Adapter 2 Brand Name hp Model Name WAD005 Battery Brand Name hp Model Name HSTNH-C408M-SD USB Cable Brand Name ELINLE Model Name 742189-001 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 5 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M 720510 Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 6 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M AC Adapter 1 Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 7 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 8 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M AC Adapter 2 Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 9 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 10 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Plug Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 11 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Battery

Back of the EUT Labe Location

Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 12 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 13 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 14 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 15 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 16 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 17 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 18 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 19 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 20 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 21 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 22 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 23 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 24 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Bluetooth & WLAN Main Antenna Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 25 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Bluetooth & WLAN Aux. Antenna Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 26 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M GPS Antenna Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 27 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M Photographs of EUT Report No.: EP492904 Brand Name: hp / Model Name: HSTNH-C408M SPORTON INTERNATIONAL INC. Page Number : 28 of 28 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M IC : 3905A-HHC408M NFC Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 67 TEL : 886-3-327-3456 Report Issued Date : Dec. 22, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR492904A FCC RF Test Report APPLICANT : Hewlett Packard EQUIPMENT : 8” Tablet BRAND NAME : hp MODEL NAME : HSTNH-C408M FCC ID : B94HHC408M STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Sep. 29, 2014 and testing was completed on Nov. 19, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 67 TEL : 886-3-327-3456 Report Issued Date : Dec. 22, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR492904A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Descriptions of Test Mode ................................................................................................................. 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 Hopping Channel Separation Measurement ................................................................................... 14 3.3 Dwell Time Measurement ................................................................................................................ 21 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 23 3.5 Peak Output Power Measurement .................................................................................................. 36 3.6 Conducted Band Edges Measurement............................................................................................ 38 3.7 Conducted Spurious Emission Measurement ................................................................................. 45 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 55 3.9 AC Conducted Emission Measurement........................................................................................... 61 3.10 Antenna Requirements .................................................................................................................... 65 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 66 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 67 APPENDIX A. TEST RESULT OF RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 67 TEL : 886-3-327-3456 Report Issued Date : Dec. 22, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR492904A REVISION HISTORY …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 22, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR492904A Appendix A. Radiated Spurious Emission Test Engineer : Donny Pang Temperature : 22~25°C Relative Humidity : 42~45% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2346.4 46.95 -27.05 74 43.55 31.91 6.14 34.65 109 197 P H 2346.4 22.21 -31.79 54 - - - - - - A H * 2402.04 88.22 - - 84.71 31.94 6.21 34.64 109 197 P H 2402.04 63.48 - - - - - - A H H H 2327.94 47.4 -26.6 74 44.05 31.9 6.1 34.65 100 90 P V 2327.94 22.66 -31.34 54 - - - - - - A V * 2402.17 89.69 - - 86.18 31.94 6.21 34.64 100 90 P V 2402.17 64.95 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A2 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 22, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HHC408M Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR492904A BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 39 2441MHz 2348.76 47.2 -26.8 74 43.8 31.91 6.14 34.65 102 194 P H 2348.76 22.46 -31.54 54 - - - - - - A H * 2441.1 89.3 - - 85.7 31.97 6.27 34.64 102 194 P H 2441.1 64.56 - - - - - - A H 2485.75 47.26 -26.74 74 43.6 31.99 6.3 34.63 102 194 P H 2485.75 22.52 -31.48 54 - - - - - - A H 2343.06 47.06 -26.94 74 43.66 31.91 6.14 34.65 100 91 P V 2343.06 22.32 -31.68 54 - - - - - - A V * 2441.1 91.96 - - 88.36 31.97 6.27 34.64 100 91 P V 2441.1 67.22 - - - - - - A V 2485.56 46.88 -27.12 74 43.22 31.99 6.3 34.63 100 91 P V 2485.56 22.14 -31.86 54 A V BT CH 78 2480MHz * 2480.05 88.05 - - 84.39 31.99 6.3 34.63 105 191 P H 2480.05 63.31 - - - - - - A H 2483.5 47.65 -26.35 74 43.99 31.99 6.3 34.63 105 191 P H 2483.5 22.91 -31.09 54 - - - - - - A H H H * 2479.98 89.81 - - 86.15 31.99 6.3 34.63 101 81 P V 2479.98 65.07 - - - - - - A V 2483.5 48.99 -25.01 74 45.33 31.99 6.3 34.63 101 81 P V 2483.5 24.25 -29.75 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A3 of A6 TEL : 886-3-327-3456 Report Issued Date : Dec. 22,…
