B94HNC09CMCL

HP Inc.

Model HSN-C09C

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jan 12, 2021
Application Purpose: Original Equipment
Date of Application: Nov 09, 2020
Equipment Note: Model HSN-C09C
Frequency Range: 2307.50000000 - 2312.50000000
Company: HP Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

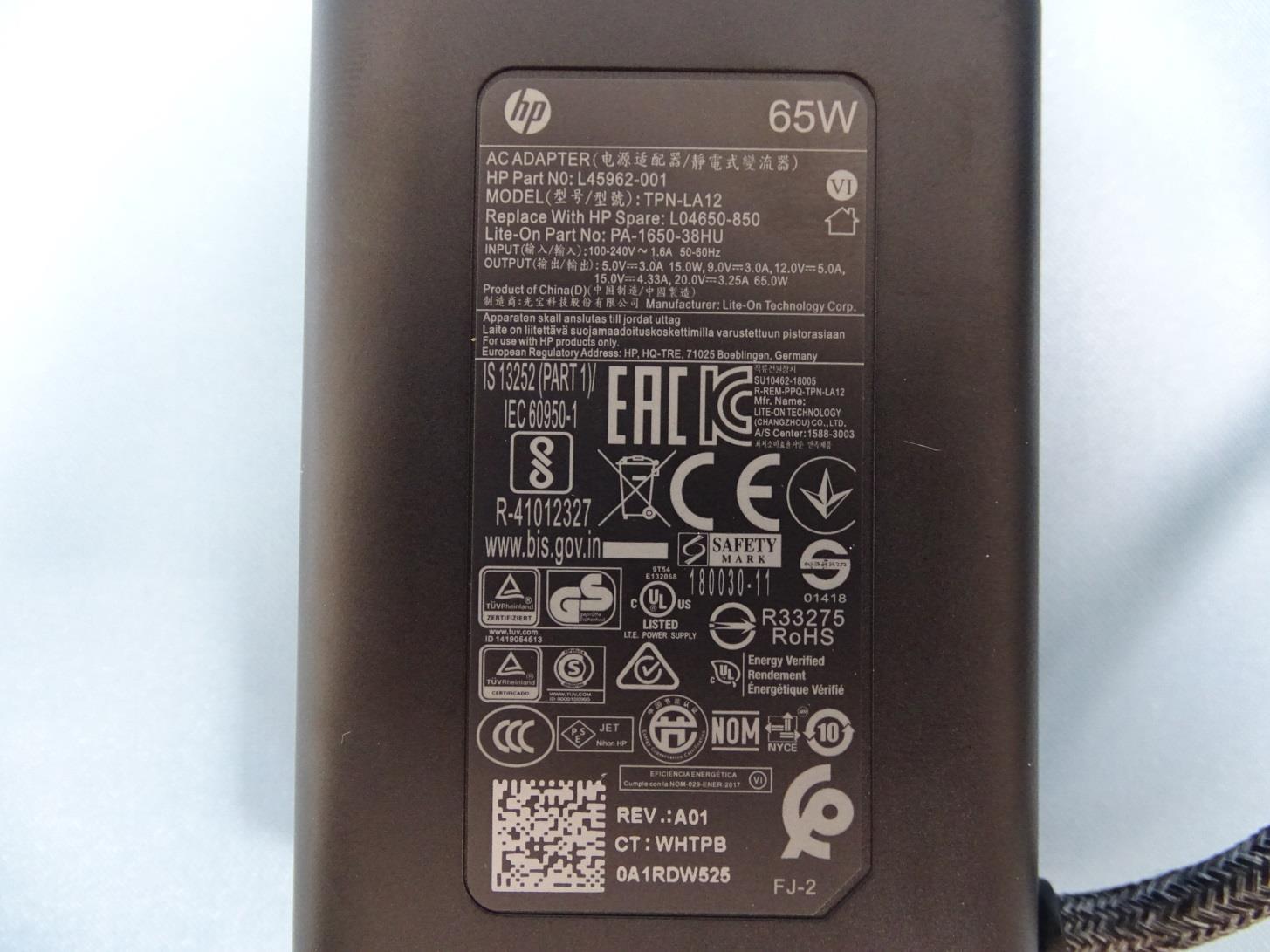

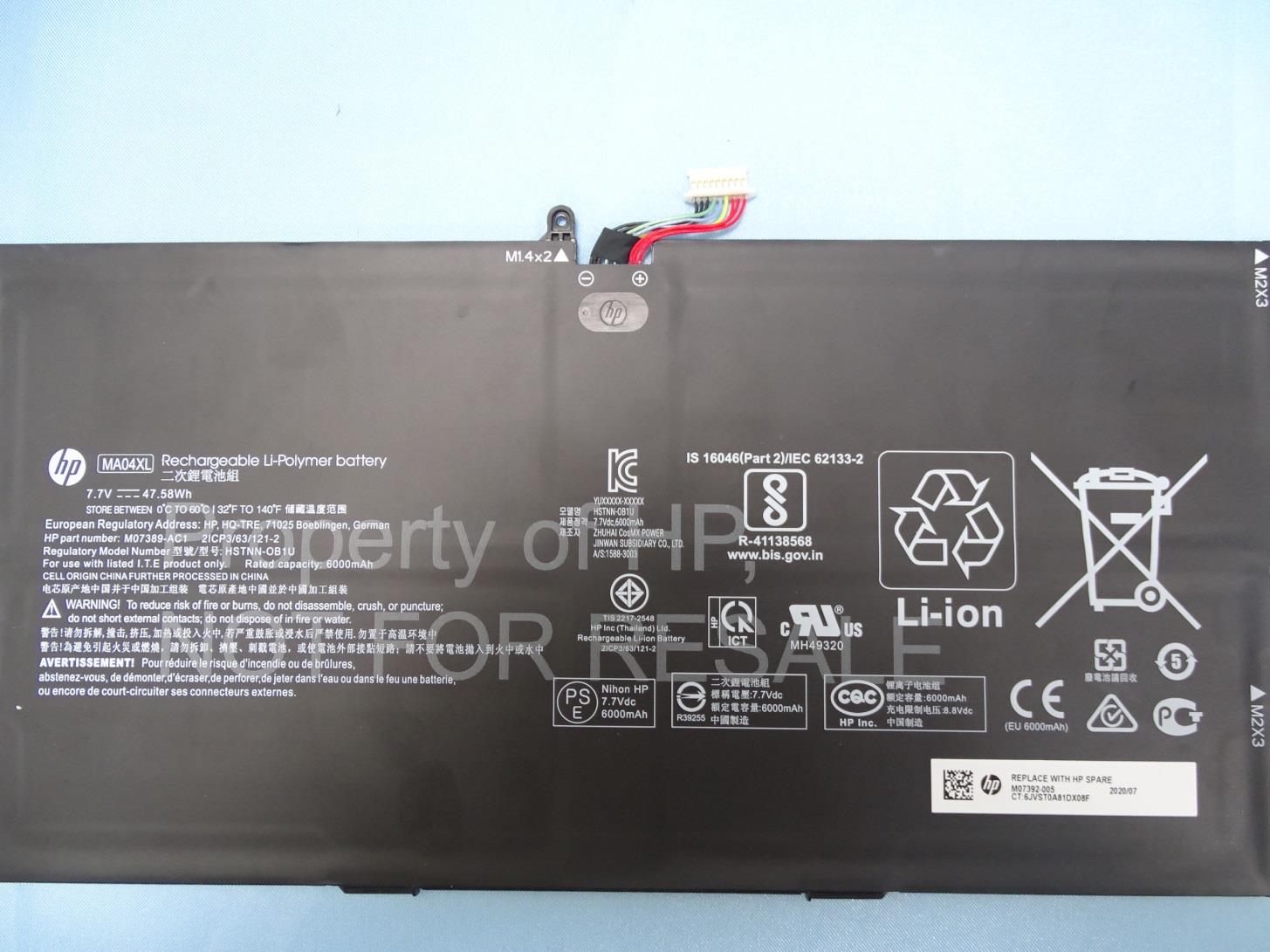

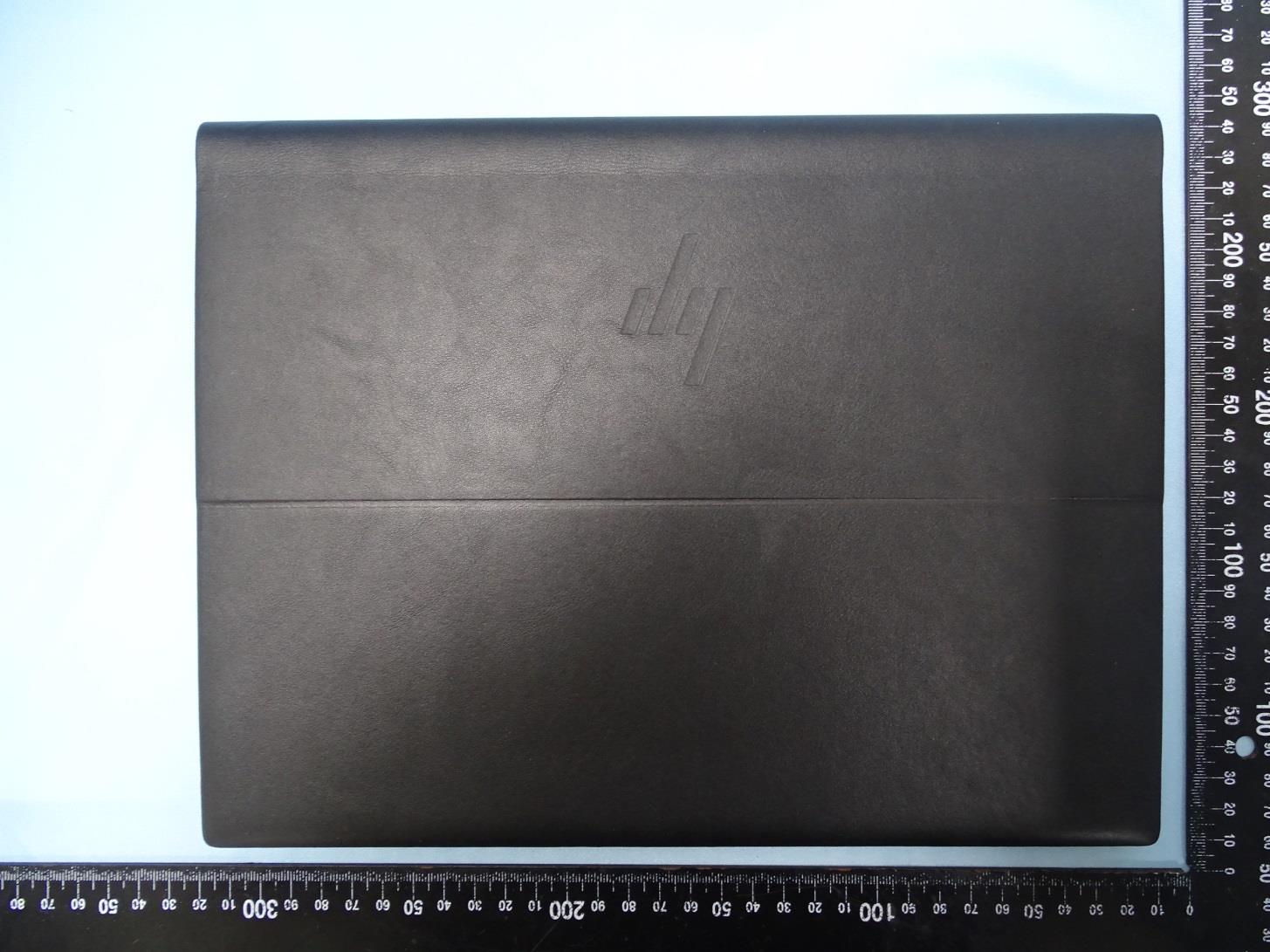

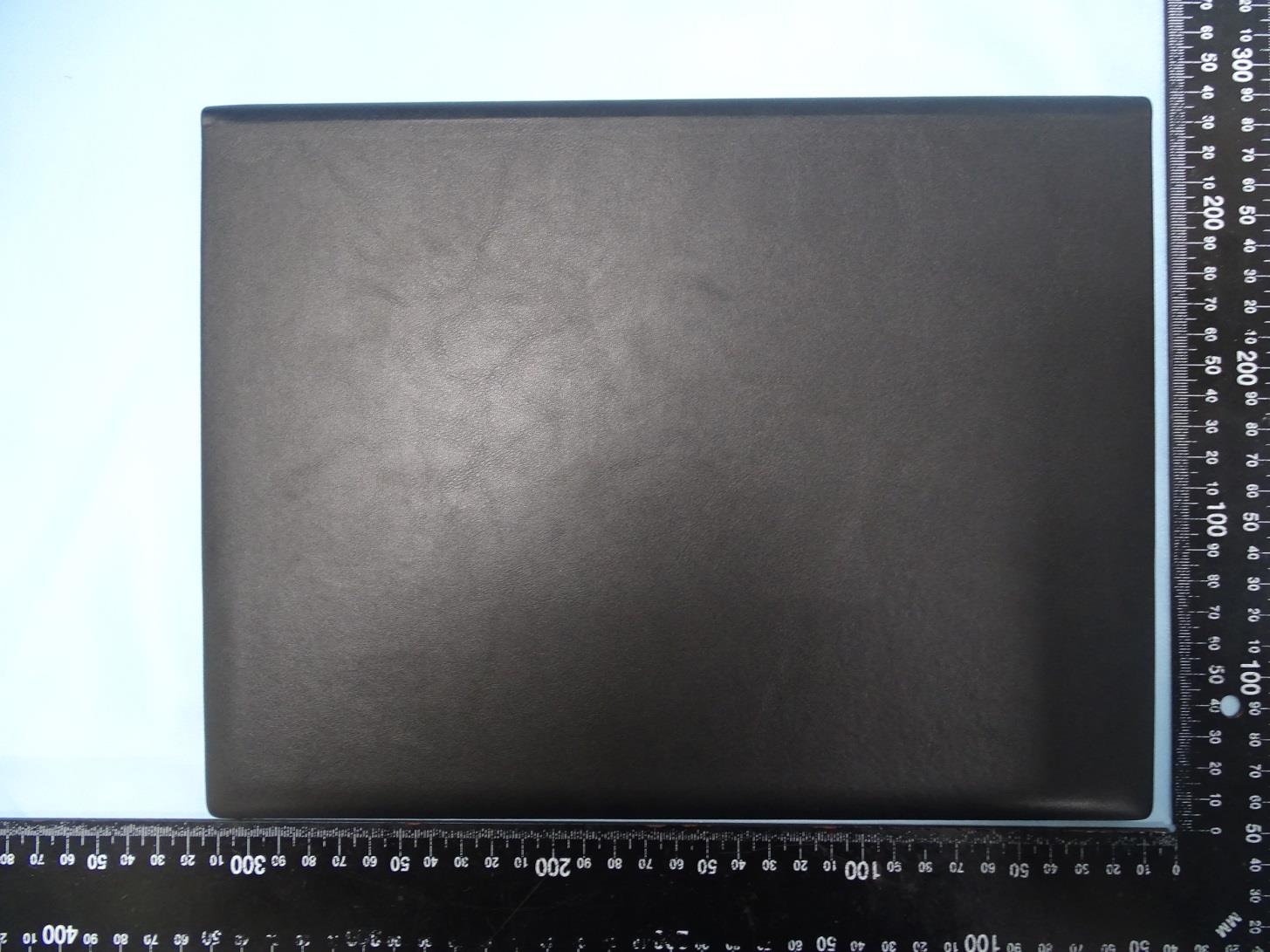

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
61	27	2.31 GHz - 2.31 GHz	211.00 mW	4M49W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively. Values listed for LTE and 5GNR operations are for the highest power and the widest bandwidth for each band and modulation. The highest reported SAR for stand-alone and simultaneous transmission exposure conditions are 1.20 W/kg and 1.59 W/kg, respectively. This device supports LTE of 1.4, 3, 5, and 10 MHz bandwidth modes for FDD LTE Bands 5, and 12; 1.4, 3, 5, 10, and 15 MHz bandwidth modes for LTE Band 26; 1.4, 3, 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Bands 2, 4, 25, and 66; 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Bands 7, 38, and 41; 5, and 10 MHz bandwidth modes for FDD Bands 13, 14, 17, and 30. This device supports LTE Carrier Aggregation (CA) mode for 5+10, and 10+10 MHz bandwidth modes for Band 5; 20+20, 10+20, 15+20, 15+10, and 15+15 MHz bandwidth modes for Band 7; 15+15, and 20+20 MHz bandwidth modes for Band 38; and 10+10, 5+15, 5+10, 10+20, 15+15, 15+20, 20+20, 5+20, and 10+15 MHz bandwidth modes for Band 41. HONG-BO (TX1 Main/ Aux RX2) 260-24315 (DC33002FX20) HONG-BO (MIMO2) 260-24317 (DC33002FX40) HONG-BO (MIMO3) 260-24318 (DC33002FX50)
