B94HNC78BWTXNTablet PC

User Guide © Copyright 2014 Hewlett-Packard Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel is a trademark of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Second Edition: May 2014 First Edition: January 2014 Document Part Number: 738070-002 Product notice This user guide describes features that are common to most models. Some features may not be available on your tablet. Not all features are available in all editions of Windows. This computer may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. Go to http://www.microsoft.com for details. To obtain the latest user guide, go to http://www.hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions. Software terms By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a refund subject to the refund policy of your seller. For any further information or to request a full refund of the computer, please contact your seller. Safety warning notice WARNING!To reduce the possibility of heat-related injuries or of overheating, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The tablet and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950). iii iv Safety warning notice Table of contents 1 Welcome ........................................................................................................................................................... 1 Finding information ............................................................................................................................... 2 2 Getting to know your tablet ............................................................................................................................... 4 Front ..................................................................................................................................................... 4 Rear ...................................................................................................................................................... 6 Top ....................................................................................................................................................... 7 Bottom .................................................................................................................................................. 8 Locating system information ................................................................................................................. 8 Changing your tablet's settings ............................................................................................................ 8 Changing your tablet's view ................................................................................................. 8 Using the tablet's autorotate lock feature ............................................................ 8 Adjusting your tablet's screen brightness ............................................................ 9 Finding your hardware and software information ................................................................................. 9 Locating hardware ............................................................................................................... 9 Locating software ................................................................................................................. 9 Updating the software installed on the tablet ....................................................................... 9 3 Connecting to a network ................................................................................................................................. 10 Connecting to a wireless network ....................................................................................................... 10 Using the wireless controls ................................................................................................ 10 Using a WLAN ................................................................................................................... 10 Using an Internet service provider .................................................................... 11 Setting up a WLAN ............................................................................................ 11 Configuring a wireless router ............................................................................ 11 Protecting your WLAN ....................................................................................... 12 Connecting to a WLAN ...................................................................................... 12 Using HP Mobile Broadband (select models only) ............................................................ 13 Inserting and removing a SIM ........................................................................... 13 Using Bluetooth wireless devices ...................................................................................... 15 4 Navigating…

Text truncated - open the document above for the full version.

Regulatory, Safety and Environmental Notices User Guide © Copyright 2012 Hewlett-Packard Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR is a registered mark owned by the U.S. government. Java is a trademark of Sun Microsystems. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Third Edition: September 2012 Second Edition: July 2012 First Edition: March 2012 Document Part Number: 689409-003 About This Guide This guide provides regulatory, safety and environmental information that is compliant with U.S., Canadian, and international regulations for notebook computers, desktops, thin clients and personal workstations. WARNING!Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION:Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. NOTE:Text set off in this manner provides important supplemental information. iii iv About This Guide Table of contents 1 Regulatory notices for notebook computers ............................................................................................... 1 Federal Communications Commission notice ...................................................................................... 3 Modifications ........................................................................................................................ 3 Cables .................................................................................................................................. 3 Declaration of Conformity for products marked with the FCC logo (United States only) ..... 4 Products with wireless LAN devices or HP Mobile Broadband Modules ............................. 4 Brazil notice .......................................................................................................................................... 5 Canada notices .................................................................................................................................... 5 European Union regulatory notices ...................................................................................................... 5 Declaration of Conformity .................................................................................................... 5 Products with wireless modules (EMF) ............................................................... 6 European telephone network declaration (Modem/Fax) ..................................... 7 Ergonomics notice ............................................................................................... 7 Germany (English text) ....................................................................... 7 Germany (Deutscher text) .................................................................. 7 Japan notices ....................................................................................................................................... 8 Wireless LAN, Wireless WAN, and Bluetooth certification markings ................................... 9 South Korea notices ............................................................................................................................. 9 Mexico notice ....................................................................................................................................... 9 Singapore wireless notice .................................................................................................................... 9 Thailand WWAN wireless notice ........................................................................................................ 10 Taiwan notices ................................................................................................................................... 10 Wireless LAN 802.11a devices .......................................................................................... 10 Wireless LAN 802.11b devices .......................................................................................... 10 Airline travel notice ............................................................................................................................. 11 User-replaceable battery notices ........................................................................................................ 11 ENERGY STAR® compliance ............................................................................................................ 11 Laser compliance ............................................................................................................................... 12 Modem notices ................................................................................................................................... 12 Telecommunications device approvals .............................................................................. 12 U.S. modem statements .................................................................................................... 13 U.S. modem declarations .................................................................................................. 13 Canada modem statements ............................................................................................... 15 Japan modem statements ................................................................................................. 15 New Zealand modem statements ..................................................................…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 To whom it may concern: This device with FCC ID: B94HNC78BWTXN integrates a Wi-Fi/BT module: Brand Name FCC ID Wi-Fi/BT module MITSUMI EW4DWMW095A No hardware design changes are made on the modules, and the software has not been changed to increase the RF output power of the modules. Pursuant to KDB 996369 D01v01r04, the original modular report (Report Number: 13J14910-1A/ 13J14910-2/ 13J14910-5/ 13J14910-6) are submitted to represent the compliance of Part 15C/15E conducted and radiated RF testing items of this device. Should you have any comments or questions, please feel free to contact me. Sincerely, Peter S. Tevlin [email protected]

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 Date: August 2, 2014 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: B94HNC78BWTXN To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Peter S. Tevlin [email protected]

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 Date: August 2, 2014 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: B94HNC78BWTXN To Whom It May Concern: We hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer portion of this composite filing. Sincerely, Peter S. Tevlin [email protected]

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 Date: August 2, 2014 Power of Attorney To whom it may concern, Please be notified that I, Peter S. Tevlin, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: B94HNC78BWTXN If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Peter S. Tevlin [email protected]

Authorization on Behalf of Hewlett-Packard Company For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, David P. Adams, am Canada/USA Technical Regulations Manager for Hewlett-Packard Company (“Hewlett-Packard”) and Applicant/Grantee Contact of Record for Hewlett-Packard together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Peter Tevlin Title: Engineering Program Coordinator Address: Hewlett-Packard Company Mailstop 510101 10320 Rodgers Road Houston, TX 77070 Telephone: 281-927-3605 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: David P. Adams Canada/USA Region Technical Regulations Manager 1501 Page Mill Road, MS 1419 Palo Alto, CA 94304-1126 650.258.7586 [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Palo Alto, California, on the date indicated below my signature. ____________________________ Signature David P. Adams Canada/USA Technical Regulations Manager Hewlett-Packard Company __May 30, 2014__________________________ Date

Hewlett‐Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650‐258‐7586 Date: August 15, 2014 SUBJECT: FCC Application for FCC ID: B94HNC78BWTXN/ B94HNC78BWRXN To Whom It May Concern: We hereby declare that the integrated WLAN/BT module, WLAN/BT antenna, Printed Circuit Board trace, layout, product form factor of FCC ID: B94HNC78BWTXN and FCC ID: B94HNC78BWRXN are identical to FCC ID: B94HNC78CBXN. The only difference between the devices is the integrated WWAN module. Based on the similarity between these devices, we hereby request to leverage the RF Exposure test results of FCC ID: B94HNC78CBXN to demonstrate the compliance of FCC ID: B94HNC78BWTXN and FCC ID: B94HNC78BWRXN regarding to FCC RF Exposure requirements. Sincerely yours, Peter S. Tevlin [email protected]

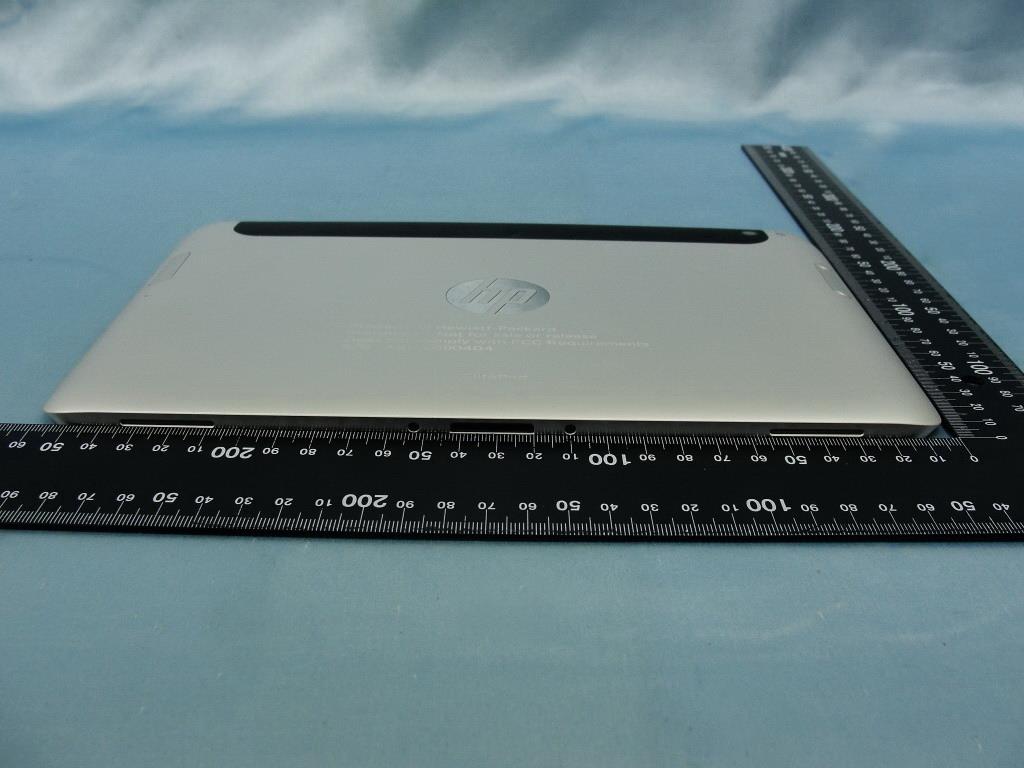

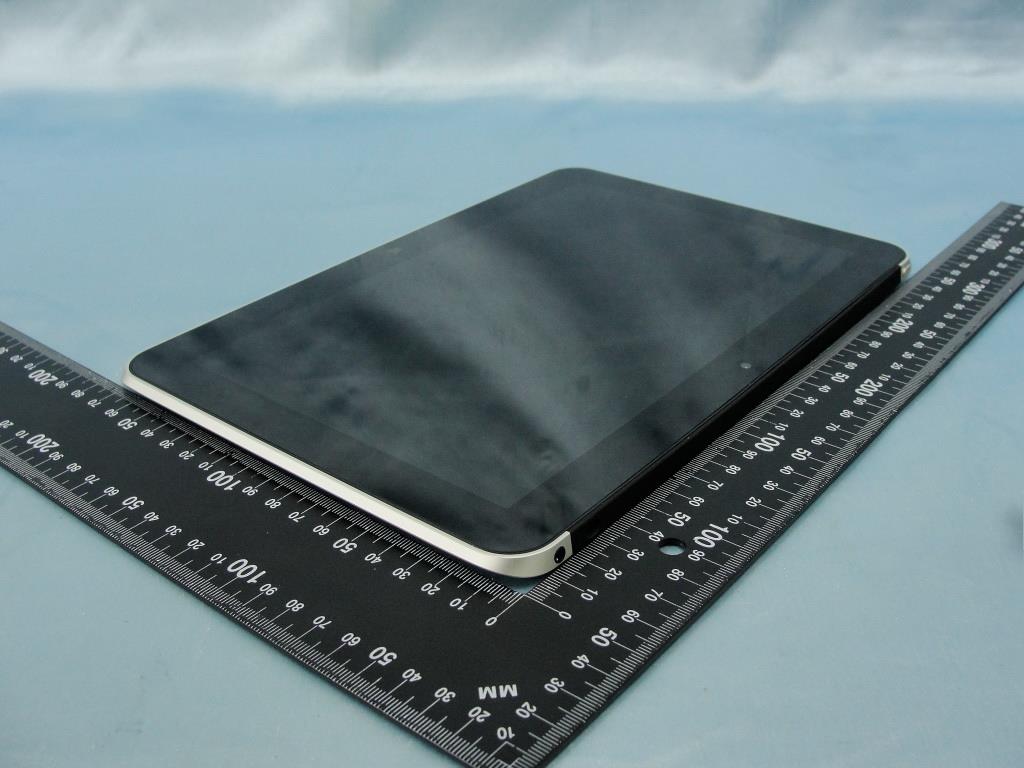

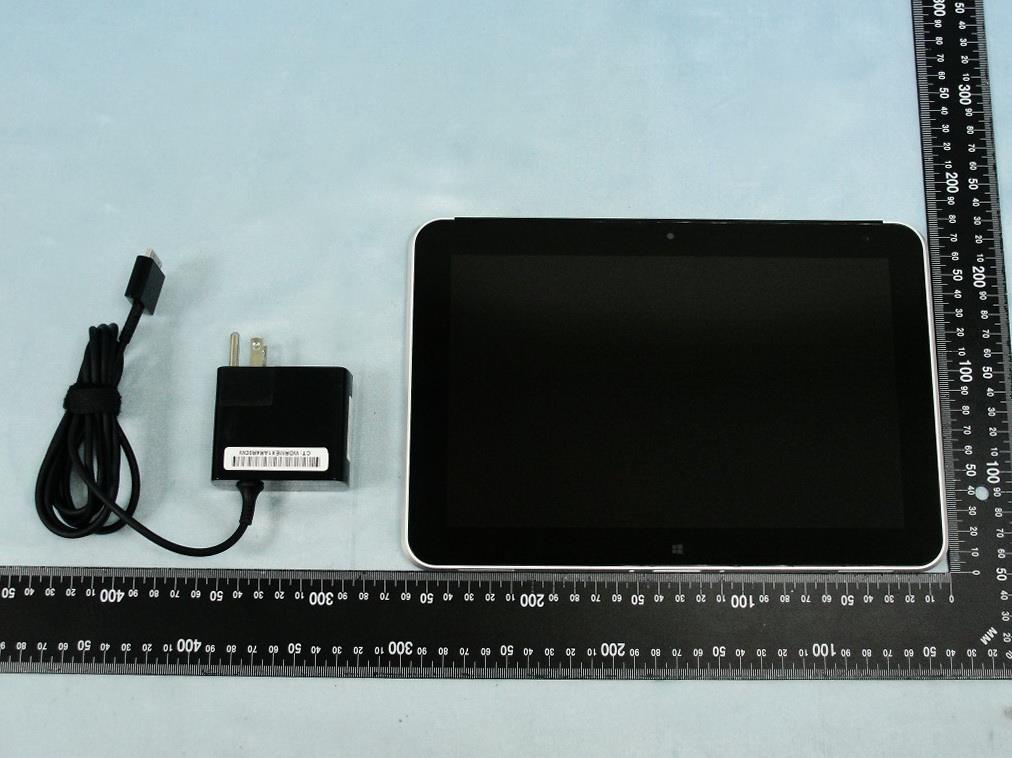

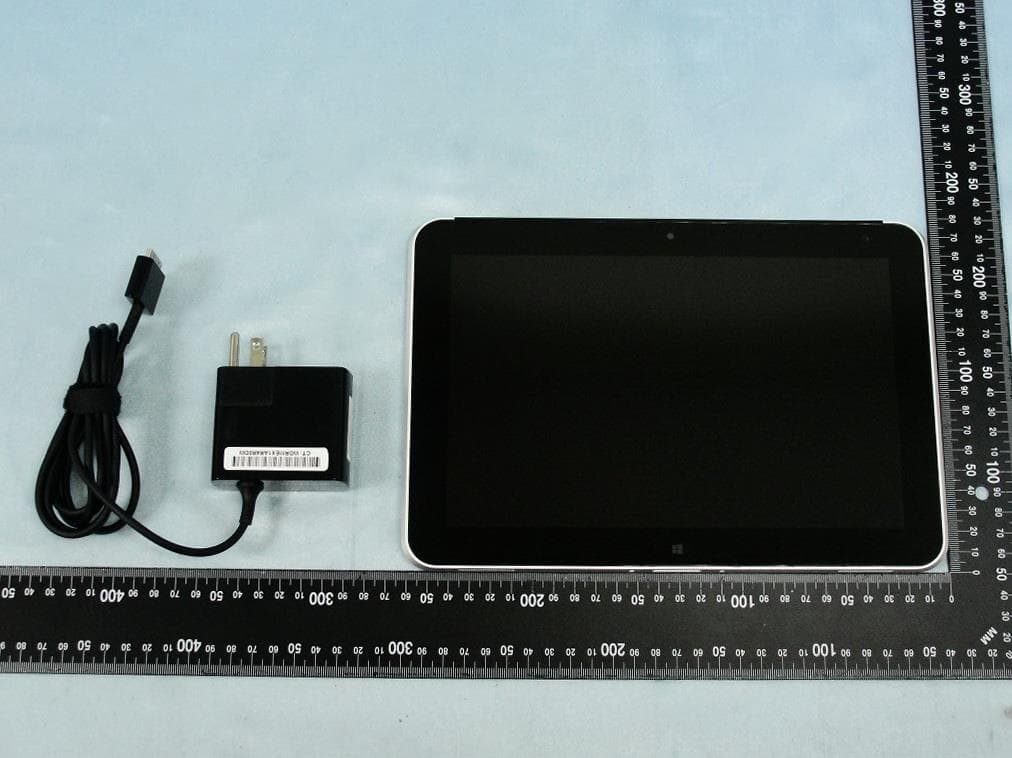

Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 1 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN 1. External Photograph of EUT Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 2 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 3 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 4 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN 720510 Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 5 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN Specification of Accessory AC Adapter Brand Name HP Model Name HSTNN-DA34 Battery 1 Brand Name HP Model Name HSTNN-IB5O Battery 2 Brand Name HP Model Name HSTNN-LB5O WWAN Module Brand Name SIERRA Model Name EM7355 WLAN Module Brand Name Mitsumi Model Name DWM-W095A Remark: 1. For accessories equipped with this EUT, please refer to the following photos. 2. There have two batteries for EUT, The Battery 1 (model name: HSTNN-IB5O) and Battery 2 (model name: HSTNN-LB5O) are identical on power rating. The only differences are vendor and model name. All the tests were performed with Battery 1. 2. Photograph of Accessory Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 6 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 7 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN AC Adapter Photographs of EUT Report No.: EP392719-15 Brand Name: hp / Model Name: HSTNN-C78C SPORTON INTERNATIONAL INC. Page Number : 8 of 48 TEL : 886-3-327-3456 Report Issued Date : Jul. 28, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : B94HNC78BWTXN

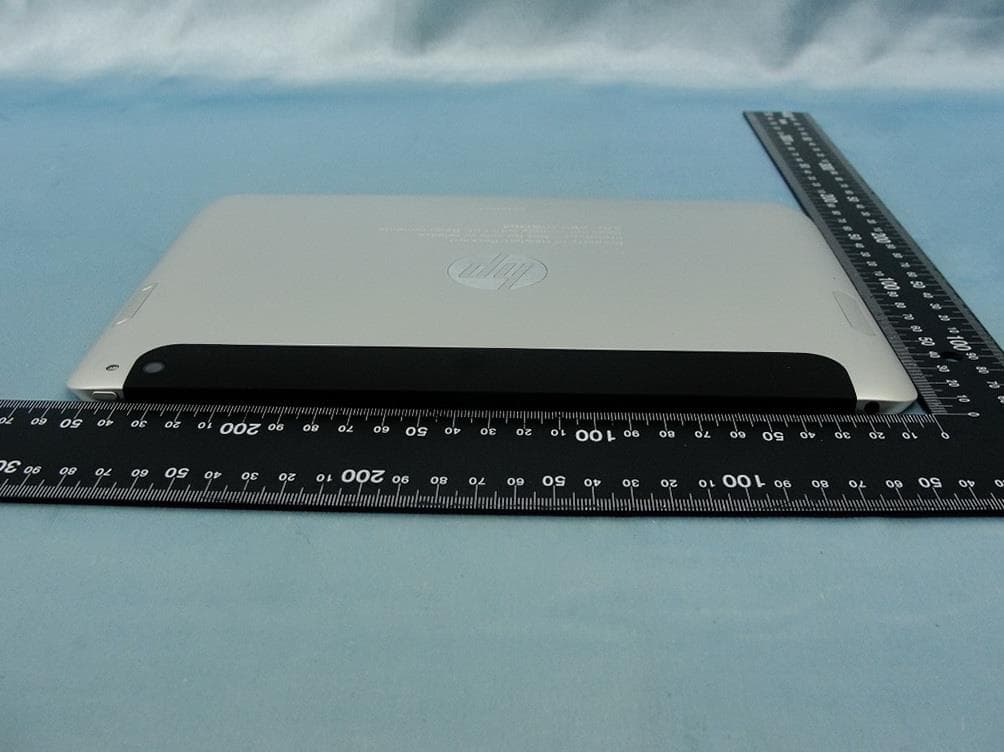

Back of EUT (Tablet) Label Location

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Aug. 06, 2014 FCC ID : B94HNC78BWTXN Page 1 of 104 Form version. : 140422 FCC SAR Test Report Report No. : FA392719-15 FCC SAR Test Report APPLICANT : Hewlett-Packard Company EQUIPMENT : Tablet PC BRAND NAME : hp MODEL NAME : HSTNN-C78C FCC ID : B94HNC78BWTXN STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Aug. 06, 2014 FCC ID : B94HNC78BWTXN Page 2 of 104 Form version. : 140422 FCC SAR Test Report Report No. : FA392719-15 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Maximum Tune-up Limit ......................................................................................................................................... 7 4.3 General LTE SAR Test and Reporting Considerations ..........................................................................................10 5. Proximity Sensor Triggering Test ...............................................................................................................................12 6. RF Exposure Limits......................................................................................................................................................15 6.1 Uncontrolled Environment .....................................................................................................................................15 6.2 Controlled Environment .........................................................................................................................................15 7. Specific Absorption Rate (SAR) ..................................................................................................................................16 7.1 Introduction ...........................................................................................................................................................16 7.2 SAR Definition .......................................................................................................................................................16 8. System Description and Setup ...................................................................................................................................17 9. Measurement Procedures ...........................................................................................................................................18 9.1 Spatial Peak SAR Evaluation ................................................................................................................................18 9.2 Power Reference Measurement............................................................................................................................19 9.3 Area Scan .............................................................................................................................................................19 9.4 Zoom Scan ............................................................................................................................................................20 9.5 Volume Scan Procedures ......................................................................................................................................20 9.6 Power Drift Monitoring ...........................................................................................................................................20 10. Test Equipment List ...................................................................................................................................................21 11. System Verification ....................................................................................................................................................22 11.1 Tissue Verification ...............................................................................................................................................22 11.2 System Performance Check Results ...................................................................................................................23 12. RF Exposure Positions ..............................................................................................................................................23 12.1 SAR Testing for Tablet .........................................................................................................................................23 13. Conducted RF Output Power (Unit: dBm) .................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D1750V2, serial no. 1068 Extended Dipole Calibrations Referring to KDB865664 D01v01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1750V2 – serial no. 1068 1750 Head 1750 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedanc e (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 06.20.2012 -47.657 49.816 29.486 -27.154 45.852 60.393 06.20.2013 -47.859 -0.424% 50.019 -0.203 28.949 0.537 -27.268 -0.42% 45.592 0.26 60.120 0.273 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D1750 V2, serial no. 1068 (Date of Measurement : 6.20.2013) 1750 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 1750 MHz – Body

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/11/18 System Check_Body_2450MHz_131118 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_1311118 Medium parameters used: f = 2450 MHz; σ = 2.015 S/m; ε r = 53.957; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.76, 6.76, 6.76); Calibrated: 2013/10/15; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 29.1 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 114.7 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 37.9 W/kg SAR(1 g) = 12.2 W/…
